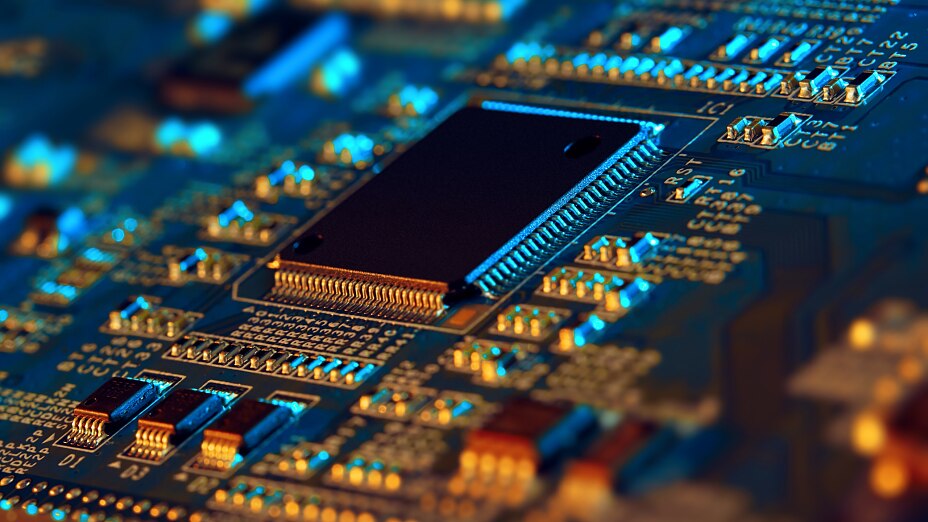

tesa_electronics_computer-chip-on-circuit-board

Thermal Management Tapes

Solutions that keeps devices cool.



5G technology and the trend towards higher energy consumption generate more heat on components such as core chip modules and antenna applications in mobile devices. This increased temperature of components leads to a variety of effects such as performance and malfunction on the component itself and also on the performance of the entire device. End users may get a negative image of the device, such as low performance at slow data speeds, low reliability, or discomfort from high surface temperature of the device. These issues need to be addressed and our thermal management tapes can help.

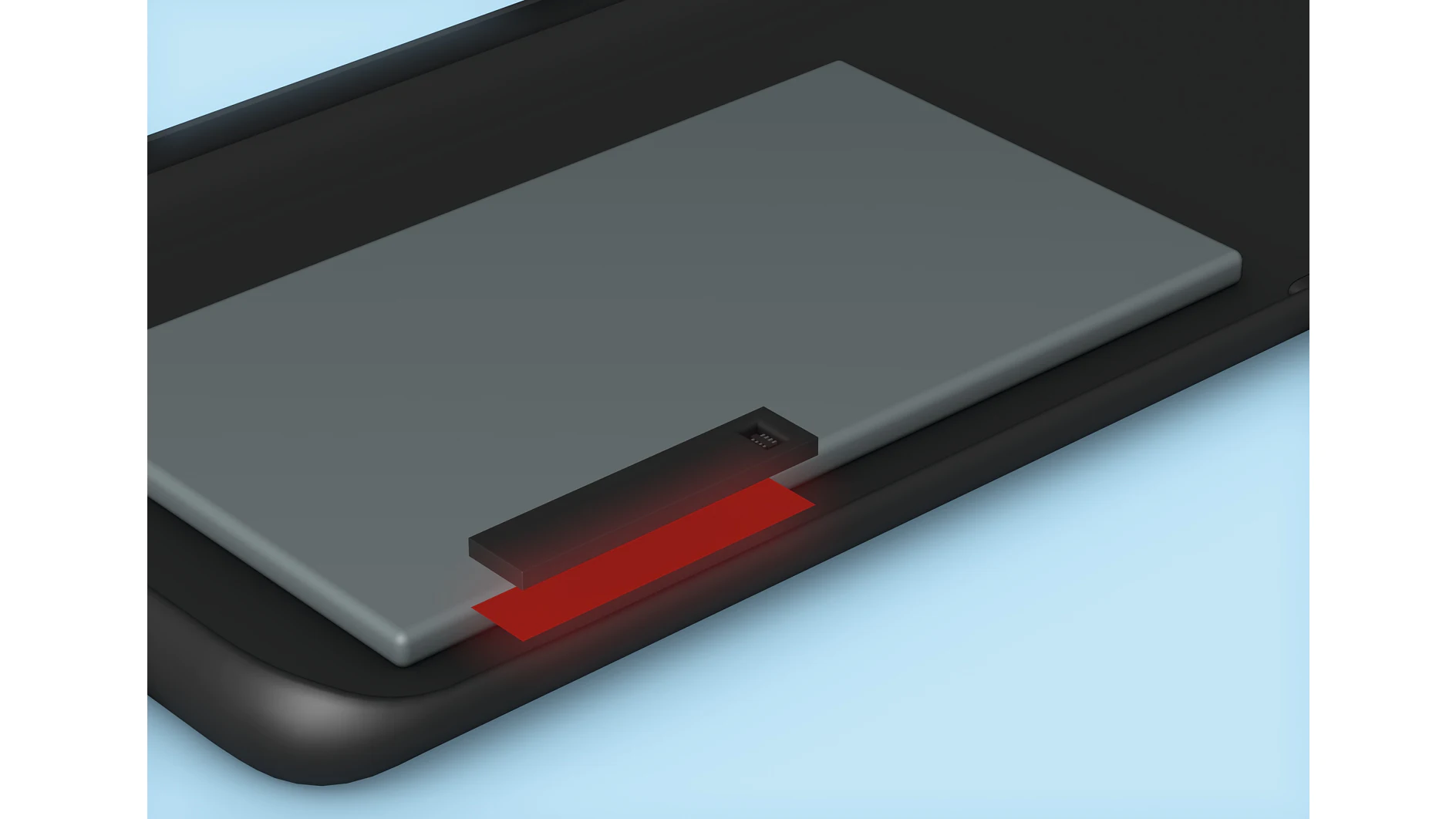

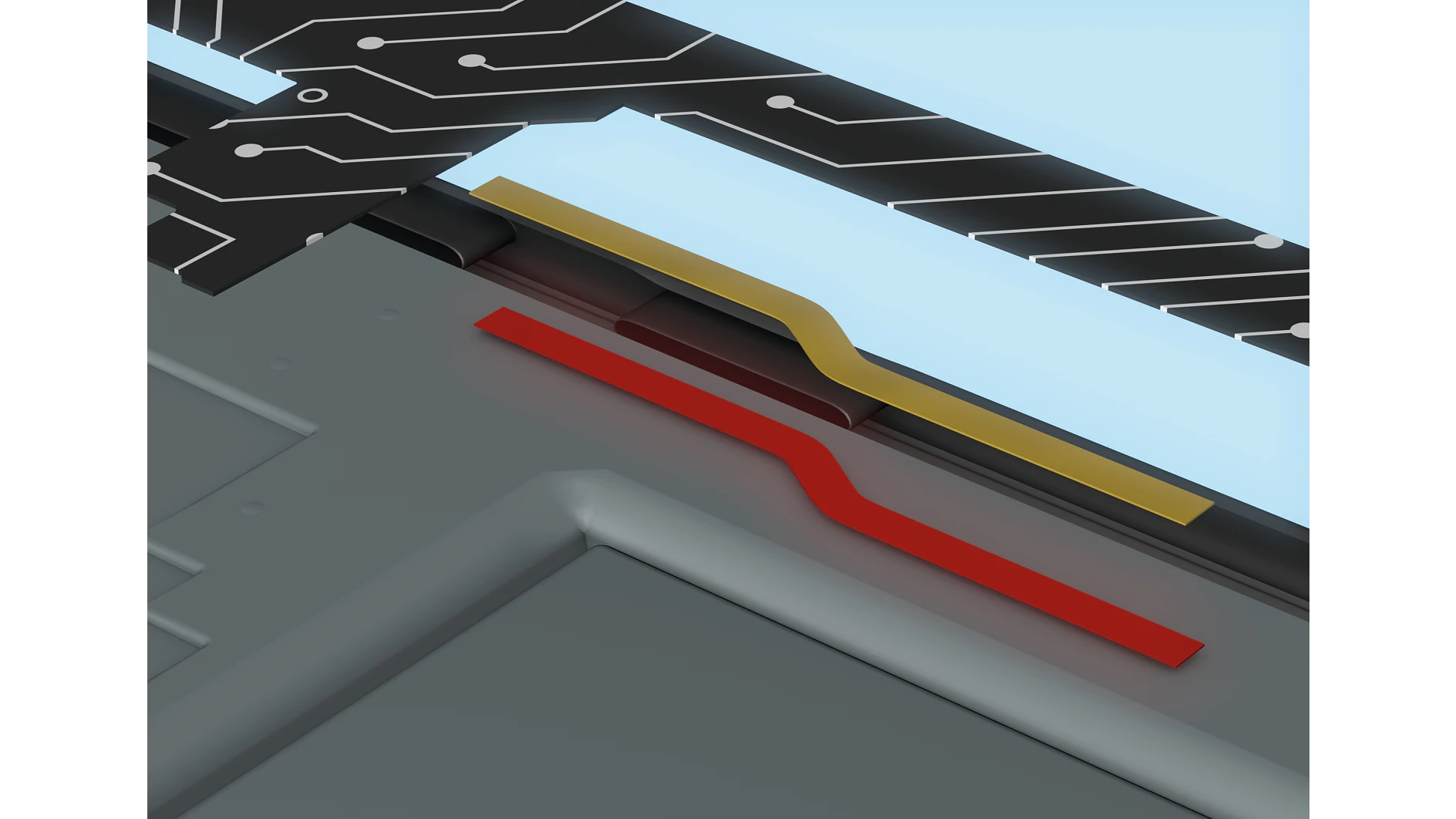

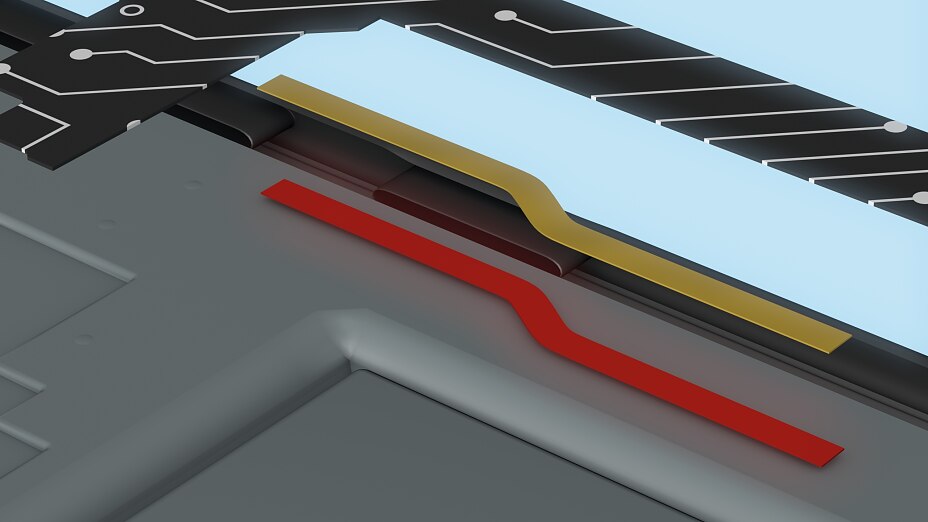

Typical applications of our TMT assortment

te19_1115_TMT_2Pager_V5_191212.indd

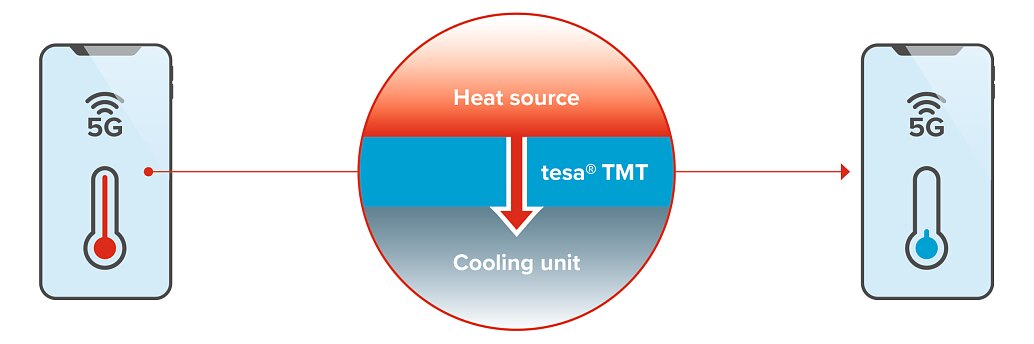

Functionality of Thermal Management Tapes.

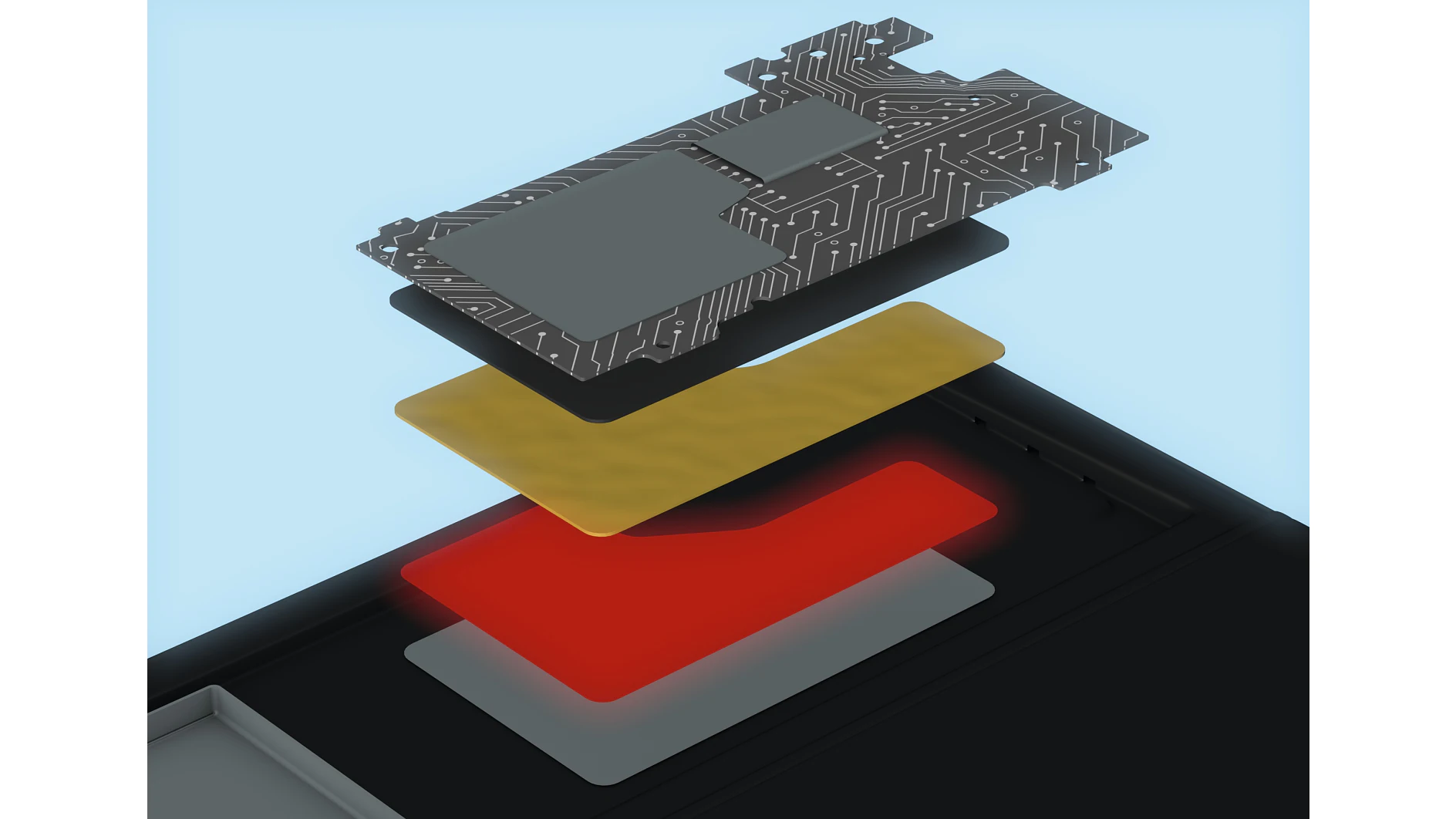

Mounting of heat sources/components on heat spreaders like housings, heat pipes, or vapor chambers.

tesa® TMT 6073x

tesa_TMT_productillustration_final_300dpi

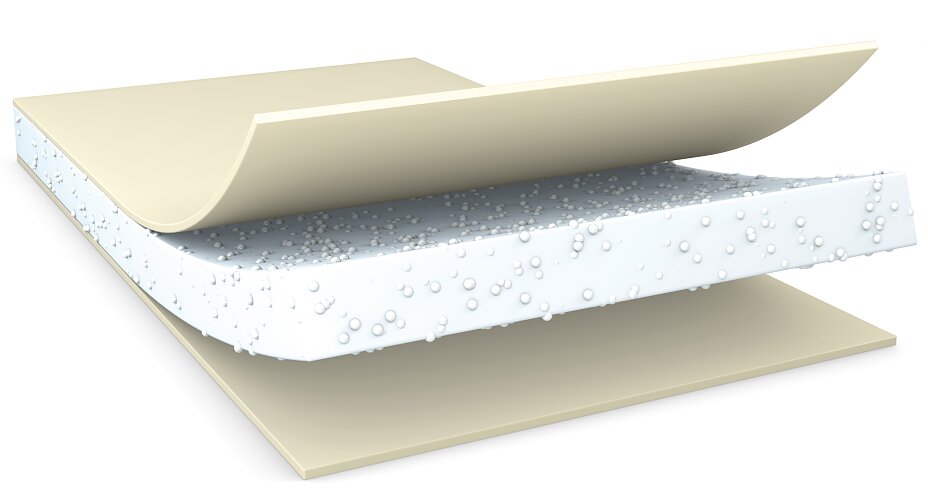

Product design of tesa® TMT 6073x

Normal PSA solutions are limited in their thermal management. This is due to two factors:

  1. Poor wet-out properties lead to air inclusions during bonding process.
  2. Low thermal conductivity results from high thermal impedance.

Therefore, normal PSAs are not very efficient in heat dissipation in z-direction.



tesa® TMT 6073x addresses precisely these challenges. The adhesive used has excellent wet-out properties and is also supplemented with thermally conductive filler elements to ensure high thermal conductivity. A strong bonding strength enables the secure bonding of different components. Additionally the tape has an excellent electrical insulation.

Features

tesa_Icon-uneven-surfaces_rot

Surface wet-out

Tesa_icons_für_produktillustrationen_151002

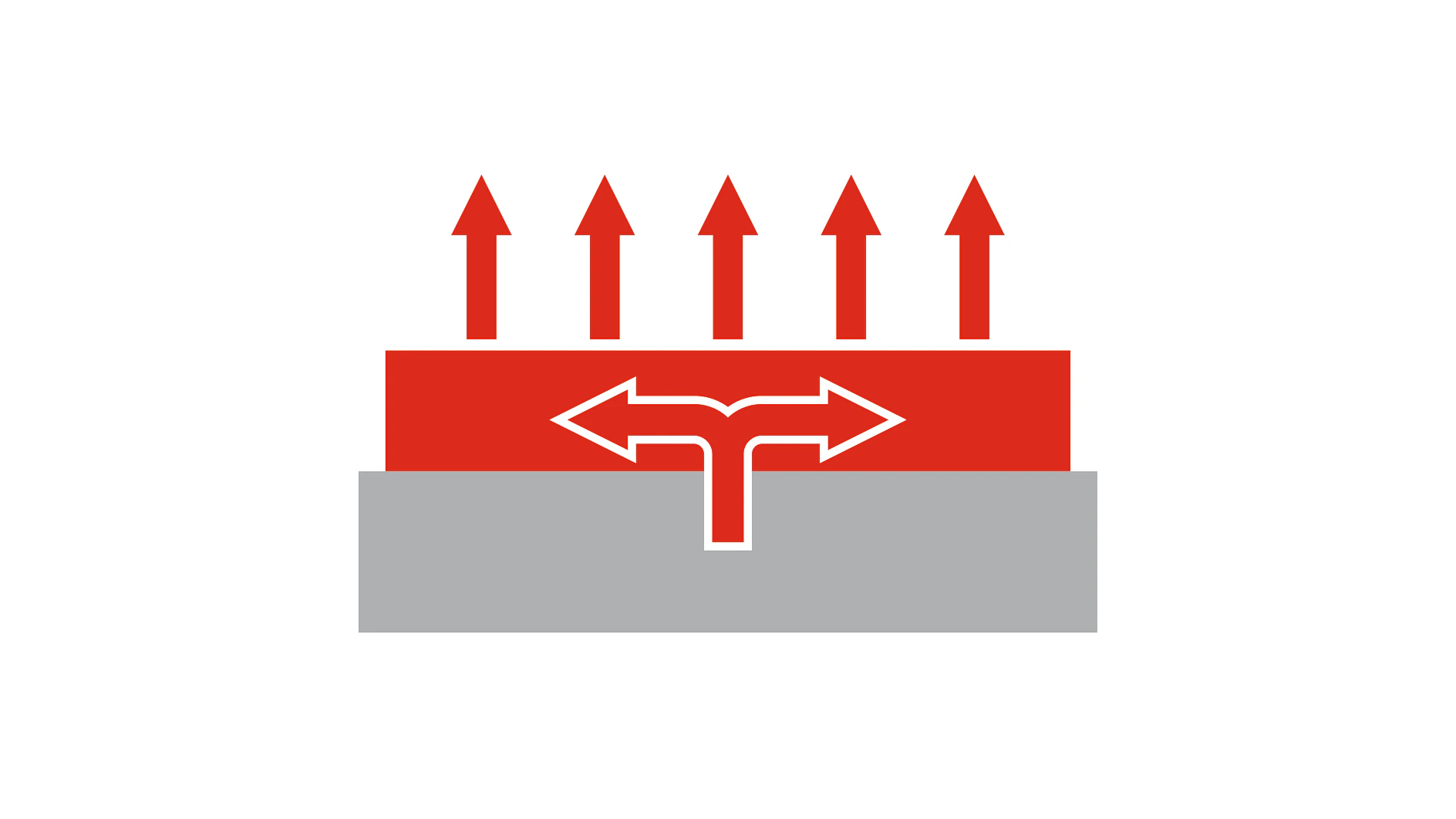

Thermal conductivity

Measurment of the forces needed to peel off the tape in the opposite direction (180°)

Bonding performance

Druck

Electrical insulation

Thermal Management Tapes - Performance Overview

Product
Color
Thickness [μm]
Wetting [%]
Thermal conductivity
[W/m x K] ASTM D5470
Peel adhesion [N/cm] ASTM D3330
Dielectric strength [kV/mm] ASTM D-149
tesa® TMT 60731

White

30

89

0.6

4.3

33

tesa® TMT 60732

White

50

90

0.6

4.7

25

tesa® TMT 60733

White

100

92

0.7

5.0

20

Downloads
tesa-not-sure-right-solution

We have more options available in our portfolio and by partnering with you we can create unique and specialized products that meet your individual demands.

Simply write to us or contact your local representative.
