Electrically Conductive Solutions

Electrically Conductive Solutions

Our Electrically Conductive Solution for smartphones, tablets, notebooks, TVs, wearables, and other smart devices.

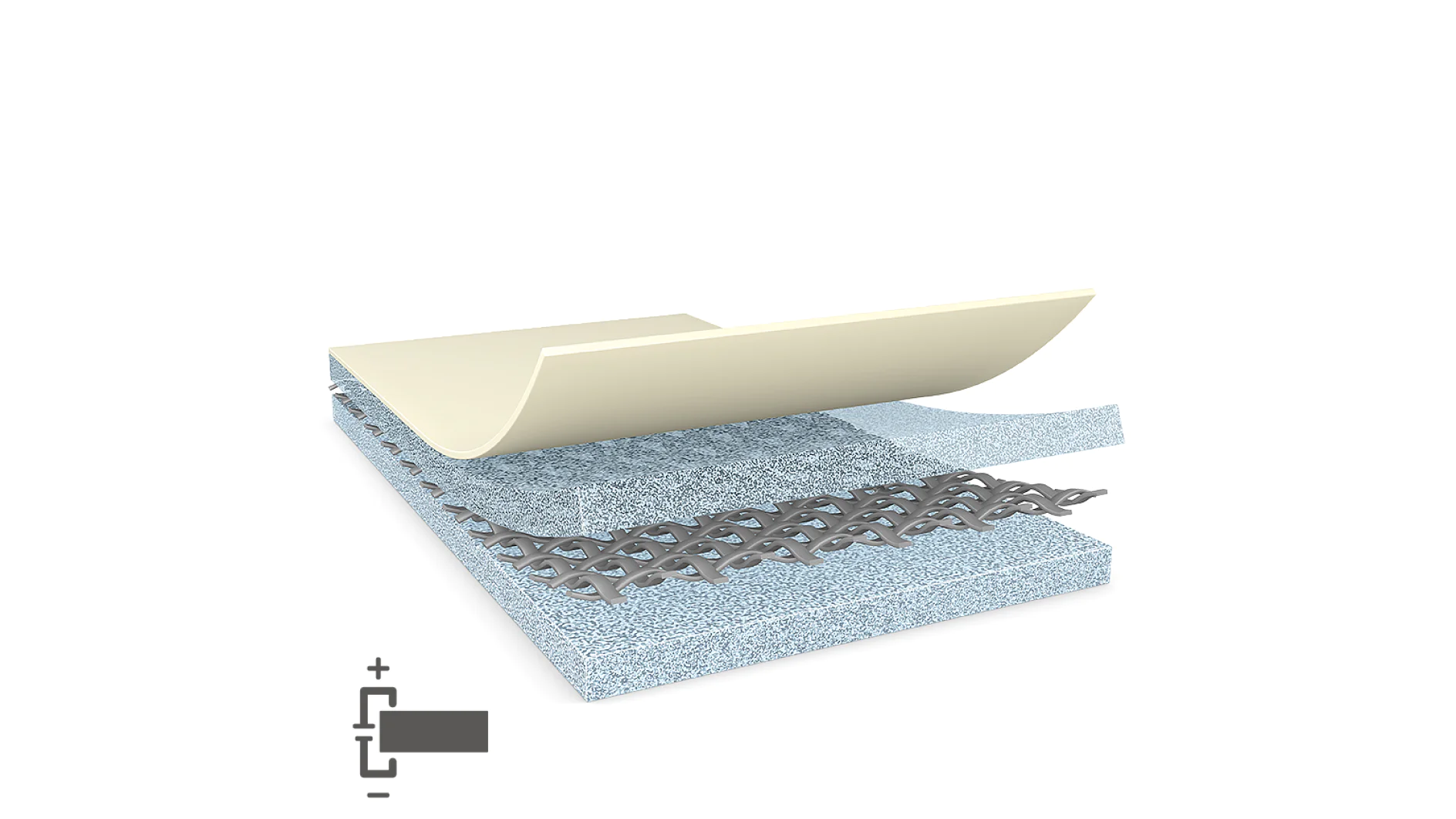

Double-sided ECT – For Applications Requiring Grounding

By offering a broad assortment of filled acrylic adhesive systems with a balance between electrical conductivity and adhesive properties we are able to provide the best solution for your requirements. Simply decide what is most important for your application: bonding performance, conductivity, or both balanced. Our double-sided tapes are available with two different backings. The woven backing offers a higher tear resistance, very good dimensional stability, and better reworkability, while the non-woven backing provides faster wetting, excellent conformability, and very good die-cuttability.

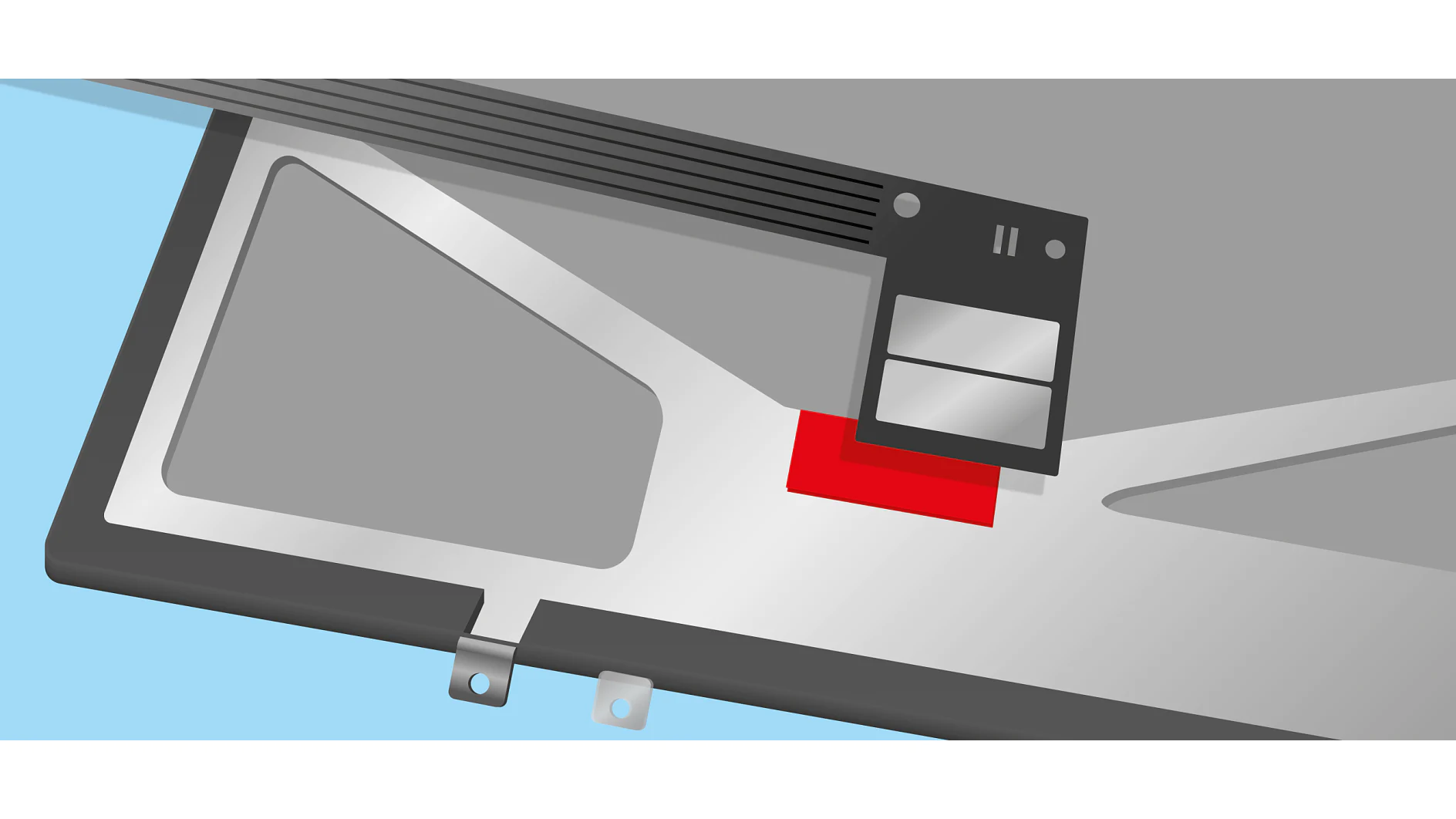

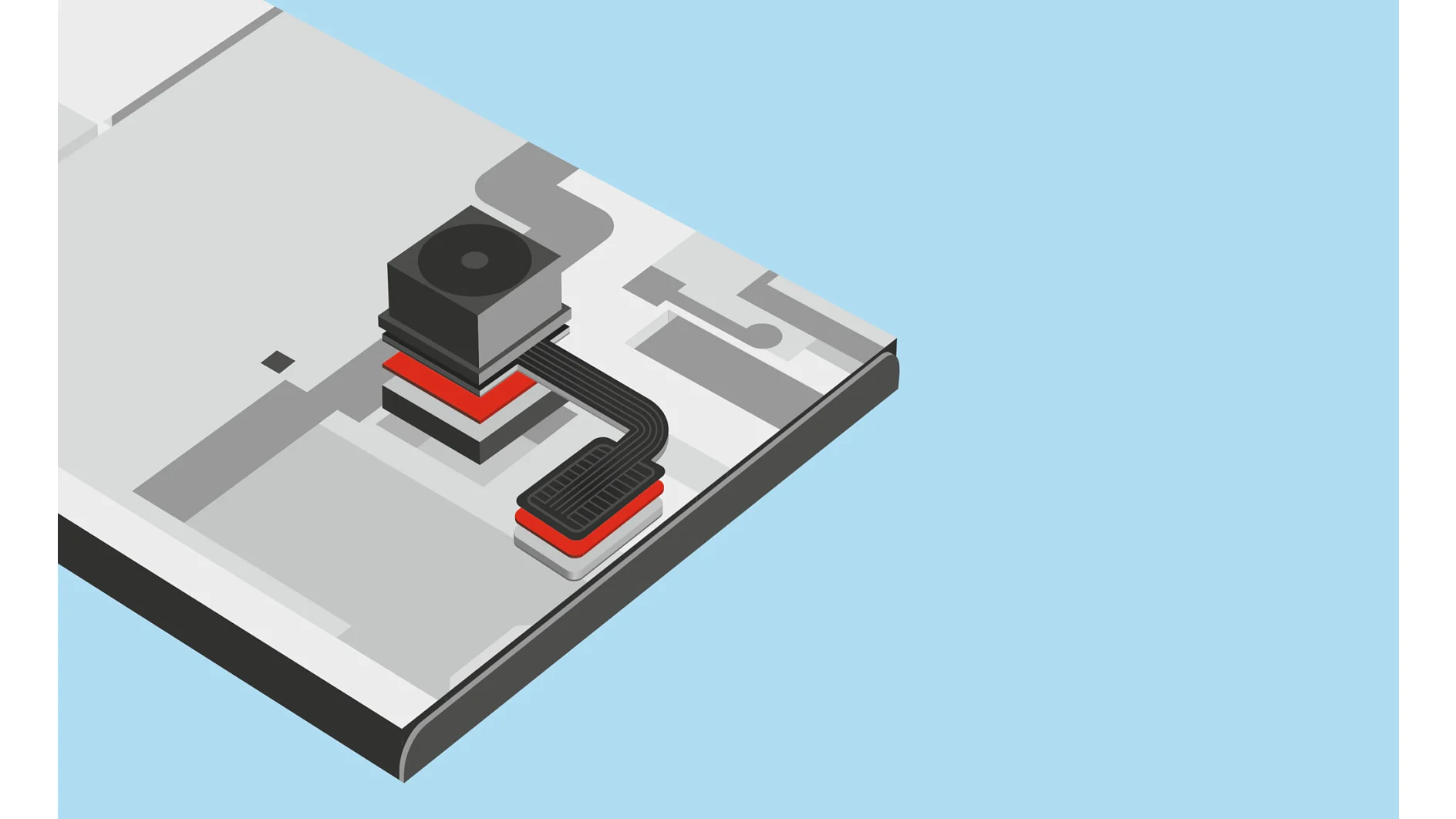

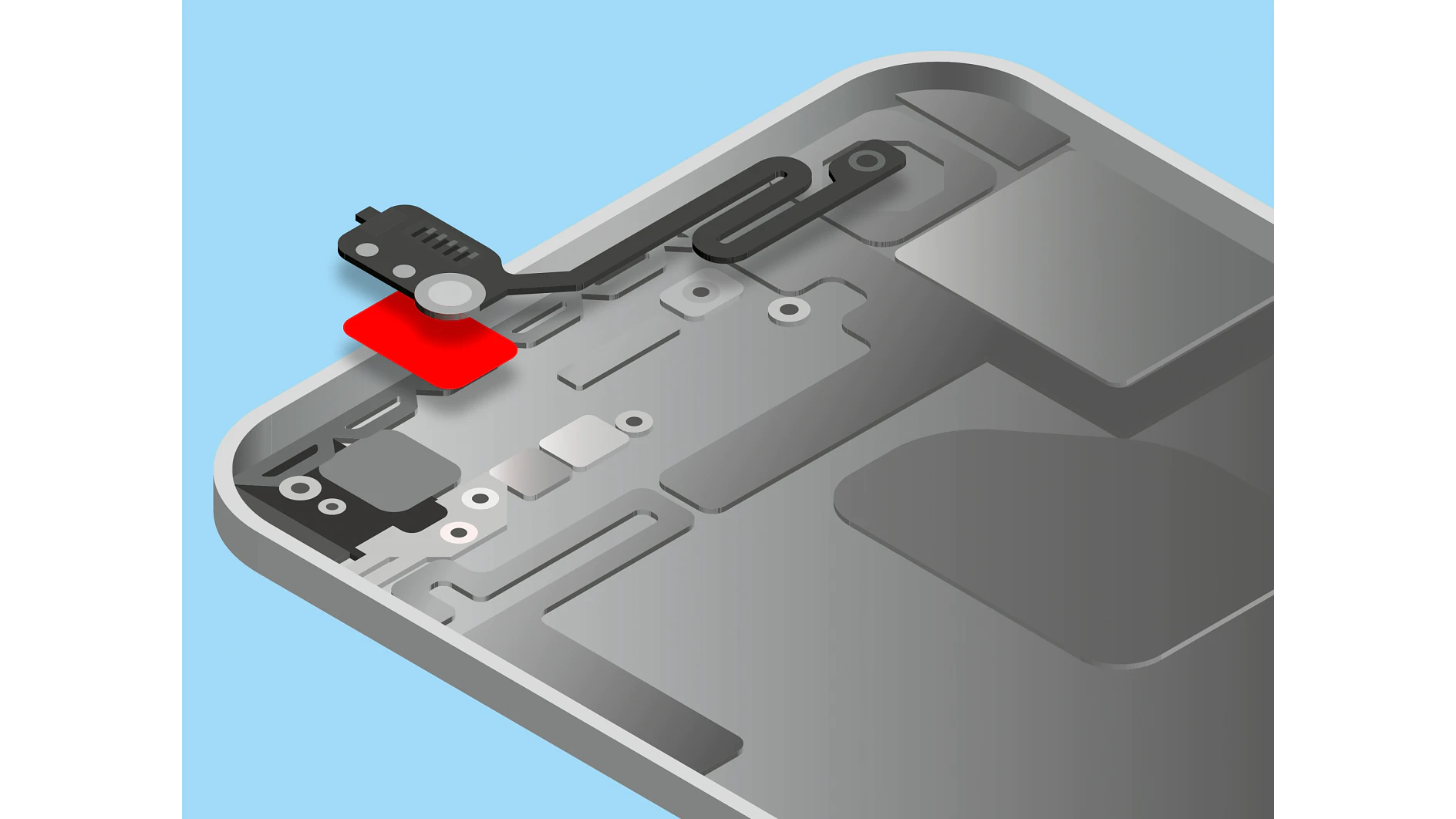

Typical applications of our double-sided ECT assortment

tesa ® ECT 6025x/6026x

These series provide a balanced performance of conductivity and bonding performance. Thanks to the various backings, the performance profile can be optimally adapted to individual applications.

tesa ® ECT 6037x

The tesa ® ECT 6037x series provides the highest conductivity in our DSECT assortment. The contact resistance, even in harsh environmental conditions, is extremely low.

tesa ® ECT 6038x

tesa ® ECT 6038x has the best bonding performance in this assortment, offers very high peel adhesion values, and is resistant to repulsive forces.


Single-sided ECT – For Covering and Shielding Applications

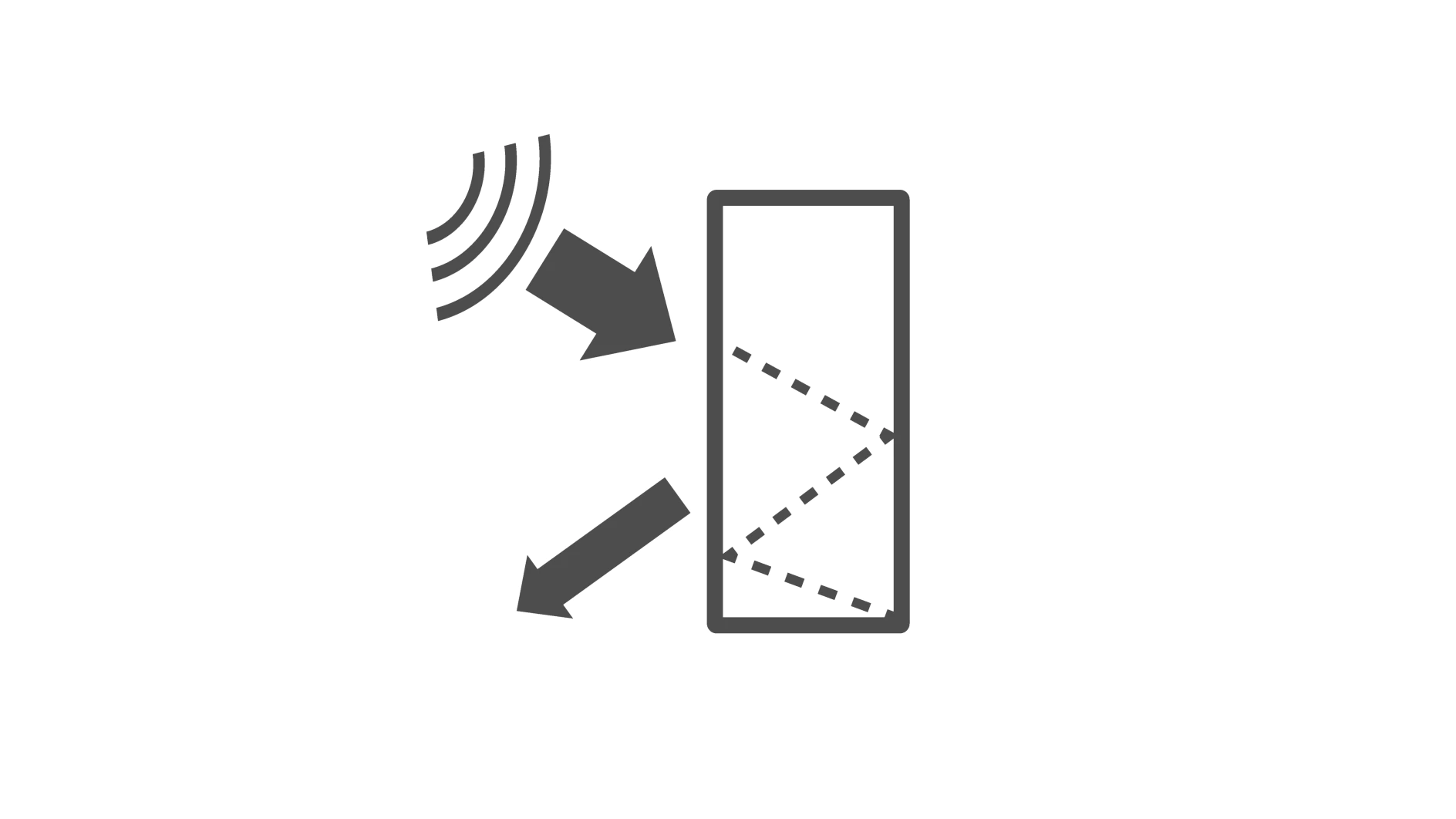

Covering and shielding applications are broad and have different requirements for conductivity, adhesion, and design. Our single-sided ECT assortment meets the latest requirements for shielding and appearance.

Typical applications of our single-sided ECT assortment

Covering and shielding applications requiring good bonding and anti-repulsion properties as well as high EMI shielding. We provide special solutions for applications with a demand for a attractive, modern appearance.

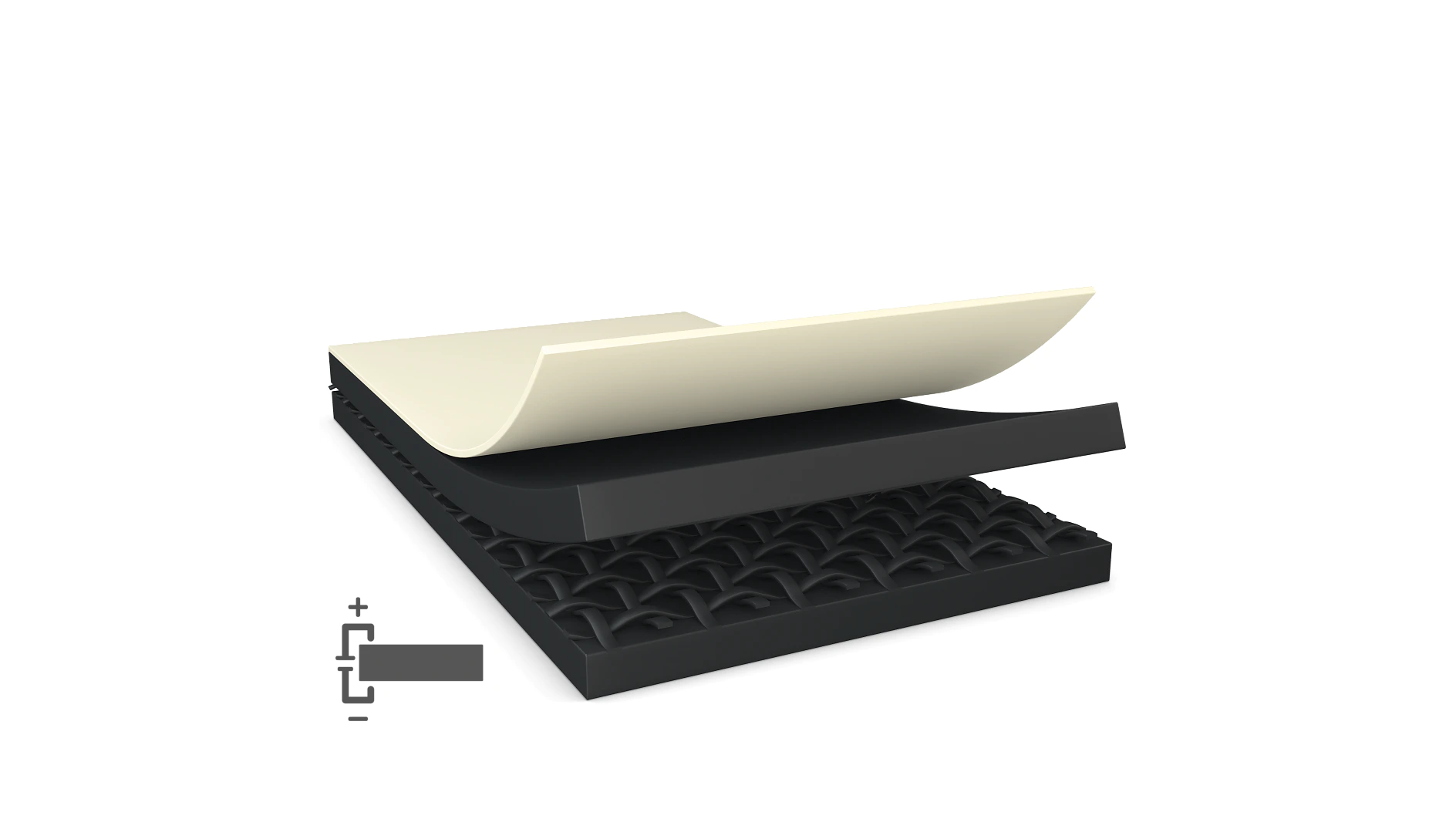

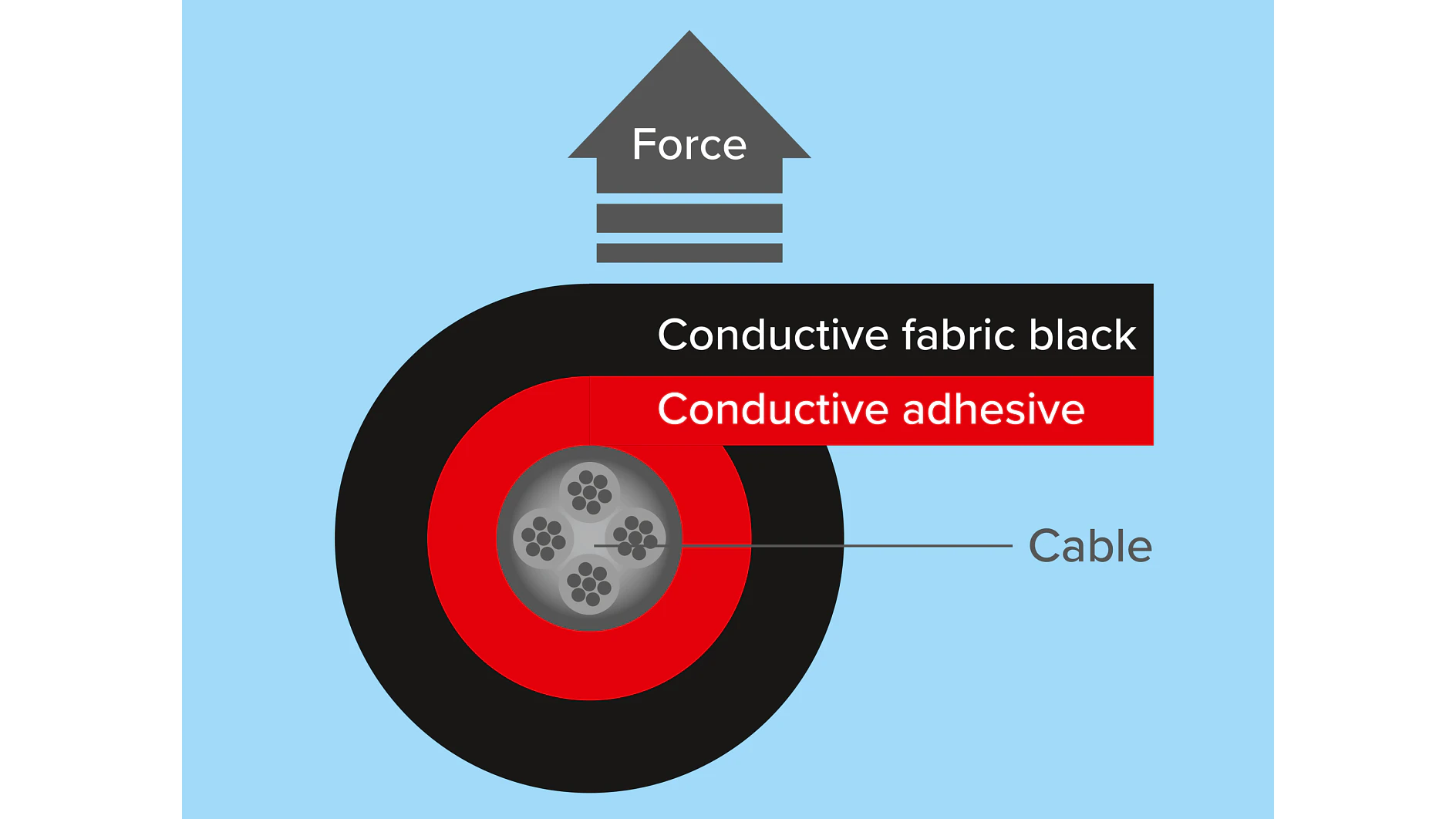

tesa ® ECT 6023x

The matte black design of our tesa ® SSECT 6023x series meets the latest requirements for a modern, high-quality appearance. It is available with two different backings (fabric and copper) to even better meet individual needs on bonding, shielding, and appearance.

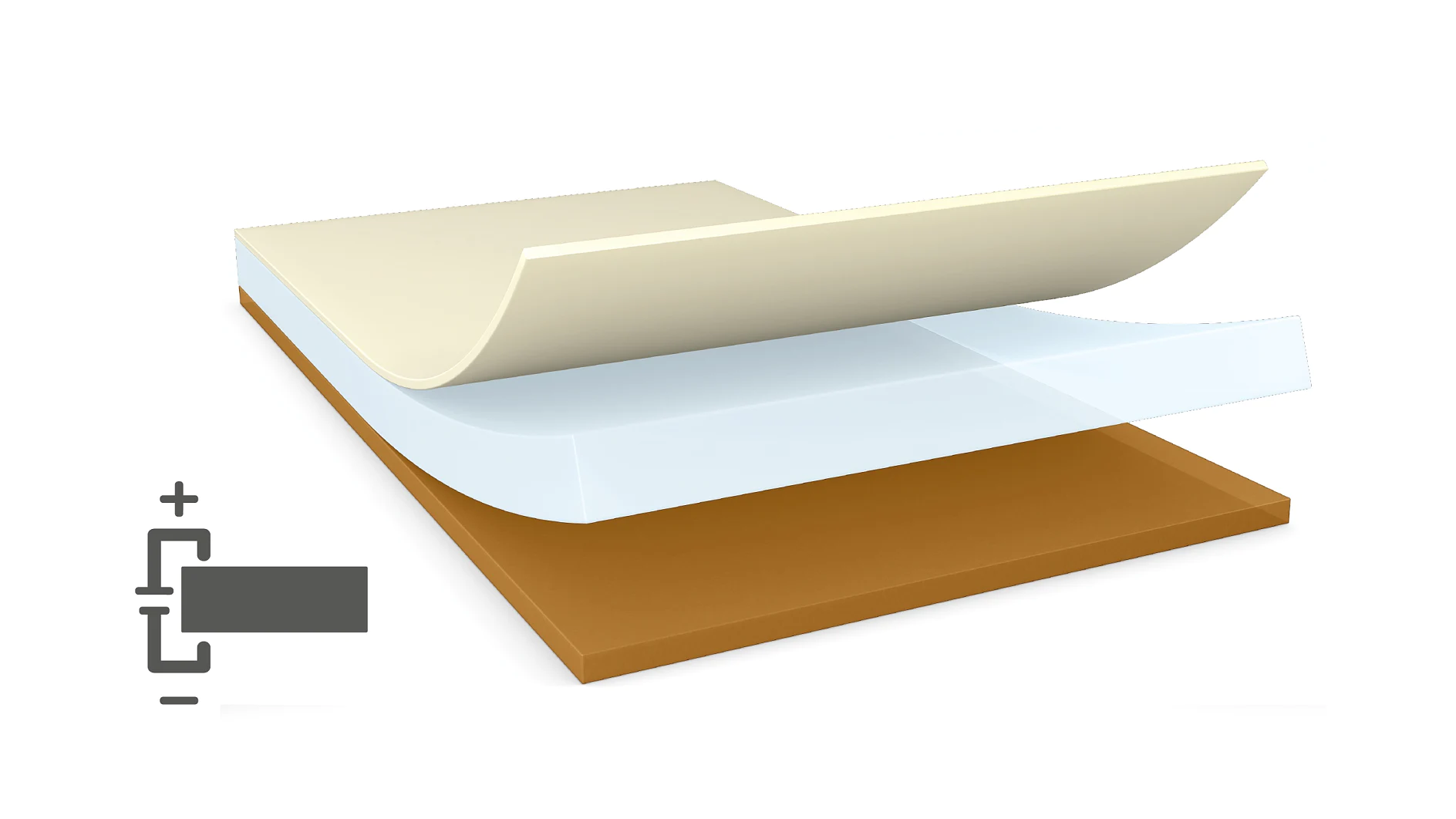

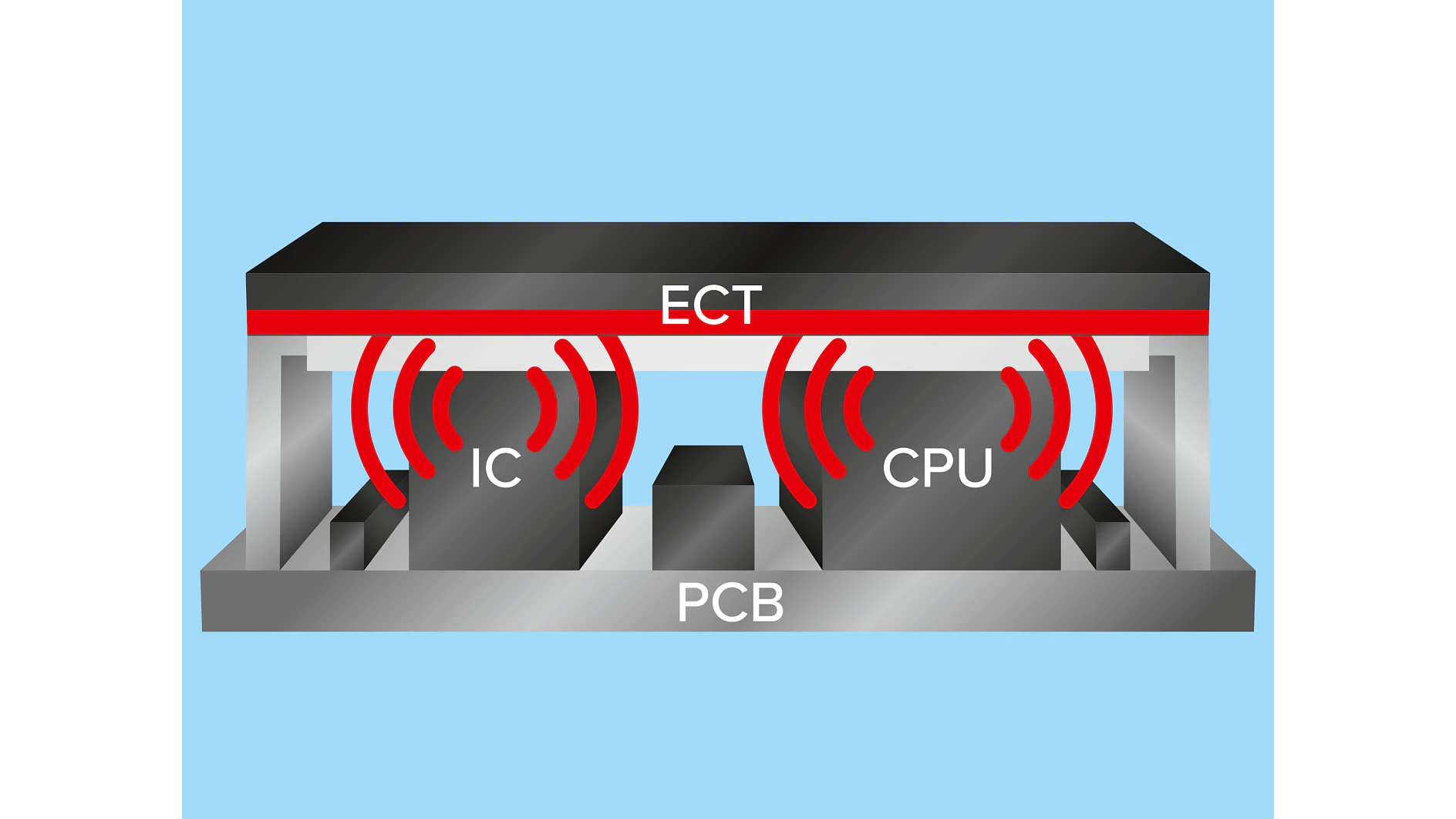

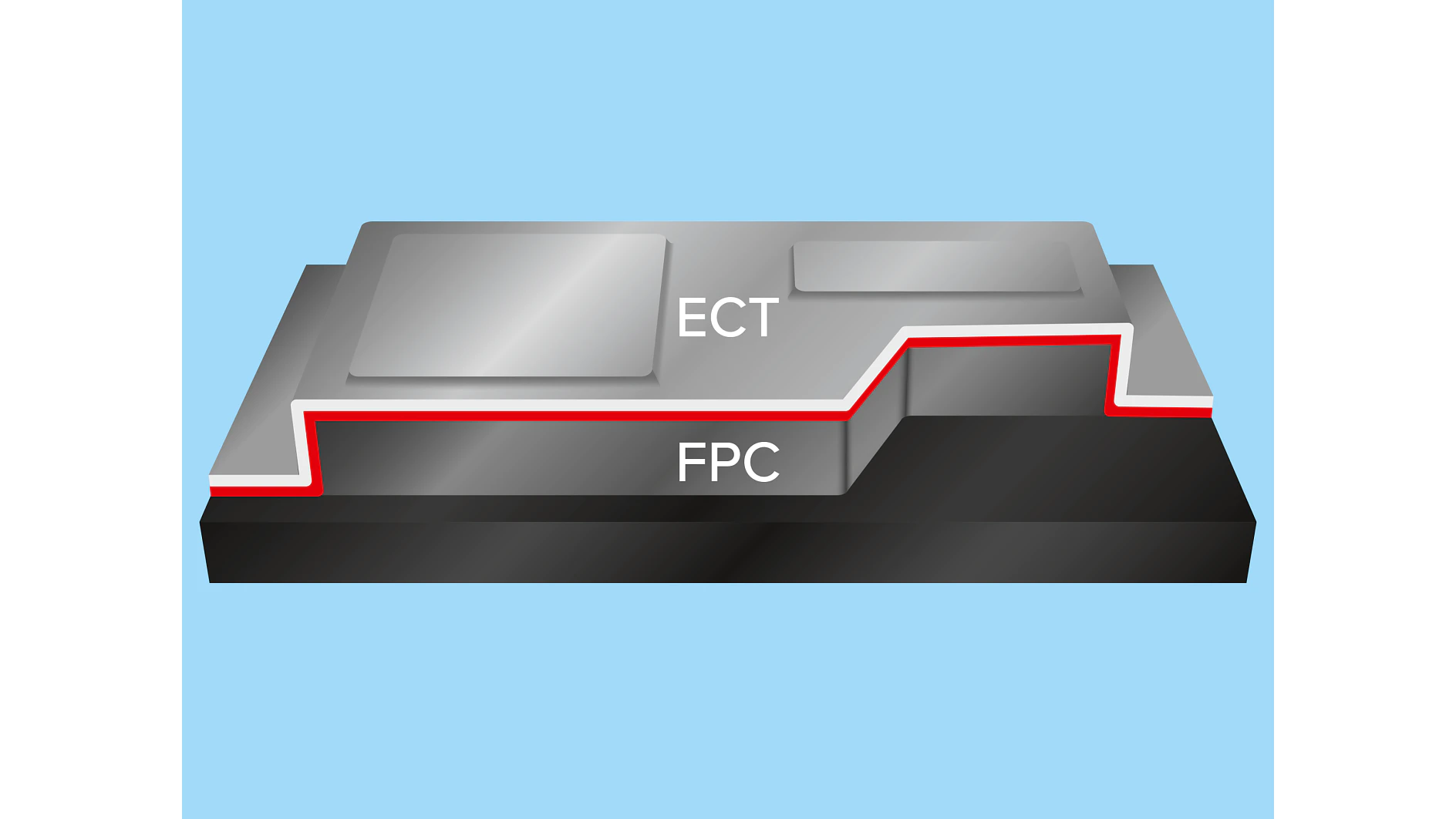

tesa ® ECT 6053x

This series provides the best bonding and anti-repulsion performance in our ECT assortment, while the copper backing ensures high EMI shielding and heat spreading.

tesa ® ECT 6031x

This series has been specially developed for applications which may only be exposed to low pressure. Even then this tape offers excellent conductivity, shielding, and adhesion.


Single-sided Foam ECT – For Conductive Gap-Filling

Our single-sided electrically conductive foam tapes offer shielding, grounding, and gap-filling. They will provide either outstanding conformability and recovery properties or a very high abrasion resistance depending on the chosen foam material. All series in this assortment have very good shock-absorbing and cushioning properties.



Read more

Typical applications of our single-sided Foam ECT assortment​

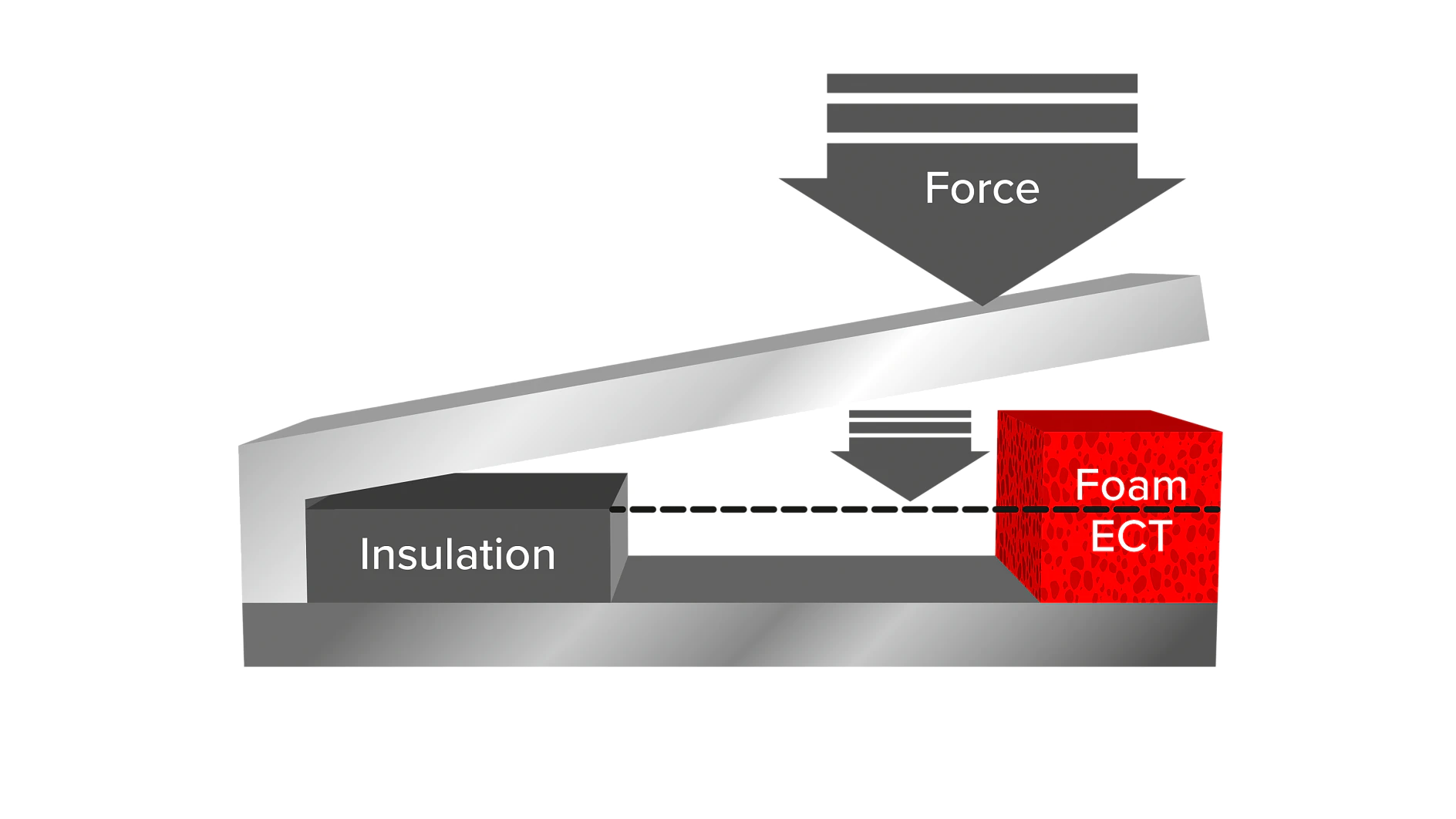

tesa-electronics-ect-foam-compression-gap-filling-illustration
General gap-filling application under compression

Applications which require single-sided conductive gap-filling solutions with the demand for a certain compressibility and/or abrasion resistance.

Read more

tesa ® ECT 6021x

tesa ® SFECT 6021x offers the best conductivity and shielding performance in our electrically conductive foam tape assortment. The soft sponge foam backing is highly compressible, with excellent recovery properties.

tesa ® ECT 6068x

The ultra-soft foam backing of this series further improves the compressibility and the recovery properties at very low forces, while it still has high EMI shielding.

tesa ® ECT 6024x

The highly stable gasket foam which is used in this series is highly suitable for applications with fixed gaps that need normal compression forces. It is very resistant to abrasion from die-cutting and lamination processes.


EC HAF – For Applications with Extraordinary Requirements

Our innovative solution for applications requiring extreme bonding performance and outstanding conductivity. It combines the best features of our Heat-Activated Films (HAF) and electrically conductive PSAs (ECT). tesa ® EC HAF is not tacky at room temperature and must be activated by heat and pressure starting at temperatures above 120°C.

Typical applications of our EC HAF assortment

Applications that require structural bonding performance and reliable electrical conductivity. tesa ® EC HAF is the right solution for applications needing superior anti-repulsion and grounding properties even under harsh conditions.

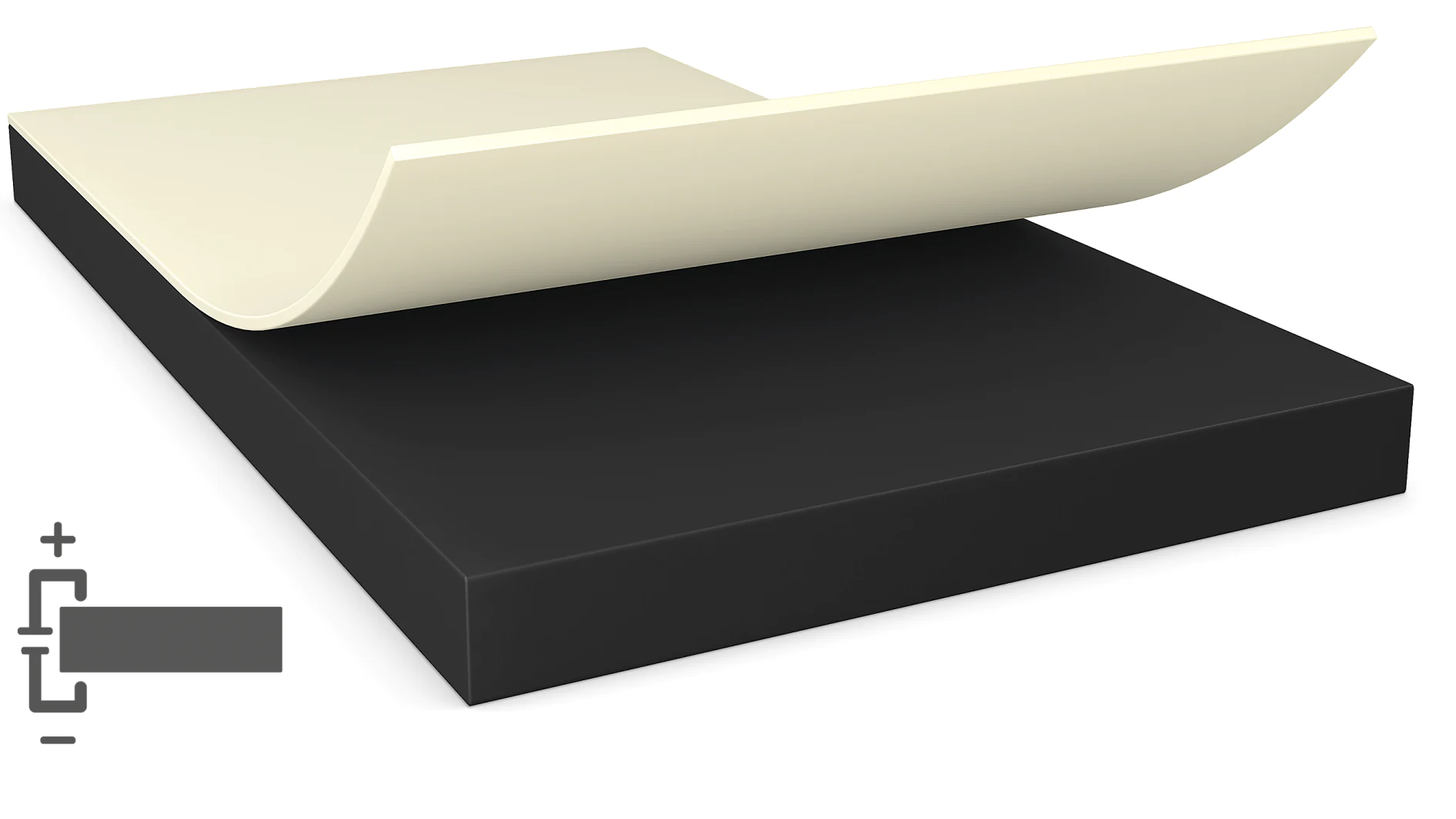

tesa ® EC HAF 5845x/5842x

Our EC HAF series combine electrical conductivity and outstanding structural bonding performance. Additionally, they are highly resistant to repulsive forces and harsh environmental conditions. While the 5845x series is isotropically xyz-axis electrically conductive, the anisotropic version 5842x is conductive in the z-direction only.



Read more
icon-temperature-humidity-resistance
Temperature and humidity resistance

Read more
tesa_Icon-Business Solution-001_72dpi

Can´t find the right solution?

We have more options available in our portfolio and by partnering with you we can create unique and specialized products that meet your individual demands.


Simply write to us or contact your local representative.
electronics@tesa.com

Assortment overview

Show filters
tesa® 60213
Specifications
conductive foam
conductive acrylic
200 µm
tesa® 60214
Specifications
conductive foam
conductive acrylic
300 µm
tesa® 60217
Specifications
conductive foam
conductive acrylic
1500 µm
tesa® 60218
Specifications
conductive foam
conductive acrylic
2000 µm
tesa® 60231
Specifications
conductive non-woven
conductive acrylic
25 µm
tesa® 60232
Specifications
conductive woven
conductive acrylic
35 µm
tesa® 60234
Specifications
black conductive fabric
conductive acrylic
55 µm
tesa® 60238
Specifications
black-coated copper
conductive acrylic
45 µm
tesa® 60246
Specifications
conductive foam
conductive acrylic
300 µm
tesa® 60248
Specifications
conductive foam
conductive acrylic
500 µm
tesa® 60249
Specifications
conductive foam
conductive acrylic
700 µm
tesa® 60251
Specifications
conductive woven
conductive acrylic
55 µm
tesa® 60252
Specifications
conductive woven
conductive acrylic
55 µm
tesa® 60253
Specifications
conductive woven
conductive acrylic
70 µm
tesa® 60254
Specifications
conductive woven
conductive acrylic
100 µm
tesa® 60255
Specifications
conductive woven
conductive acrylic
150 µm
tesa® 60256
Specifications
conductive woven
conductive acrylic
200 µm
tesa® 60257
Specifications
conductive woven
conductive acrylic
250 µm
tesa® 60260
Specifications
conductive non-woven
conductive acrylic
tesa® 60261
Specifications
conductive non-woven
conductive acrylic
tesa® 60262
Specifications
conductive non-woven
conductive acrylic
50 µm
tesa® 60264
Specifications
conductive non-woven
conductive acrylic
17 µm
tesa® 60371
Specifications
conductive non-woven
conductive acrylic
30 µm
tesa® 60372
Specifications
conductive non-woven
conductive acrylic
50 µm
tesa® 60374
Specifications
conductive woven
conductive acrylic
100 µm
tesa® 60381
Specifications
conductive woven
conductive acrylic
50 µm
tesa® 60382
Specifications
conductive non-woven
conductive acrylic
50 µm
tesa® 60384
Specifications
conductive woven
conductive acrylic
100 µm
tesa® 60385
Specifications
conductive non-woven
conductive acrylic
100 µm
tesa® 60685
Specifications
conductive foam
conductive acrylic
500 µm
tesa® 60687
Specifications
conductive foam
conductive acrylic
700 µm
tesa® 60688
Specifications
conductive foam
conductive acrylic
1000 µm
