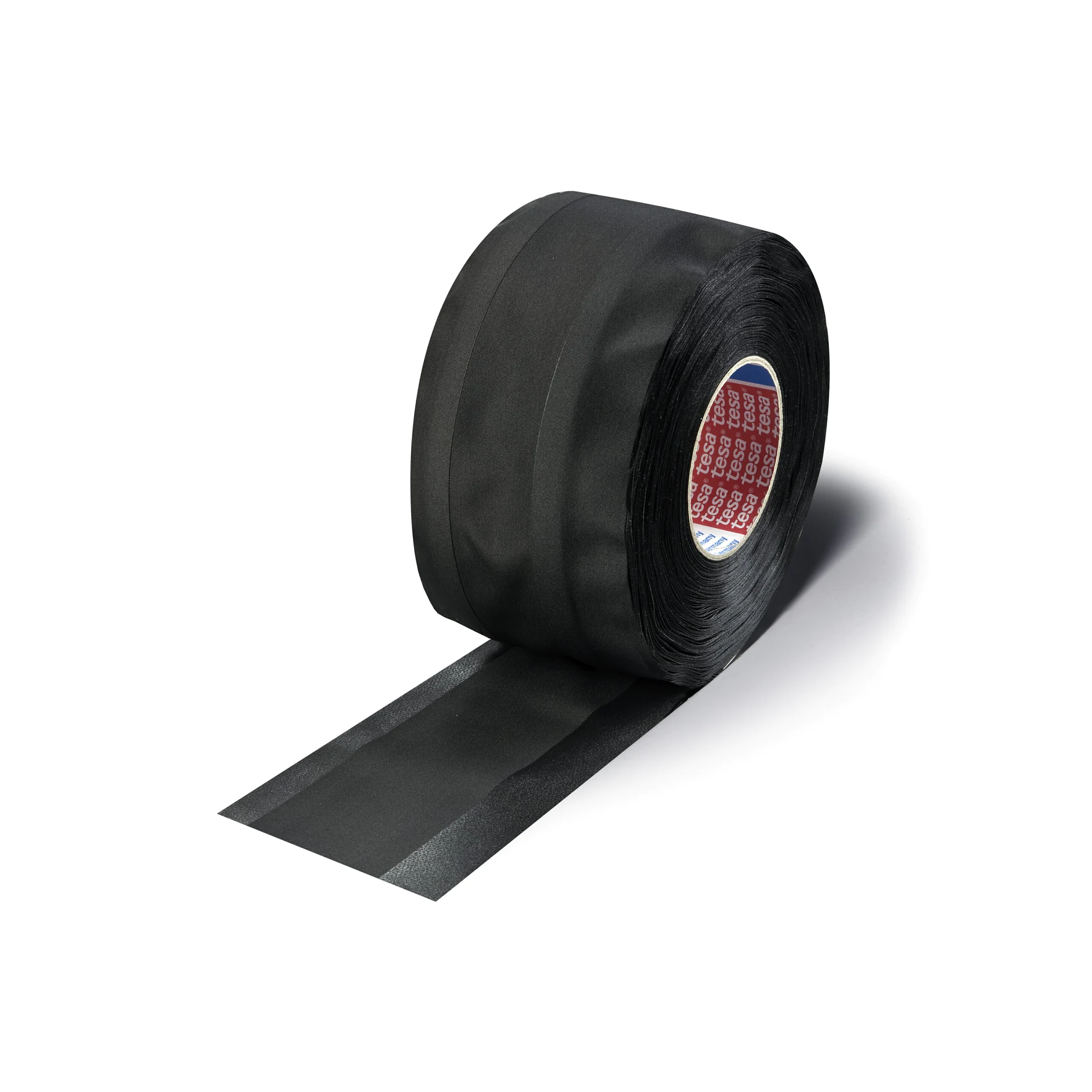

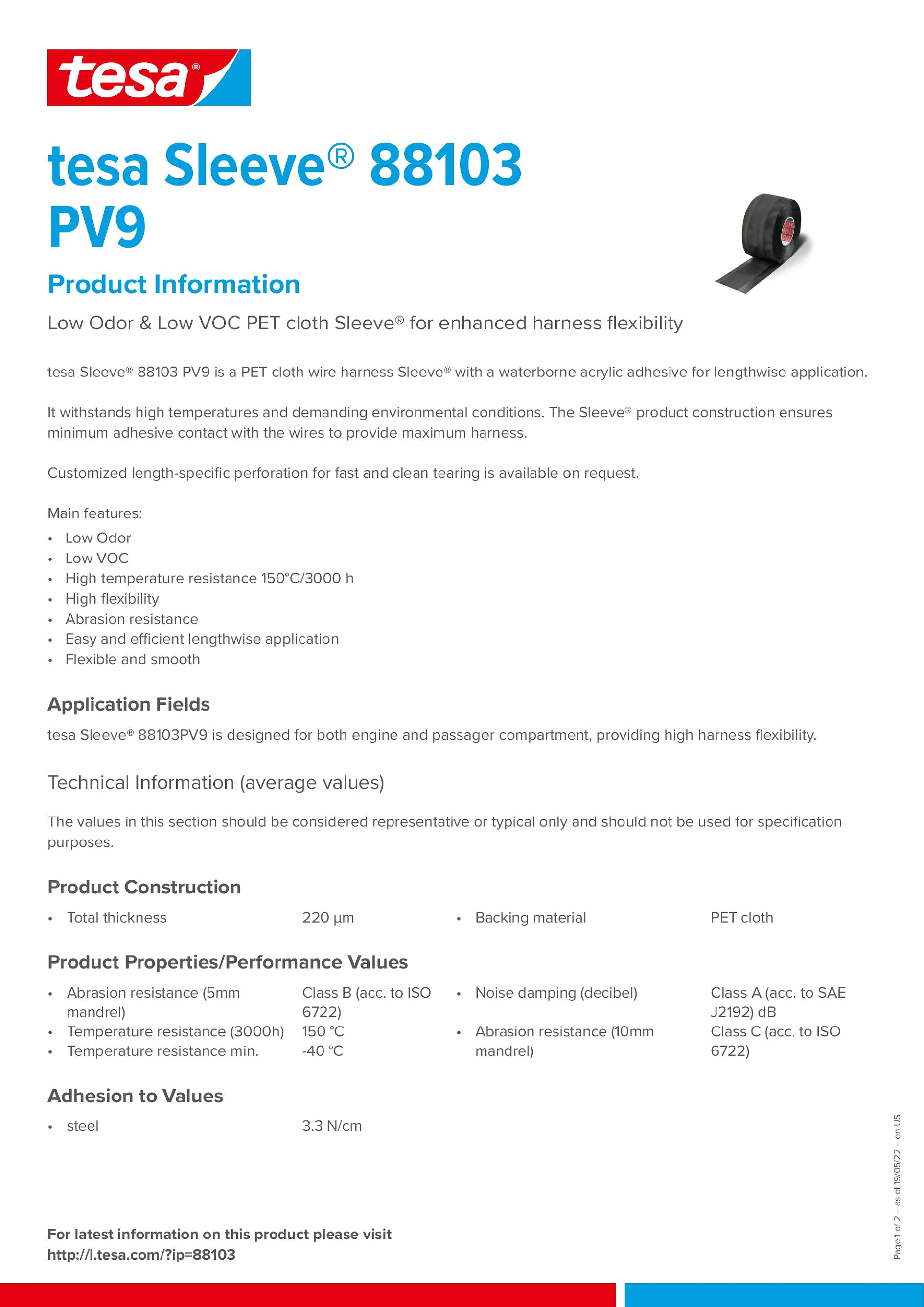

tesa Sleeve® 88103 PV9
Low Odor & Low VOC PET cloth Sleeve® for enhanced harness flexibility
Product description
tesa Sleeve® 88103 PV9 is a PET cloth wire harness Sleeve® with a waterborne acrylic adhesive for lengthwise application.
It withstands high temperatures and demanding environmental conditions. The Sleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness.
Customized length-specific perforation for fast and clean tearing is available on request.
Main features:
It withstands high temperatures and demanding environmental conditions. The Sleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness.
Customized length-specific perforation for fast and clean tearing is available on request.
Main features:
- Low Odor
- Low VOC
- High temperature resistance 150°C/3000 h
- High flexibility
- Abrasion resistance
- Easy and efficient lengthwise application
- Flexible and smooth
Application Fields
tesa Sleeve® 88103PV9 is designed for both engine and passager compartment, providing high harness flexibility.
Product Construction
| Backing material | PET cloth |
| Type of adhesive | acrylic |
| Total thickness | 220 µm |
Properties / Performance Values
| Abrasion resistance (10mm mandrel) | Class C (acc. to ISO 6722) |
| Abrasion resistance (5mm mandrel) | Class B (acc. to ISO 6722) |
| Noise damping (LV312) | A |
| Temperature resistance (3000h) | 150 °C |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to Steel | 3.3 N/cm |
Additional Info
Standard widths: 68, 78, 100, 130, 155, 195 mm
Standard lengths: 50 m
Harness diameter / tesa Sleeve® width recommendation
< Ø 13 mm / 68 mm
Ø 13 mm – 16 mm / 78 mm
Ø 16 mm – 23 mm / 100 mm
Ø 23 mm – 33 mm / 130 mm
Ø 33 mm – 41 mm / 155 mm
Ø 41 mm – 54 mm / 195 mm
Standard lengths: 50 m
- Most combinations of width and length are possible
- Standard perforation length: 100-940 mm (in increments of 10 mm)
- Further dimensions are available on request
Harness diameter / tesa Sleeve® width recommendation
< Ø 13 mm / 68 mm
Ø 13 mm – 16 mm / 78 mm
Ø 16 mm – 23 mm / 100 mm
Ø 23 mm – 33 mm / 130 mm
Ø 33 mm – 41 mm / 155 mm
Ø 41 mm – 54 mm / 195 mm
- Standard core diameter: 76 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
