tesa® 77015 Bond & Detach
150 µm d/s White High Shock & High Tack Stretch Release Tape
Sustainable Aspects
- 47% bio-based adhesive component
- Thickness: 150 µm
- Outstanding shock resistance
- High tack
Product description

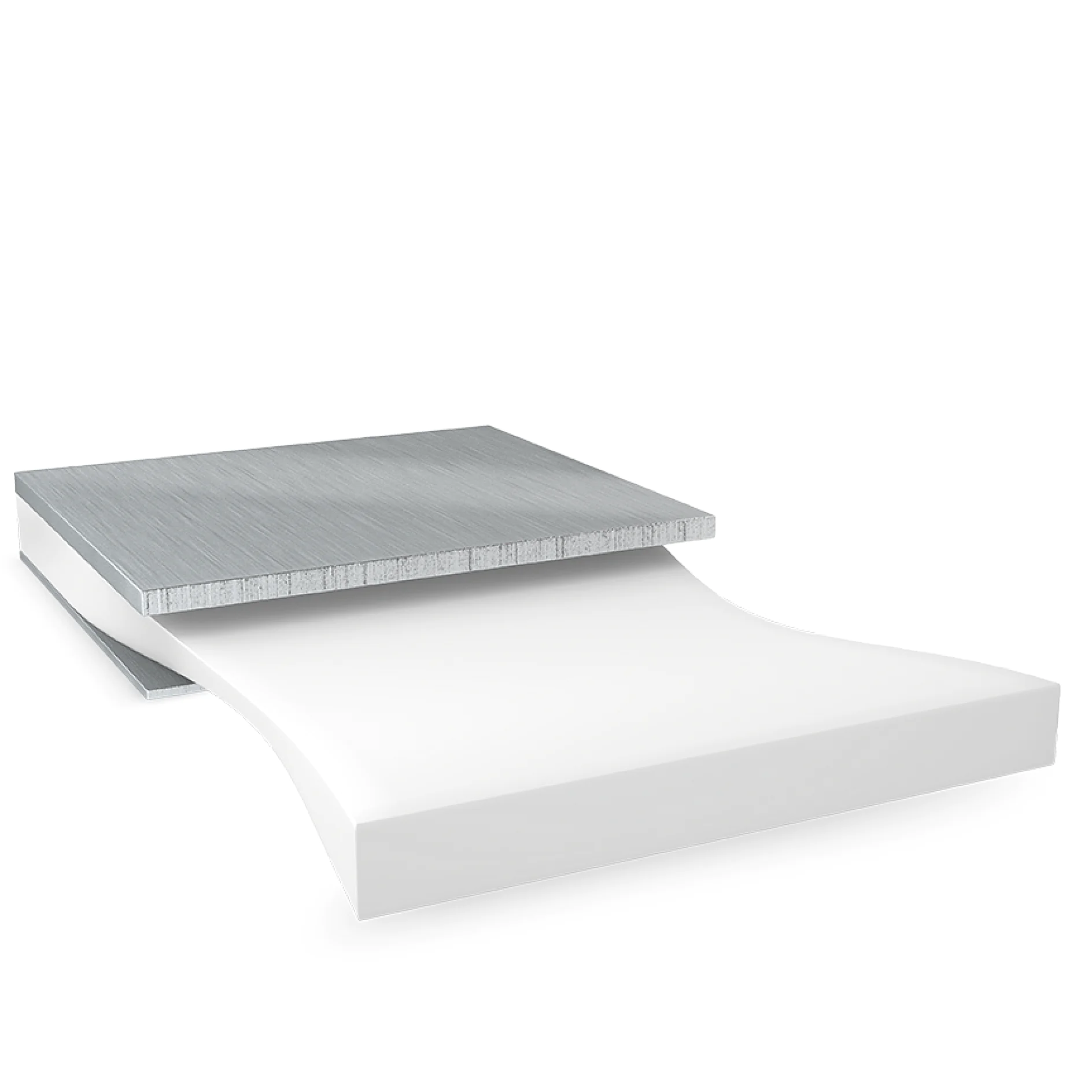

tesa® 77015 is a stretch release tape with a special stretchable backing equipped with a high shock adhesive
Product details and specifications
Product Features
- Thickness: 150 µm
- Outstanding shock resistance
- High tack
- Very high bonding strength
- High tear resistance
- Easy removability by stretching the adhesive
- The tape can be removed even after a long bonding time
- Residue free removability
- IPX8
Application Fields
- Battery mounting
- Permanent mounting of components in electronic devices with the option to remove the parts for repairing or recycling
- Temporary fixation of components
Sustainable Aspects
- 47% bio-based adhesive component
Product Construction
| Adhesive Type | specialty |
|---|---|
| Backing material | stretchable specialty |
| Color | white |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 150 µm |
Product Construction
| Adhesive Type | specialty |
|---|---|
| Backing material | stretchable specialty |
| Color | white |
| Color of liner | transparent |
| Liner Type | PET |
| Thickness of liner | 50 µm |
| Total thickness | 150 µm |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
|---|---|
| Removability after 14 days (23°C) | very good |
| Temperature resistance short term | 90 °C |
| Static shear resistance at 40°C | very good |
| Residue-free removability | yes |
| Temperature resistance long term | 60 °C |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
|---|---|
| Removability after 14 days (23°C) | very good |
| Temperature resistance short term | 90 °C |
| Static shear resistance at 40°C | very good |
| Residue-free removability | yes |
| Temperature resistance long term | 60 °C |
Adhesion to Values
| Adhesion to Aluminium (initial) | 9 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 10 N/cm |
| Adhesion to Magnesium (initial) | 8 N/cm |
| Adhesion to Magnesium (after 14 days) | 9 N/cm |
| Adhesion to PE (initial) | 7 N/cm |
| Adhesion to PE (after 14 days) | 8 N/cm |
| Adhesion to Steel (initial) | 10 N/cm |
| Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 9 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 10 N/cm |
| Adhesion to Magnesium (initial) | 8 N/cm |
| Adhesion to Magnesium (after 14 days) | 9 N/cm |
| Adhesion to PE (initial) | 7 N/cm |
| Adhesion to PE (after 14 days) | 8 N/cm |
| Adhesion to Steel (initial) | 10 N/cm |
| Adhesion to Steel (after 14 days) | 10 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
