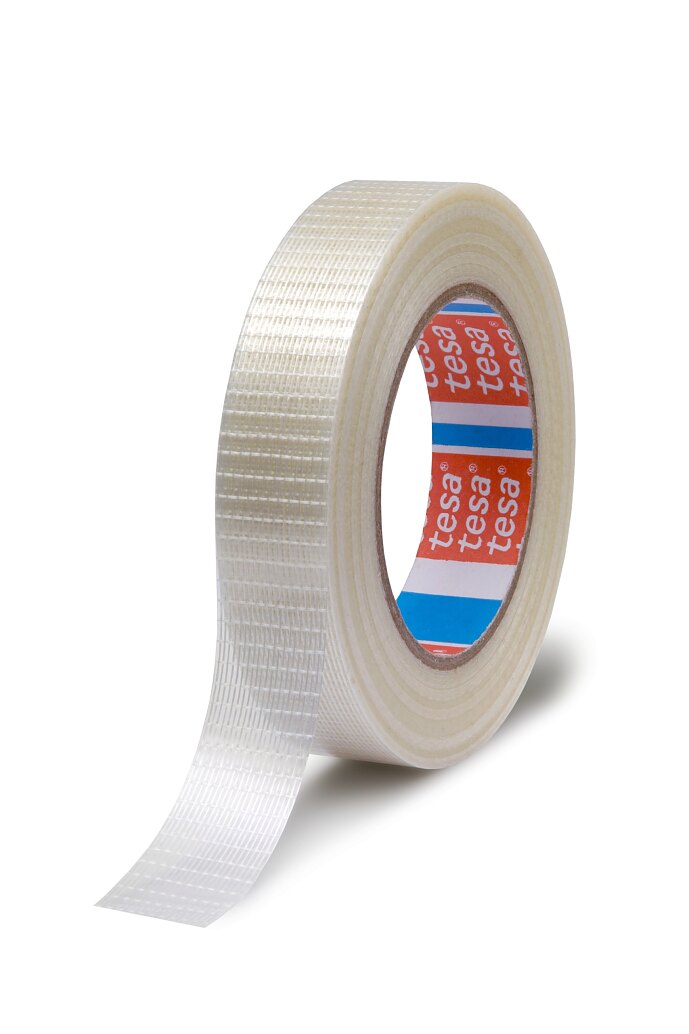

tesa® 4593
UV, high temperature and ageing resistant cross filament tape
Product description
tesa® 4593 is a special bidirectional filament tape based on glass filaments laminated to polyester film. tesa® 4593 combines good longitudinal tensile strength with very low elongation. The tape is tear resistant.
The unique acrylic adhesive system allows the product to have:
- UV resistance
- High temperature resistance (up to 150°C short term)
- High ageing resistance
Product details and specifications
Application Fields
Transport securing, fixing, bundling, palletising and end-tabbing applications which require UV, high temeprature or ageing resistance.
Especially suitable for permanent fixing in the furniture industry and outdoor applications.
Especially suitable for permanent fixing in the furniture industry and outdoor applications.
Product Construction
| Backing material | glassfibre / PET film |
|---|---|
| Total thickness | 160 µm |
| Type of adhesive | acrylic |
Product Construction
| Backing material | glassfibre / PET film |
|---|---|
| Total thickness | 160 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Tensile strength | 250 N/cm |
|---|
Properties / Performance Values
| Tensile strength | 250 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 4 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
