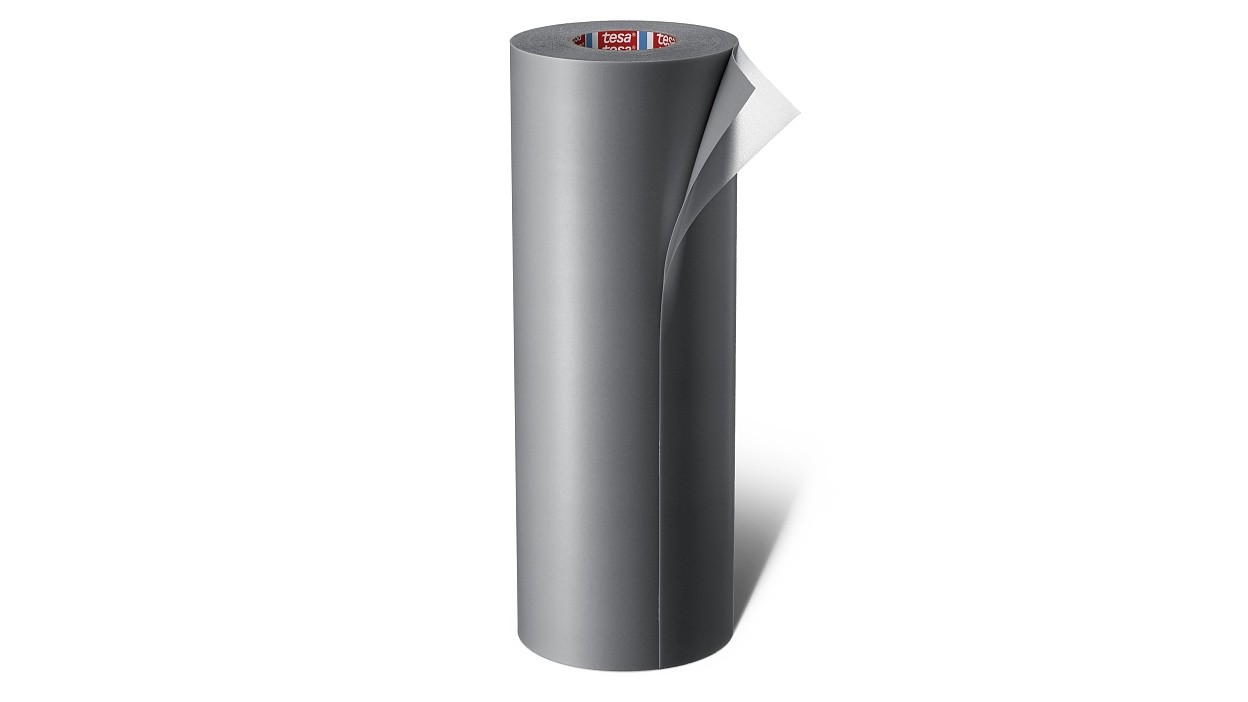

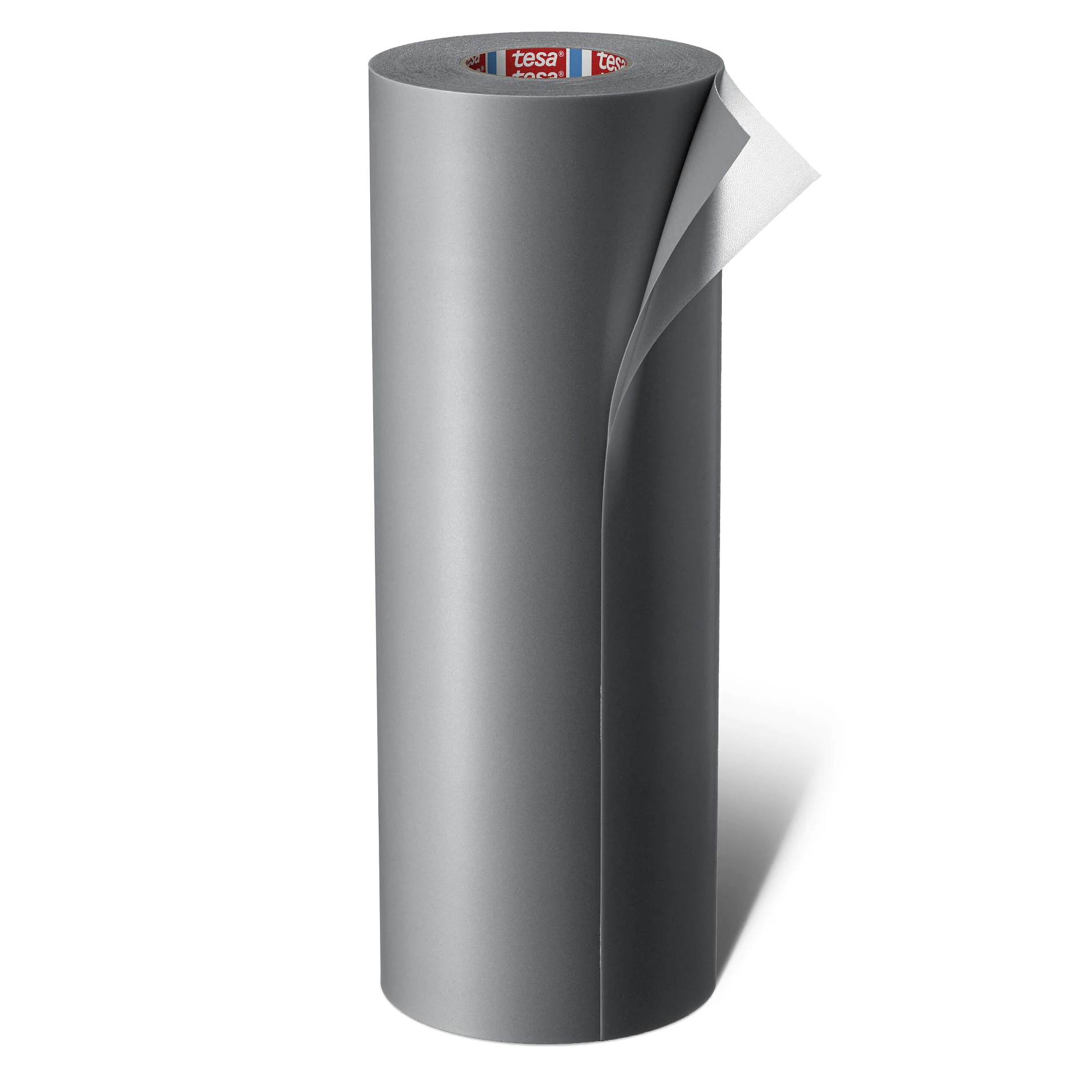

tesa® Softprint 73529 FE-X EA

Foam plate mounting tape: FLEX Product Design

Product Features
  • Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics.
  • Adhesive properties: Low tack surface characteristics. Best plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side.
  • Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves.

Product description

Double-sided foam tape

Product Features

  • Foam properties: Low thickness tolerance. Long lasting, constant recovery characteristics.
  • Adhesive properties: Low tack surface characteristics. Best plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side.
  • Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves.

Application Fields

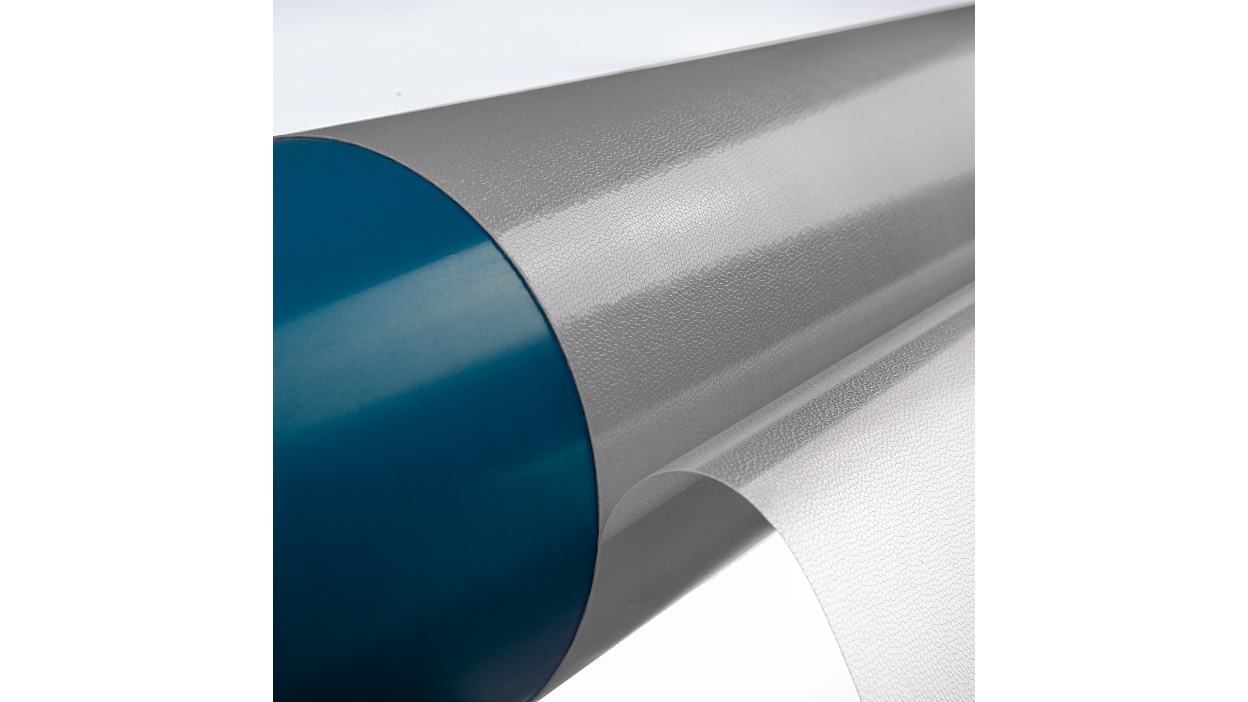

Mounting of 1,14 mm (0,045'') and 1,70 mm (0,067'') flexographic printing plates onto steel / alu / PU and glassine cylinders

Product Construction

Backing material PE foam with film lamination
Color gray
Total thickness 550 µm
Type of adhesive tackified acrylic
Type of liner PET

Properties / Performance Values

Color of foam grey
Hardness extra-hard
Thickness category 500

Additional Info

Available liner option:
  • PV21: Transparent structured easy application (EA) PET liner for excellent air removal during plate and tape mounting
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
73529_inpiw_en-US
73529_inpiw_en-US PDF 37.6 kB
