tesa® 62867
350μm d/s black anti-lifting PE foam tape
Product Features
- Superior anti-lens separation performance
- Excellent shear resistance
- Good rework ability and easily clean up residue
Product description

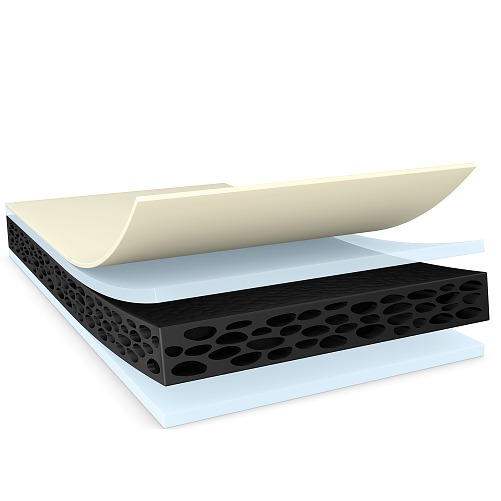

tesa® 62867 is a black double-sided tape consisting of a high grade shock resistance PE foam backing equipped with a special acrylic adhesive, which comes with an excellent performance of shock resistance and anti-lifting.
Product details and specifications
Product Features
- Superior anti-lens separation performance
- Excellent shear resistance
- Good rework ability and easily clean up residue
- Very good shock performance
- Outstanding anti-lifting performance under high temperature and high humidity
Application Fields
• Lens mounting and touch panel mounting in consumer electronics devices like smart phone, tablet etc.
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | PE foam |
| Color | black |
| Liner Type | PET film |
| Total thickness | 350 µm |
Product Construction
| Adhesive Type | modified acrylic |
|---|---|
| Backing material | PE foam |
| Color | black |
| Liner Type | PET film |
| Total thickness | 350 µm |
Properties / Performance Values
| Elongation at break | 260 % |
|---|---|
| Tensile strength | 13 N/cm |
| Static shear resistance at 40°C | good |
| Ageing resistance (UV) | good |
| Static shear resistance at 23°C | good |
| Humidity resistance | good |
Properties / Performance Values
| Elongation at break | 260 % |
|---|---|
| Tensile strength | 13 N/cm |
| Static shear resistance at 40°C | good |
| Ageing resistance (UV) | good |
| Static shear resistance at 23°C | good |
| Humidity resistance | good |
Adhesion to Values
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 11 N/cm |
| Adhesion to Glass (initial) | 8.5 N/cm |
| Adhesion to Glass (after 14 days) | 10.5 N/cm |
| Adhesion to PC (initial) | 6 N/cm |
| Adhesion to PC (after 14 days) | 11 N/cm |
| Adhesion to Steel (initial) | 8.5 N/cm |
| Adhesion to Steel (after 14 days) | 11.5 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 11 N/cm |
| Adhesion to Glass (initial) | 8.5 N/cm |
| Adhesion to Glass (after 14 days) | 10.5 N/cm |
| Adhesion to PC (initial) | 6 N/cm |
| Adhesion to PC (after 14 days) | 11 N/cm |
| Adhesion to Steel (initial) | 8.5 N/cm |
| Adhesion to Steel (after 14 days) | 11.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
