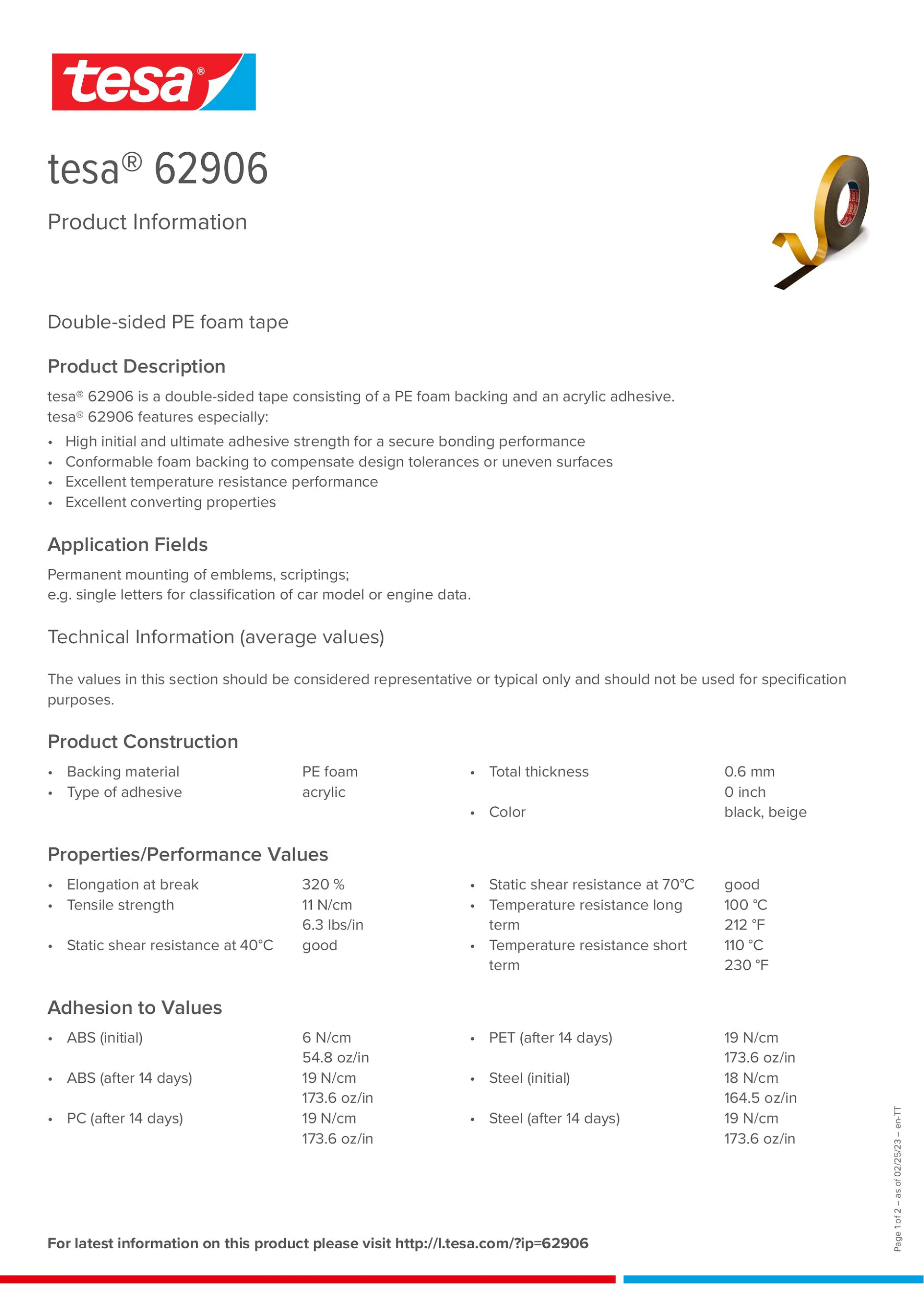

tesa® 62906
Double-sided PE foam tape
Product description
tesa® 62906 is a double-sided tape consisting of a PE foam backing and an acrylic adhesive.
tesa® 62906 features especially:
tesa® 62906 features especially:
- High initial and ultimate adhesive strength for a secure bonding performance
- Conformable foam backing to compensate design tolerances or uneven surfaces
- Excellent temperature resistance performance
- Excellent converting properties
Application Fields
Permanent mounting of emblems, scriptings;
e.g. single letters for classification of car model or engine data.
e.g. single letters for classification of car model or engine data.
Product Construction
| Backing material | PE foam |
| Color | black, beige |
| Total thickness | 0.02 inch
0.6 mm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 320 % |
| Tensile strength | 6.28 lbs/in
11 N/cm |
| Static shear resistance at 40°C | good |
| Static shear resistance at 70°C | good |
| Temperature resistance long term | 212 °F
100 °C |
| Temperature resistance short term | 230 °F
110 °C |
Adhesion to Values
| Adhesion to ABS (after 14 days) | 173.59 oz/in
19 N/cm |
| Adhesion to PC (after 14 days) | 173.59 oz/in
19 N/cm |
| Adhesion to PET (after 14 days) | 173.59 oz/in
19 N/cm |
| Adhesion to Steel (initial) | 164.45 oz/in
18 N/cm |
| Adhesion to Steel (after 14 days) | 173.59 oz/in
19 N/cm |
| Adhesion to ABS (initial) | 54.82 oz/in
6 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
