Back Cover Mounting

For Protection and Style.

The main task of the back cover is to protect the components built into the housing. Especially valuable and sensitive electronics need to be protected from external influences. New technological developments, such as 5G or wireless charging, also have an effect on the back cover. This leads to increasingly challenging requirements for the bonding solution.

Requirements for adhesive back cover mounting solutions

tesa_Icon-flexibility-001_72dpi
Anti-Repulsion
icon_removable-2
Reworkability
tesa-icon-bonding
Bonding performance
tesa-icon-impact-resistance
Impact resistance
tesa-icon-sealing
Sealing properties
tesa-icon-chemical-resistance
Chemical resistance

A high adhesive strength is the basic requirement for back cover mounting solutions. As the back cover should protect internal components the adhesive solution needs to be impact resistant as well as it needs to have good sealing and chemical resistance properties to avoid damages caused by shock events or by particles (dust, sand) and liquids (water, chemicals) entering the device. For curved designs or foldable devices good anti-repulsion properties are also important.

tesa-electronics-smartphone-back-cover-mounting-illustration
tesa-electronics-smartphone-back-cover-mounting-illustration
Smartphone back cover mounting
tesa-electronics-smartwatch-back-cover-mounting-001b-illustration
tesa-electronics-smartwatch-back-cover-mounting-001b-illustration

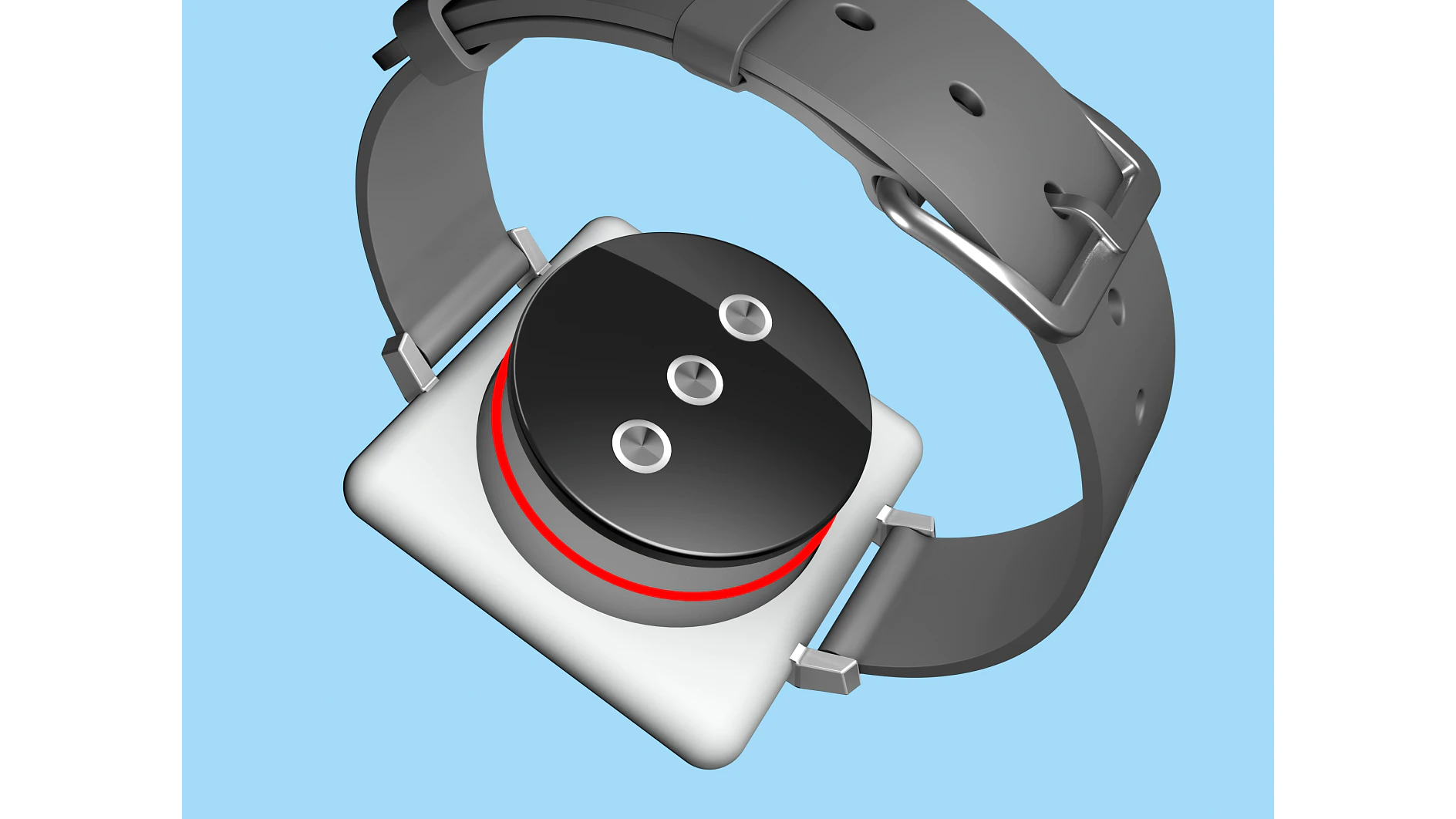

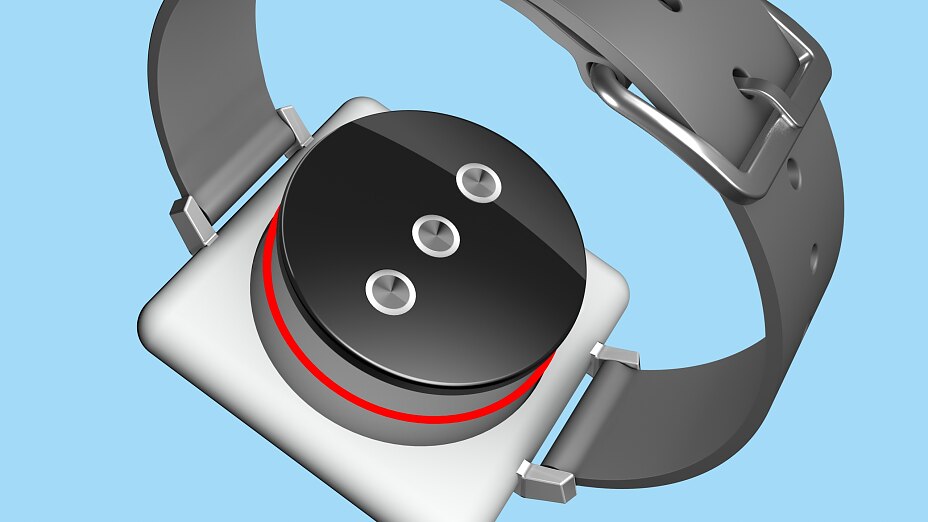

Smartwatch back cover mounting

Back cover mounting solutions - Adhesive systems for your success

Assortment Thickness
range [μm]
Color Exemplary series used Case studies Use this assortment
when your main
requirements are
Acrylic Foam Tapes 50 – 400 Black
White
tesa® ACF 756xx
tesa® ACF 757xx
tesa® ACF 759xx
Smartphone
Tablet
Smartwatch
• Superior bonding
• Superior impact resistance
• Very good sealing and waterproofing
PE Foam Tapes 150 - 500 Black
White
tesa® PEF 668xx
tesa® PEF 626xx
Smartphone
Tablet
• Impact resistance
• Anti-repulsion
• Reworkability
Synthetic Foam Tapes 50 - 300 Black tesa® SPF 761xx Smartphone
Tablet
• Superior, residue-free removability
• Quick bonding properties, even on LSE
substrates
• Impact resistance
Structural Bonding Solutions 10 - 300 Black
White
Amber
Translucent
tesa HAF®
tesa® XPU
tesa® LTR
Smartwatch • Superior bonding power, even on small
bonding areas
• Resistance against chemicals and aging
• Superior sealing properties
tesa-not-sure-right-solution

Your local representative is looking forward to discuss all options with you to identify the best fit for your individual project.


Simply write to us or contact
your local representative directly.
