Battery mounting

For more performance and safety.

icon_removable-2
Removability
tesa-icon-bonding
Bonding performance
tesa-icon-impact-resistance
Impact resistance
tesa-shifting-icon-3
Shifting resistance

Adhesive solutions for all battery mounting methods

Battery mounting
Wrapping
The battery is wrapped and bonded to a PET film. This film is then bonded to the housing by using an adhesive tape with a high bonding performance. If needed, the battery can be easily removed from the wrapping film and thus from the housing. Thinner tapes are often required due to the multilayer design.
tesa-electronics-smartwatch-battery-mounting-illustration

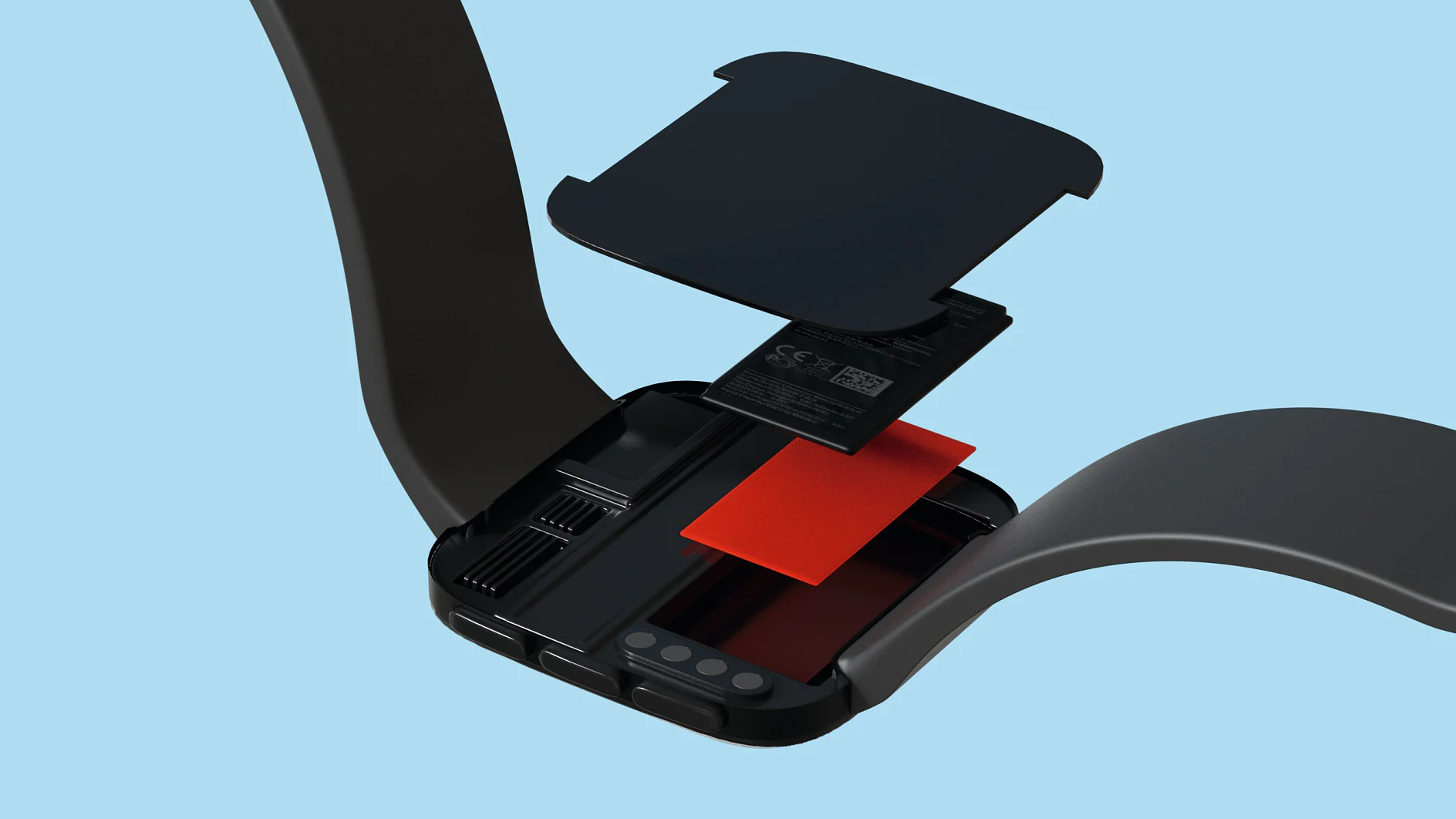

Permanent

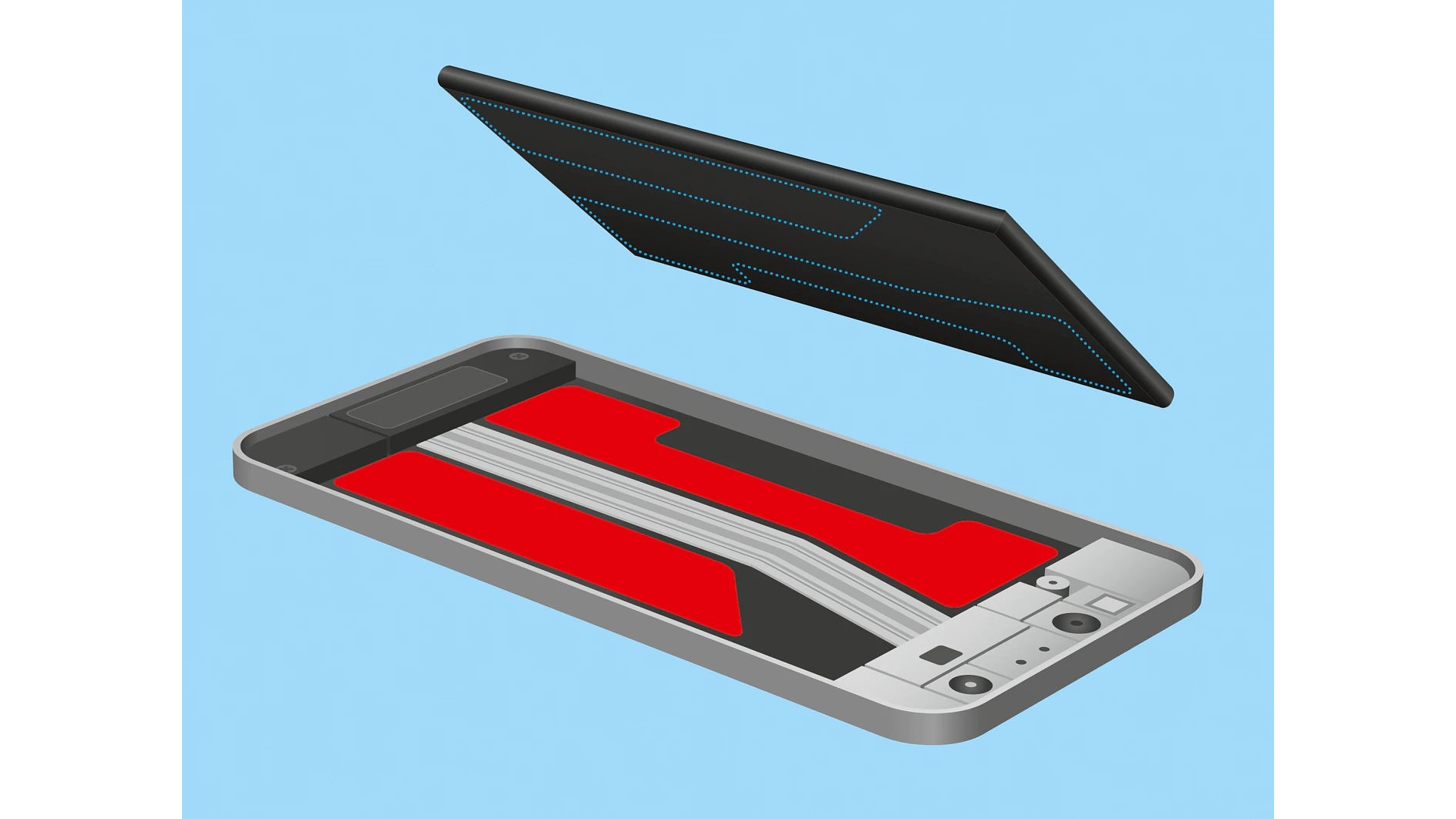

Along with efficiency aspects, high bonding power and a good impact resistance are the key properties for permanent battery mounting. This method allows very thin designs. The battery removal process, on the other hand, is comparatively complex, as either low or high temperatures are required to release the bond.
tesa-electronics-bond-and-detach-battery-mounting-with-fpc-illustration

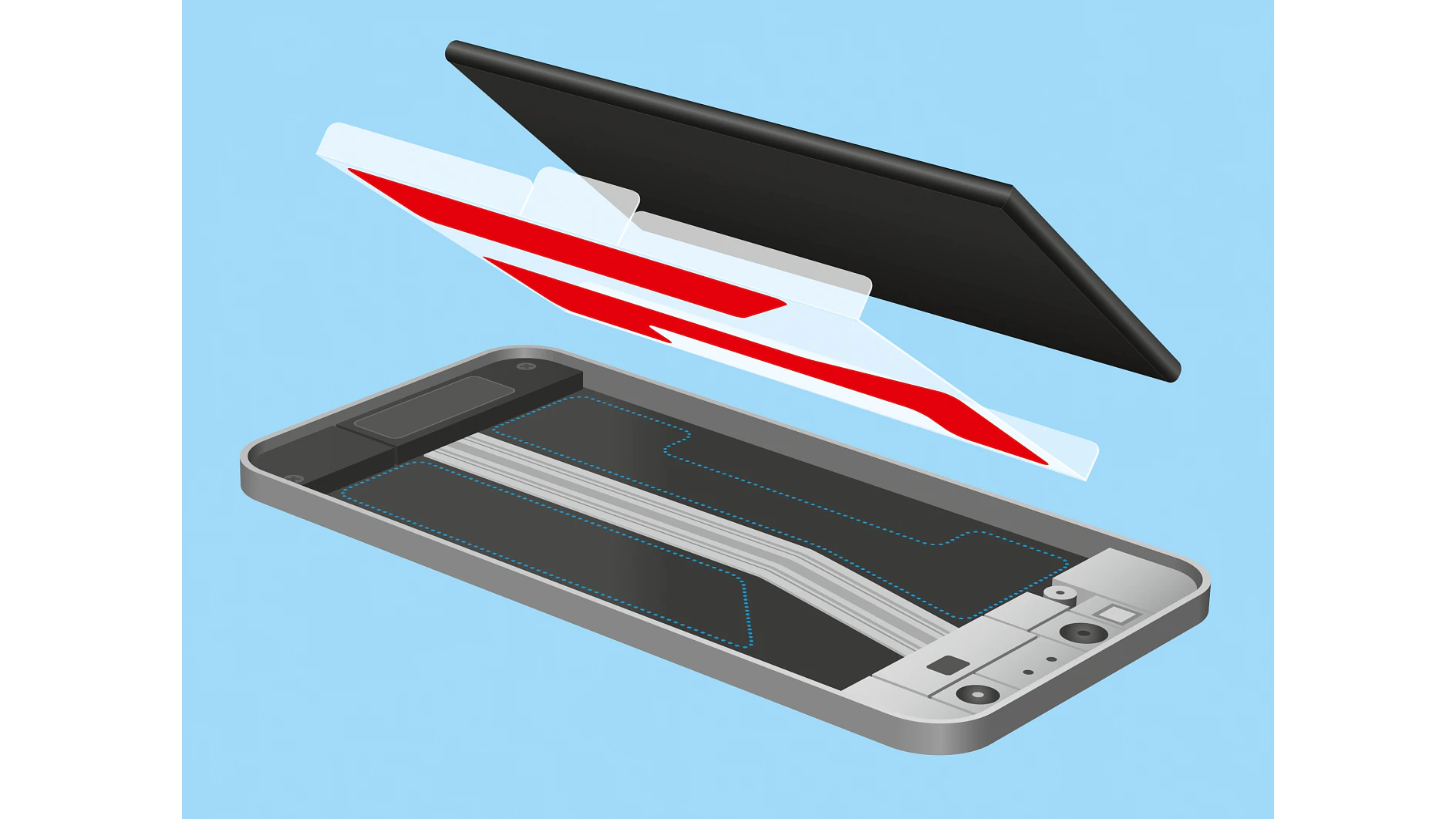

Stretch-release

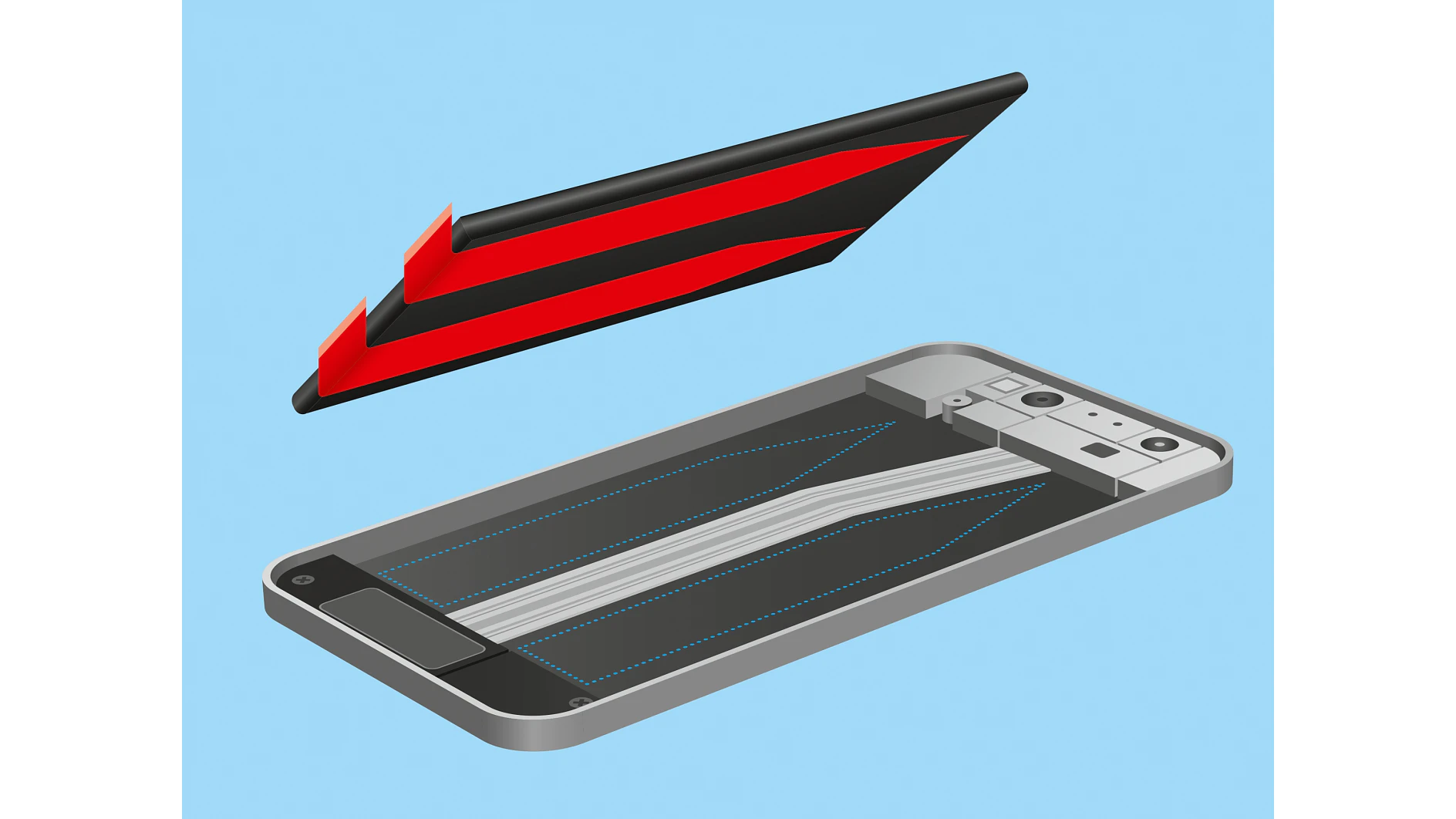

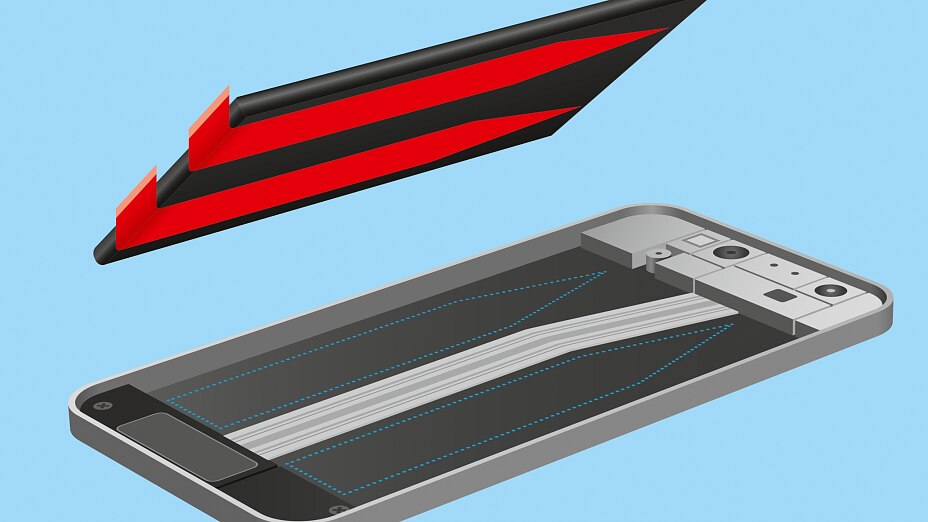

The battery with the die-cut already attached is mounted into the housing. By stretching the tape the battery can be removed very easy and residue-free. High tear resistance and low removing force are critical for this detaching method, but it allows complex battery designs.
tesa-electronics-permanent-battery-mounting-illustration
Solvent removal
The tape is bonded to the battery, which is then attached into the housing. Critical for this method is a high initial bonding performance of the tapes, but a big decrease of the bonding power after applying solvents, so that the battery can be detached easily. This method allows thin designs.

Battery mounting solutions - Adhesive systems for your success

Assortment Thickness
range [μm]
Color Exemplary series used Case studies Use this assortment
when your main
requirements are
Bond & Detach® 80 - 1000 Black
White
Translucent
tesa® 704xx/706xx
tesa® 672xx
tesa® 770xx/648xx
Stretch-Release • Superior, residue-free removability
by stripping or applying solvents
• Very good bonding,
even on LSE substrates
• Impact resistance

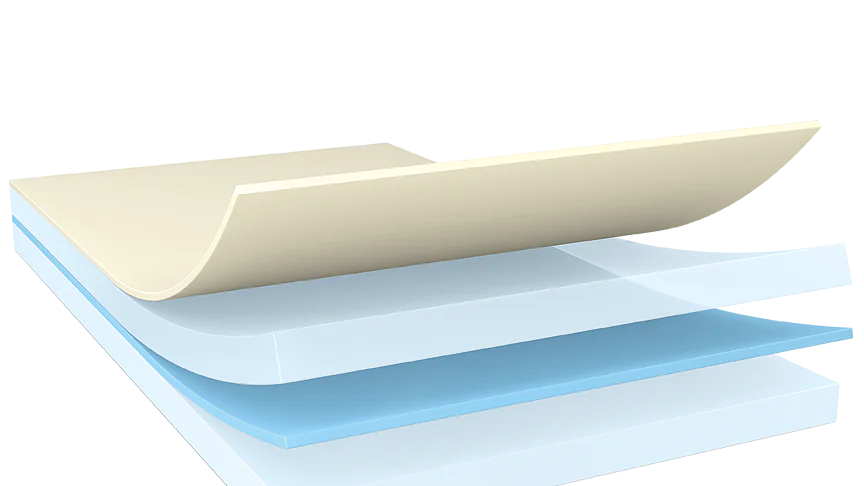

Double-sided Film Tapes 50 - 300 Black
Transparent
tesa® 613xx
tesa® 618xx
Wrapping
Permanent
• Very good bonding
• Efficient die-cutting

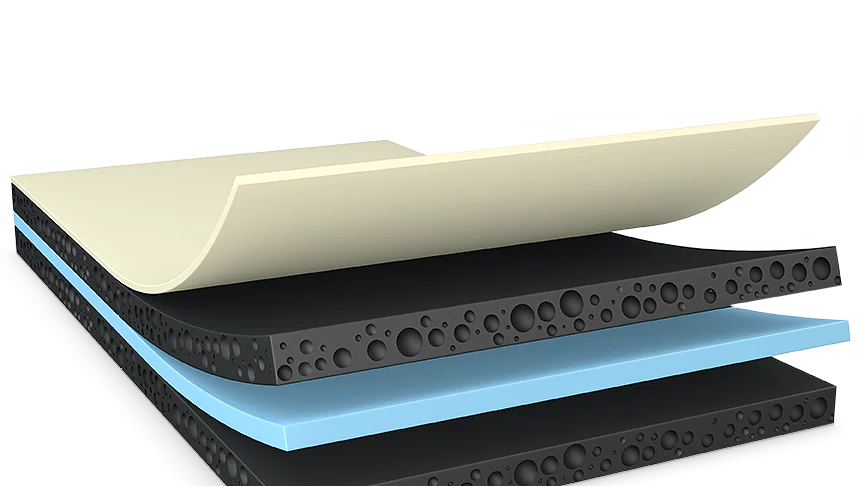

Acrylic Foam Tapes 50 – 400 Black
White
tesa® ACF 756xx Permanent • Superior bonding
• Superior impact resistance

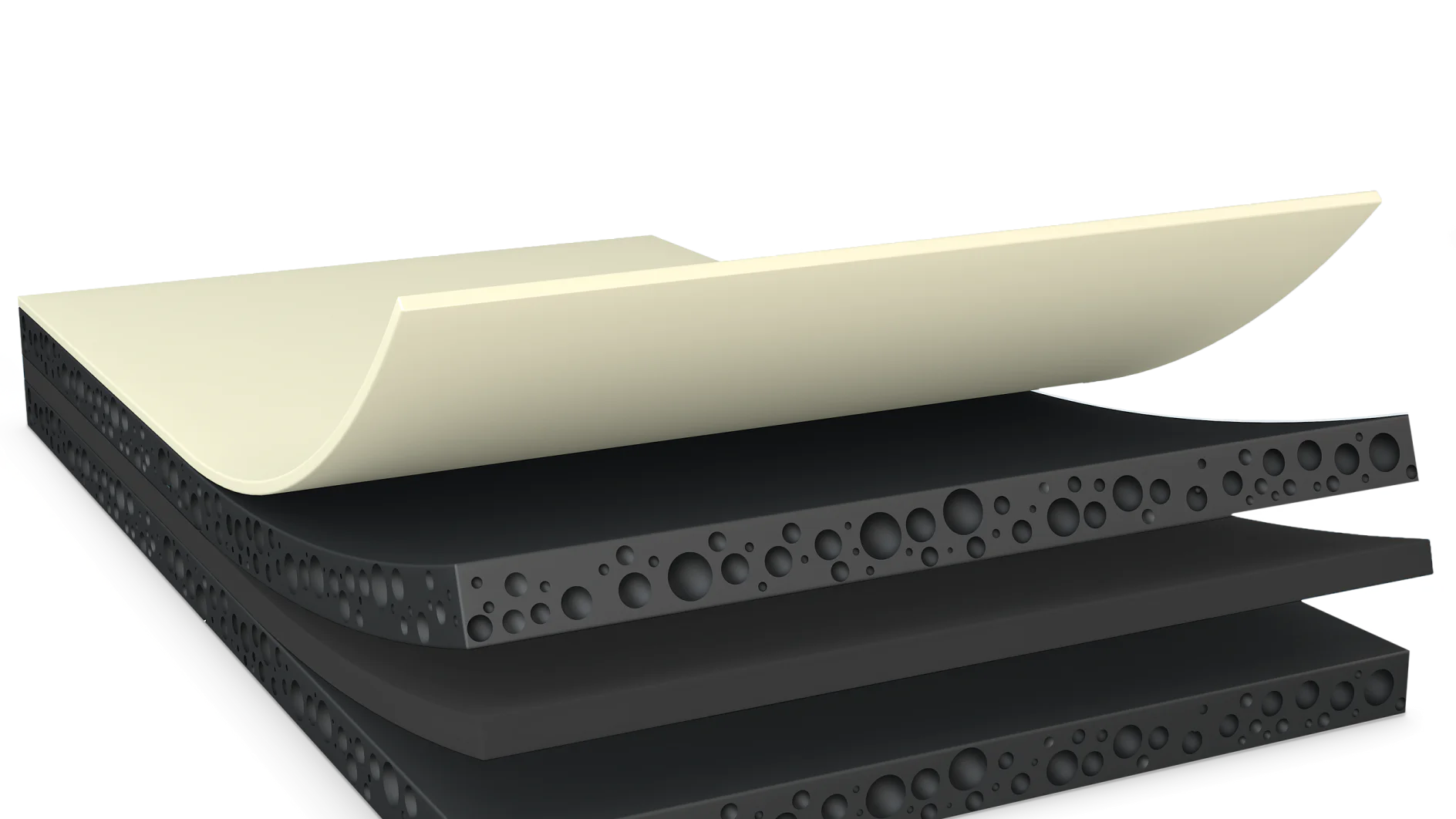

Synthetic Foam Tapes 50 - 300 Black tesa® SPF 761xx Wrapping
Permanent
Solvent removal
• Superior, residue-free removability
• Quick bonding properties, even on LSE substrates
• Impact resistance
tesa-not-sure-right-solution

Your local representative is looking forward to discuss all options with you to identify the best fit for your individual project.


Simply write to us or contact your local representative directly.
