Display Lamination Tapes

Electronics_Display-lamination_300dpi (1)

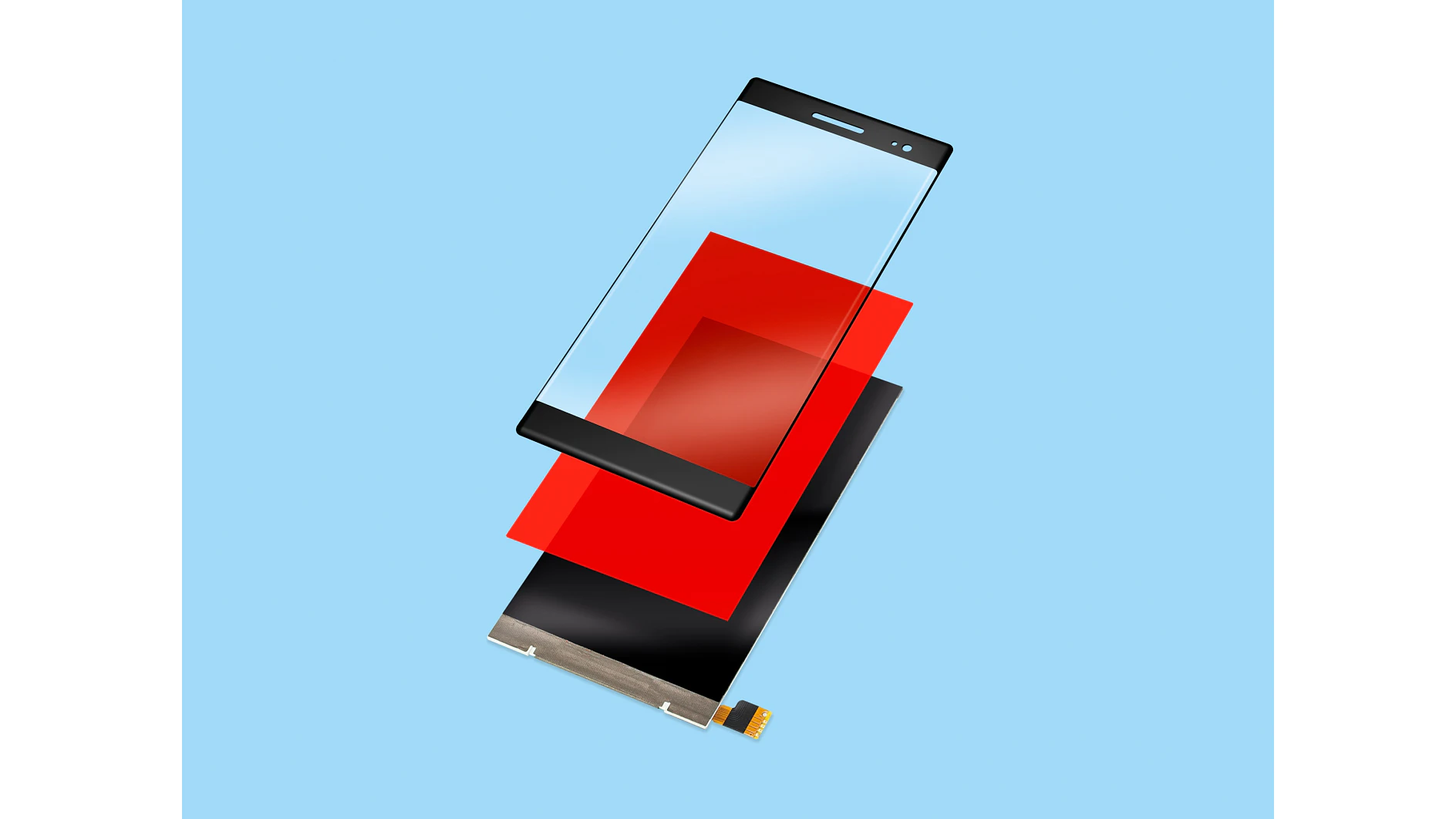

Cover lens to touch panel
When laminating these two layers, it is necessary to use adhesive tapes that are able to cover ink (gap-filling) and are compatible with ITO. For plastic good outgassing resistance is indispensable.
tesa-electronics-display-moisture-block-001a-illustration

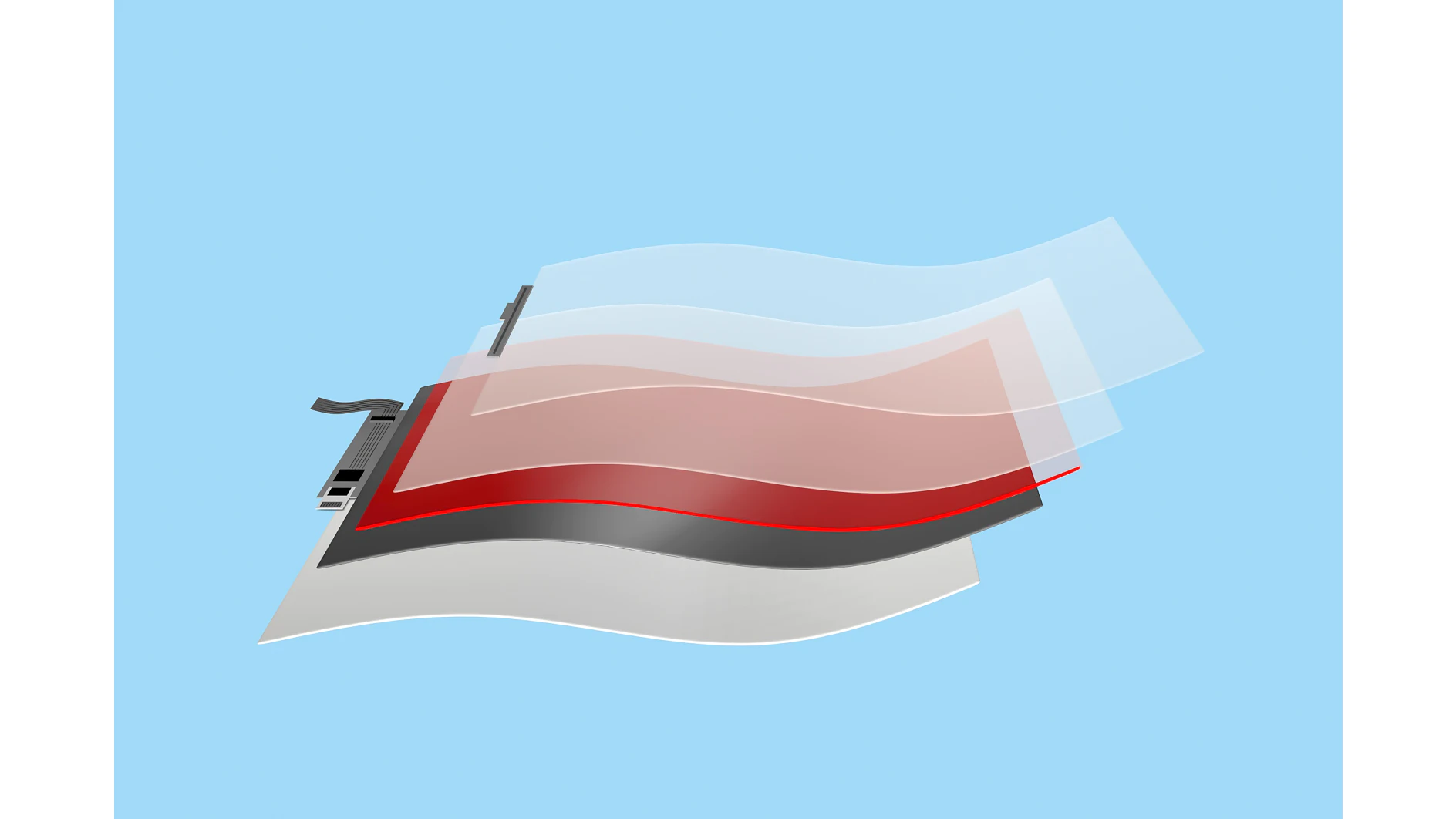

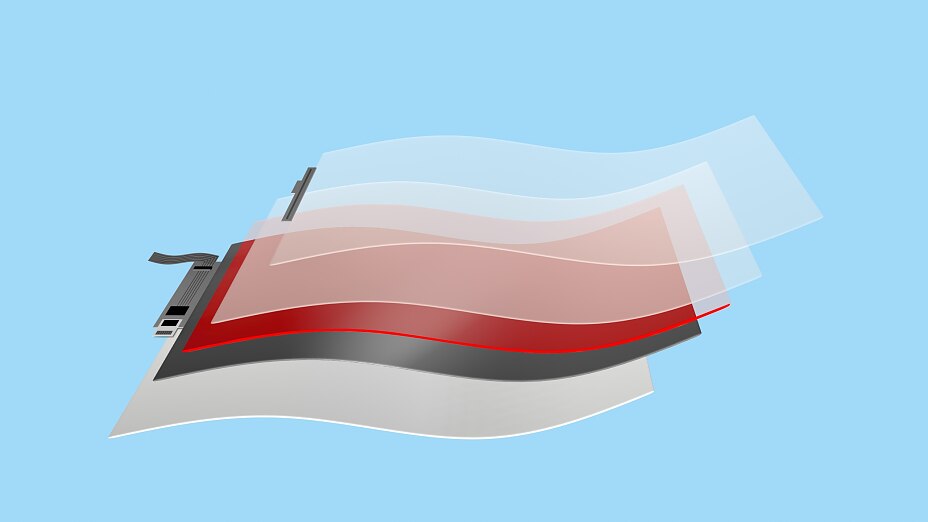

Touch panel to display panel
The lamination of these two layers can be found in LCD as well as in OLED displays. While an easy lamination process and high environmental stability is key for both types of display.

Assortment overview

tesa_Icon-Lamination
tesa® OCA 6940x
6940x is our versatile flagship series which is a pressure-sensitive OCA tape that offers a well-balanced profile. It is easy to laminate and convert, and is highly compatible with touch sensor films, polarizers, and cover glass. Best results are achieved when used in rigid/flex or flex/flex applications.
tesa_Icon-Outgassing-Resistant-001_72dpi
tesa® OCA 6980x
6980x is a UV-curable OCA tape type that is designed for plastic substrates lamination with excellent outgassing resistance. It has high gap-filling property, and best-in-class bubble resistance after curing. Suitable for rigid/rigid or rigid/flex applications.
tesa_icon-ink-step
tesa® OCA 6960x
6960x is a UV-curable OCA tape type that is designed for cover glass lamination. It offers superb gap-filling properties to ensure complete ink coverage, and has excellent reliability performance after curing. It is suitable for rigid/rigid or rigid/flex applications.
tesa icon ink step_uv-blocking
tesa® OCA 6920x
6920x is a pressure-sensitive OCA series which is easy to laminate and convert. It is the best for lamanation of films to protect UV-sensitive materials, as it offers UV-blocking for wavelengths below 380 nm. Best results are achieved when used in rigid/flex or flex/flex applications.
tesa_Icon-encapsulation-001_300dpi
tesa® Barrier OCA 6150x
6150x is a UV-curable OCA designed for moisture-sensitive films, displays, or touch panels. It has a lag time of 1,000 hours (6.5 mm width test at 60°C/95% RH), low WVTR, high adhesion, and balanced gap-filling. Best results are achieved with flex/flex laminations.
tesa_Icon-encapsulation-001_300dpi
tesa® Barrier Tape 6153x
6153x is a pressure-sensitive adhesive that offers supreme moisture-blocking to protect sensitive materials. It is beige in color, and should be considered for backside encapsulation of OLED, and other nontransparent applications such as protecting organic solar cell materials.
icon-anti-corrosion-4
tesa® Barrier OCA 6156x
6156x is a pressure-sensitive OCA tape designed for moisture-sensitive films, displays, or touch panels. It has a low WVTR, low and stable dielectric constant, and provides corrosion resistance. It has excellent compatibility with silver nanowires and other metallic paste materials. Best results are achieved with flex/flex laminations.
tesa-electronics-flexible-display-lamination-illustration

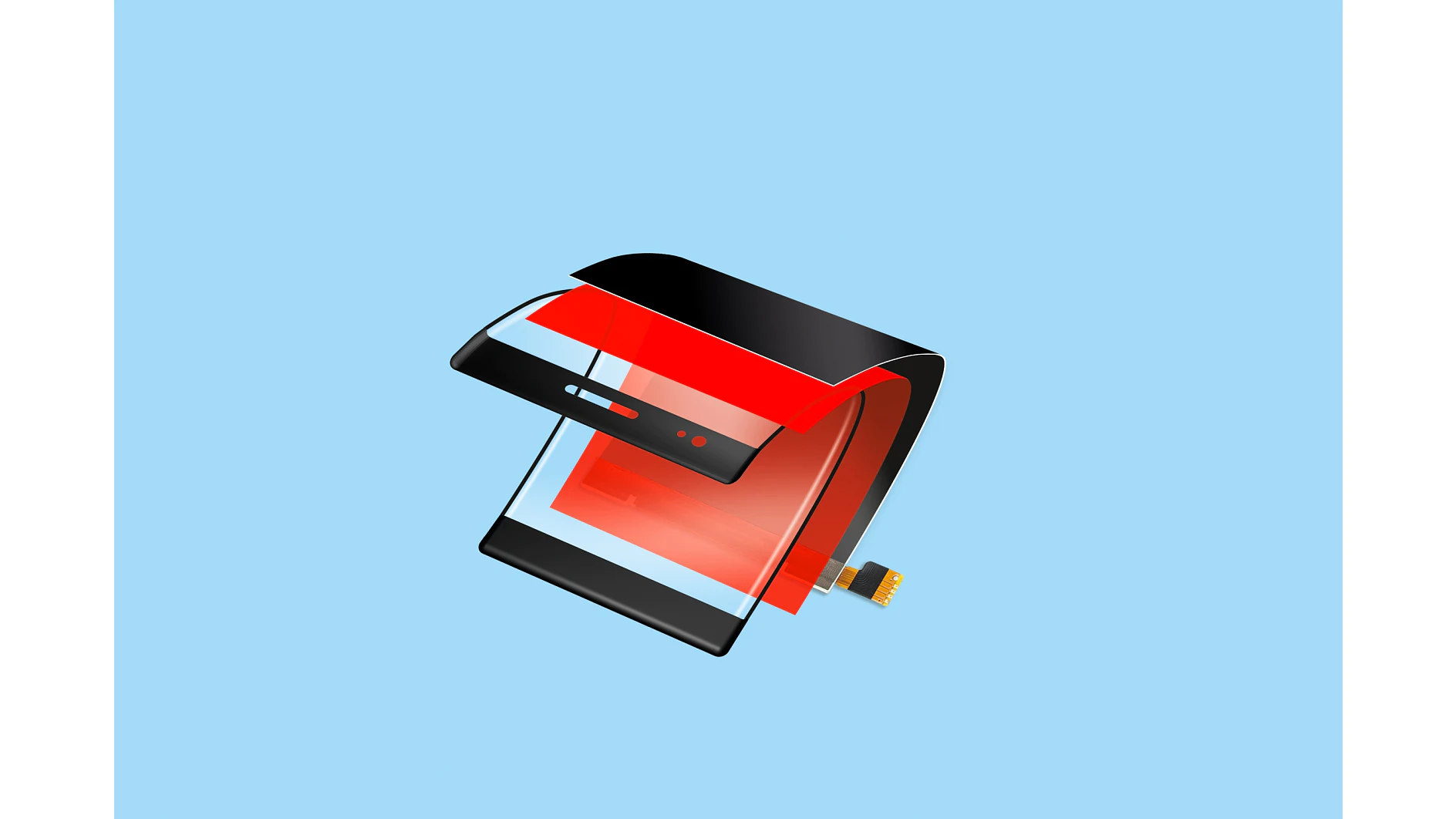

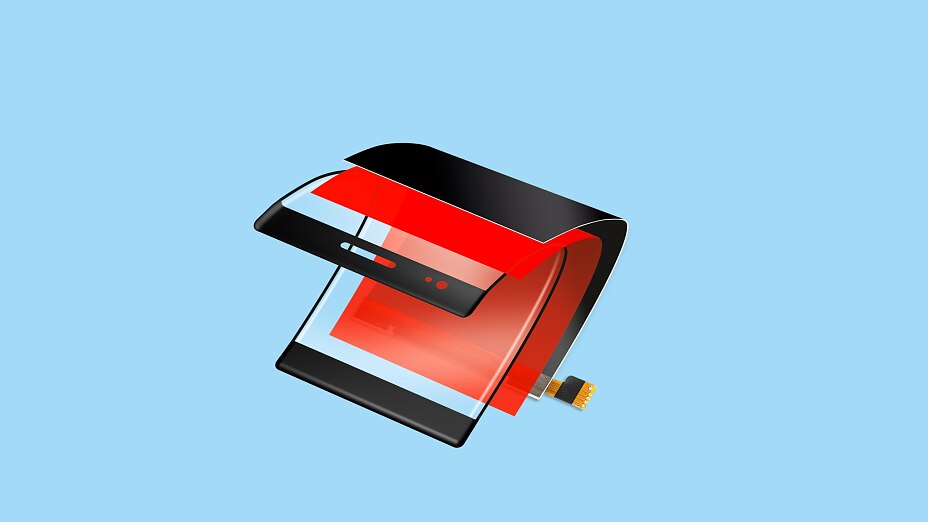

Flexible layers
Laminating flexible layers within a foldable or rollable display requires high peel adhesion and very good bending properties. For some special substrates like silver nanowire, an OCA tape with good compatibility is required.
tesa-electronics-curved-display-lamination-illustration

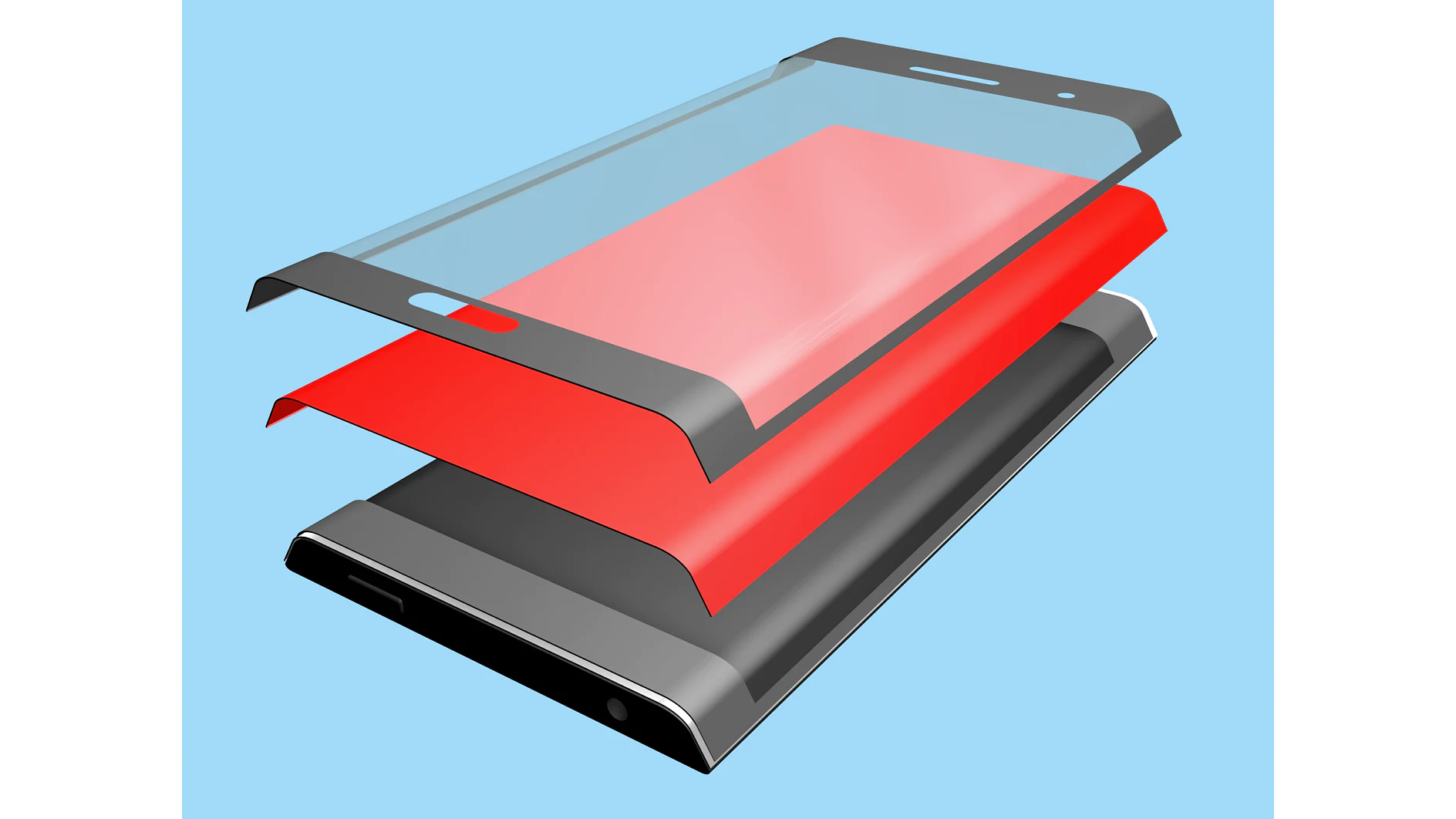

Curved display
Laminating a curved cover lens to a flexible OLED display requires low tack for easy lamination and good gap-filling to cover ink steps. After UV-curing, tapes need to show high bonding strength, resistance to repulsion forces and very good reliability.

Can’t find the right solution?

tesa_Icon-Business Solution-001_72dpi

We have more options available in our portfolio and by partnering with you we can create unique and specialized products that meet your individual demands.



Simply write to us or contact your local representative.
