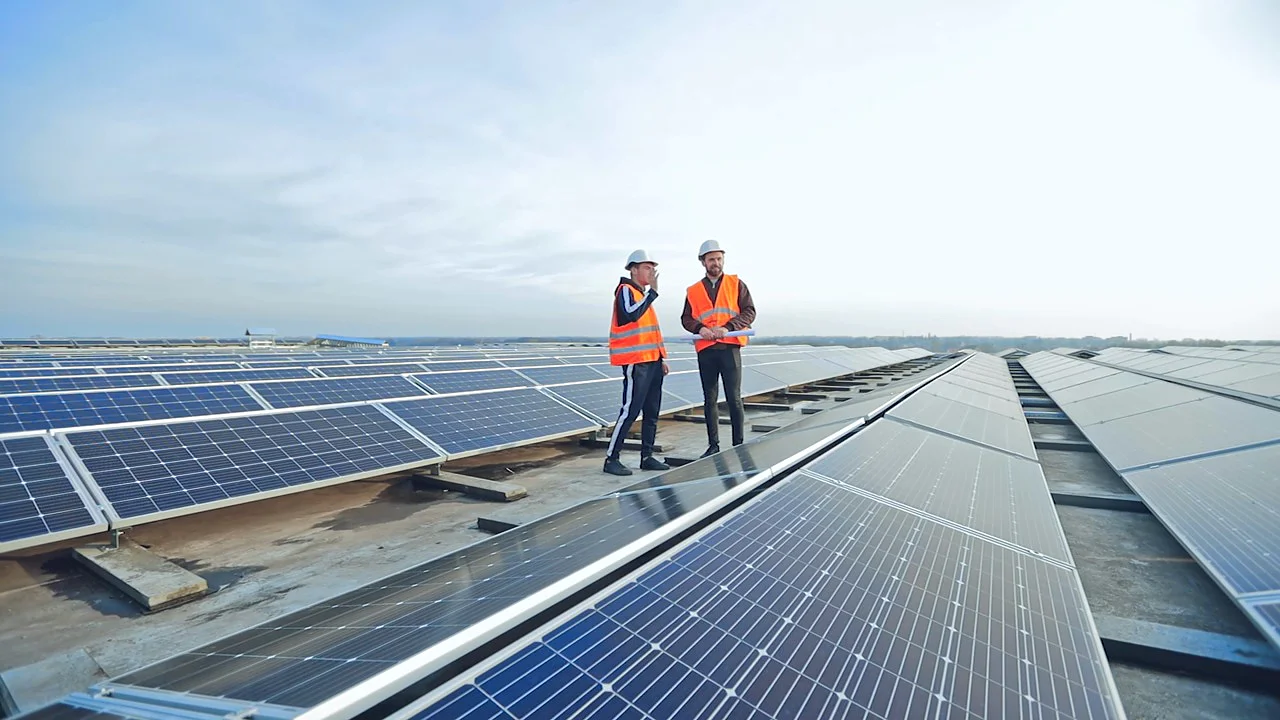

tesa_Solar-Image-Video_1080

Giải pháp kết dính cho ngành công nghiệp pin mặt trời

Những nhà sản xuất tấm pin mặt trời hàng đầu chọn tesa vì lý do các sản phẩm và dụng cụ dán băng keo của tesa đã được kiểm chứng chất lượng. Đội ngũ bán hàng giàu kinh nghiệm của chúng tôi có mặt ở mọi nơi trên thế giới để chúng tôi cung cấp sản phẩm tới khách hàng.

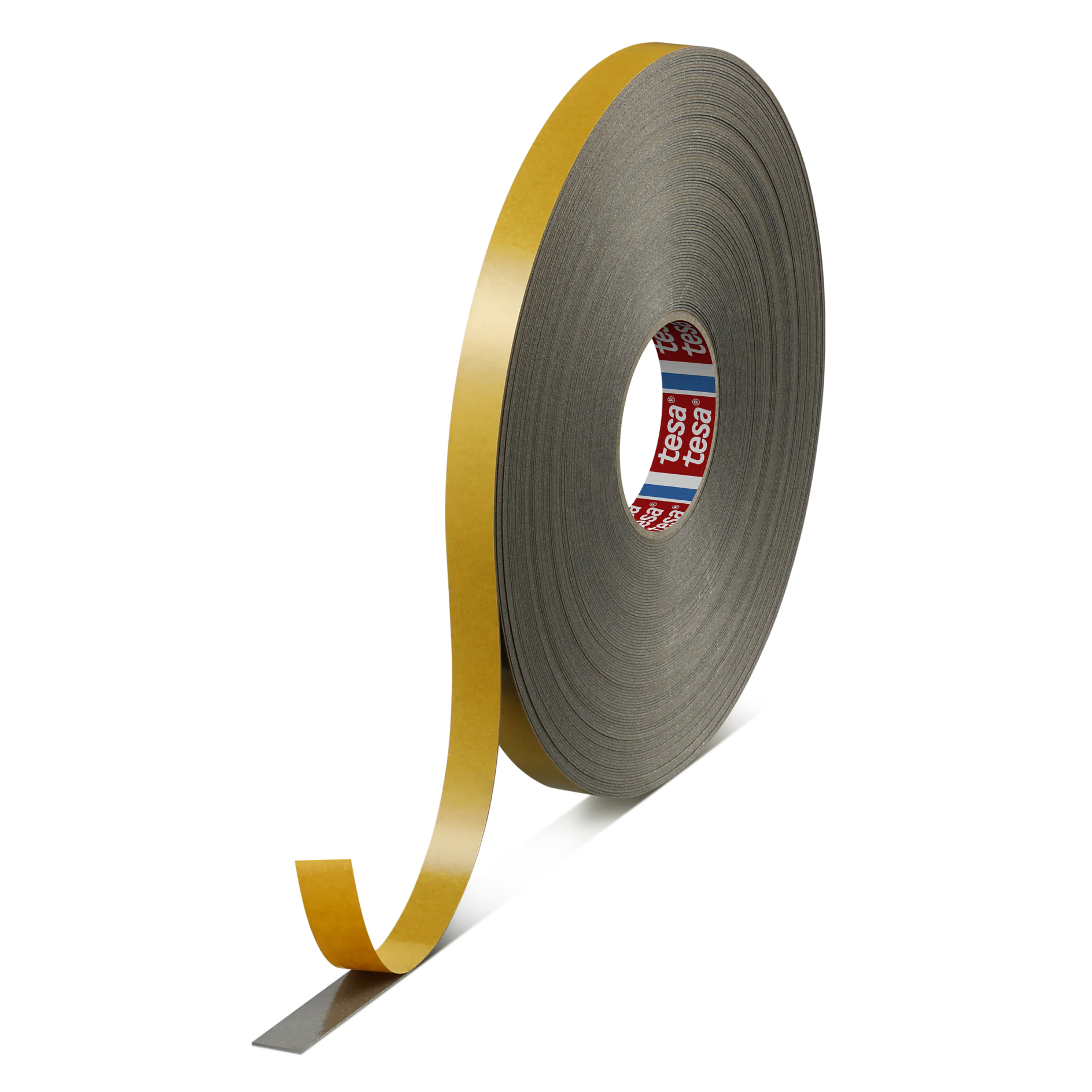

tesa-62510-1000-micrometer-double-sided-pe-foam-tape-black-625100001700-pr
01

Mounting PV cells onto frames requires an assembly solution which provides a reliable, durable bond and weatherproof seal. Our high-quality solar panel adhesive tapes, tesa® 62510 double coated PE foam tapes, are favored by manufacturers for simplifying solar module assembly thanks to their high ultimate adhesion levels and inner strength. And of course, both tapes are engineered for outdoor use thanks to their UV, water, and age resistance.

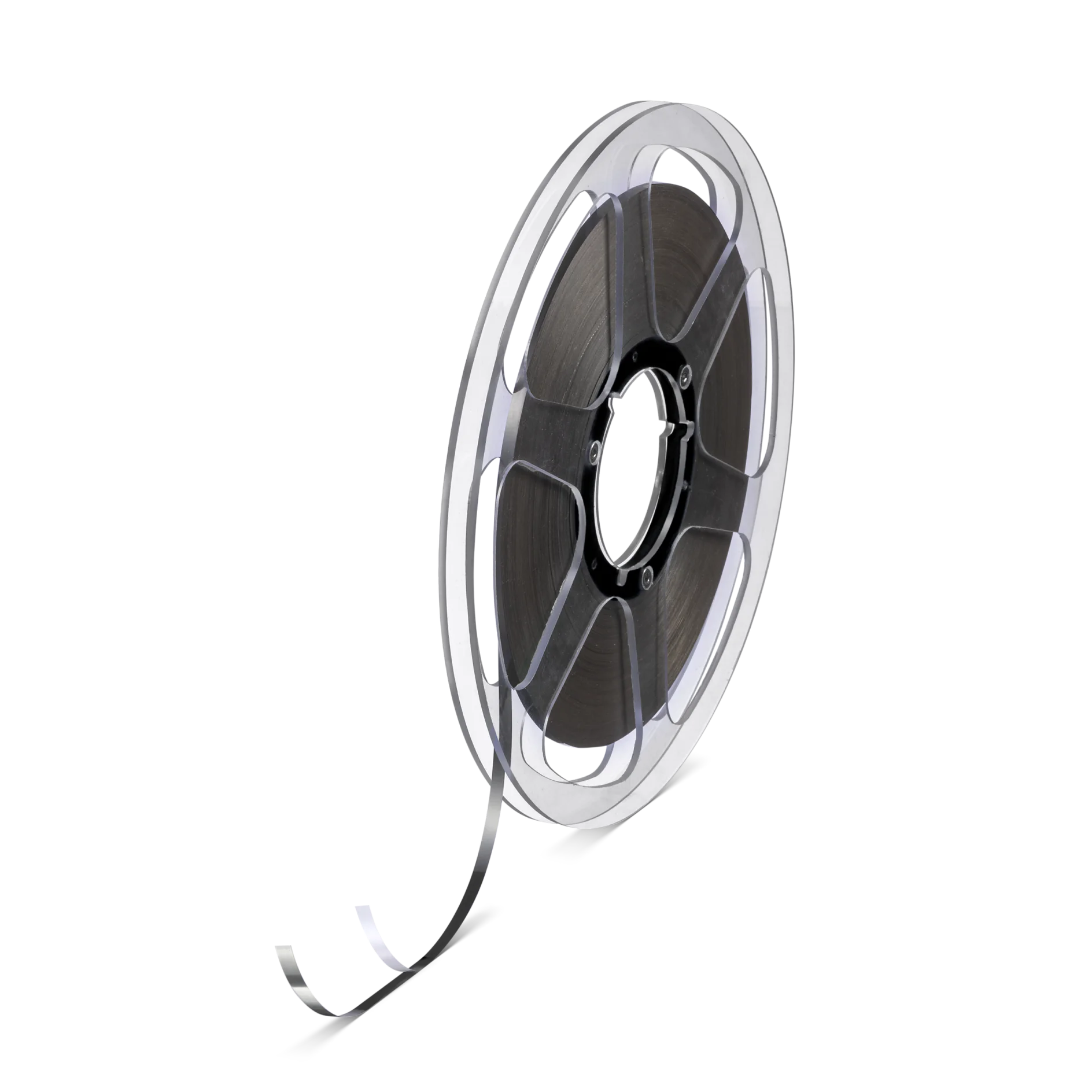

tesa_ECT_tin-coated-copper-gray_pr_001
02

PV panel manufacturers need a fast and reliable method to electrically interconnect thin film solar cells. That is why they turn to self-adhesive charge collection tape such as tesa® 60860 to ensure excellent XYZ conductivity for rigid and flexible panels as well as all common cell technologies. tesa® 60860 features a tin-plated copper backing with electrically conductive adhesive (ECA), offering high durability with low electrical resistance.

03

During the lamination process, solar cell strings need to be perfectly aligned and kept in position, but any solution has to withstand the heat required to melt the encapsulant. Our industry-proven tapes ensure a bubble-free, homogenous seal and perfect adhesion between the different layers of the PV module. Many can be used for a multitude of solar applications. For example, tesa® 7946 tape is not only designed to temporarily fix cells in photovoltaic modules during lamination, but also to fix and insulate solar ribbons in thin film modules.

A person wearing a hard hat and neon safety vest is using a tablet near large solar panels secured with tesa tape. The sky is partly cloudy. (This text has been generated by AI)

Wafer based solar modules

Wafer based crystalline silicon (c-Si) modules continue to be the backbone of solar power production. Together with you, we have developed cost-effective adhesive solutions for frame bonding, positioning and fixing solar cells, sealing edges and many other applications.

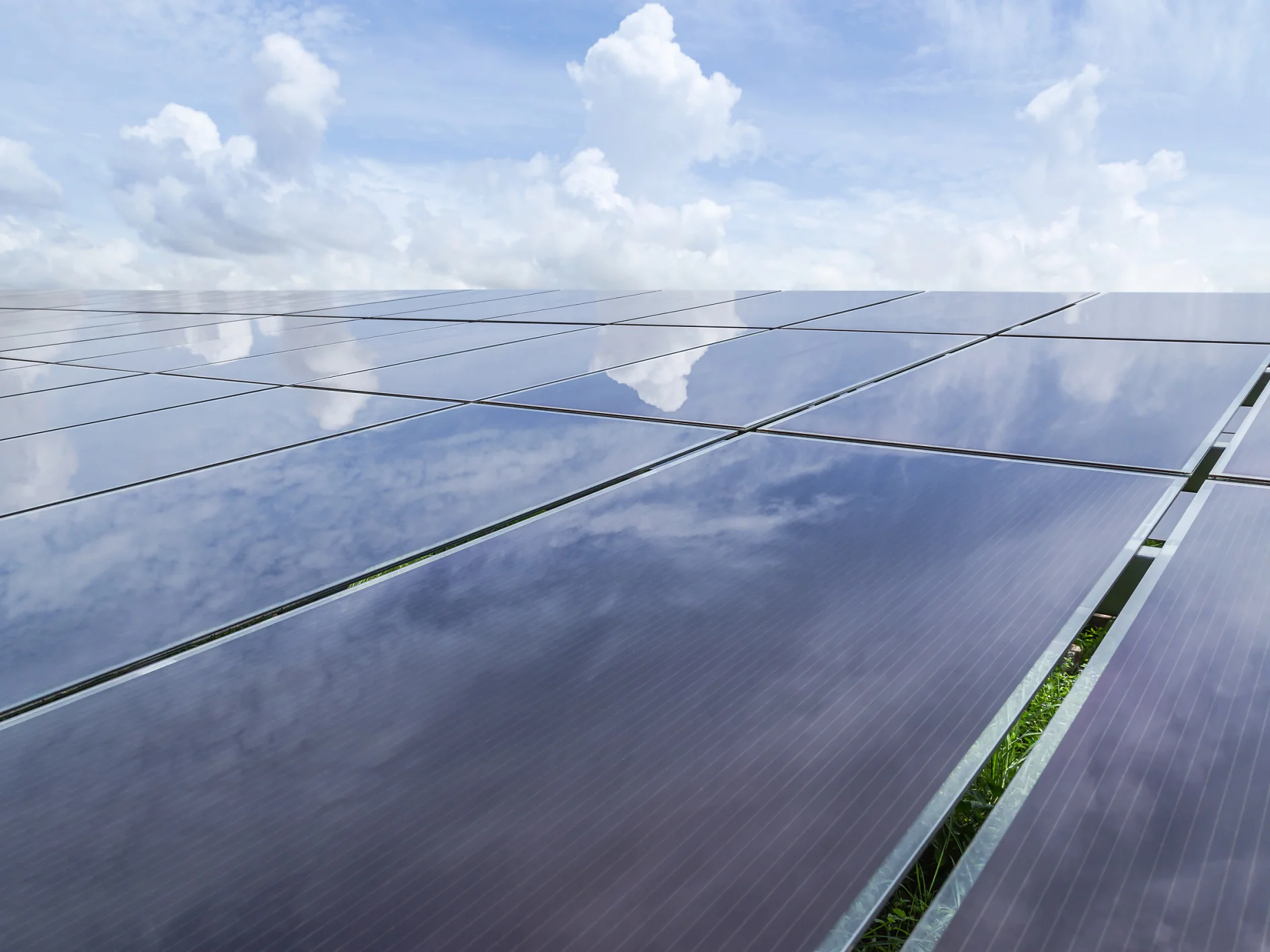

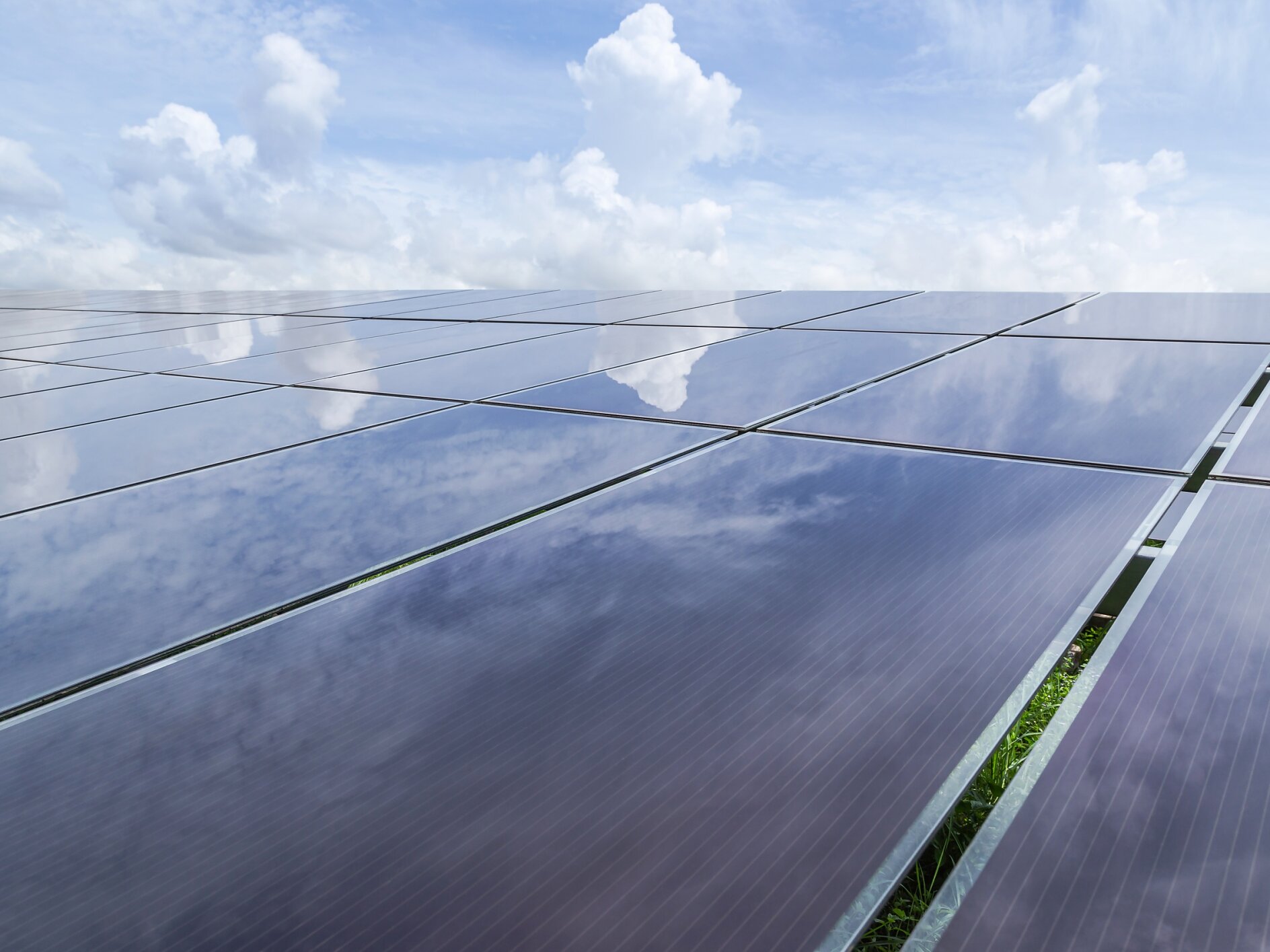

A large array of solar panels is seen reflecting a partly cloudy sky. The panels stretch across the image, capturing a mix of blue sky and white clouds. Vegetation is visible between the panels. (This text has been generated by AI)

Mô-đun năng lượng mặt trời màng mỏng

Thin film solar modules are an established and cost-effective solution, especially for utility scale ground-mounted systems and building integrated solar elements. Our core assortment of tapes covers a range of applications from charge collection and lead foil insulation to back rail and cable fixing.

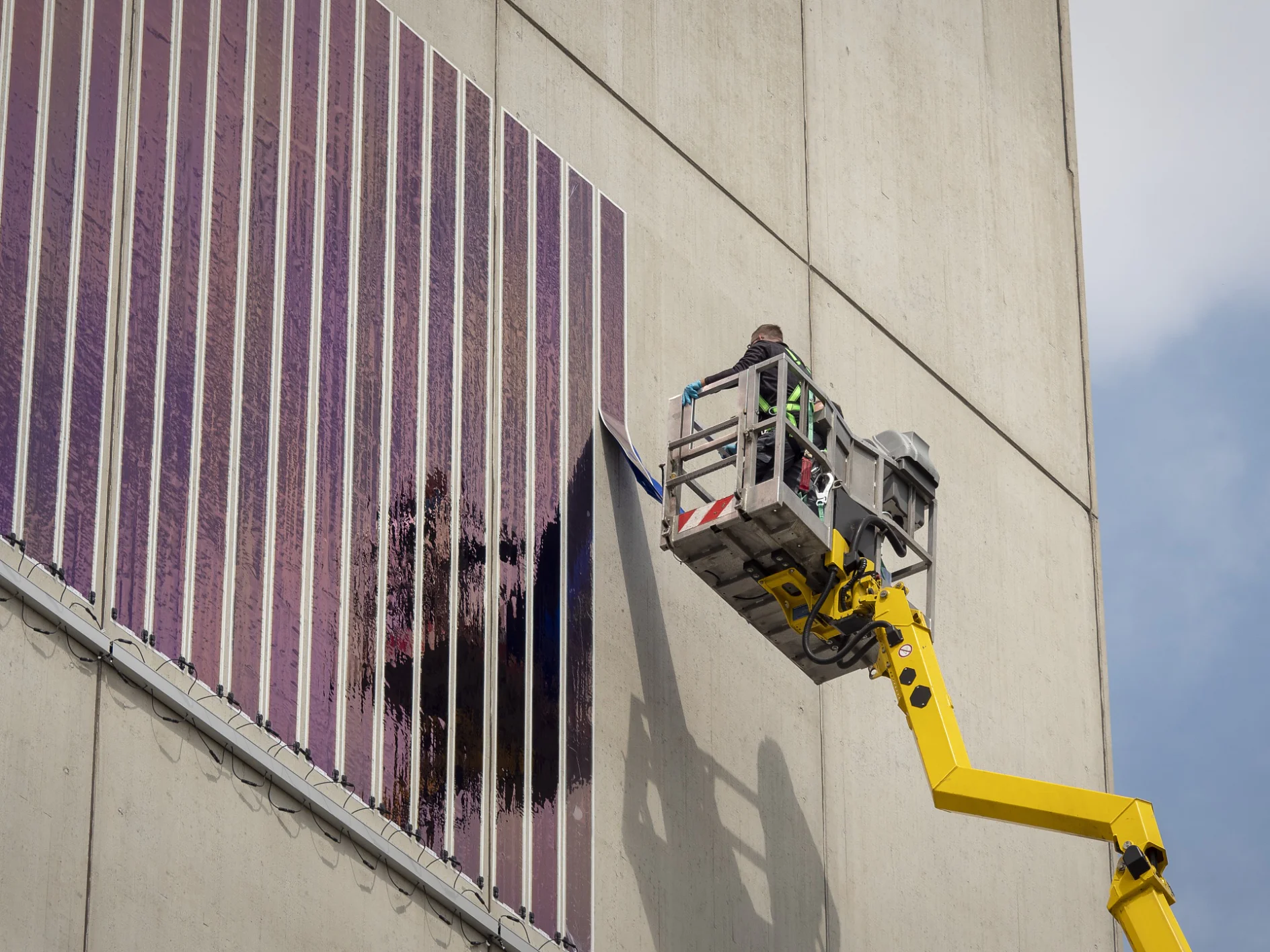

Heliatek Donauwörth

Mô-đun năng lượng mặt trời thế hệ mới

The future of solar generation lies in ultra-thin, flexible photovoltaic material that can independently power a multitude of products such as sensors, wearables, and IoT devices. Our expertise for adhesives in solar markets, coupled with our knowledge of electronics manufacturing, means we can help you develop the next generation of solar modules.

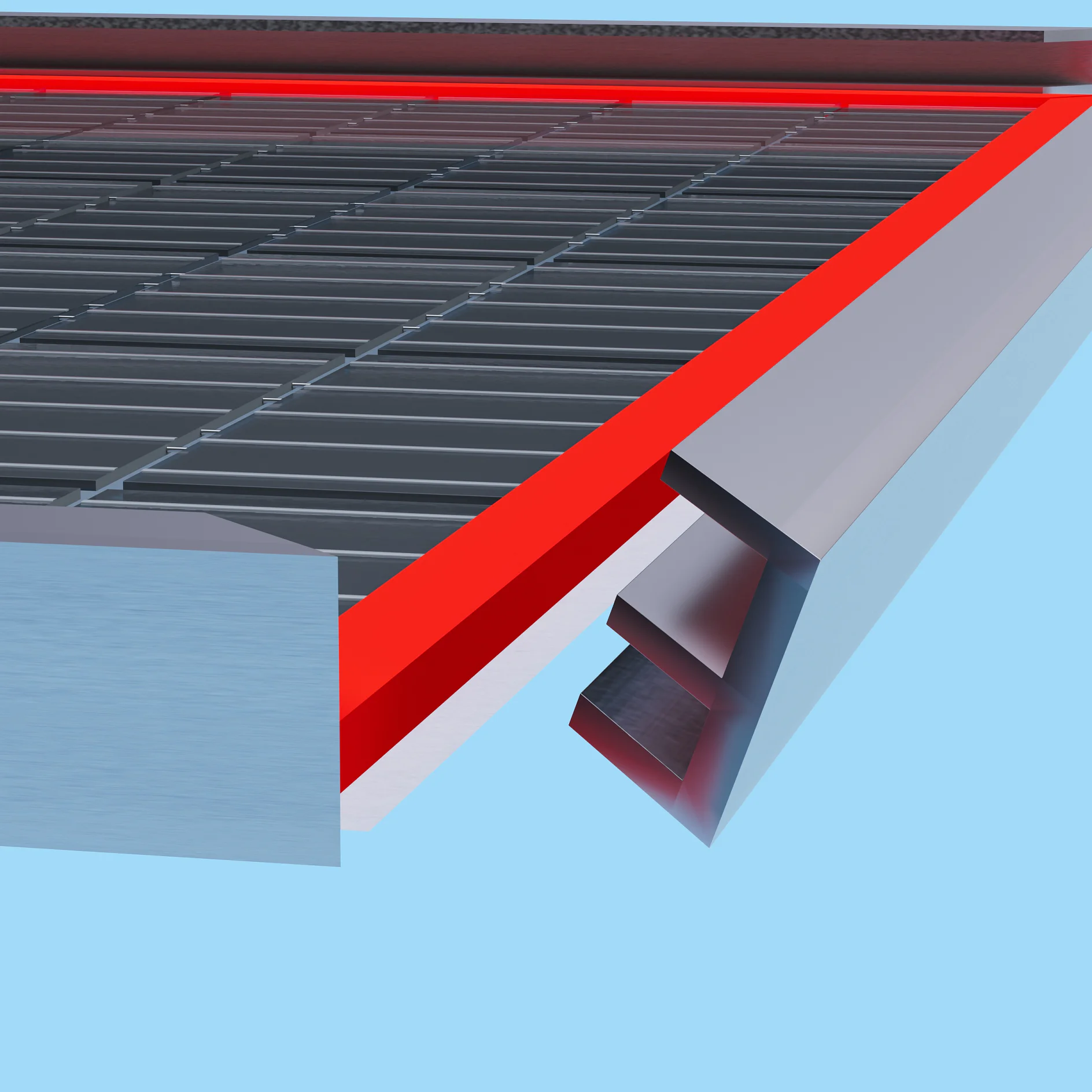

A digital rendering of a metal grating surface with a red border. A side view shows a metal frame and multiple parallel slats. The background is a solid light blue color. The image focuses on the edge and structure of the grating, which is enhanced using tesa tape along its edges for added clarity and definition. (This text has been generated by AI)

01Solar frame bonding

Manufacturers are always looking for a reliable, flexible bonding solution to streamline and improve production processes, particularly when assembling solar modules. Our tesa® FrameSelect double-sided PE-foam tapes are the key to high-quality, reliable bonding for frames. The PE-foam backing offers an ideal balance of good conformability and high inner strength. We have optimized the acrylic adhesive for effortless application and secure adhesion on most backsheets.

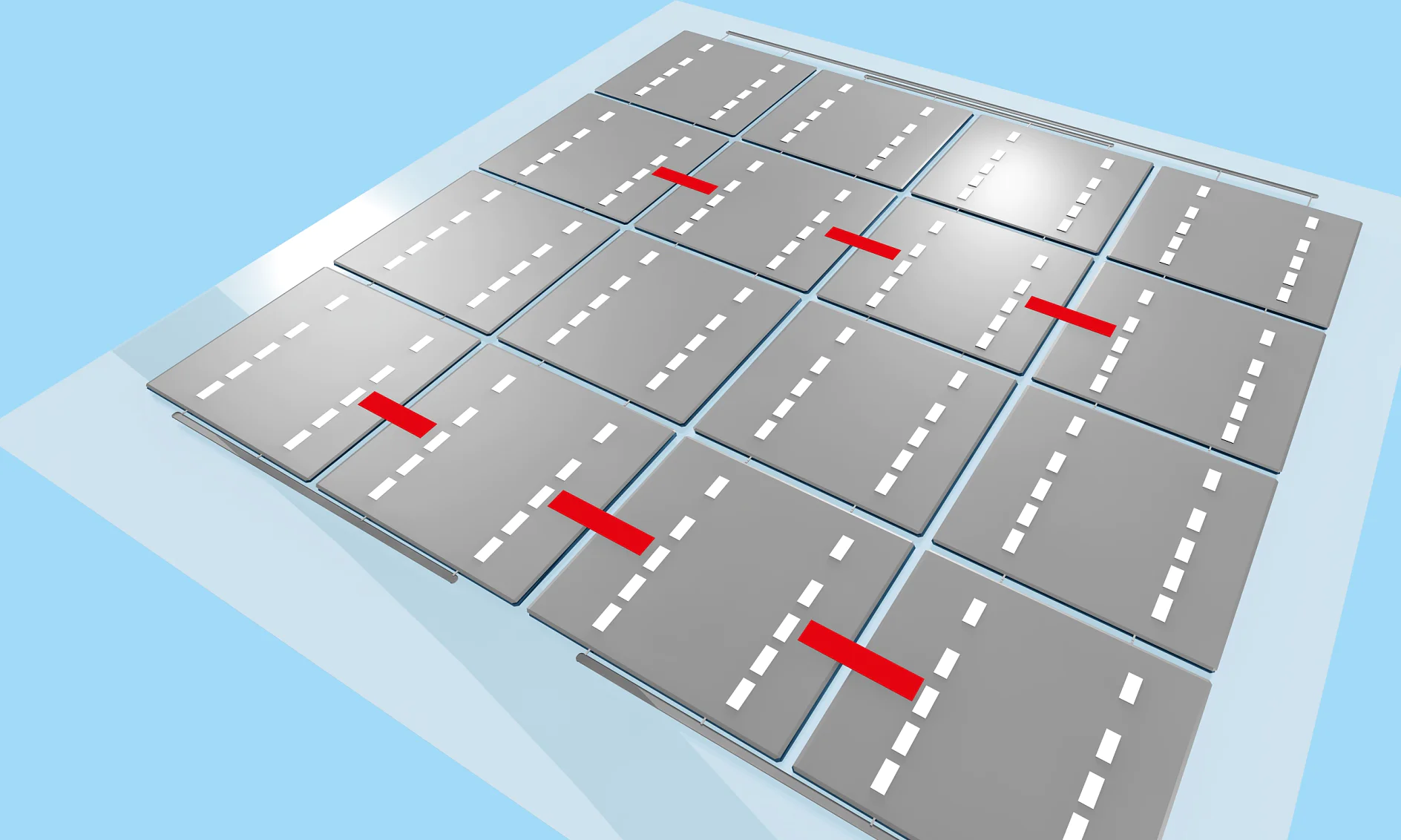

Cố định pin

02Cell fixation and alignment

During the lay-up and lamination process, the solar cells must be kept firmly in place and the strings need to be perfectly aligned. Any product used to fix and align the cells will remain inside the PV module, so it has to withstand long-term aging, elevated UV levels and high temperatures. Our single-sided cell-fixation tape holds solar cells and strings in place, not only for module production but also for the lifetime of the solar module.

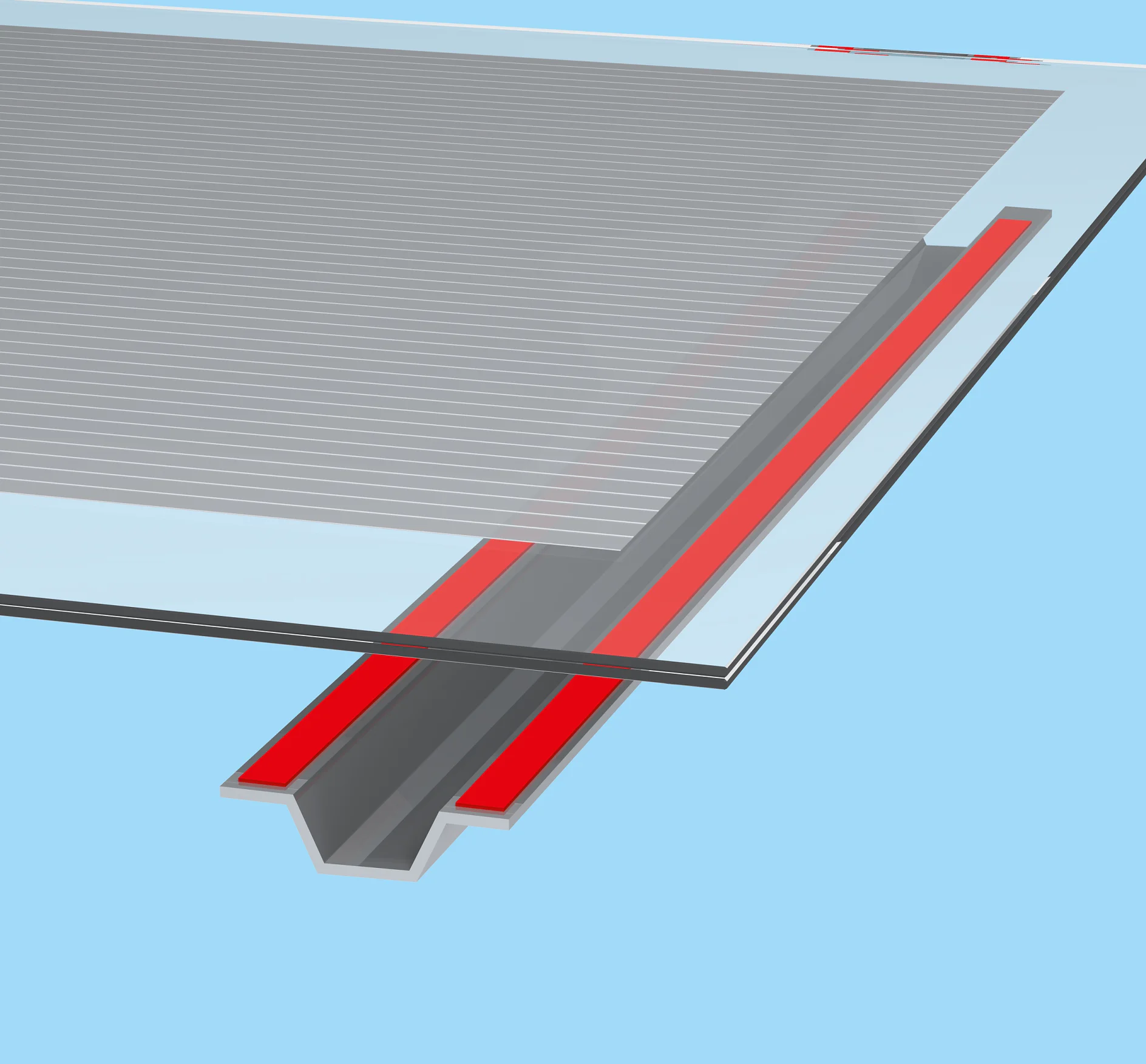

Gắn ray sau

03Back rail and stiffener mounting

Whether you want to bond back rails to photovoltaic modules, a mounting system to heliostat mirrors, or a glass cover to solar thermal modules, you need a bonding solution that offers the durability and performance needed. Our tesa® ACXplus acrylic core tapes are suitable for diverse and demanding structural bonding applications in the solar industry. Compared to traditional mounting solutions, they offer enormous process and design improvements, including an aesthetic design, simple application and dispensing, as well as fast bonding with no need for drying or curing.

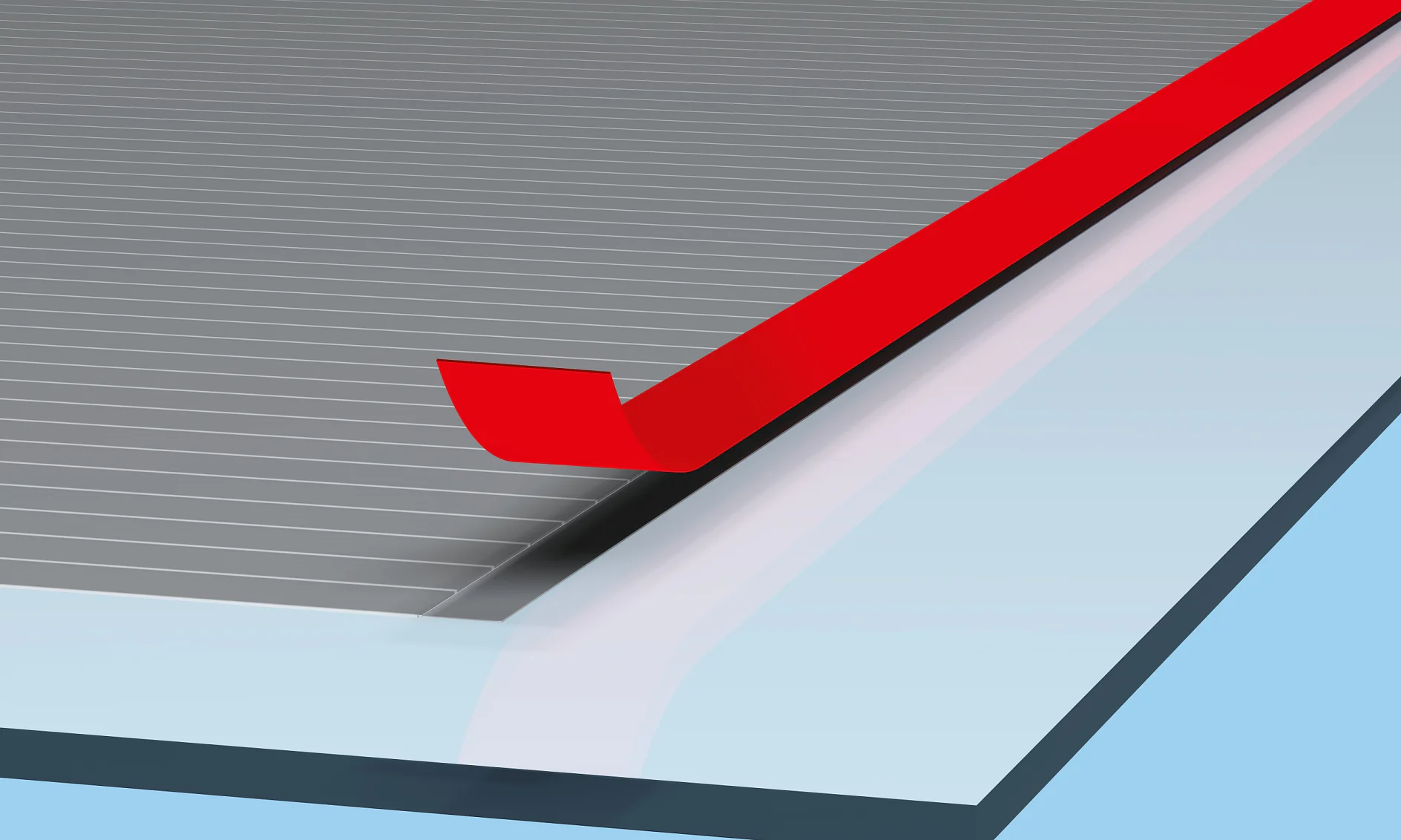

Cản sáng dải ruy băng

04Ribbon blackout

Some photovoltaic modules require bus bars on the sunny side. In close cooperation with our customers, our experts have developed special black-out tapes with low light transmission, high dielectric strength and low-volatility organic component content. These single-sided PET tapes permanently cover charge collectors or bus bars to improve the solar module design. They are also temperature and UV resistant and are designed to be permanently bonded on modules.

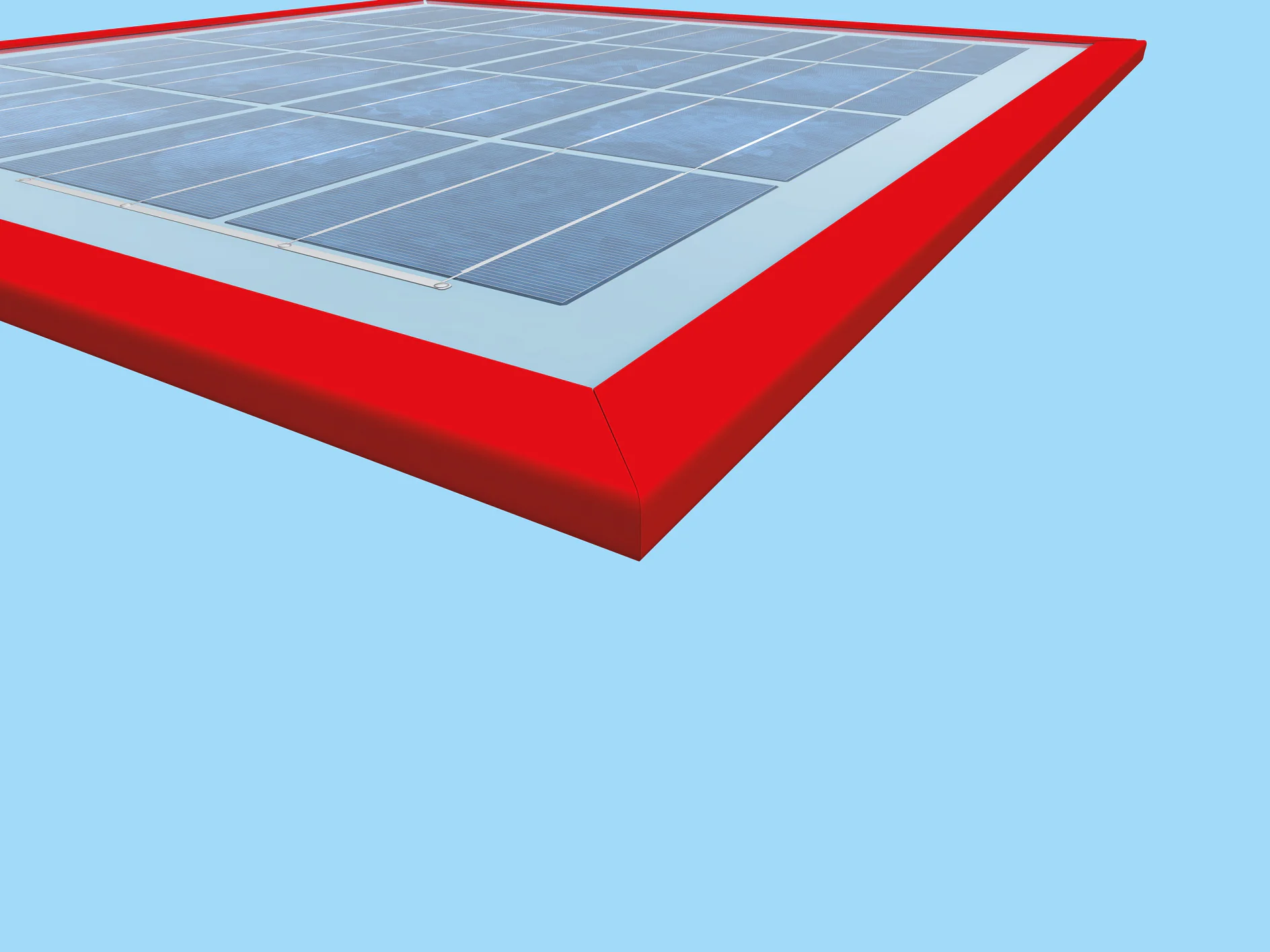

Bảo vệ gờ vĩnh viễn

05Permanent edge protection for frameless solar modules

Frameless PV modules with glass backsheets are becoming more popular on the market thanks to their aesthetic, clean look and finish. However, damaged glass edges during production, transport, and installation are a concern for many manufacturers. So, we have developed a single-sided self-adhesive tape that is shock absorbent, easy to apply and durable – even for extreme weather conditions. This tape not only reduces the glass breakage rate but seals the unit against water penetration or delamination.

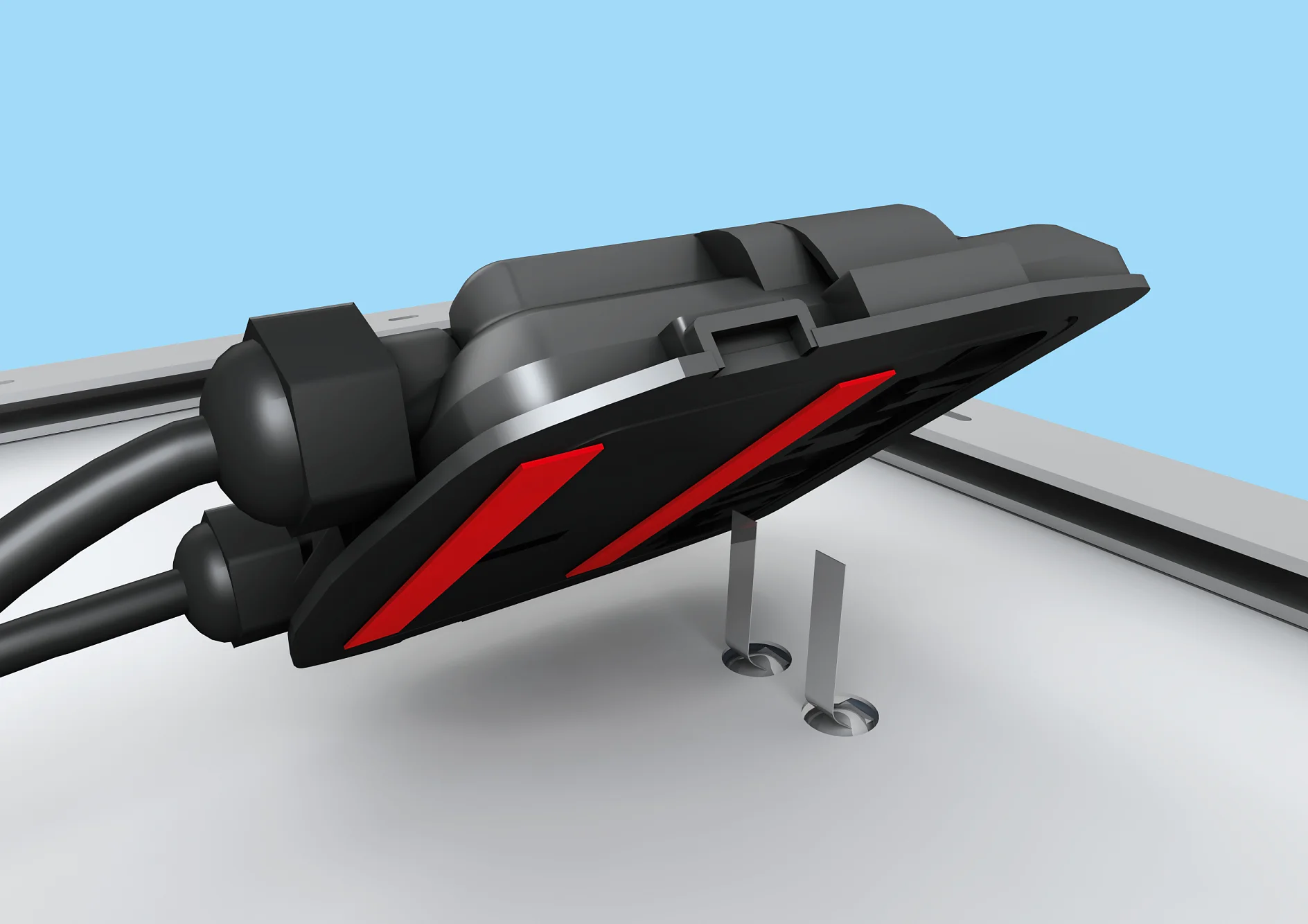

Junction Box Fixation

06Fixing solar junction boxes

When junction boxes are sealed using wet silicone adhesives, occasionally you’ll find curing times can cause quality issues, such as the displacement of the box or an inadequate bond. Using double-sided foam tapes on the box together with silicone adhesives resolves such problems. The tape is applied as a die cut or in strips, ensuring an immediate bond and a defined gap.

Male and female employee maintenance panels collect solar energy. Engineer working on checking and maintenance equipment at industry solar power.

Let’s innovate together

We recognize the importance of the solar industry in combatting climate change and reducing carbon emissions. We have a strong belief in the potential of adhesive tapes to contribute to making PV modules even more efficient, dependable, durable, and affordable. Our experts are committed to finding solutions for every new challenge you bring to us. Together, let's innovate and create smart, renewable energy solutions!
