プラスチックなど表面エネルギーが低い物体への貼り付けは難しく、インクの液滴は表面から流れ落ちます。

tesa LSE Mounting Solutions

for difficult to bond substrates

In order to achieve sufficient contact points for the formation of high adhesion forces, the pressure-sensitive adhesive must be able to sufficiently wet the substrate to be bonded. Wetting largely depends on the surface tension or energy of the substrate and the pressure-sensitive adhesive. LSE substrates are defined as low-surface energy tension.

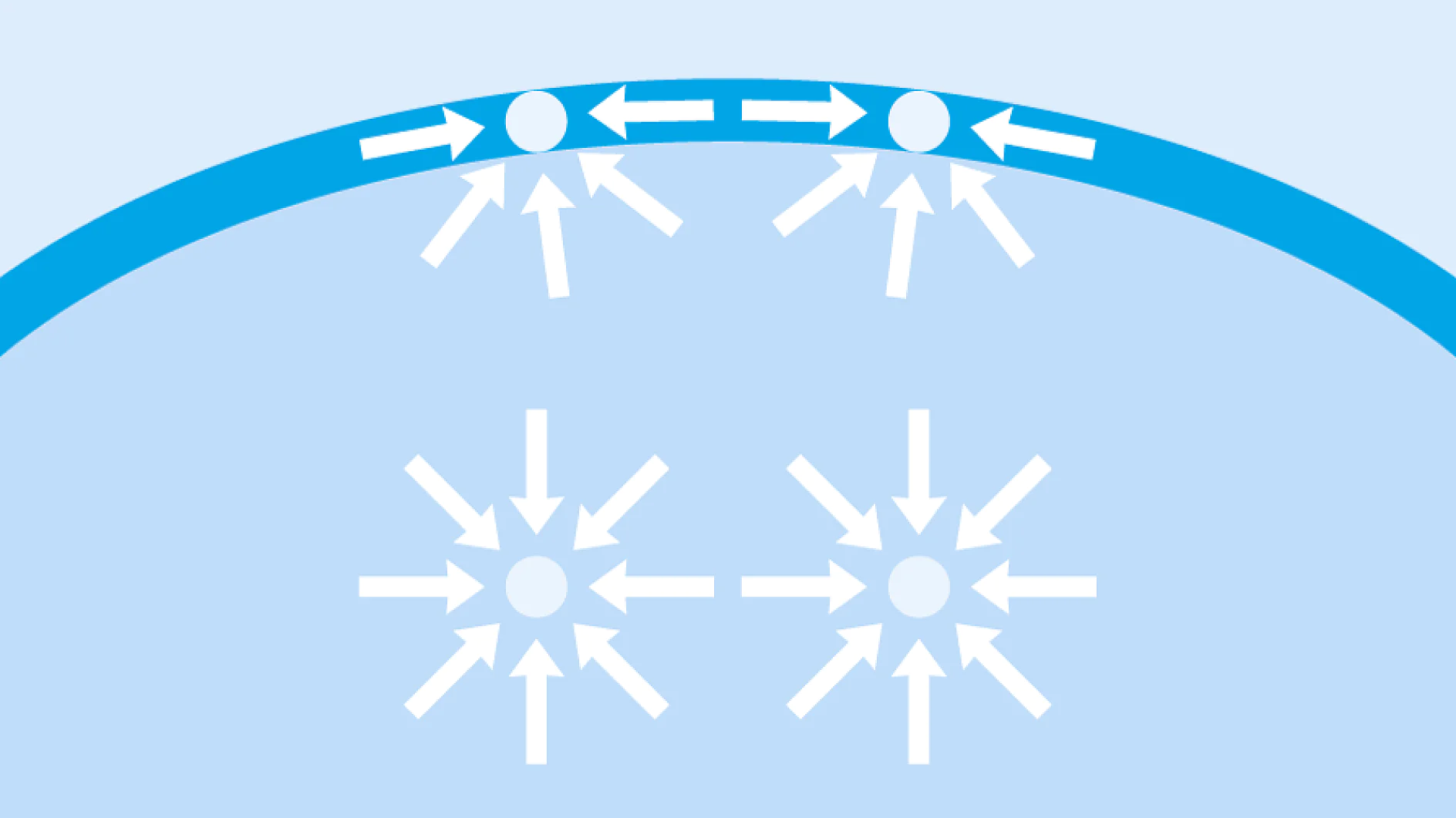

水分子の表面張力
水分子の表面張力

Double-Sided Adhesive Tape: Differential Si/Ac for Silicone and PTFE Substrates1

ProductThickness​
[µm]
Color

Liner​: Si / Ac

Standard log roll sizes:
length [m]   width [mm]
MOQ
in log roll
AdhesiveBackingPeel adhesion to Silicone [N/cm]
(initial / 14 days)
Temperature resistance
short term  [°C]
tesa® 88665115Transparent50µ PET / 80µ PCK 100 : 9801Si / AcPET6,3 / 9,5150
tesa® 6152630Transparent50µ PET / 50µ PET100 : 1.2405Si / AcPET3,0 / 4,5120
tesa® 6153250Transparent50µ PET / 50µ PET100 : 1.2405Si / AcPET3,0 / 4,5120
tesa® 61528100Transparent50µ PET / 50µ PET100 : 1.2405Si / AcPET2,8 / 4,0120
tesa® 61529140Transparent50µ PET / 50µ PET100 : 1.2405Si / AcPET3,0 / 4,0 120
tesa® 61520200Transparent50µ PET / 50µ PET100 : 1.24012Si / AcPET3,1 / 4,4120

Double-Sided Adhesive Tape: Standard LSE Surfaces1

ProductThickness​
[µm]
ColorLiner

Standard log roll width​ [mm]

AdhesiveBackingPeel adhesion to PP [N/cm] (initial/three days)Temperature resistance [°C]
tesa® 66022220TransparentBrown/Blue Logo1,150Acrylic​None14.0/16.0​200/-
tesa® 4965205TransparentMultiple1,372Acrylic​PET6.8/7.9 (14 days)​200/100
tesa® 51970220TransparentBrown1,372Acrylic​PP6.8/8.8 (14 days)​130/80
tesa® 51570110TranslucentBrown1,400 RubberNon-woven7.0/12.0 (14 days)​40/80
tesa® 755xx50, 75, 125TranslucentBrown1,372Acrylic​None​11.0 (initial on steel)​100/200
tesa® 92105500BlackTransparent610 Performance polymer foam None​25/30​–30°C to 100°C
tesa® 92108800BlackTransparent610 Performance polymer foam None​28/36​–30°C to 100°C
tesa® 921111,1BlackTransparent610 Performance polymer foam None​29/40​–30°C to 100°C
tesa®  77805500GrayRoyal Blue900​LSEAcrylic foam​26/28​​–40 to +80°C
tesa® 77808800GrayRoyal Blue900​LSEAcrylic foam​28/31​​–40 to +80°C
tesa®  778111,1GrayRoyal Blue900​LSEAcrylic foam​32/35​–40 to +80°C
tesa®  778151,5GrayRoyal Blue900​LSEAcrylic foam​36/39​–40 to +80°C
tesa® 649121,2BlackBrown1,240​RubberPE foam20/20 (after 14 days)​–40°C to reliable performance to higher temperatures
Features

Main Product Features

粘着強さの評価
High bonding
tesa_Icon-Elastic_001_72dpi
Conformable
テサ_アイコン補正_凹凸面-001_300dpi
Good wetting
Silhouette of a tilted laboratory flask with liquid pouring out, forming a droplet at the tip. The flask is positioned over a flat surface, indicating potential chemical interaction. A strip of tesa tape secures the flask in place to prevent any movement during experimentation. (This text has been generated by AI)
Chemical resistance
tesa_Icon-flexibility-001_72dpi
Anti-repulsion
A gray rectangle with two chevron arrows pointing into it: one from the right and one from the bottom. The arrows have three segments each. The background is black. (This text has been generated by AI)
Impact resistance
テサ・イコン・コンプレッシブル_b
Compressible
A circular logo with the letters LSE in the center. The letters are in a bold, sans-serif font and are enclosed within a thin, dark circle on a light background. To hold signage securely, use tesa tape for a strong and reliable adhesion solution. (This text has been generated by AI)
LSE performance
tesa-Icon-be-quick-001_72dpi
Quick bonding
