Thin film solar modules

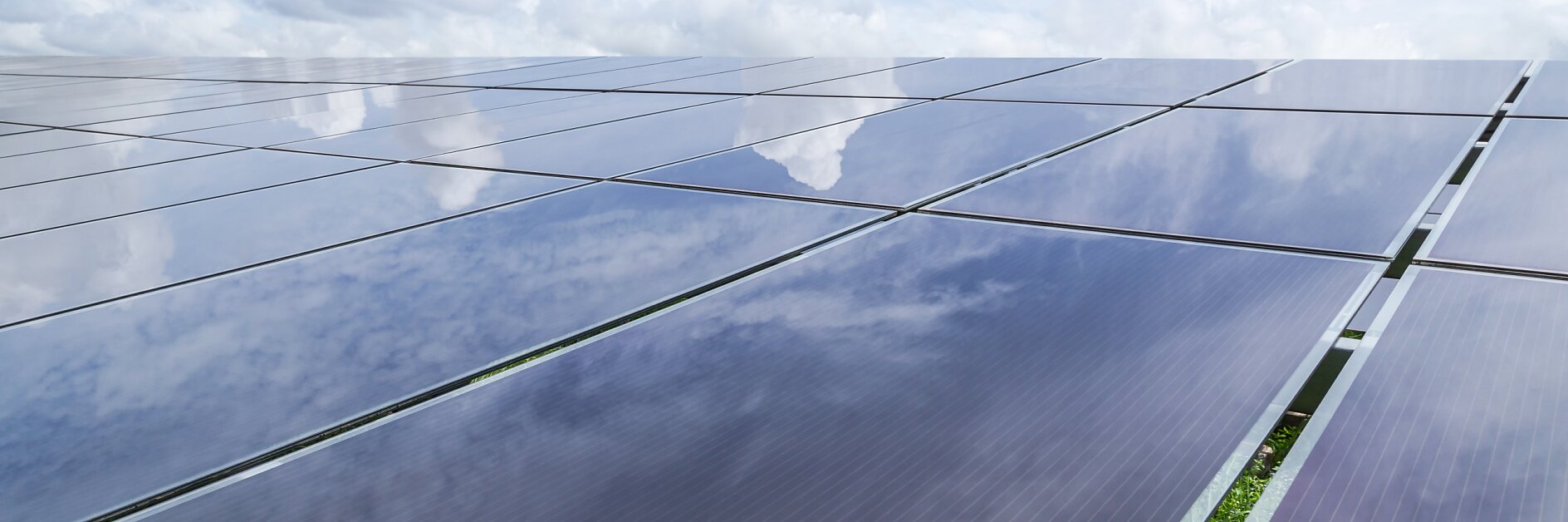

Thin film solar modules are an established and cost-effective solution, especially for utility scale ground-mounted systems and building integrated solar elements
The energy market is a highly competitive environment, and we understand the need for continuous product and process improvements. We therefore offer you a ready-to-use core assortment as well as customized adhesive solutions for your specific requirements. Take advantage of our extensive experience to enhance your production and to develop new modules!
CHARGE COLLECTION
Charge collection
Our self-adhesive charge collection tape is a fast and reliable method to electrically interconnect thin film solar cells. For rigid or flexible panels and all common cell technologies.
tesa® 60860 – Self-adhesive charge collection tape
- Tin-plated copper backing with electrically conductive adhesive (ECA)
- High durability, low electrical resistance
- Available in roll format for automated application
LEAD FOIL INSULATION
Lead foil insulation
Self-adhesive PET tapes are the ideal choice for lead foil bonding and insulation, especially when running across the cells.
tesa® 4972 - Double-sided PET tape
- Thin product design with high dielectrical strength
- Durable, high quality adhesive system
- Enables a trouble-free application process
RIBBON BLACKOUT
Ribbon blackout
Black single-coated PET tape to permanently cover metal ribbons for aesthetic or electrical insulations purposes on the side of the module that receives sunlight.
tesa® 7250 – Single-sided black PET tape
- Thin and flexible design
- UV and temperature resistant
BACK RAIL FIXATION
Back rail bonding and fixation
Back rails are used for PV power plants as part of the mounting system. They are bonded to the reverse side of the module using adhesive tape or liquid adhesive. Our adhesive tapes offer a fast application process and can be used as firm spacers in combination with liquid adhesives or as a full bonding solution.
tesa® ACXplus 7078 - Acrylic foam tape
- High immediate adhesion without curing time
- Stress dissipation properties
- High bonding strength and highly durable
CABLE FIXATION
Cable fixation
HOLE COVERING
Hole covering during lamination
For masking holes in the backsheet during the lamination process, our single coated products offer high temperature resistance and great removability.
tesa® 50600 PET tape with silicone adhesive
- Bonds to almost all types of back sheets
- 220 °C temperature resistance
- Excellent removability after lamination
JUNCTION BOX FIXATION
Junction box fixation
For temporary bonding of the junction box in combination with liquid adhesives. In addition to the spacer function, our adhesive tapes provide fast initial bonding and help implement a reliable and efficient production process.
tesa® 62510 - Double-sided PE foam tape
- 1 mm total thickness
- High immediate bonding strength
- Good dispensing and die-cutting properties
