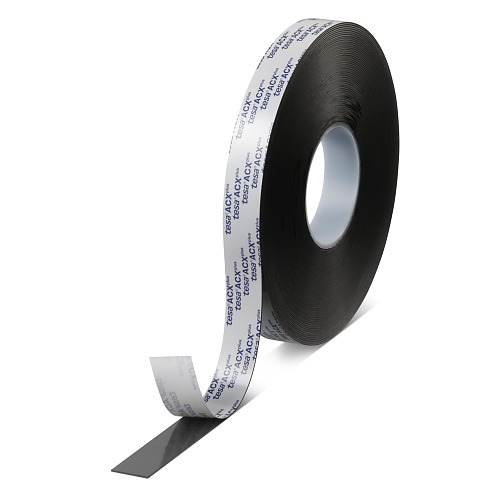

tesa® ACX^plus 7074 High Resistance

1000 µm / 39.4 mils double-sided acrylic foam tape

Product Features

Outstanding cold shock performance down to -40 °C / °F
A secure and reliable bond in outdoor conditions in combination with tesa adhesion promoters

Product description

The tesa® ACX^plus 707x series is suitable for a wide range of bonding applications. For powerful long-lasting bonds, even on material with different surface characteristics. The viscoelastic core compensates thermal elongations of bonded components during the life cycle of the final product, with temperature ranges from -20 °C / -4 °F to 80 °C / 176 °F. tesa® ACX^plus 707x series is a high-performance acrylic foam tape for permanent indoor and outdoor mounting applications.

Product details and specifications

Product Features

Outstanding cold shock performance down to -40 °C / °F
A secure and reliable bond in outdoor conditions in combination with tesa adhesion promoters

Application Fields

Exemplary mounting applications in different industries (e.g. windows & doors, elevator, transportation, appliances, interior fit-out) include:

Reinforcement Bars / Stiffener Bars
Muntin Bars
Flush Design
Interior Cladding
DryGlazing

Adhesive Type	pure acrylic
Backing material	foamed acrylic
Color	black
Total thickness	1,000 µm

Temperature resistance long term	248 °F 120 °C
Temperature resistance short term	428 °F 220 °C

Adhesion to ABS (initial)	2.86 lbs/in 5 N/cm
Adhesion to ABS (after 14 days)	3.43 lbs/in 6 N/cm
Adhesion to PP (initial)	0.57 lbs/in 1 N/cm
Adhesion to PP (after 14 days)	0.57 lbs/in 1 N/cm
Adhesion to Steel (initial)	9.14 lbs/in 16 N/cm
Adhesion to Steel (after 14 days)	18.84 lbs/in 33 N/cm
Adhesion to Steel (after 3 days)	18.27 lbs/in 32 N/cm

To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation. Please note for outdoor applications we recommend using tesa® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long term resistance against harsh environmental factors. For more technical data please refer to our technical information sheet in tesa.com/ACX^plus.
Liner options:

PV22: White paper liner - branded
PV24: Blue film liner - unbranded

Certificates:

tesa® ACX^plus 7076 is recognized according to UL Standard 746C. UL File QOQW2.E309290
Qualified for a credit according to LEED

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® ACX^plus 7074_en-US 57.4 kB

Contact us

Thank you for your message. We will contact you as soon as possible.

Stay tuned.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® ACXplus 7074 High Resistance	tesa® ACXplus 7076 High Resistance	tesa® ACXplus 7046 Gray / White	tesa® 4952	tesa® ACXplus 70725 High Resistance	tesa® 7274 Multi Purpose (MP)	tesa® ACXplus 7072 High Resistance	tesa® ACXplus 7273 Multi Purpose (MP)	tesa® ACXplus 7272 Multi Purpose (MP)	tesa® flameXtinct 45063	tesa® ACXplus 6808 Black Line	tesa® flameXtinct 45065
Total thickness	1,000 µm	1,500 µm	1,500 µm	1,150 µm	2,400 µm	1,100 µm	500 µm	800 µm	640	800 µm	800 µm	1,200 µm
Adhesive Type	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	acrylic
Backing material	foamed acrylic	foamed acrylic	filled acrylic	PE foam	foamed acrylic	foamed acrylic	foamed acrylic	foamed acrylic	foamed acrylic	filled acrylic	foamed acrylic	filled acrylic
Adhesion to Steel (initial)	16 N/cm	18 N/cm		6.5 N/cm	20 N/cm	18 N/cm	12 N/cm	16 N/cm	16 N/cm	17 N/cm	18 N/cm	21 N/cm
Adhesion to Steel (after 14 days)	33 N/cm	34 N/cm		8 N/cm	37 N/cm	32 N/cm	27 N/cm	28 N/cm	27 N/cm	32 N/cm		37 N/cm
Color	black	black		white	black	gray	black	gray	gray	white	deep black	white
