tesa® ACX^plus 70725 High Resistance

2,400µm/94.5 mils double-sided acrylic foam tape

Product Features

Due to its thickness ideal for gap filling requirements
Compensation of thermal elongation of different materials

Product description

The tesa® ACX^plus 707xx series is suitable for a wide range of bonding applications. For powerful long-lasting bonds, even on material with different surface characteristics. Three thicknesses are available (2400 µm – 3900µm) and the product is ideal for mounting applications with larger gap filling requirements.
As being part of the tesa® ACX^plus707x product group, tesa® ACX^plus 70725 can compensate thermal elongations of bonded components with temperature cycles from -20 °C to 80 °C (-4 °F to 176 °F).

Product details and specifications

Product Features

Due to its thickness ideal for gap filling requirements
Compensation of thermal elongation of different materials

Application Fields

Exemplary mounting applications in different industries (e.g. windows & doors, elevator, transportation, appliances, interior fit-out) include:

Partition Wall (glass-to-glass)

Adhesive Type	pure acrylic
Backing material	foamed acrylic
Color	black
Total thickness	94.49 mils 2400 µm

Adhesive Type	pure acrylic
Backing material	foamed acrylic
Color	black
Total thickness	94.49 mils 2400 µm

Temperature resistance short term	428 °F 220 °C
Temperature resistance long term	248 °F 120 °C

Temperature resistance short term	428 °F 220 °C
Temperature resistance long term	248 °F 120 °C

Adhesion to Steel (after 3 days)	21.13 lbs/in 37 N/cm

Adhesion to Steel (after 3 days)	21.13 lbs/in 37 N/cm

The product is recommended for indoor usage. For permanent outdoor applications with load-bearing requirements, our product offer is tesa® ACX^plus 707x series. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation.
Liner options:

PV24: Blue film liner – unbranded

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

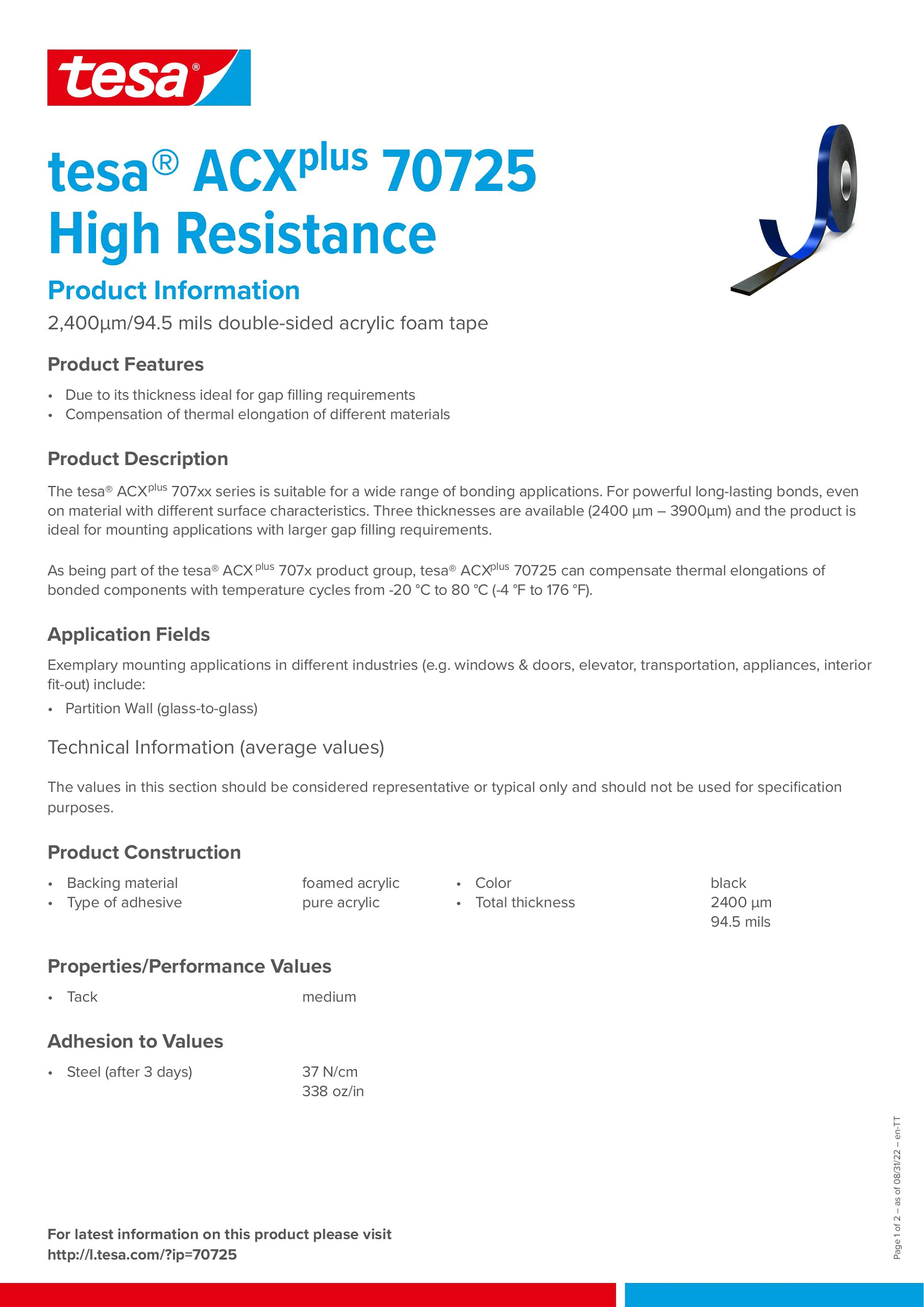

Product information_tesa® ACX^plus 70725_en-US 54.3 kB

Contact us

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® ACXplus 70725 High Resistance	tesa® ACXplus 7076 High Resistance	tesa® ACXplus 7046 Gray / White	tesa® 4952	tesa® 7274 Multi Purpose (MP)	tesa® ACXplus 7072 High Resistance	tesa® ACXplus 7273 Multi Purpose (MP)	tesa® ACXplus 7272 Multi Purpose (MP)	tesa® flameXtinct 45063	tesa® ACXplus 6808 Black Line	tesa® flameXtinct 45065
Total thickness	2400 µm	1500 µm	1500 µm	1150 µm	1100 µm	500 µm	800 µm	640 µm	800 µm	800 µm	1200 µm
Adhesive Type	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	acrylic
Backing material	foamed acrylic	foamed acrylic	filled acrylic	PE foam	foamed acrylic	foamed acrylic	foamed acrylic	foamed acrylic	filled acrylic	foamed acrylic	filled acrylic
Color	black	black		white	gray	black	gray	gray	white	deep black	white
Adhesion to Steel (initial)				6.5 N/cm						18 N/cm
Adhesion to Steel (after 14 days)				8 N/cm
