tesa® 7274 Multi Purpose (MP)

Double-sided acrylic foam tape 1100 µm / 43.3 mils

Product description

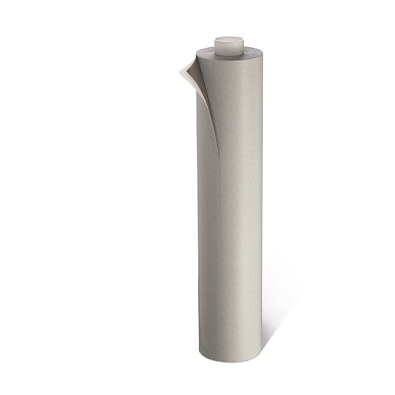

tesa® ACX^plus 7274 MP is a gray double-sided acrylic foam tape.

Product details and specifications

Application Fields

The tesa® ACX^plus MP product family is suitable for a wide range of multi-purpose bonding applications.
To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) in order to provide the right product recommendation.
tesa® ACX^plus 7274 MP series is especially suitable for bonding applications such as emblem, decorative part or signage mounting.

Adhesive Type	pure acrylic
Backing material	foamed acrylic
Color	gray
Liner Type	white
Total thickness	43.31 mils 1100 µm

Adhesive Type	pure acrylic
Backing material	foamed acrylic
Color	gray
Liner Type	white
Total thickness	43.31 mils 1100 µm

Temperature resistance long term	212 °F 100 °C
Temperature resistance short term	392 °F 200 °C

Temperature resistance long term	212 °F 100 °C
Temperature resistance short term	392 °F 200 °C

Adhesion to Aluminium (after 3 days)	17.7 lbs/in 31 N/cm
Adhesion to Steel (after 3 days)	18.27 lbs/in 32 N/cm

Adhesion to Aluminium (after 3 days)	17.7 lbs/in 31 N/cm
Adhesion to Steel (after 3 days)	18.27 lbs/in 32 N/cm

We recommend using tesa® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long-term resistance against harsh environmental factors. Which tesa® Adhesion Promoter should be used depends on the substrates and the application. We will be glad to advise you in order to find the right solution.
Liner versions:

PV44: White filmic liner - branded

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 07274_en-US 48 kB

Contact us

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 7274 Multi Purpose (MP)	tesa® ACXplus 7076 High Resistance	tesa® ACXplus 7046 Gray / White	tesa® 4952	tesa® ACXplus 70725 High Resistance	tesa® ACXplus 7072 High Resistance	tesa® ACXplus 7273 Multi Purpose (MP)	tesa® ACXplus 7272 Multi Purpose (MP)	tesa® flameXtinct 45063	tesa® ACXplus 6808 Black Line	tesa® flameXtinct 45065
Total thickness	1100 µm	1500 µm	1500 µm	1150 µm	2400 µm	500 µm	800 µm	640 µm	800 µm	800 µm	1200 µm
Adhesive Type	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	acrylic
Backing material	foamed acrylic	foamed acrylic	filled acrylic	PE foam	foamed acrylic	foamed acrylic	foamed acrylic	foamed acrylic	filled acrylic	foamed acrylic	filled acrylic
Color	gray	black		white	black	black	gray	gray	white	deep black	white
Adhesion to Steel (initial)				6.5 N/cm						18 N/cm
Adhesion to Steel (after 14 days)				8 N/cm
