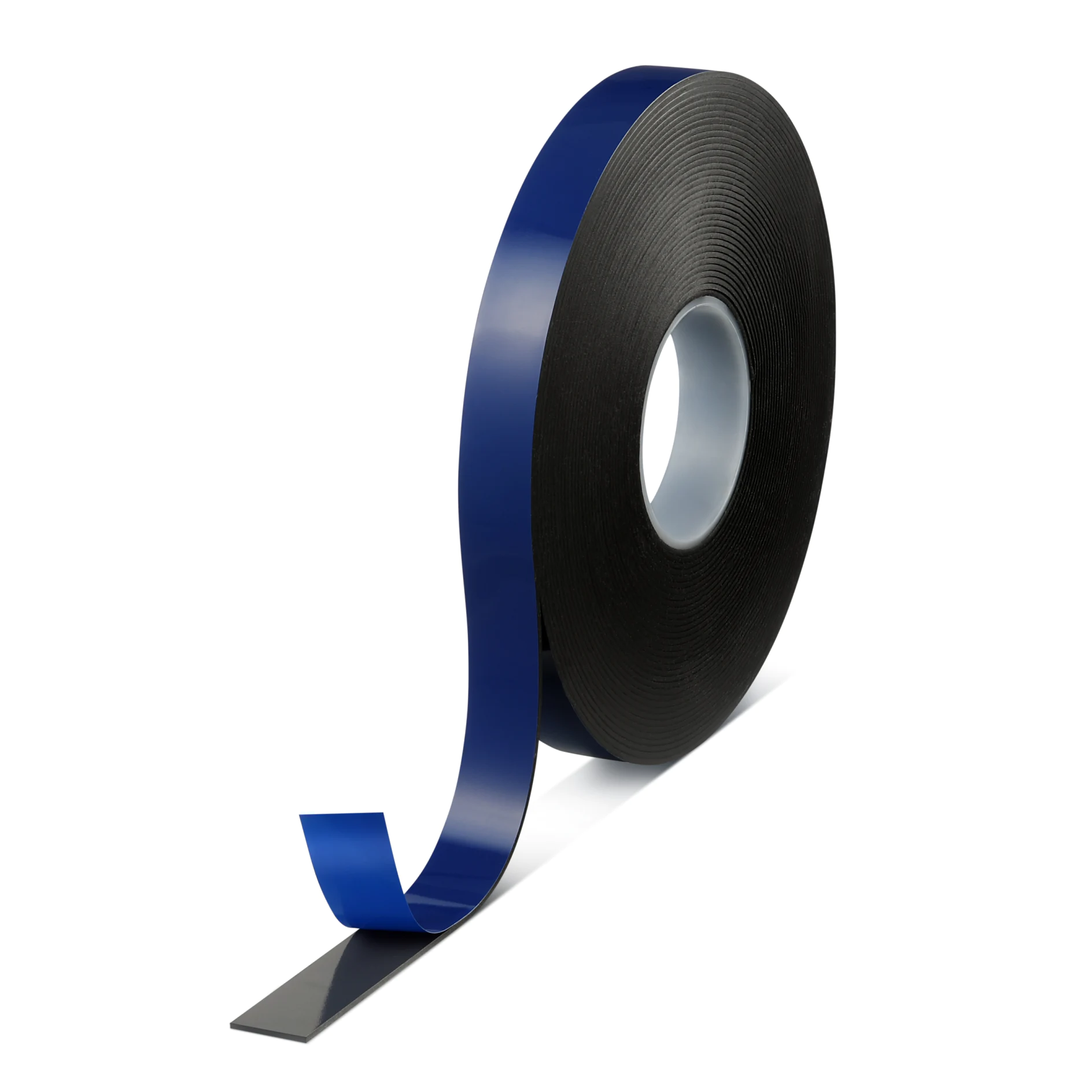

114 mils / 2,900 µm double-sided acrylic foam tape
The tesa® ACXplus 707xx series is suitable for a wide range of bonding applications. For powerful long-lasting bonds, even on material with different surface characteristics. Three thicknesses are available (2400 µm – 3900µm) and the product is ideal for mounting applications with larger gap filling requirements.
As being part of the tesa® ACXplus 707x product group, tesa® ACXplus 70730 can compensate thermal elongations of bonded components with temperature cycles from -20 °C to 80 °C (-4 °F to 176 °F).
| Adhesive Type | pure acrylic |
|---|---|
| Backing material | foamed acrylic |
| Color | black |
| Total thickness | 2,900 µm |
| Temperature resistance short term |
428 °F
220 °C |
|---|---|
| Temperature resistance long term |
248 °F
120 °C |
| Adhesion to ABS (initial) |
2.86 lbs/in
5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) |
3.43 lbs/in
6 N/cm |
| Adhesion to PP (initial) |
0.57 lbs/in
1 N/cm |
| Adhesion to PP (after 14 days) |
0.57 lbs/in
1 N/cm |
| Adhesion to Steel (initial) |
8.57 lbs/in
15 N/cm |
| Adhesion to Steel (after 14 days) |
21.7 lbs/in
38 N/cm |
| Adhesion to Steel (after 3 days) |
21.7 lbs/in
38 N/cm |
Download the files below for more technical details and information on this product.
