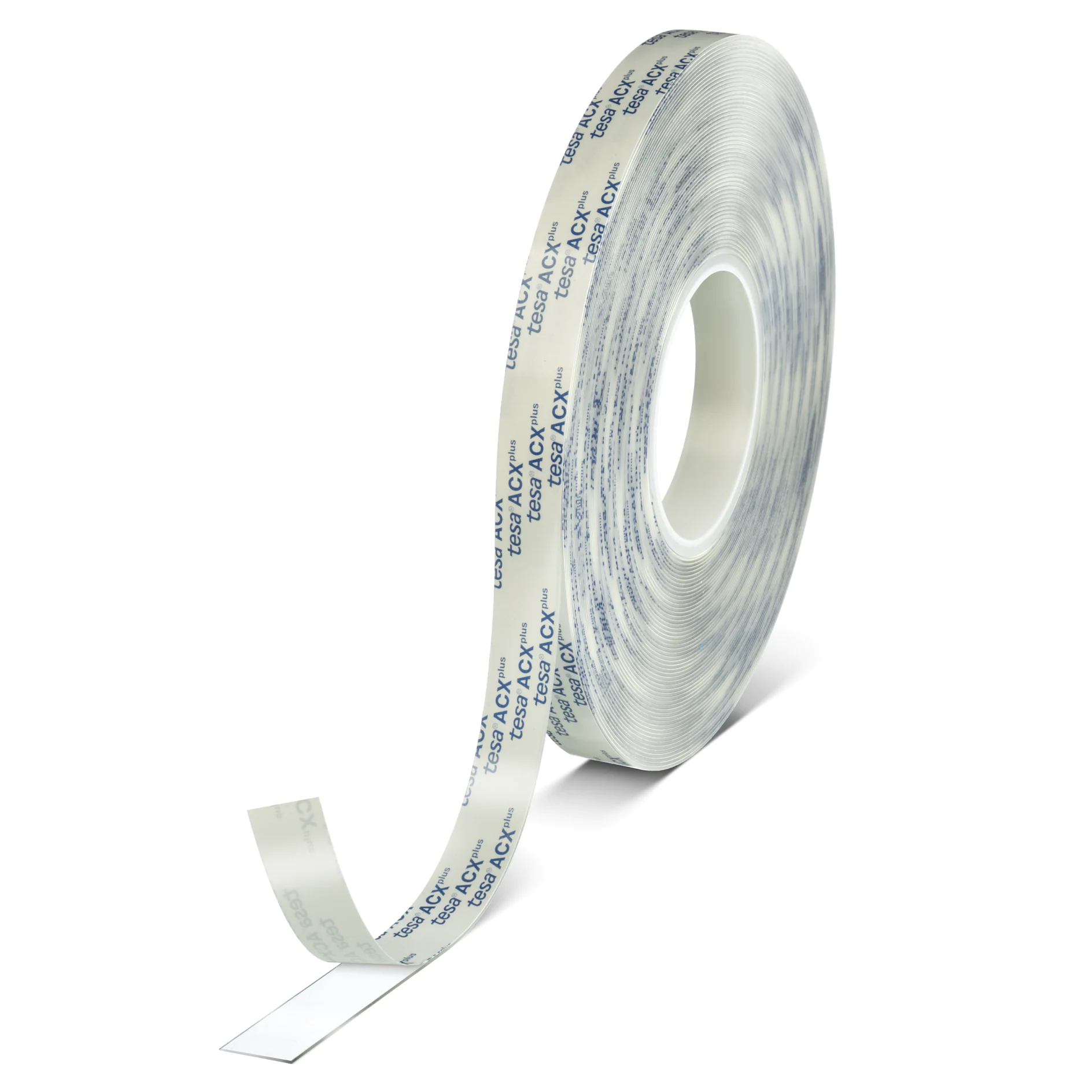

tesa® ACX^plus 7054 High Transparency

500 µm/19.7 mils double-sided acrylic core tape

Product description

tesa® ACX^plus 705x series is a highly transparent acrylic core tape designed for bonds that achieve a seamless and optical clear finish. Translucent and transparent materials, such as glass or acrylic are easy to bond with tesa® ACX^plus 7054.

Product details and specifications

Application Fields

Exemplary mounting applications in different industries (e.g. extruder, appliances, interior fit-out, signage) include:

Extruded profiles

Adhesive Type	pure acrylic
Backing material	solid acrylic
Color	transparent
Liner Type	silicone-free film
Total thickness	500 µm

Adhesion to Steel (after 3 days)	10.28 lbs/in 18 N/cm

The product is recommended for indoor usage. For permanent outdoor applications with load-bearing requirements, our product offer is tesa® ACX^plus 707x series. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation. For more technical data please refer to our technical information sheet on tesa.com/ACX^plus.
Liner options:

PV12: Transparent PET liner – unbranded
PV26: White paper liner – unbranded
PV28: Blue film liner – unbranded
PV48: White film liner – branded

Certificates:

tesa® ACX^plus 7054 is recognized according to UL Standard 746C. UL File QOQW2.E309290
tesa® ACX^plus 7054 is recognized according to UL Standard 879. UL File UYMR2.E479260
Qualified for a credit according to LEED

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® ACX^plus 07054_en-US 62.6 kB

Contact us

Thank you for your message. We will contact you as soon as possible.

Stay tuned.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® ACXplus 7054 High Transparency	tesa® ACXplus 7076 High Resistance	tesa® ACXplus 7046 Gray / White	tesa® 4952	tesa® ACXplus 70725 High Resistance	tesa® 7274 Multi Purpose (MP)	tesa® ACXplus 7072 High Resistance	tesa® ACXplus 7273 Multi Purpose (MP)	tesa® ACXplus 7272 Multi Purpose (MP)	tesa® flameXtinct 45063	tesa® ACXplus 6808 Black Line	tesa® flameXtinct 45065
Total thickness	500 µm	1,500 µm	1,500 µm	1,150 µm	2,400 µm	1,100 µm	500 µm	800 µm	640	800 µm	800 µm	1,200 µm
Adhesive Type	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	acrylic
Backing material	solid acrylic	foamed acrylic	filled acrylic	PE foam	foamed acrylic	foamed acrylic	foamed acrylic	foamed acrylic	foamed acrylic	filled acrylic	foamed acrylic	filled acrylic
Color	transparent	black		white	black	gray	black	gray	gray	white	deep black	white
Adhesion to Steel (initial)		18 N/cm		6.5 N/cm	20 N/cm	18 N/cm	12 N/cm	16 N/cm	16 N/cm	17 N/cm	18 N/cm	21 N/cm
Adhesion to Steel (after 14 days)		34 N/cm		8 N/cm	37 N/cm	32 N/cm	27 N/cm	28 N/cm	27 N/cm	32 N/cm		37 N/cm
