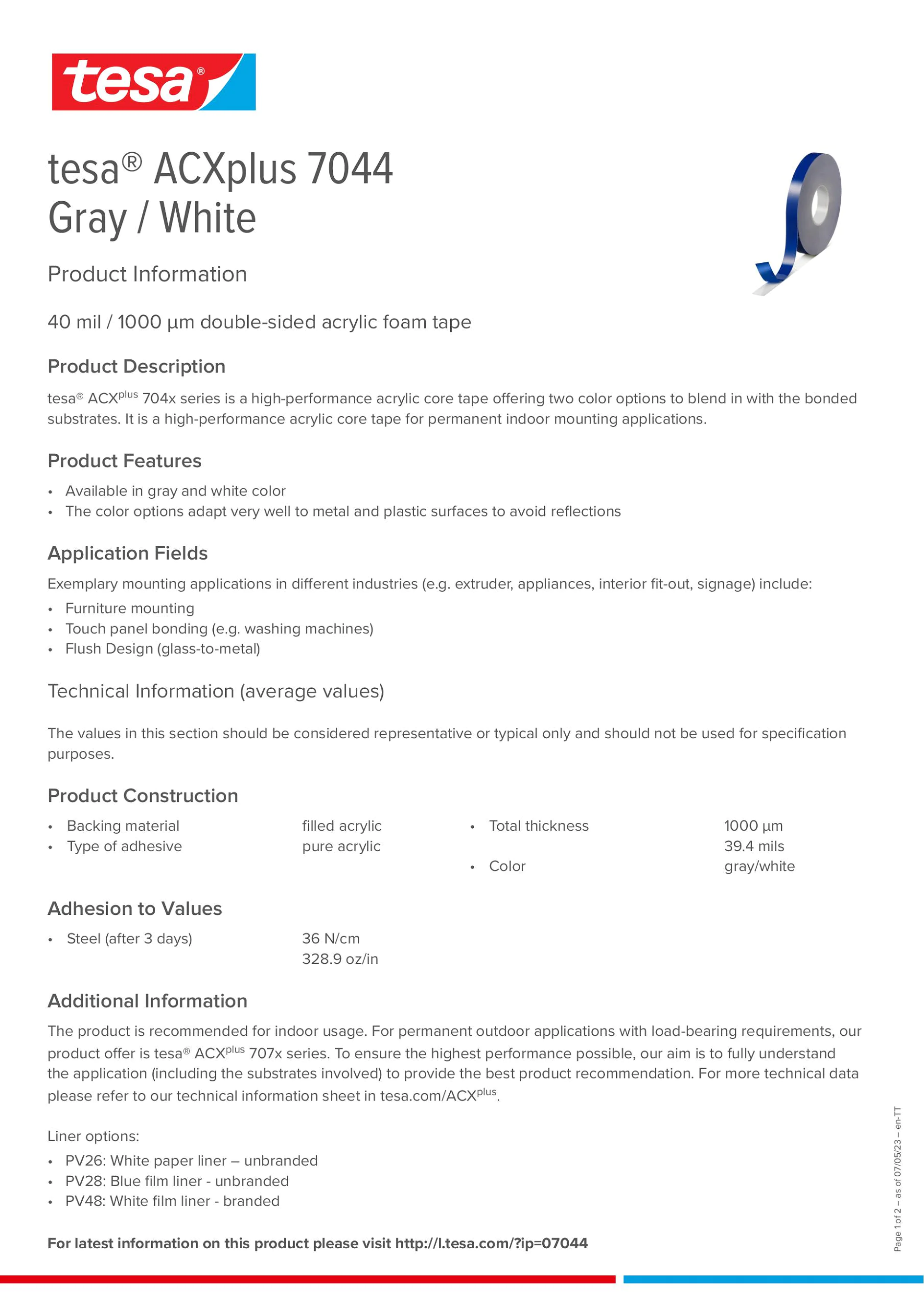

tesa_0704x_as_001
Product information

tesa® ACXplus 7044 Gray / White

40 mil double-sided acrylic foam tape



Product description

tesa® ACXplus 7044 is an acrylic foam tape, available in gray or white. It consists of a high performance acrylic system and is primarily characterized by its bonding power, stress dissipation characteristics, and its temperature and weather resistance. Due to the product's unique formulation, this double-sided acrylic foam tape combines very high adhesion levels with the ability to absorb and dissipate high dynamic loads. tesa® ACXplus 7044 performs well on "hard-to-bond-materials" such as powder coatings or plastic materials. Even in combinations of such materials, this product provides advanced safety due to its innovative product design.

tesa® ACXplus 7044 is especially designed to allow invisible bonding of decorative elements. The gray or white color options adapt very well to metal and plastic surfaces. Furthermore, gleaming of translucent and decorative materials is avoided.

Main applications

The tesa® ACXplus product family is suitable for a wide range of conctructive bonding applications. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) in order to provide the right product recommendation. Example applications include but are not limited to:

  • Mounting of decorative panels (e.g. refrigerator glass doors)
  • Mounting of decorative elements (e.g. covers of dishwashers, muntin bars on windows)
  • Mounting of glass-to-glass or glass-to-metal applications (e.g. partition walls or glass doors)
tesa_0704x_as_001
tesa-acxplus-7044-1000-double-sided-acrylic-foam-tape-white-070440001928-pr
tesa-acxplus-7044-1000-double-sided-acrylic-foam-tape-white-070440001928-pr
tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step1of8-ap
tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step2of8-ap
tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step5of8-ap
tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step6of8-ap
tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step7of8-ap
tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step8of8-ap

tesa_0704x_as_001

tesa-acxplus-7044-1000-double-sided-acrylic-foam-tape-white-070440001928-pr

tesa-acxplus-7044-1000-double-sided-acrylic-foam-tape-white-070440001928-pr

tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step1of8-ap

tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step2of8-ap

tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step5of8-ap

tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step6of8-ap

tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step7of8-ap

tesa-7044-acxplus-1000-double-sided-acrylic-foam-tape-step8of8-ap

Technical properties

Elongation at break

710 %

Type of adhesive

pure acrylic

Total thickness

1000 µm

Backing material

foamed acrylic

Color

gray/white

Adhesion properties

Adhesion to ABS (after 3 days)

32 N/cm

Adhesion to PMMA (after 3 days)

24 N/cm

Adhesion to Aluminium (after 3 days)

35 N/cm

Adhesion to Steel (after 3 days)

33 N/cm

Adhesion to Glass (after 3 days)

32 N/cm

Rating properties

Static shear resistance at 23°C

++

T-block

++

Resistance to chemicals

++

Humidity resistance

++

Tack

+

Static shear resistance at 70°C

++

Ageing resistance (UV)

++

Temperature resistance long term

110 °C

Temperature resistance short term

200 °C

Softener resistance

+

Additional Info

Please note that we recommend using tesa® Adhesion Promoter as surface pre-treatment as it leads to a significant improvement of adhesion levels. Which tesa® Adhesion Promoter should be used depends on the substrates and the application. We will be glad to advise you in order to find the right solution.

For permanent outdoor applications with load-bearing requirements, our first recommendation is our high resistance product within the tesa® ACXplus family: tesa® ACXplus High Resistance (7074).

PV28 indicates that this product comes with a blue silicone-free filmic liner.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
