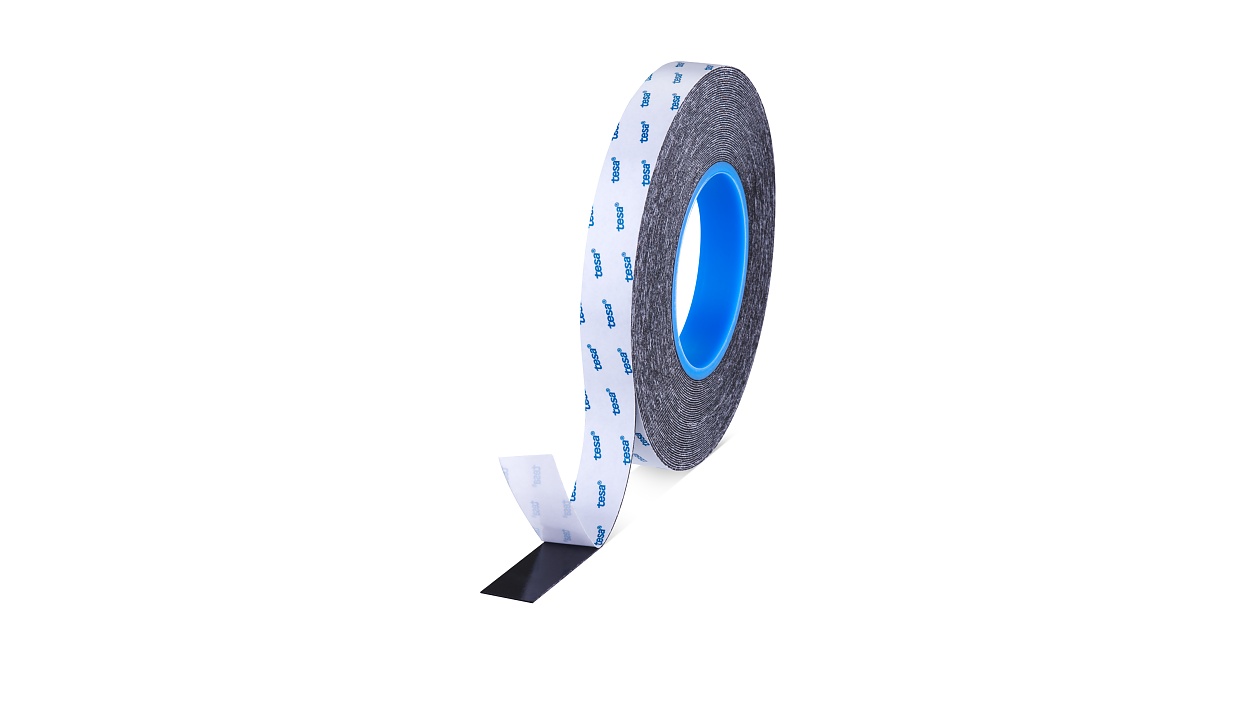

tesa® 66108
Product details and specifications
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PE foam |
| Color | black |
| Color of liner | white with tesa logo |
| Liner Type | paper |
| Total thickness | 31.5 mils
800 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PE foam |
| Color | black |
| Color of liner | white with tesa logo |
| Liner Type | paper |
| Total thickness | 31.5 mils
800 µm |
Properties / Performance Values
| Elongation at break | 190 % |
|---|---|
| Tensile strength | 4.57 lbs/in
8 N/cm |
| Static shear resistance at 70°C | good |
| Ageing resistance (UV) | good |
| Static shear resistance at 23°C | very good |
| Humidity resistance | good |
| Temperature resistance short term | 176 °F
80 °C |
| Tack | very good |
| Temperature resistance long term | 176 °F
80 °C |
Properties / Performance Values
| Elongation at break | 190 % |
|---|---|
| Tensile strength | 4.57 lbs/in
8 N/cm |
| Static shear resistance at 70°C | good |
| Ageing resistance (UV) | good |
| Static shear resistance at 23°C | very good |
| Humidity resistance | good |
| Temperature resistance short term | 176 °F
80 °C |
| Tack | very good |
| Temperature resistance long term | 176 °F
80 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 5.71 lbs/in
10 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to ABS (covered side, after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to PC (initial) | 5.71 lbs/in
10 N/cm |
| Adhesion to PC (after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to PET (initial) | 5.71 lbs/in
10 N/cm |
| Adhesion to PET (after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to PET (covered side, after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to Steel (initial) | 5.71 lbs/in
10 N/cm |
| Adhesion to Steel (after 14 days) | 5.71 lbs/in
10 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 5.71 lbs/in
10 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to ABS (covered side, after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to PC (initial) | 5.71 lbs/in
10 N/cm |
| Adhesion to PC (after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to PET (initial) | 5.71 lbs/in
10 N/cm |
| Adhesion to PET (after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to PET (covered side, after 14 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to Steel (initial) | 5.71 lbs/in
10 N/cm |
| Adhesion to Steel (after 14 days) | 5.71 lbs/in
10 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
