tesa® 61053

200μm/7.9 mil d/s black flexible acrylic foam tape

Product description

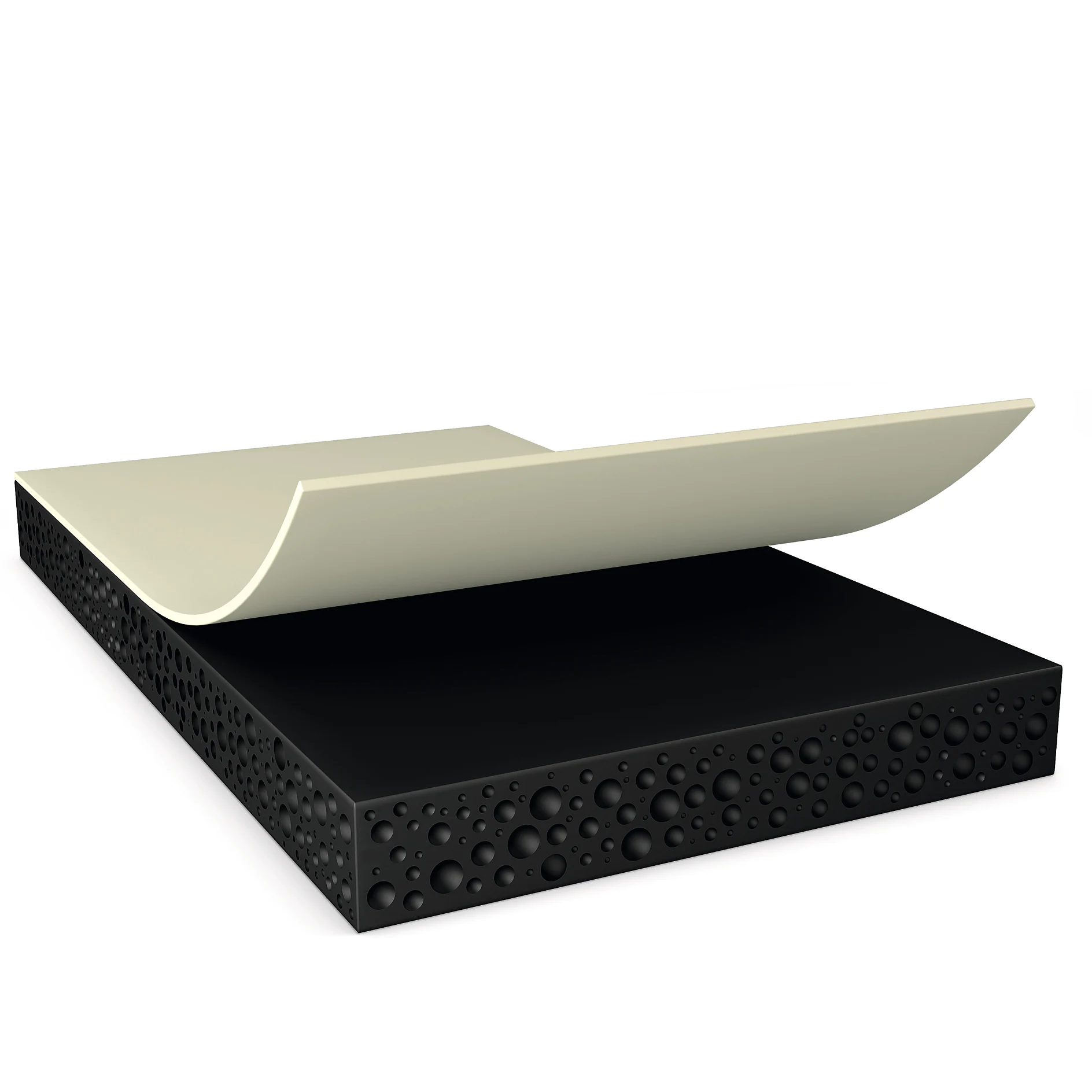

tesa® 61053 is a double-sided black tape consisting of a high shock absorbing black acrylic foam.

tesa® 61053 features:

Thickness: 200 μm/7.9 mil
Very high shock performance
Very high thermal and cold shock resistance
Very high bonding strength for wide temperature range
Good anti-repulsion properties to prevent lifting
Waterproofing
Light blocking

Product details and specifications

Application Fields

Display or touch panel mounting for electronic devices and infotainment systems
Compensation of mechanical stress (e.g. gap filling and thermal elongation)
Mounting of waterproof designs

Adhesive Type	modified acrylic
Backing material	Acrylic
Color	black
Color of liner	transparent
Liner Type	PET
Thickness of liner	2.95 mils 75 µm
Total thickness	200 µm
Weight of liner	149.35 lbs/in² 105 g/m²

Temperature resistance short term	356 °F 180 °C
Transmittance (380 - 780nm) <	0.001 %
Ageing resistance (UV)	very good
Temperature resistance long term	194 °F 90 °C
Static shear resistance at 40°C	very good

Adhesion to Aluminium (initial)	4.85 lbs/in 8.5 N/cm
Adhesion to Aluminium (after 3 days)	8.28 lbs/in 14.5 N/cm
Adhesion to Glass (initial)	7.65 lbs/in 13.4 N/cm
Adhesion to Glass (after 3 days)	8.85 lbs/in 15.5 N/cm
Adhesion to PC (initial)	7.71 lbs/in 13.5 N/cm
Adhesion to PC (after 3 days)	15.25 lbs/in 26.7 N/cm
Adhesion to Steel (initial)	8.85 lbs/in 15.5 N/cm
Adhesion to Steel (after 14 days)	21.7 lbs/in 38 N/cm
Adhesion to Steel (after 3 days)	9.71 lbs/in 17 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 61053_en-US 59.9 kB

Contact us

Thank you for your message. We will contact you as soon as possible.

Stay tuned.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 61053	tesa® 62626	tesa® 66827	tesa® 4957	tesa® Softprint 72128 Steelmaster TP	tesa® 62508	tesa® ACXplus 77208 Base Line	tesa® 62530	tesa® 64905	tesa® 4976	tesa® 66108
Total thickness	200 µm	300 µm	350 µm	1,100 µm	550 µm	800 µm	800 µm	3,000 µm	500 µm	540 µm	800 µm
Adhesive Type	modified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	pure acrylic	tackified acrylic	LSE	tackified acrylic	tackified acrylic
Backing material	Acrylic	PE foam	PE foam	PE foam	PE foam with film lamination	PE foam	foamed acrylic	PE foam	PE foam	PU foam	PE foam
Adhesion to Glass (initial)	13.4 N/cm	15 N/cm	13.2 N/cm
Temperature resistance short term	180 °C			80 °C		80 °C		80 °C		200 °C	80 °C
Temperature resistance long term	90 °C			80 °C		80 °C		80 °C		80 °C	80 °C
Adhesion to PMMA (initial)		15 N/cm	13.2 N/cm
