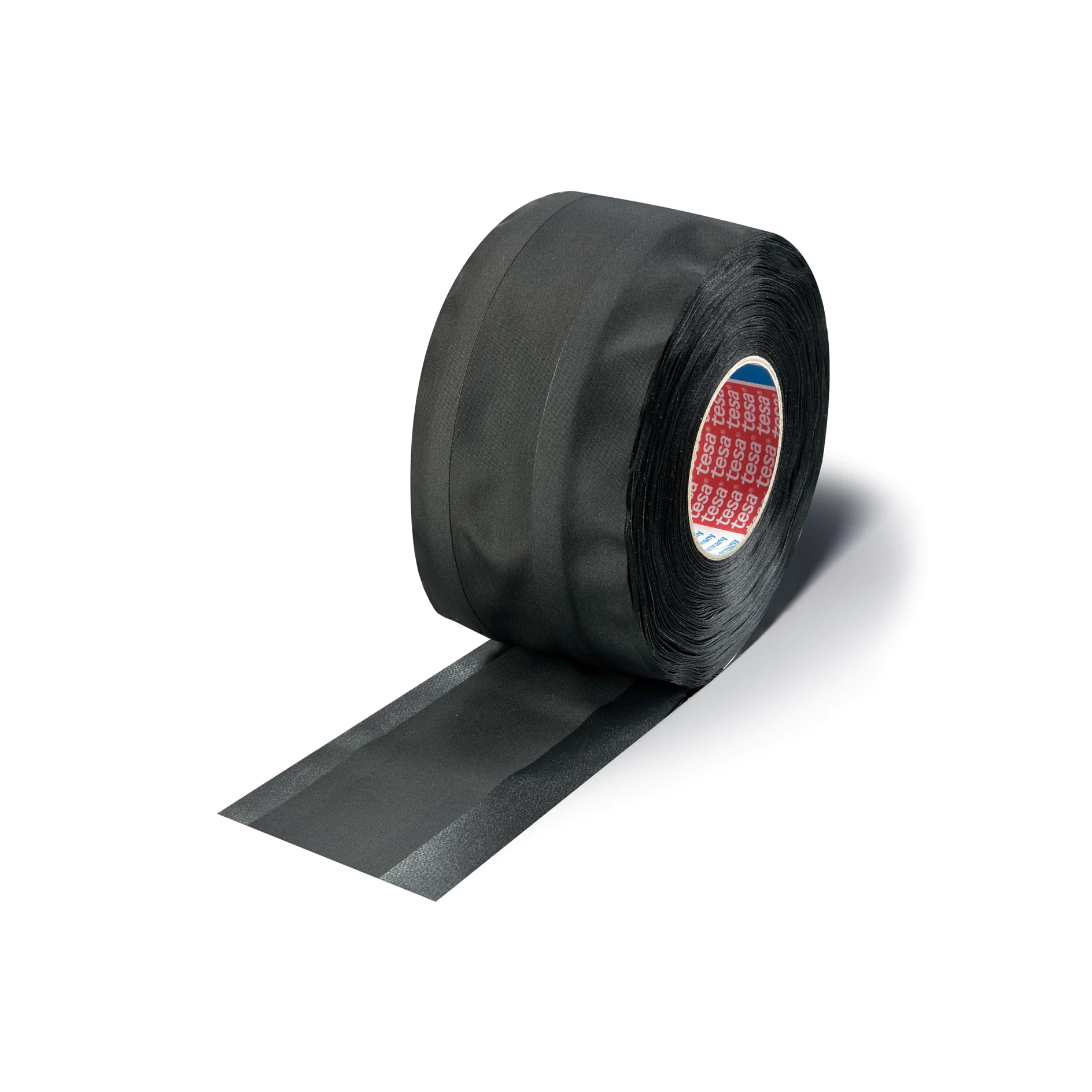

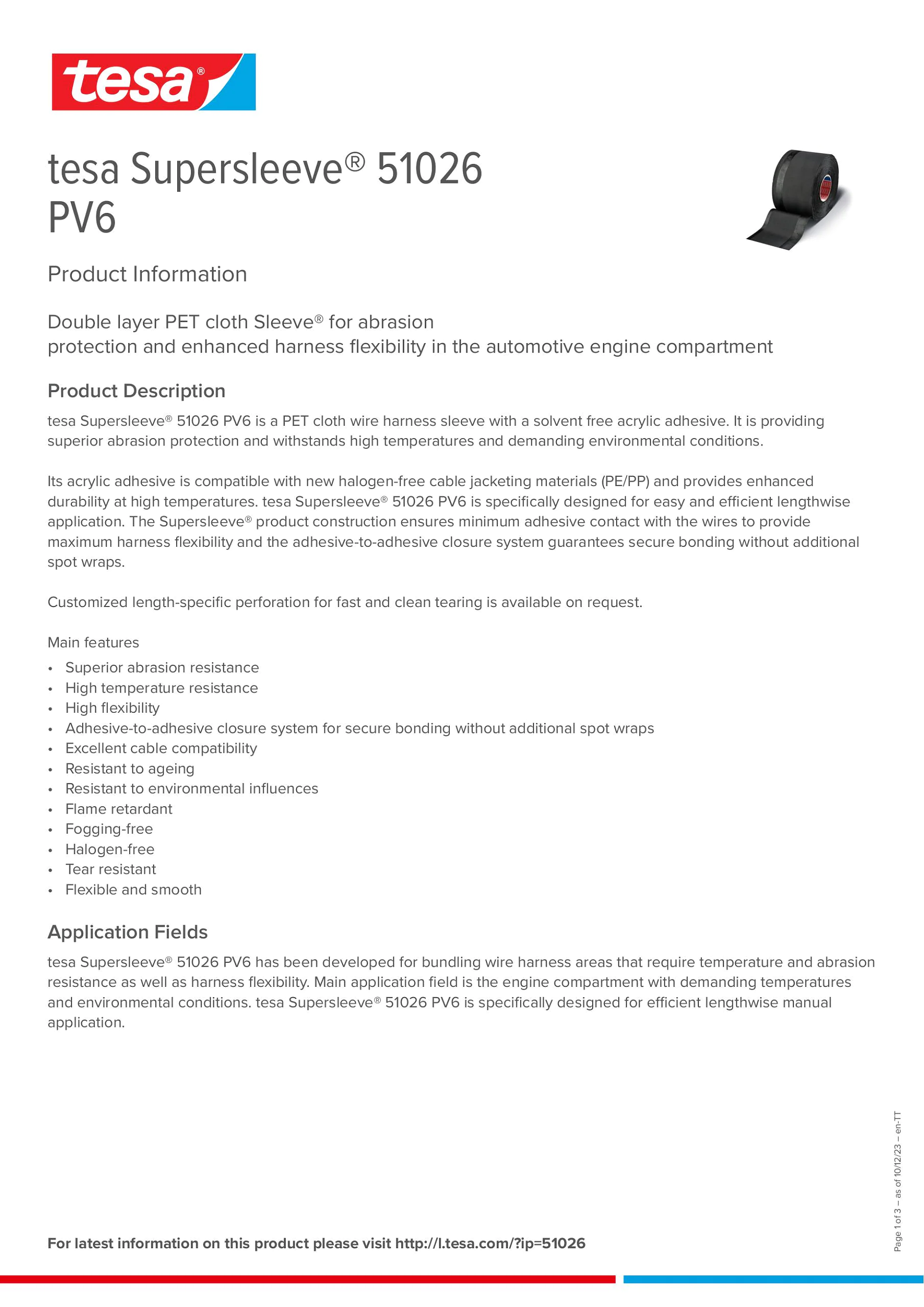

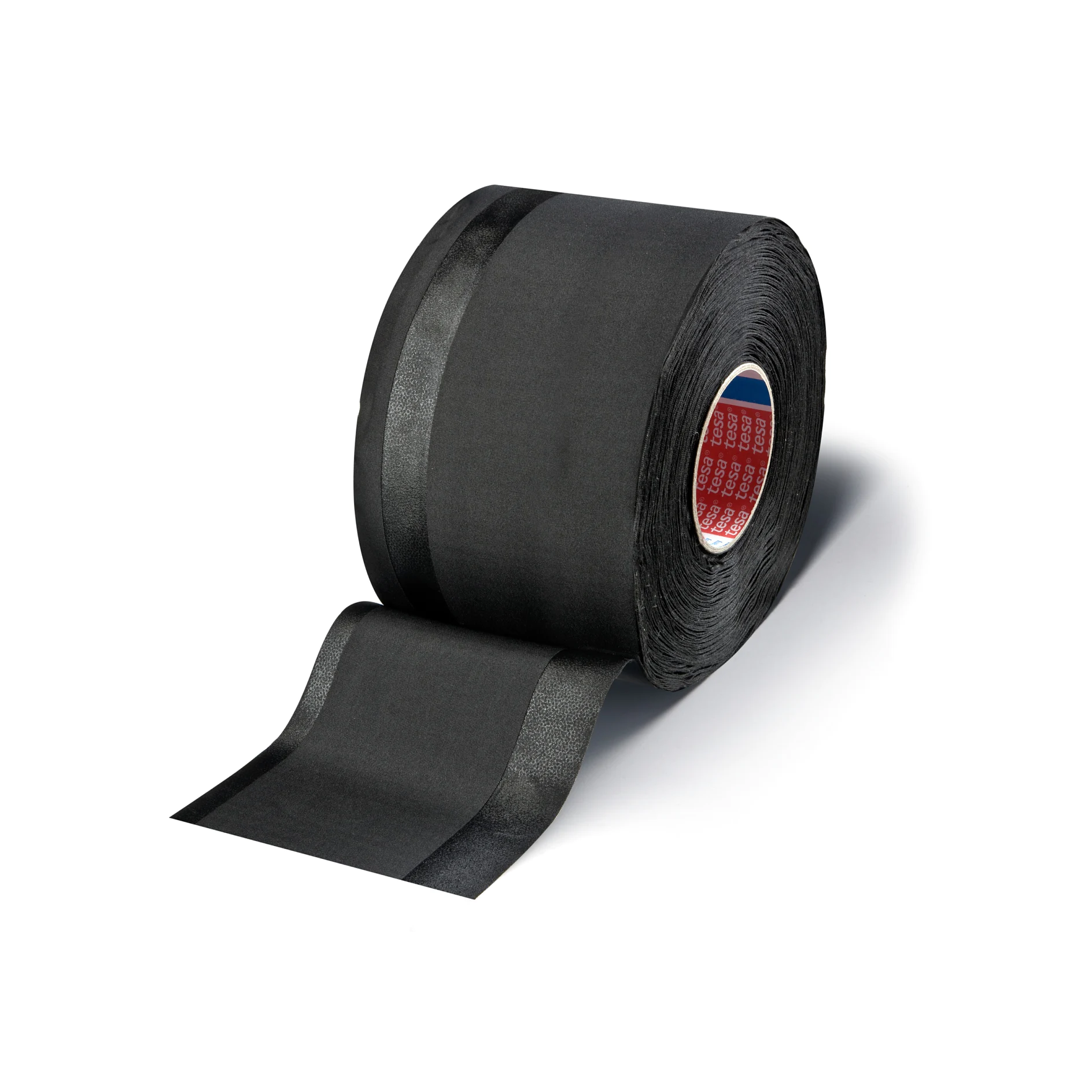

tesa Supersleeve® 51026 PV6
Double layer PET cloth Sleeve® for abrasion
protection and enhanced harness flexibility in the automotive engine compartment
Product description
tesa Supersleeve® 51026 PV6 is a PET cloth wire harness sleeve with a solvent free acrylic adhesive. It is providing superior abrasion protection and withstands high temperatures and demanding environmental conditions.
Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides enhanced durability at high temperatures. tesa Supersleeve® 51026 PV6 is specifically designed for easy and efficient lengthwise application. The Supersleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility and the adhesive-to-adhesive closure system guarantees secure bonding without additional spot wraps.
Customized length-specific perforation for fast and clean tearing is available on request.
Main features
Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides enhanced durability at high temperatures. tesa Supersleeve® 51026 PV6 is specifically designed for easy and efficient lengthwise application. The Supersleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility and the adhesive-to-adhesive closure system guarantees secure bonding without additional spot wraps.
Customized length-specific perforation for fast and clean tearing is available on request.
Main features
- Superior abrasion resistance
- High temperature resistance
- High flexibility
- Adhesive-to-adhesive closure system for secure bonding without additional spot wraps
- Excellent cable compatibility
- Resistant to ageing
- Resistant to environmental influences
- Flame retardant
- Fogging-free
- Halogen-free
- Tear resistant
- Flexible and smooth
Application Fields
tesa Supersleeve® 51026 PV6 has been developed for bundling wire harness areas that require temperature and abrasion resistance as well as harness flexibility. Main application field is the engine compartment with demanding temperatures and environmental conditions. tesa Supersleeve® 51026 PV6 is specifically designed for efficient lengthwise manual application.
Product Construction
| Backing material | PET cloth |
| Type of adhesive | acrylic |
| Total thickness | 20.87 mils
530 µm |
Properties / Performance Values
| Abrasion resistance (10mm mandrel) | Class E (acc. to LV312) |
| Abrasion resistance (5mm mandrel) | Class D (acc. to LV312) |
| Noise damping (LV312) | Class B |
| Temperature resistance (3000h) | 302 °F
150 °C |
| Temperature resistance min. | -40 °F
-40 °C |
Adhesion to Values
| Adhesion to Steel | 50.25 oz/in
5.5 N/cm |
Additional Info
Standard widths: 67, 85, 100, 115, 130, 145, 160, 180, 195 mm
Standard lengths: 50 m
Harness diameter / tesa Supersleeve® width recommendation
< Ø 12 mm / 67 mm
Ø 12 mm – 16 mm / 85 mm
Ø 16 mm – 19 mm / 100 mm
Ø 19 mm – 24 mm / 115 mm
Ø 24 mm – 29 mm / 130 mm
Ø 29 mm – 33 mm / 145 mm
Ø 33 mm – 38 mm / 160 mm
Ø 38 mm – 45 mm / 180 mm
Ø 45 mm – 49 mm / 195 mm
Standard lengths: 50 m
- Most combinations of width and length are possible
- Standard perforation length: 100-940 mm (in increments of 10 mm)
- Further dimensions are available on request
Harness diameter / tesa Supersleeve® width recommendation
< Ø 12 mm / 67 mm
Ø 12 mm – 16 mm / 85 mm
Ø 16 mm – 19 mm / 100 mm
Ø 19 mm – 24 mm / 115 mm
Ø 24 mm – 29 mm / 130 mm
Ø 29 mm – 33 mm / 145 mm
Ø 33 mm – 38 mm / 160 mm
Ø 38 mm – 45 mm / 180 mm
Ø 45 mm – 49 mm / 195 mm
- Standard core diameter: 76 mm
- " = RAL 2007. Some color fadings can occur under continous strong heat conditions. A standard for color is not specified.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
