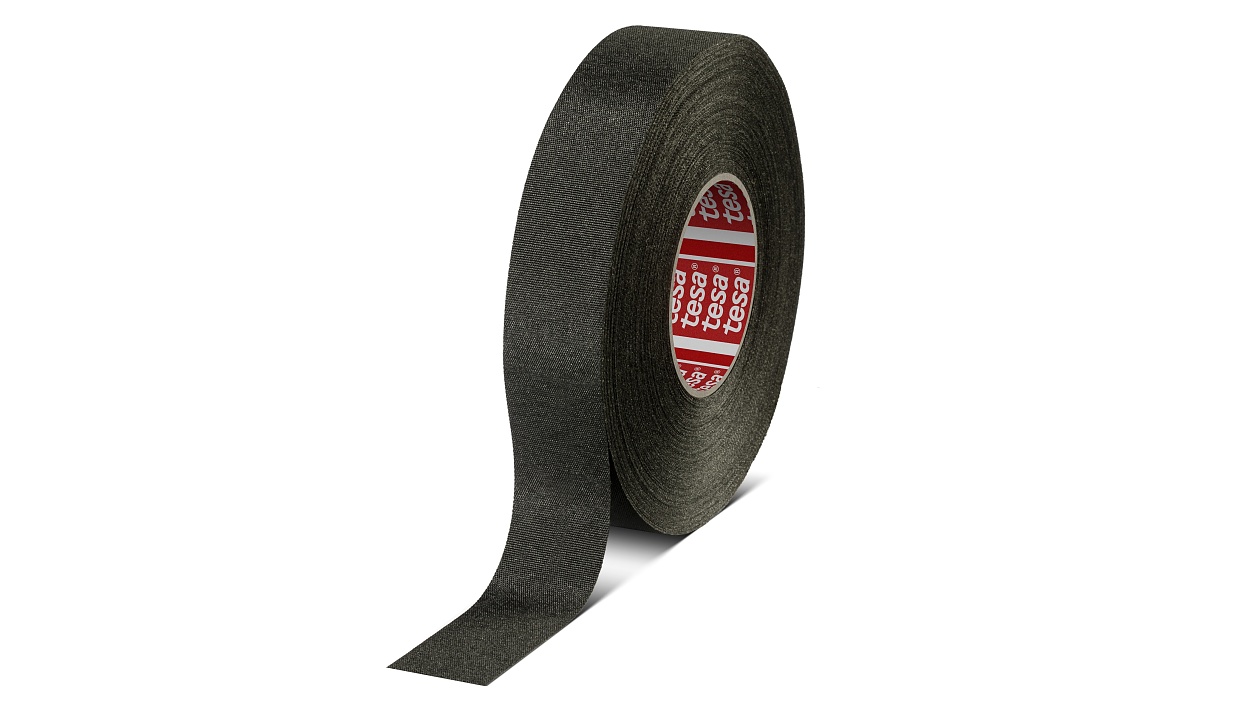

tesa® 51036 PV01

Flag-resistant PET cloth tape for high abrasion protection of automotive harnesses

Product description

tesa® 51036 is a flag-resistant PET cloth wire harness tape with a solvent-free, advanced acrylic adhesive (triple A®). With the new adhesive formula, tesa® 51036 is highly resistant to flagging and ensures secure closure. tesa® 51036 provides excellent abrasion protection of automotive harnesses and withstands high temperatures and demanding environmental conditions.

Its acrylic adhesive is compatible with halogen-free cable jacketing materials (PE/PP) and guarantees enhanced durability.

Main features:

  • High abrasion resistance
  • High temperature resistance
  • Flag-resistant
  • Excellent cable compatibility
  • Resistant to aging
  • Can withstand environmental influences
  • Can be used for manual and automatic application
  • Flame-retardant
  • Halogen-free
  • Tear-resistant
  • Constant unwind force
  • Flexible and smooth

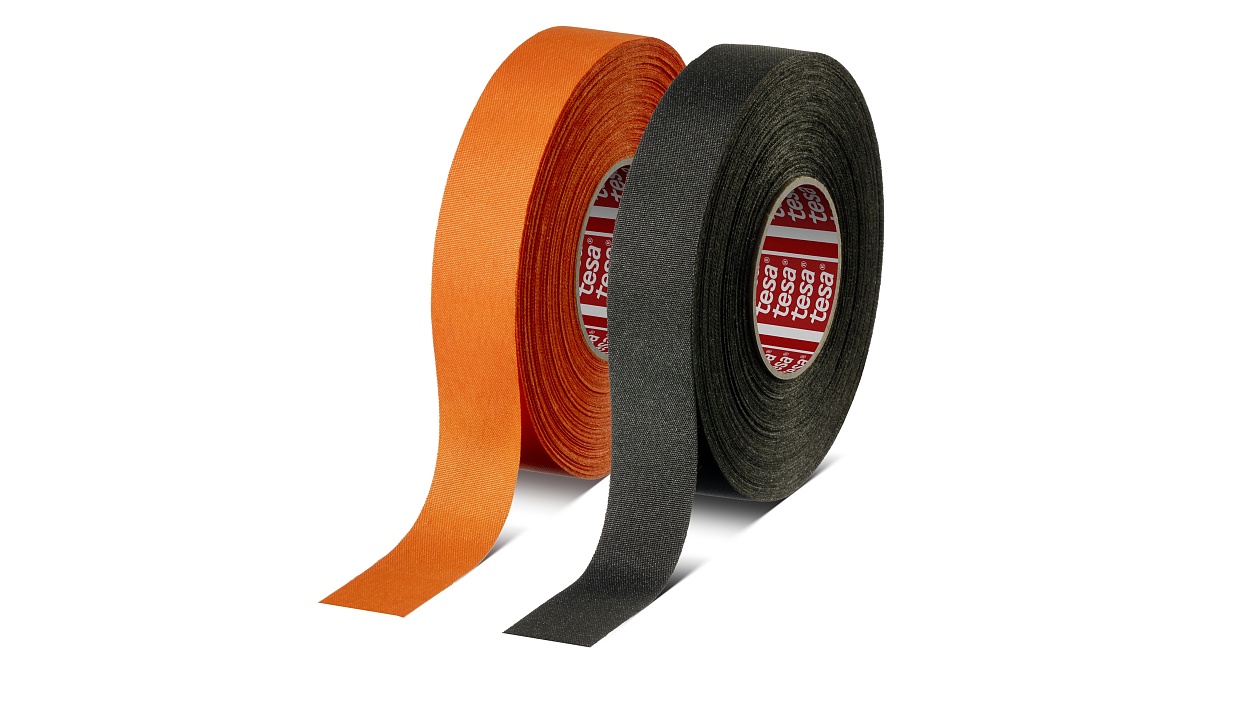

  • Available in black and orange

Product details and specifications

Application Fields

tesa® 51036 has been specially designed for bundling and wire protection against abrasion. The main application field is the engine compartment of a car, with demanding temperature-related and environmental conditions.
Adhesive Type advanced acrylic
Backing material PET cloth
Total thickness 260 µm
Elongation at break 40 %
Tensile strength 275 N/cm
Unwind force (roll width > 9mm) 11 N/roll (30 m/min)
Temperature resistance min. -40 °F
-40 °C
Abrasion resistance (5mm mandrel, LV312) Class D
Temperature resistance max. 302 °F
150 °C
Noise damping (LV312) Class A
Unwind force (roll width < 9mm) 11 N/roll (30 m/min)
Abrasion resistance (10mm mandrel, LV312) Class D
Adhesion to Steel 2.86 lbs/in
5 N/cm
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 25 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm

  • Applicable for red ring assembly aid

  • Minimum temperature while application: 15°C/59°F

  • Elongation at break of 51036 orange: 45%
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
