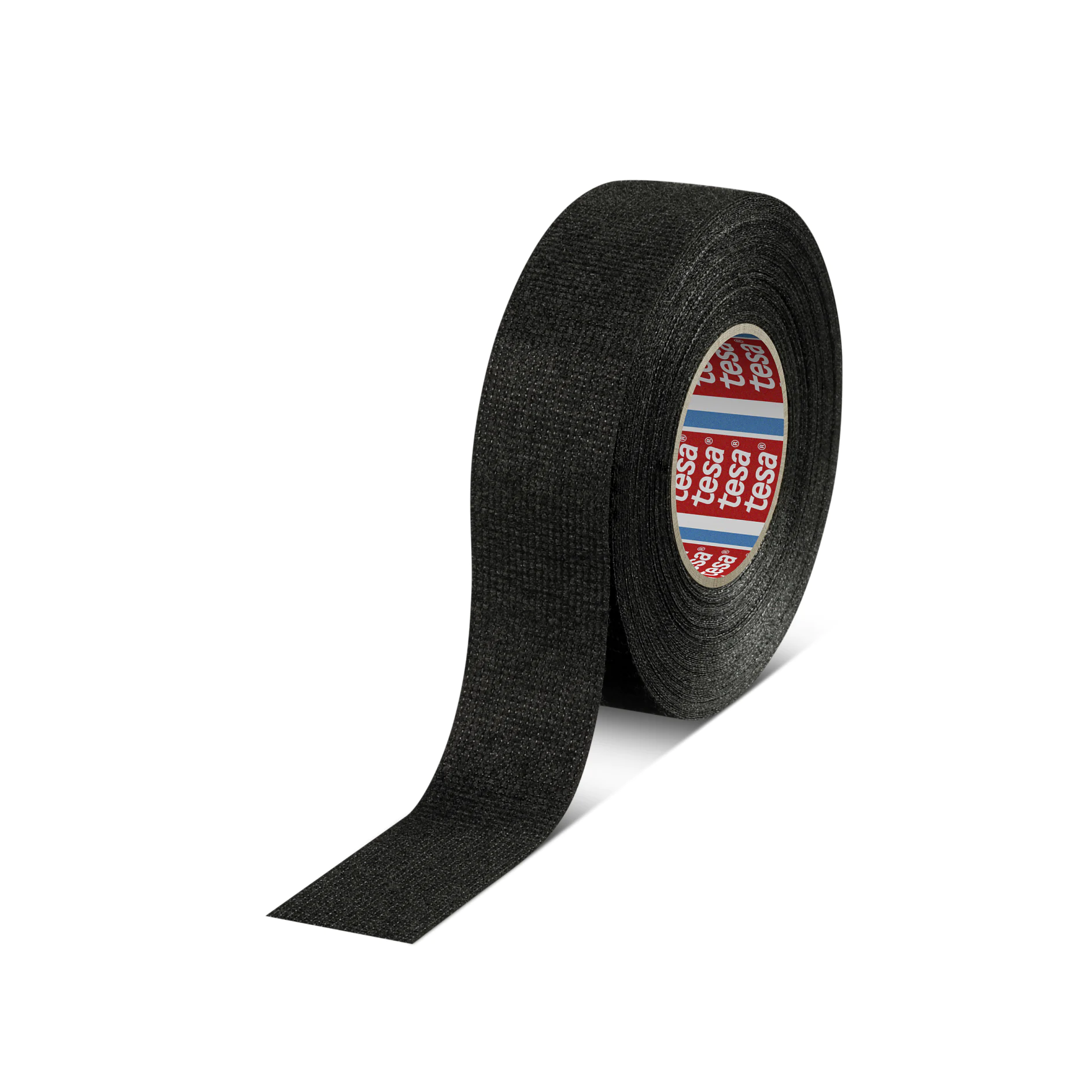

tesa® 51006

PET cloth tape for bundling and wire protection of automotive harnesses against abrasion

Product description

tesa® 51006 is a PET cloth tape with a rubber-based adhesive providing reliable abrasion protection of automotive harnesses. The high initial tack, a constant unwind force and the flexible backing enable smooth and efficient application in the car body.

The high adhesion and good flag resistance ensure secure harness bundling. Its properties are optimized for manual application. The temperature resistance depends on the insulation material.

Main features:

Resistant to abrasion
High initial tack and adhesion
Optimized for manual application
Flag-resistant
Can withstand environmental influences
Constant unwind force – optimized for manual application
Aging-resistant
Flame-retardant
Flexible and smooth

Product details and specifications

Application Fields

tesa® 51006 has been specially designed for bundling and wire protection against abrasion. The main application field is the engine compartment of a car, with demanding temperature-related and environmental conditions.

Adhesive Type	rubber based
Backing material	PET cloth
Total thickness	12.6 mils 320 µm

Adhesive Type	rubber based
Backing material	PET cloth
Total thickness	12.6 mils 320 µm

Elongation at break	22 %
Tensile strength	99.93 lbs/in 175 N/cm
Unwind force (roll width > 9mm)	10 N/roll (30 m/min)
Temperature resistance min.	-40 °F -40 °C
Abrasion resistance (10mm mandrel, LV312)	Class C
Temperature resistance max.	302 °F 150 °C
Unwind force (roll width < 9mm)	10 N/roll (30 m/min)
Abrasion resistance (5mm mandrel, LV312)	Class B
Noise damping (LV312)	Class A

Elongation at break	22 %
Tensile strength	99.93 lbs/in 175 N/cm
Unwind force (roll width > 9mm)	10 N/roll (30 m/min)
Temperature resistance min.	-40 °F -40 °C
Abrasion resistance (10mm mandrel, LV312)	Class C
Temperature resistance max.	302 °F 150 °C
Unwind force (roll width < 9mm)	10 N/roll (30 m/min)
Abrasion resistance (5mm mandrel, LV312)	Class B
Noise damping (LV312)	Class A

Adhesion to Steel	2.57 lbs/in 4.5 N/cm

Adhesion to Steel	2.57 lbs/in 4.5 N/cm

Standard widths: 9, 19, 25, 32 mm
Standard lengths: 25 m

Most combinations of width and length are possible
Further dimensions are available upon request

Standard core diameter: 38 mm

Applicable for red ring assembly aid

¹ On ETFE wires. Other insulation materials to be tested.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

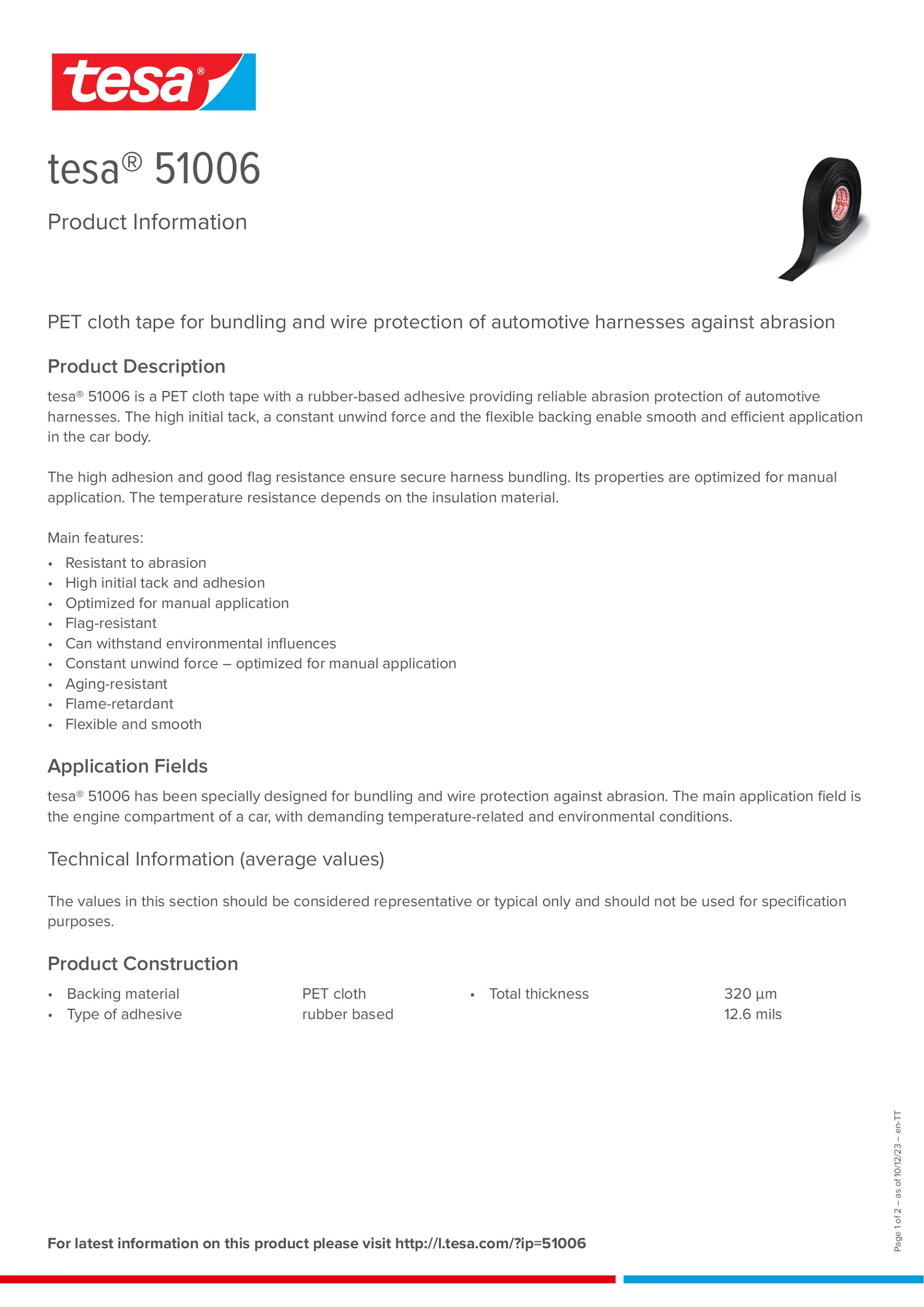

Product information_tesa® 51006_en-US 65.5 kB

Contact us

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 51006	tesa® 68000 PV1	tesa® Sleeve 51036 PV7	tesa® Sleeve 51036 PV9 OR	tesa® 51036 ORCN	tesa® Supersleeve 51026 PV6	tesa® Sleeve 51036 PV9	tesa® Sleeve 51036 PV70	tesa® 51026	tesa® 51037	tesa® 51036 PV77
Total thickness	320 µm	210 µm	485 µm	220 µm	260 µm	530 µm	220 µm	220 µm	260 µm	230 µm	1006 µm
Adhesive Type	rubber based	acrylic	advanced acrylic	acrylic	advanced acrylic	acrylic	acrylic	acrylic	acrylic	advanced acrylic	advanced acrylic
Backing material	PET cloth	aluminum laminated glasscloth	PET cloth	PET cloth	PET cloth	PET cloth	PET cloth	PET cloth	PET cloth	PET cloth	PET cloth
Temperature resistance max.	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	105 °C
Adhesion to Steel	4.5 N/cm	6 N/cm	5.5 N/cm	5 N/cm	5 N/cm	5.5 N/cm	5 N/cm	5 N/cm	5.5 N/cm	3 N/cm	5.5 N/cm
Temperature resistance min.	-40 °C		-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
