tesa® 60274
100µm double sided black electrically conductive woven tape
Product description
tesa® 60274 is a black double sided electrically conductive self adhesive tape. It consists of an electrically conductive woven backing and an electrically conductive acrylic adhesive.
tesa® 60274 features especially:
- Color: black
- Thickness: 100µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good adhesion level even at harsh environmental conditions
- Tear resistant backing which provides very good dimensional stability
Product details and specifications
Application Fields

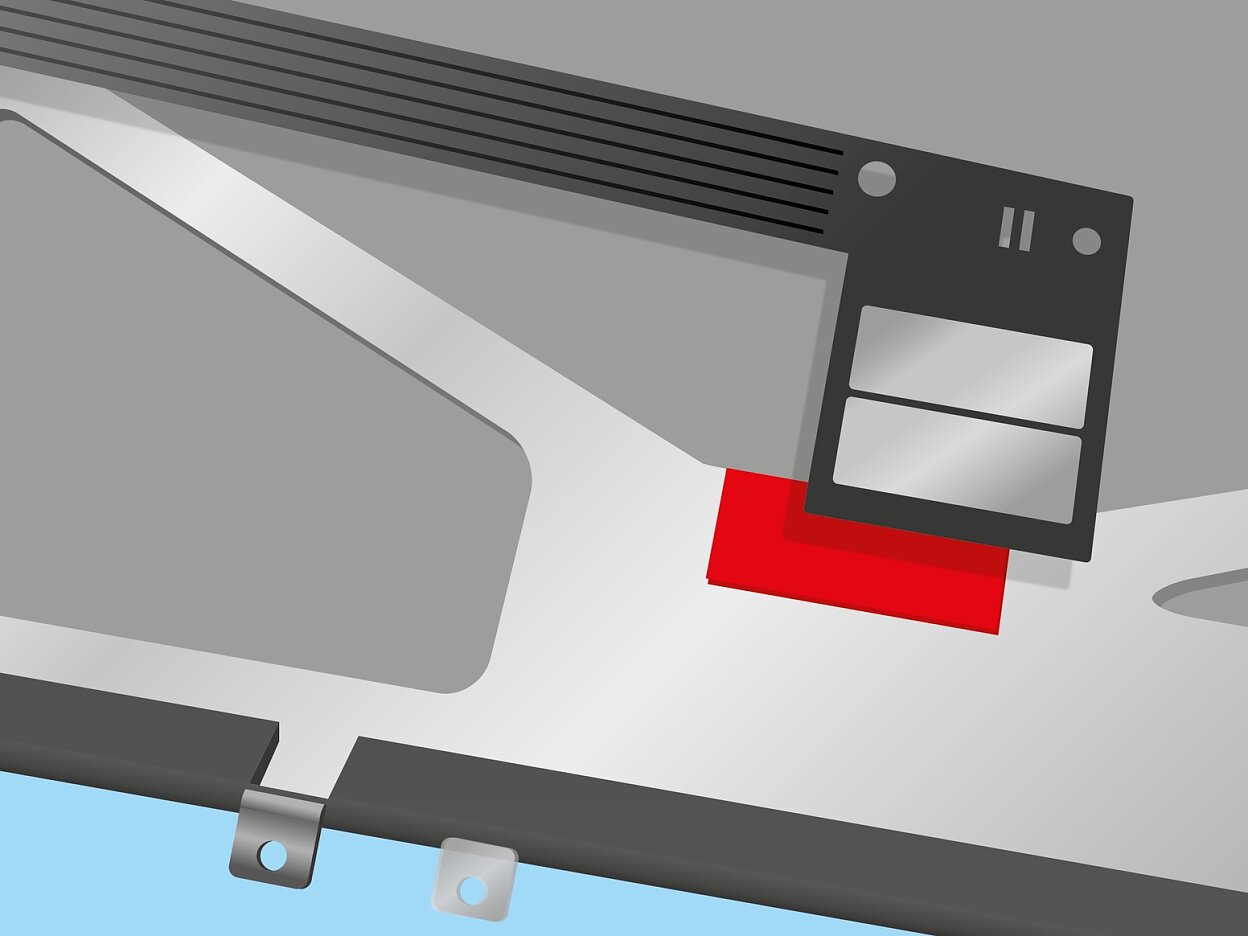

- EMC applications, such as grounding
- Electrostatic discharge applications

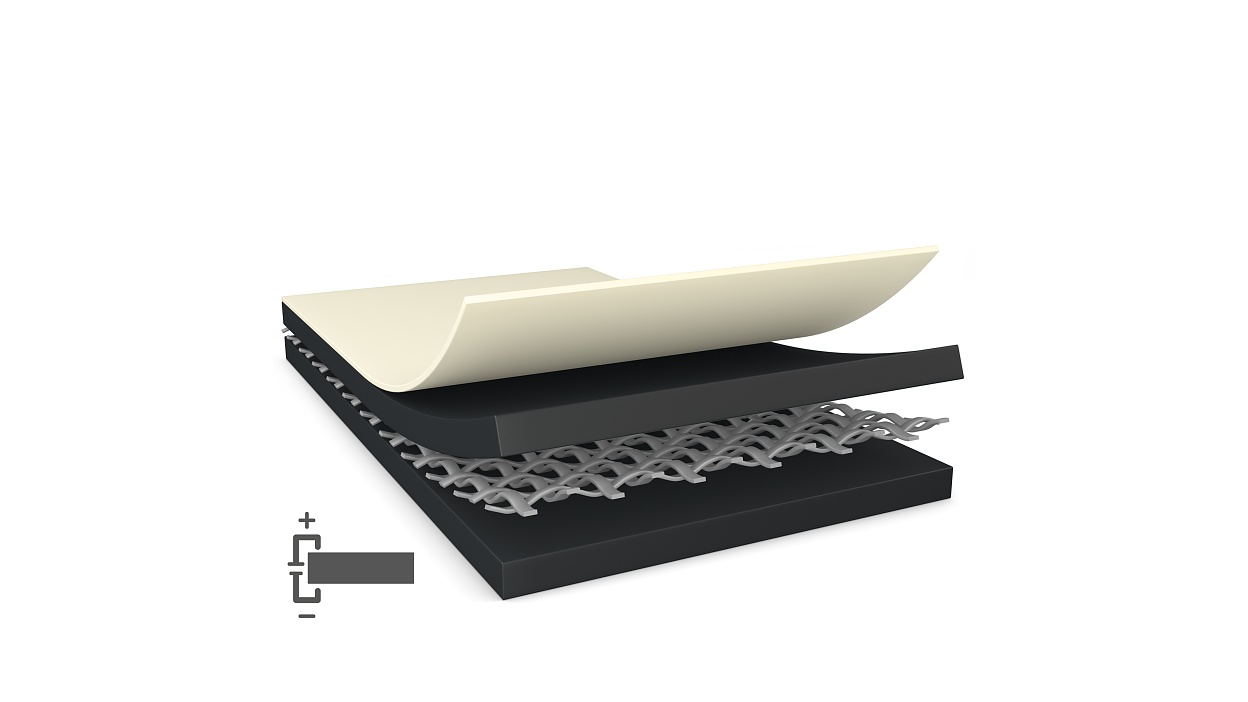

Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive woven |
| Color | black |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 4.72 mils
120 µm |
Product Construction
| Adhesive Type | conductive acrylic |
|---|---|
| Backing material | conductive woven |
| Color | black |
| Color of liner | white/blue logo |
| Liner Type | PE-coated paper |
| Thickness of liner | 4.72 mils
120 µm |
Properties / Performance Values
| Static shear resistance at 40°C | low |
|---|---|
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Temperature resistance short term | 320 °F
160 °C |
| Static shear resistance at 23°C | medium |
Properties / Performance Values
| Static shear resistance at 40°C | low |
|---|---|
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Temperature resistance short term | 320 °F
160 °C |
| Static shear resistance at 23°C | medium |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 5.71 lbs/in
10 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel (after 14 days) | 5.71 lbs/in
10 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
