tesa® 60246

300µm/11.8 mil single sided grey electrically conductive foam tape

Product description

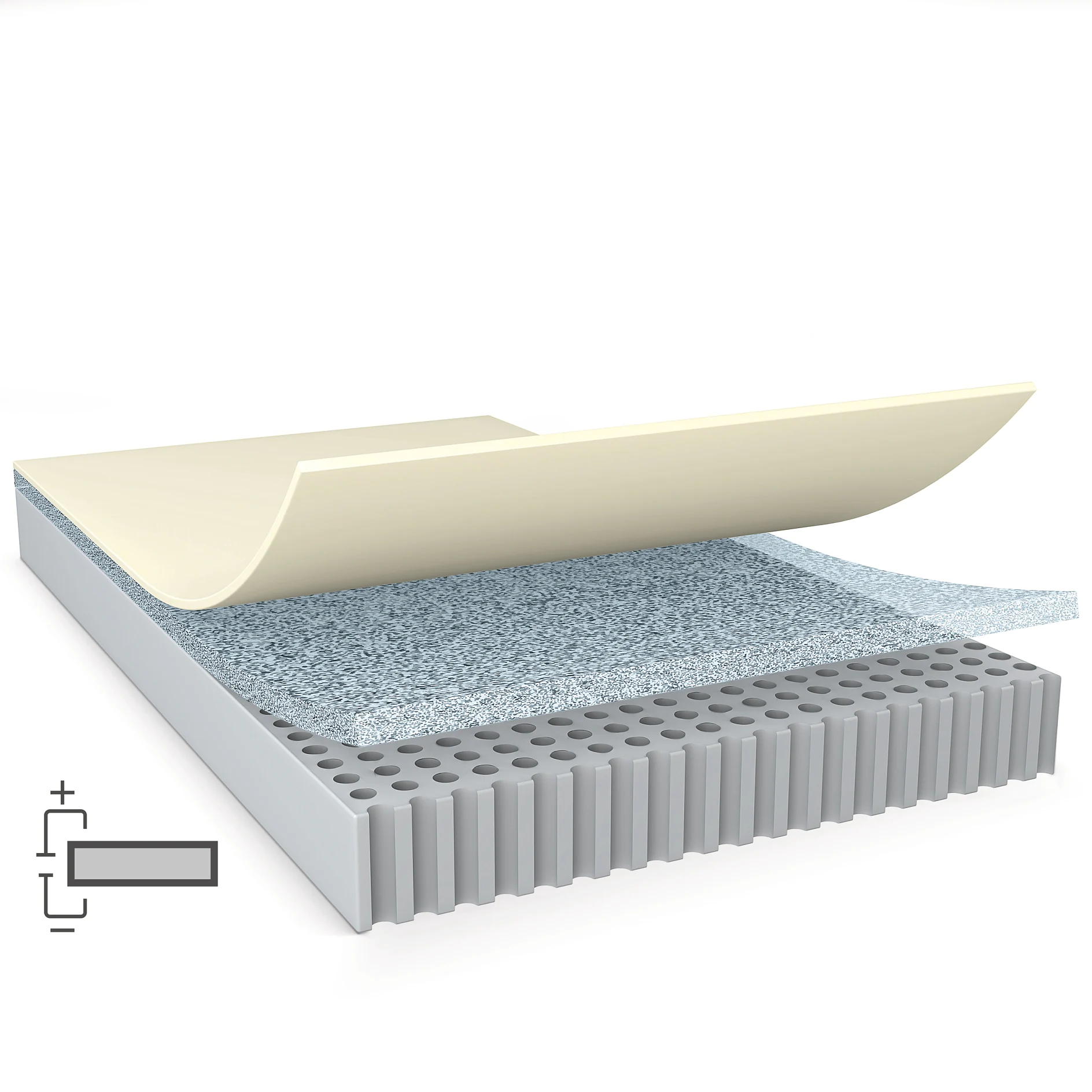

tesa® 60246 is a grey single sided electrically conductive self adhesive foam tape. It consist of a perforated foam with electrically conductive coating and an electrically conductive adhesive.

tesa® 60246 features especially:

Thickness: 300µm/11.8 mil
Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
High adhesion level even at harsh environmental conditions
Very good shock absorbing and cushioning properties
High stability of the foam to avoid flaking of particles

Product details and specifications

Application Fields

EMI shielding and grounding applications
Electrostatic discharge applications

Adhesive Type	conductive acrylic
Backing material	conductive foam
Color	gray
Color of liner	white/blue logo
Liner Type	PE-coated paper
Thickness of liner	4.72 mils 120 µm
Total thickness	300 µm

Temperature resistance short term	320 °F 160 °C
Surface resistance x-y-direction	0.2 Ohm / square
Release of liner	easy
Contact resistance z-direction (initial)	0.03 Ohm / square inch

Adhesion to Steel (initial)	2.34 lbs/in 4.1 N/cm
Adhesion to Steel (after 14 days)	3.03 lbs/in 5.3 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60246_en-US 1.4 MB

Contact us

Thank you for your message. We will contact you as soon as possible.

Stay tuned.

Something went wrong. Please try again later.

Name of product	tesa® 60246	tesa® 60274	tesa® 60234	tesa® 60272	tesa® 60685	tesa® 60238	tesa® 58395
Total thickness	300 µm		55 µm		500	45	250 µm
Adhesive Type	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	acrylic
Backing material	conductive foam	conductive woven	Black conductive fabric	conductive non-woven	conductive foam	black-coated copper	none
Temperature resistance short term	160 °C	160 °C	200 °C	200 °C	200 °C	200 °C	150 °C
Thickness of liner	120 µm	120 µm	50 µm	120 µm	120 µm	50 µm	127 µm
Liner Type	PE-coated paper	PE-coated paper	PET	PE-coated paper	PE-coated paper	PET	PE-coated paper
Type of liner	type: PE-coated paper	type: PE-coated paper	type: PET	type: PE-coated paper	type: PE-coated paper	type: PET	type: PE-coated paper
