tesa® 54332 Heat Performance Sealer

The Heat Performance Sealer for permanent hole covering applications

Product description

tesa® 54332 combines an extremely heat-resistant aluminum laminated glasscloth layer with an extra thick acrylic adhesive sealer. This product is optimized for the automotive industry to cover unused interior holes that require excellent heat resistance and perfect sealing.

Main features:

Extreme temperature resistance up to 200°C/392°F for 30 minutes
Reliable corrosion protection, e.g. punch burrs will be securely sealed by 800μm/31.5 mil adhesive layer
Noise reduction regardless of the hole dimension
Secure adhesion to painted substrates and reinforced plastic substrates in automotive lightweight constructions, e.g. CFRP

Product details and specifications

Application Fields

tesa® 54332 Heat Performance Sealer is especially suitable for permanent hole covering applications that are directly exposed to heat radiation.

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Adhesive Type	modified acrylic
Backing material	aluminum laminated glasscloth
Color	silver
Liner Type	PE-coated paper
Total thickness	39.76 mils 1010 µm

Adhesive Type	modified acrylic
Backing material	aluminum laminated glasscloth
Color	silver
Liner Type	PE-coated paper
Total thickness	39.76 mils 1010 µm

Puncture resistance	400 N

Puncture resistance	400 N

Adhesion to Steel	12.56 lbs/in 22 N/cm

Adhesion to Steel	12.56 lbs/in 22 N/cm

tesa® 54332 can be supplied in customer specific dimensions according to customer requirements and applications in either roll or sheet form.

tesa’s automation and application solution department provides customised equipment and self-designed application tools to enhance productivity.

Adhesion value refers to the acrylic adhesive layer which has been reinforced by a 36µm/1.4 mil d/s etched PET, measured on ASTM-Steel after 3 days of dwell time at RT.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

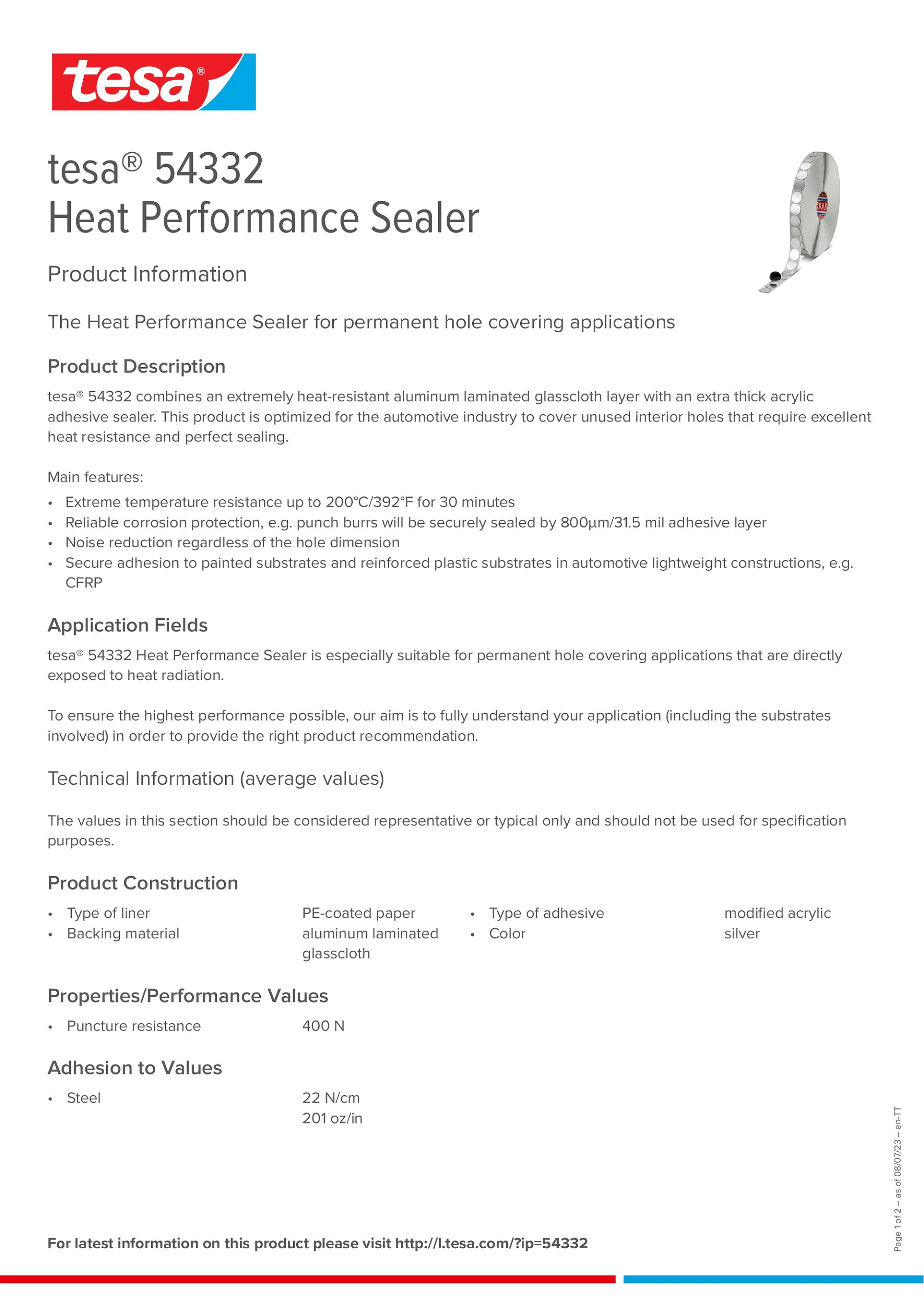

Product information_tesa® 54332_en-US 66.4 kB

Contact us

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 54332 Heat Performance Sealer	tesa® 6042 ProSeal	tesa® 54678	tesa® 54715 Noise Blocker Standard	tesa® 54337 PV1 Low VOC	tesa® 54657 Low VOC	tesa® 54321	tesa® 54339 Low VOC	tesa® 54651 Low VOC	tesa® 54657 Low VOC	tesa® 54339 Low VOC
Total thickness	1010 µm		250 µm	1140 µm	450 µm	290 µm	690 µm	260 µm	310 µm	290 µm	260 µm
Adhesive Type	modified acrylic		natural rubber	modified acrylic	tackified acrylic	thermosetting natural rubber	tackified acrylic	modified acrylic	natural rubber	thermosetting natural rubber	modified acrylic
Backing material	aluminum laminated glasscloth		PE extruded cloth	polyolefin	PVC film	Acrylic-coated cloth	PET fleece	PET film	Acrylic-coated cloth	Acrylic-coated cloth	PET film
Color	silver	colourless		gray	black	gray	white	transparent	black	gray	transparent
