Product information

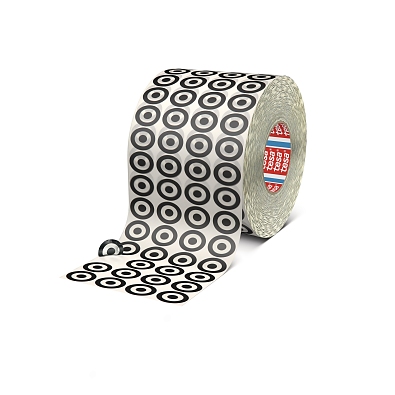

tesa ® 54338

Precision die cuts for permanent interior automotive hole covering applications with easy quality control



Product description

tesa ® 54338 combines a thin but strong PET layer with a powerful acrylic adhesive. This product is optimized for the automotive industry to securely cover holes that require excellent sealing properties in combination with very high temperature resistance. To ensure secure and precise hole covering application, this product can be delivered with target printing on top of the transparent die cut.

Main features:
  • High transparency for secure application
  • Easy quality control
  • Superb conformability to complex geometries
  • High temperature resistance up to 160°C/320°F
  • Reliable corrosion protection
  • Good paint anchorage and UBC (PVC) compatibility
  • Paint shop approved liner
  • Very good resistance to chemicals
  • Secure adhesion to steel, aluminum, plastics, painted substrates, and reinforced plastic substrates in automotive lightweight constructions, e.g. CFRP

Main applications

tesa ® 54338 is especially suitable for different interior hole covering applications along the automotive production process.

Example applications are:
  • After e-coat where a good compatibility to UBC (PVC) and sealant is required, e.g. car body platform, wheel houses, engine compartment
  • Before paint shop where good paint compatibility is essential
  • At the assembly line for hole covering on all car body areas, e.g. pillars, rocker, front/rear floor

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
tesa_54338_pr_002

tesa _54338_pr_002

Technical properties

Backing material

PET film

Color

transparent

Total thickness

3.74 mils

Type of adhesive

modified acrylic

Adhesion to Steel (initial)

36.54 oz/in

Elongation at break

165 %

Tensile strength

78.8 lbs/in

Type of liner

glassine

Temperature resistance (30 min)

320 °F

Rating properties

Printability

++

UBC / Paint Compatibility

++

Resistance to chemicals

++

Scratch resistance

+

Conformability

o

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
