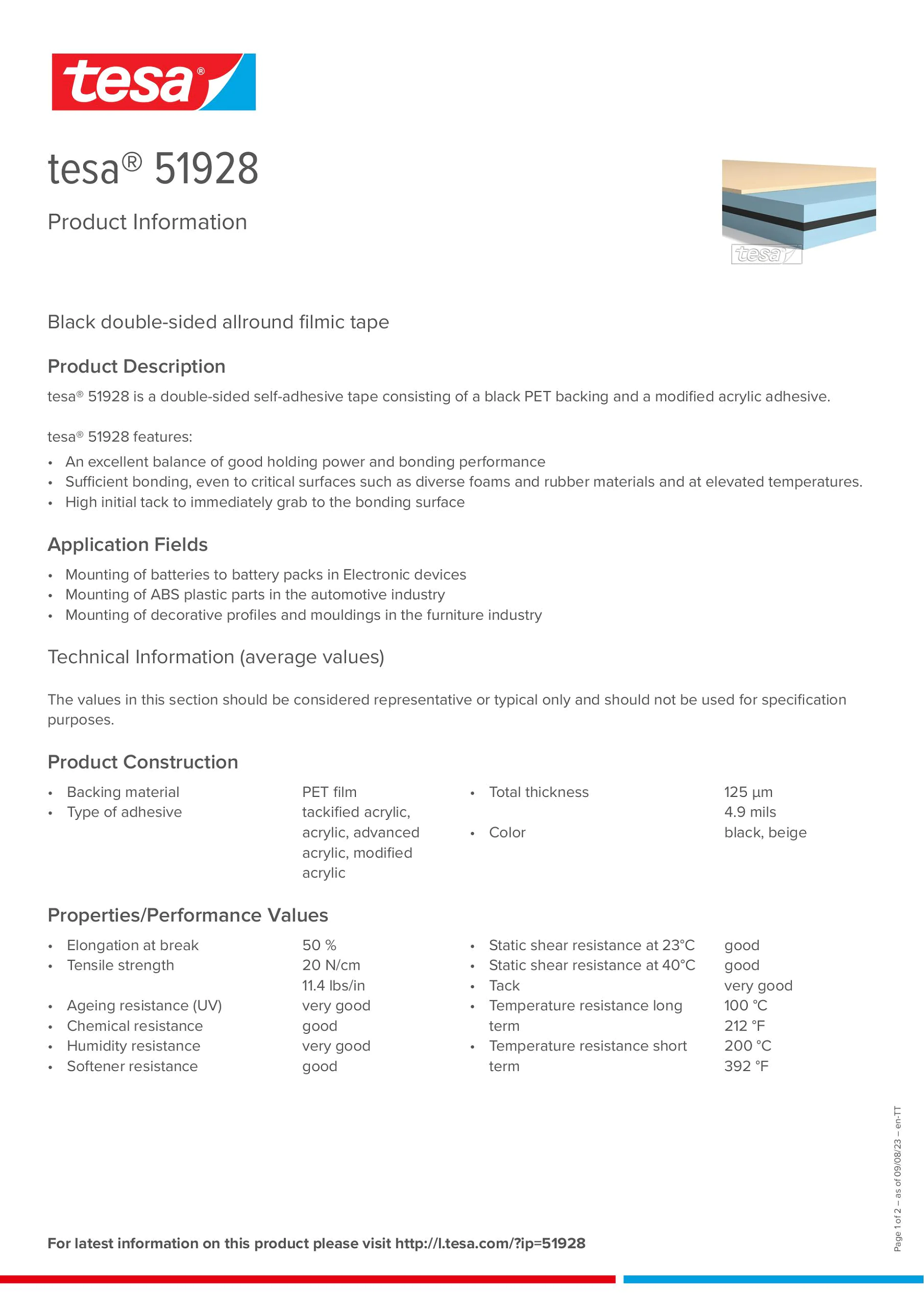

tesa® 51928

Black double-sided allround filmic tape

Product description

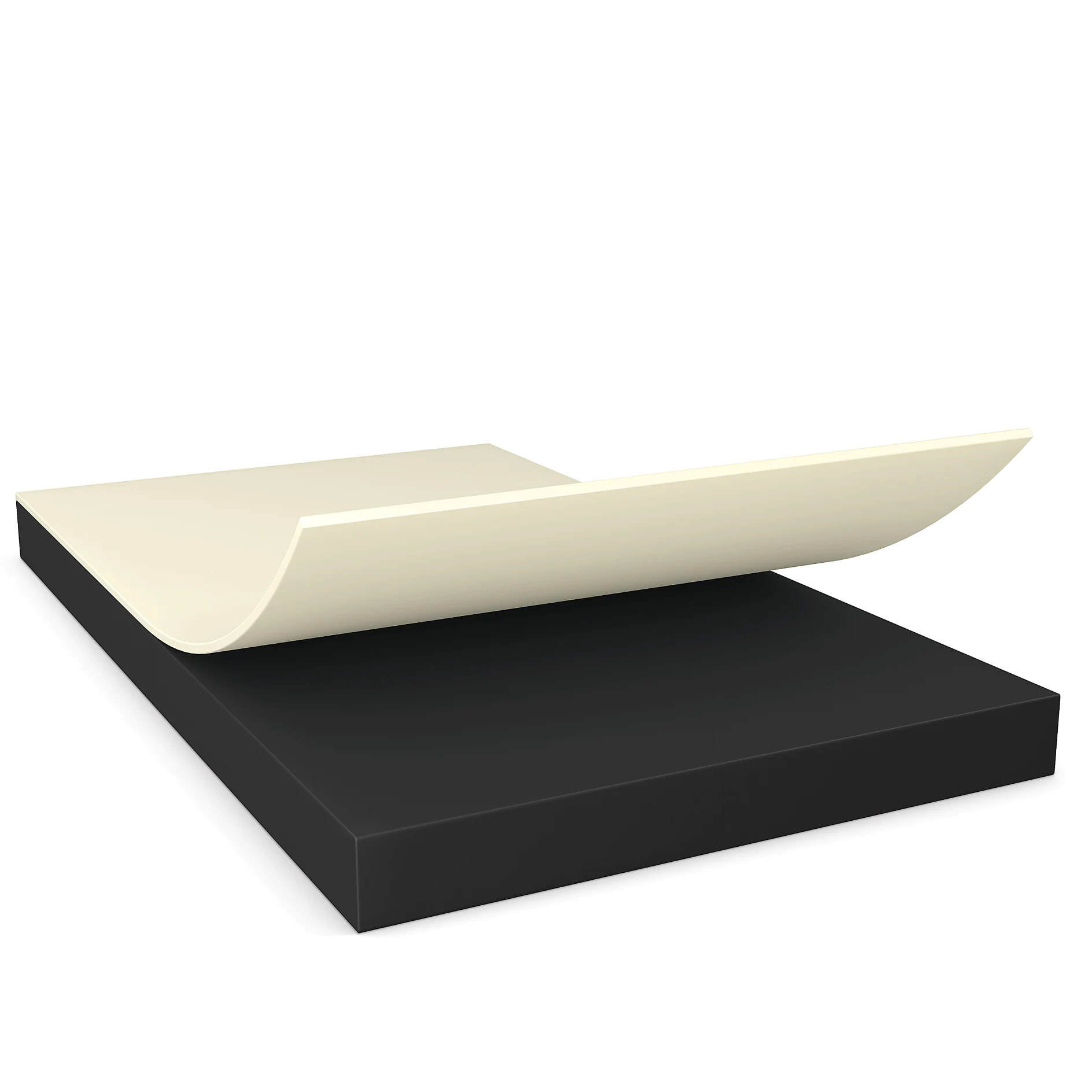

tesa® 51928 is a double-sided self-adhesive tape consisting of a black PET backing and a modified acrylic adhesive.

tesa® 51928 features:
  • An excellent balance of good holding power and bonding performance
  • Sufficient bonding, even to critical surfaces such as diverse foams and rubber materials and at elevated temperatures.
  • High initial tack to immediately grab to the bonding surface

Application Fields

  • Mounting of batteries to battery packs in Electronic devices
  • Mounting of ABS plastic parts in the automotive industry
  • Mounting of decorative profiles and mouldings in the furniture industry

Product Construction

Backing material PET film
Color black, beige
Total thickness 4.92 mils
125 µm
Type of adhesive tackified acrylic, acrylic, advanced acrylic, modified acrylic

Properties / Performance Values

Elongation at break 50 %
Tensile strength 11.42 lbs/in
20 N/cm
Ageing resistance (UV) very good
Chemical resistance good
Humidity resistance very good
Softener resistance good
Static shear resistance at 23°C good
Static shear resistance at 40°C good
Tack very good
Temperature resistance long term 212 °F
100 °C
Temperature resistance short term 392 °F
200 °C

Adhesion to Values

Adhesion to ABS (after 14 days) 88.62 oz/in
9.7 N/cm
Adhesion to Aluminium (initial) 74 oz/in
8.1 N/cm
Adhesion to Aluminium (after 14 days) 101.41 oz/in
11.1 N/cm
Adhesion to PC (initial) 94.1 oz/in
10.3 N/cm
Adhesion to PC (after 14 days) 105.07 oz/in
11.5 N/cm
Adhesion to PE (initial) 44.77 oz/in
4.9 N/cm
Adhesion to PE (after 14 days) 49.34 oz/in
5.4 N/cm
Adhesion to PET (initial) 67.61 oz/in
7.4 N/cm
Adhesion to PET (after 14 days) 79.49 oz/in
8.7 N/cm
Adhesion to PP (initial) 43.85 oz/in
4.8 N/cm
Adhesion to PP (after 14 days) 58.47 oz/in
6.4 N/cm
Adhesion to PS (initial) 80.4 oz/in
8.8 N/cm
Adhesion to PS (after 14 days) 85.88 oz/in
9.4 N/cm
Adhesion to PVC (initial) 65.78 oz/in
7.2 N/cm
Adhesion to PVC (after 14 days) 92.28 oz/in
10.1 N/cm
Adhesion to Steel (initial) 87.71 oz/in
9.6 N/cm
Adhesion to Steel (after 14 days) 109.63 oz/in
12 N/cm
Adhesion to ABS (initial) 74.92 oz/in
8.2 N/cm

Additional Info

Liner variants:
PV0 brown glassine paper (71µm; 82g/m2)
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
