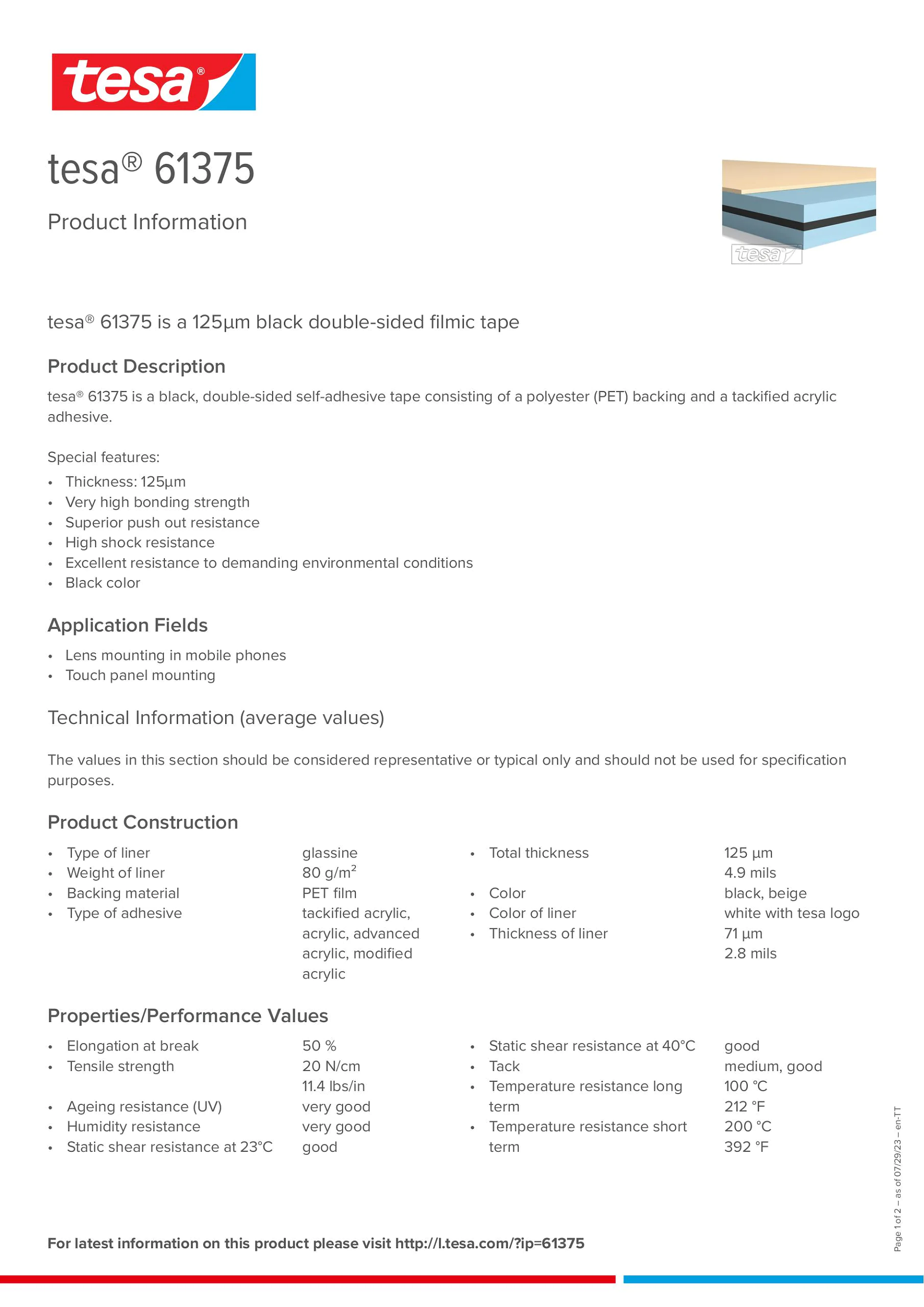

tesa® 61375
tesa® 61375 is a 125µm black double-sided filmic tape
Product description
tesa® 61375 is a black, double-sided self-adhesive tape consisting of a polyester (PET) backing and a tackified acrylic adhesive.
Special features:
- Thickness: 125µm
- Very high bonding strength
- Superior push out resistance
- High shock resistance
- Excellent resistance to demanding environmental conditions
- Black color
Product details and specifications
Application Fields
- Lens mounting in mobile phones
- Touch panel mounting
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | black |
| Color of liner | white with tesa logo |
| Liner Type | glassine |
| Thickness of liner | 2.72 mils
69 µm |
| Total thickness | 4.92 mils
125 µm |
| Weight of liner | 113.79 lbs/in²
80 g/m² |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PET film |
| Color | black |
| Color of liner | white with tesa logo |
| Liner Type | glassine |
| Thickness of liner | 2.72 mils
69 µm |
| Total thickness | 4.92 mils
125 µm |
| Weight of liner | 113.79 lbs/in²
80 g/m² |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 11.42 lbs/in
20 N/cm |
| Ageing resistance (UV) | very good |
| Temperature resistance long term | 212 °F
100 °C |
| Humidity resistance | very good |
| Static shear resistance at 23°C | good |
| Temperature resistance short term | 392 °F
200 °C |
| Static shear resistance at 40°C | good |
Properties / Performance Values
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 11.42 lbs/in
20 N/cm |
| Ageing resistance (UV) | very good |
| Temperature resistance long term | 212 °F
100 °C |
| Humidity resistance | very good |
| Static shear resistance at 23°C | good |
| Temperature resistance short term | 392 °F
200 °C |
| Static shear resistance at 40°C | good |
Adhesion to Values
| Adhesion to ABS (initial) | 4.97 lbs/in
8.7 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 7.31 lbs/in
12.8 N/cm |
| Adhesion to ABS (covered side, after 14 days) | 7.82 lbs/in
13.7 N/cm |
| Adhesion to ABS (covered side, initial) | 5.42 lbs/in
9.5 N/cm |
| Adhesion to Glass (initial) | 7.31 lbs/in
12.8 N/cm |
| Adhesion to Glass (after 14 days) | 8.68 lbs/in
15.2 N/cm |
| Adhesion to PC (initial) | 6.4 lbs/in
11.2 N/cm |
| Adhesion to PC (after 14 days) | 10.22 lbs/in
17.9 N/cm |
| Adhesion to PC (covered side, initial) | 6.57 lbs/in
11.5 N/cm |
| Adhesion to PC (covered side, after 14 days) | 10.56 lbs/in
18.5 N/cm |
| Adhesion to PMMA (initial) | 7.42 lbs/in
13 N/cm |
| Adhesion to PMMA (after 14 days) | 9.59 lbs/in
16.8 N/cm |
| Adhesion to Steel (initial) | 7.94 lbs/in
13.9 N/cm |
| Adhesion to Steel (after 14 days) | 9.54 lbs/in
16.7 N/cm |
| Adhesion to Steel (covered side, initial) | 8.22 lbs/in
14.4 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 10.05 lbs/in
17.6 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 4.97 lbs/in
8.7 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 7.31 lbs/in
12.8 N/cm |
| Adhesion to ABS (covered side, after 14 days) | 7.82 lbs/in
13.7 N/cm |
| Adhesion to ABS (covered side, initial) | 5.42 lbs/in
9.5 N/cm |
| Adhesion to Glass (initial) | 7.31 lbs/in
12.8 N/cm |
| Adhesion to Glass (after 14 days) | 8.68 lbs/in
15.2 N/cm |
| Adhesion to PC (initial) | 6.4 lbs/in
11.2 N/cm |
| Adhesion to PC (after 14 days) | 10.22 lbs/in
17.9 N/cm |
| Adhesion to PC (covered side, initial) | 6.57 lbs/in
11.5 N/cm |
| Adhesion to PC (covered side, after 14 days) | 10.56 lbs/in
18.5 N/cm |
| Adhesion to PMMA (initial) | 7.42 lbs/in
13 N/cm |
| Adhesion to PMMA (after 14 days) | 9.59 lbs/in
16.8 N/cm |
| Adhesion to Steel (initial) | 7.94 lbs/in
13.9 N/cm |
| Adhesion to Steel (after 14 days) | 9.54 lbs/in
16.7 N/cm |
| Adhesion to Steel (covered side, initial) | 8.22 lbs/in
14.4 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 10.05 lbs/in
17.6 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
