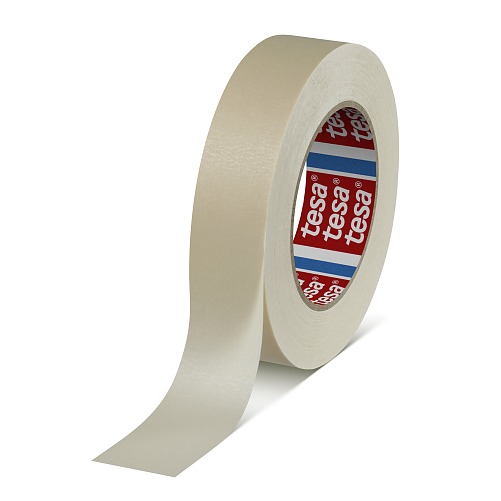

tesa® 4330

High performance paper masking tape for paintworks with oven drying up to 140 °C / 284 °F


Product description

tesa® 4330 is a finely crêped, flexible, wet resistant masking tape with a high tensile strength.


Product details and specifications

Application Fields

Further applications are e.g.
  • masking of circuit boards before plating
  • cable bundling
  • packaging
Adhesive Type natural rubber
Backing material slightly-creped paper
Total thickness 170 µm
Elongation at break 12 %
Tensile strength 39 N/cm
Temperature resistance (30 min) 320 °F
160 °C
Temperature resistance (60 min) 284 °F
140 °C
Easy to remove yes
Hand tearability very good
Adhesion to Steel 2.74 lbs/in
4.8 N/cm
This tape guarantees sharp edged finishing due to its fine creped structure. The adhesion of paint and filler to the reverse side of the tape is excellent.

tesa® 4330 can be removed very easily without tearing or leaving any residues.

tesa® 4330 is also available for converting/die-cutting with a paper liner (4330 PV1).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message. We will contact you as soon as possible.

Stay tuned.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 4330 tesa® 4302 tesa® 4308 tesa® 4319 tesa® 4329 PV1 tesa® 4309 PV1 tesa® 4324 tesa® 4334 Precision Mask® tesa® 4322 tesa® 4325 Industry tesa® 5010 Advanced Masking Tape
Total thickness
170 µm
170 µm
150 µm
375 µm
125 µm
170 µm
280 µm
90 µm
380 µm
120 µm
165
Adhesive Type
natural rubber
natural rubber
natural rubber
natural rubber
natural rubber
natural rubber
natural rubber
acrylic
natural rubber
natural rubber
natural rubber
Backing material
slightly-creped paper
slightly-creped paper
slightly-creped paper
highly-creped paper
slightly-creped paper
slightly-creped paper
slightly-creped paper
Washi paper
highly-creped paper
slightly-creped paper
slightly-creped paper
Adhesion to Steel
4.8 N/cm
4 N/cm
4 N/cm
4.5 N/cm
2.8 N/cm
3.5 N/cm
4 N/cm
1.8 N/cm
5 N/cm
1.6 N/cm
3.6 N/cm
