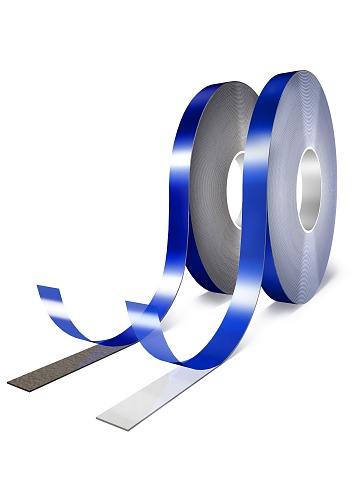

tesa® ACXplus 7048

2,00 µm/78.8 mils double-sided acrylic foam tape

Product description

tesa® ACXplus 704x series is a high-performance acrylic core tape offering two color options to blend in with the bonded substrates. It is a high-performance acrylic core tape for permanent indoor mounting applications. .

Application Fields

Exemplary mounting applications in different industries (e.g. extruder, appliances, interior fit-out, signage) include:
  • Furniture mounting
  • Flush Design (glass-to-metal)

Product Construction

Type of adhesive pure acrylic
Total thickness 78.74 mils
2000 µm
Backing material filled acrylic
Color gray/white

Properties / Performance Values

Chemical resistance very good
Static shear resistance at 70°C very good
Tack good
Temperature resistance long term 230 °F
110 °C
Softener resistance good
Temperature resistance short term 392 °F
200 °C

Adhesion to Values

Adhesion to Steel (after 3 days) 401.99 oz/in
44 N/cm

Additional Info

The product is recommended for indoor usage. For permanent outdoor applications with load-bearing requirements, our product offer is tesa® ACXplus 707x series. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation. For more technical data please refer to our technical information sheet on tesa.com/ACXplus.
Liner options:
  • PV26: White paper liner – unbranded
  • PV28: Blue film liner – unbranded
  • PV48: White film liner – branded
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
