Product description

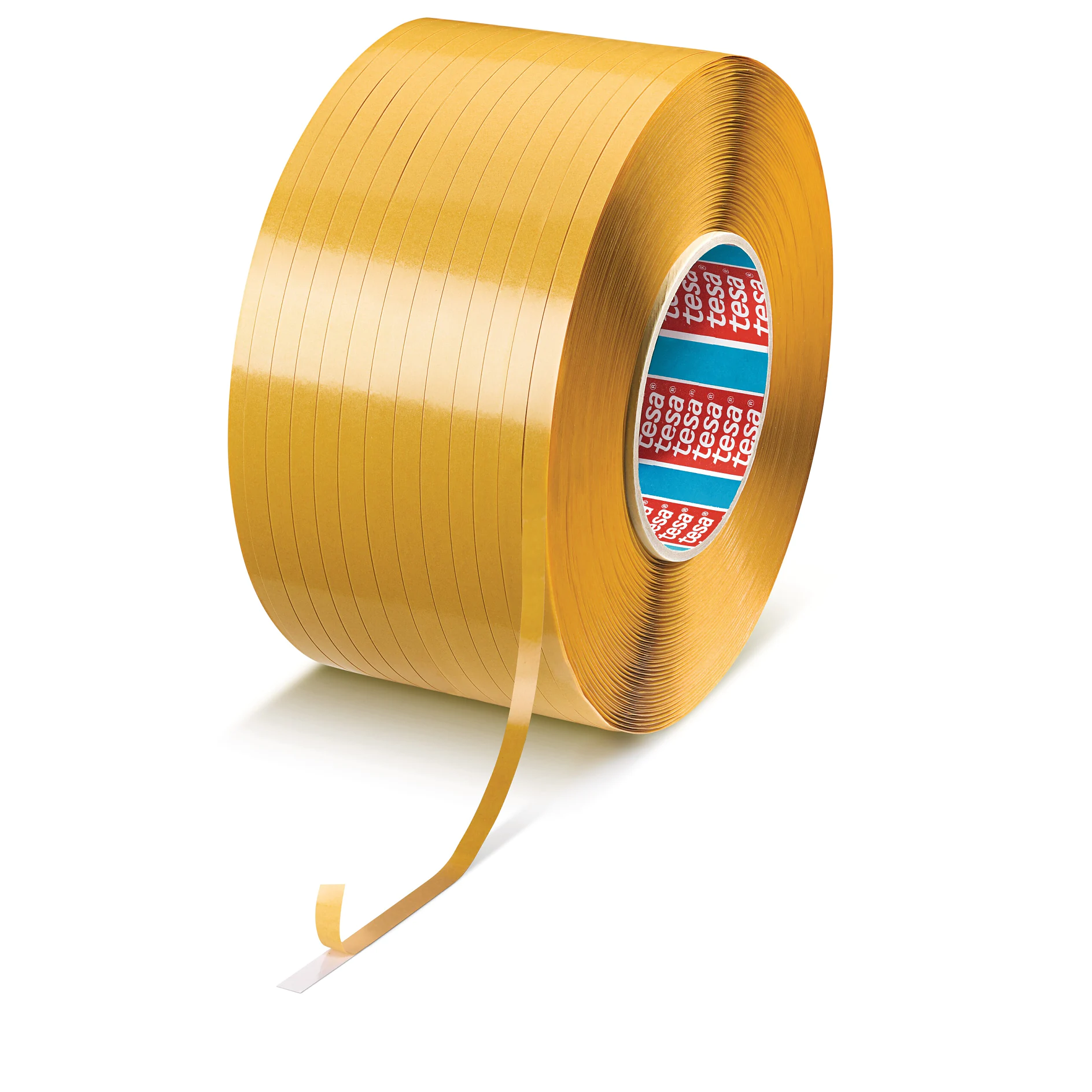

tesa® 64624 is a transparent double-sided filmic tape based on a PP backing and a well-balanced synthetic rubber adhesive.tesa® 64624 has been designed to meet the requirements of trim and profile producers:
- Good unwinding properties
- Low risk of product tearing due to filmic backing
- No adhesive oozing during the transport of the trims
- Paper liner to withstand fast liner removal without tearing
- Well balanced adhesive offers high immediate adhesion and very good shear strength at sufficient tack at room temperature
Technical properties
Elongation at break
140 %
Type of adhesive
synthetic rubber
Type of liner
glassine
Color of liner
brown
Tensile strength
45 N/cm
Weight of liner
90 g/m²
Total thickness
175 µm
Thickness of liner
76 µm
Backing material
BOPP
Color
transparent
Adhesion properties
Adhesion to Steel (initial)
12 N/cm
Adhesion to PE (initial)
10 N/cm
Adhesion to PC (initial)
13 N/cm
Adhesion to PVC (initial)
13 N/cm
Adhesion to PP (initial)
8 N/cm
Rating properties
Static shear resistance at 23°C
++
Humidity resistance
o
Tack
-
Ageing resistance (UV)
-
Static shear resistance at 40°C
-
Additional Info
Liner variants:PV 00 Brown glassine liner
PV 01 White glassine liner (84µm/102gr/3.3 mils)
PV 06 Red MOPP filmic liner (80µm/71gr/3.1 mils)
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
