tesa® 62510

1000 µm/39.4 mils double sided PE foam tape

Product Features

High ultimate adhesion level for a reliable bonding performance
Fully outdoor suitable: UV, water and ageing resistant
Conformable PE foam core with high inner strength

All product features

Product description

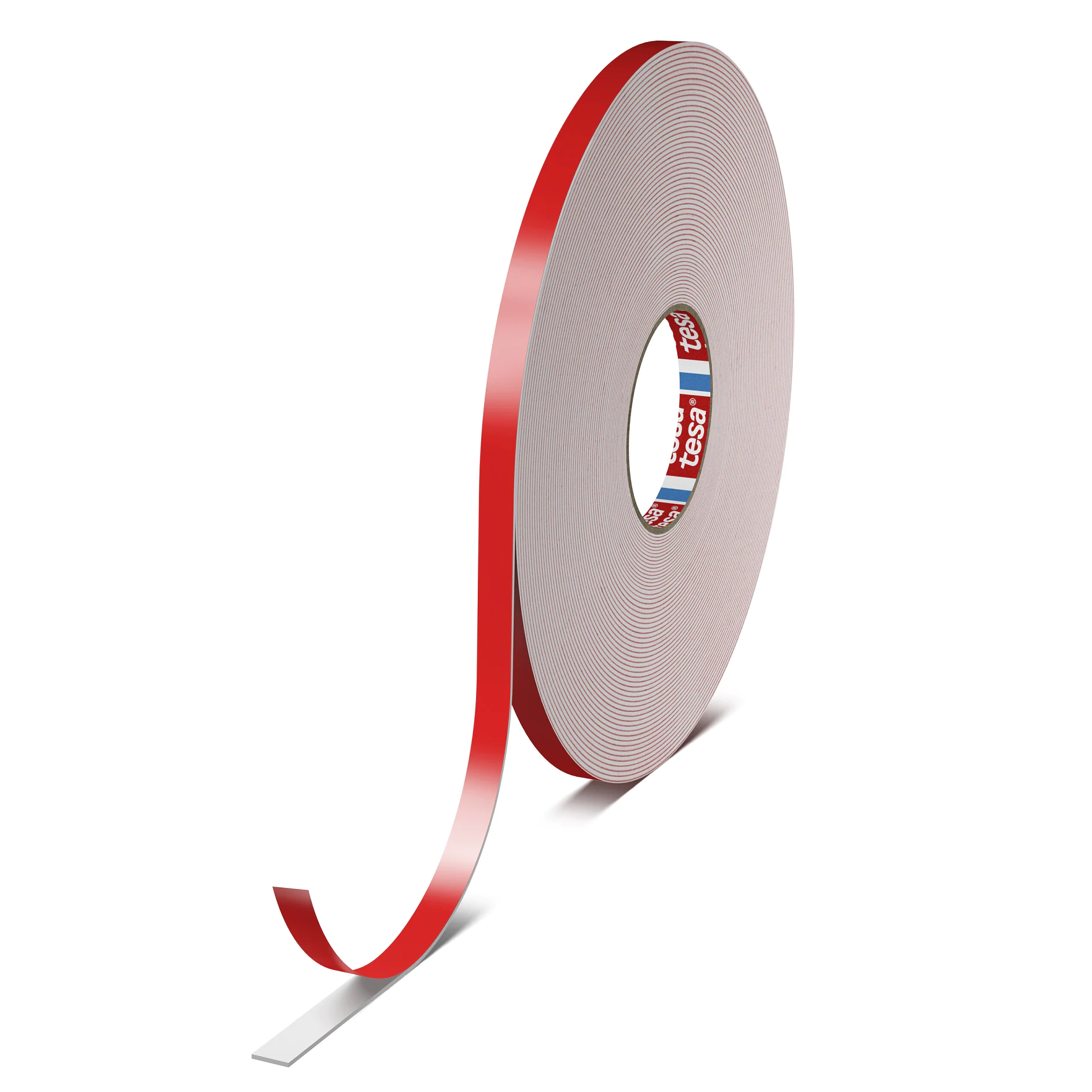

tesa® 62510 is a double sided PE foam tape for mounting applications. It consists of a highly conformable PE foam backing and a tackified acrylic adhesive.

Product details and specifications

Product Features

High ultimate adhesion level for a reliable bonding performance
Fully outdoor suitable: UV, water and ageing resistant
Conformable PE foam core with high inner strength
Suitable for automatic and manual module assembly
Easy solar module assembly due to a high foam compression rate

Application Fields

General mounting applications
Mounting of trims and profiles
Solar module frames

Adhesive Type	tackified acrylic
Backing material	PE foam
Color	black/white
Total thickness	39.37 mils 1000 µm

Adhesive Type	tackified acrylic
Backing material	PE foam
Color	black/white
Total thickness	39.37 mils 1000 µm

Elongation at break	180 %
Tensile strength	5.71 lbs/in 10 N/cm
Humidity resistance	very good
Static shear resistance at 40°C	good
Tack	good
Static shear resistance at 70°C	very good
Temperature resistance long term	176 °F 80 °C
Ageing resistance (UV)	very good
Softener resistance	medium
Static shear resistance at 23°C	good
Temperature resistance short term	176 °F 80 °C

Elongation at break	180 %
Tensile strength	5.71 lbs/in 10 N/cm
Humidity resistance	very good
Static shear resistance at 40°C	good
Tack	good
Static shear resistance at 70°C	very good
Temperature resistance long term	176 °F 80 °C
Ageing resistance (UV)	very good
Softener resistance	medium
Static shear resistance at 23°C	good
Temperature resistance short term	176 °F 80 °C

Adhesion to ABS (initial)	4.57 lbs/in 8 N/cm
Adhesion to ABS (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to Aluminium (initial)	4.57 lbs/in 8 N/cm
Adhesion to Aluminium (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to PC (initial)	4.57 lbs/in 8 N/cm
Adhesion to PC (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to PE (initial)	0.51 lbs/in 0.9 N/cm
Adhesion to PE (after 14 days)	0.51 lbs/in 0.9 N/cm
Adhesion to PET (initial)	3.43 lbs/in 6 N/cm
Adhesion to PET (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to PP (initial)	0.69 lbs/in 1.2 N/cm
Adhesion to PP (after 14 days)	0.69 lbs/in 1.2 N/cm
Adhesion to PS (initial)	4.57 lbs/in 8 N/cm
Adhesion to PS (after 14 days)	4.57 lbs/in 8 N/cm
Adhesion to PVC (initial)	7.71 lbs/in 13.5 N/cm
Adhesion to PVC (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to Steel (initial)	7.71 lbs/in 13.5 N/cm
Adhesion to Steel (after 14 days)	7.71 lbs/in 13.5 N/cm

Adhesion to ABS (initial)	4.57 lbs/in 8 N/cm
Adhesion to ABS (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to Aluminium (initial)	4.57 lbs/in 8 N/cm
Adhesion to Aluminium (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to PC (initial)	4.57 lbs/in 8 N/cm
Adhesion to PC (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to PE (initial)	0.51 lbs/in 0.9 N/cm
Adhesion to PE (after 14 days)	0.51 lbs/in 0.9 N/cm
Adhesion to PET (initial)	3.43 lbs/in 6 N/cm
Adhesion to PET (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to PP (initial)	0.69 lbs/in 1.2 N/cm
Adhesion to PP (after 14 days)	0.69 lbs/in 1.2 N/cm
Adhesion to PS (initial)	4.57 lbs/in 8 N/cm
Adhesion to PS (after 14 days)	4.57 lbs/in 8 N/cm
Adhesion to PVC (initial)	7.71 lbs/in 13.5 N/cm
Adhesion to PVC (after 14 days)	7.71 lbs/in 13.5 N/cm
Adhesion to Steel (initial)	7.71 lbs/in 13.5 N/cm
Adhesion to Steel (after 14 days)	7.71 lbs/in 13.5 N/cm

Liner variants:

PV0 brown glassine paper (71 µm / 2.8 mils)
PV13 transparent PET film (50 µm / 1.9 mils)
PV15 blue PE film (100 µm / 3.9 mils)

Peel Adhesion:

immediately: foam splitting on steel
after 14 days: foam splitting on steel, ABS, Aluminum, PC, PET, PS, PVC

tesa® 62510 is recognized by UL as photovoltaic polymeric material (QIHE2). tesa® 62510 has been tested by TÜV Rheinland, Germany. The test confirms the longterm adhesion performance after IEC 61215 climate tests and a 85°C / 185°F temperature resistance.
The temperature resistance (short/long) of tesa® 62510 has been approved according to tesa test method under static load.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
