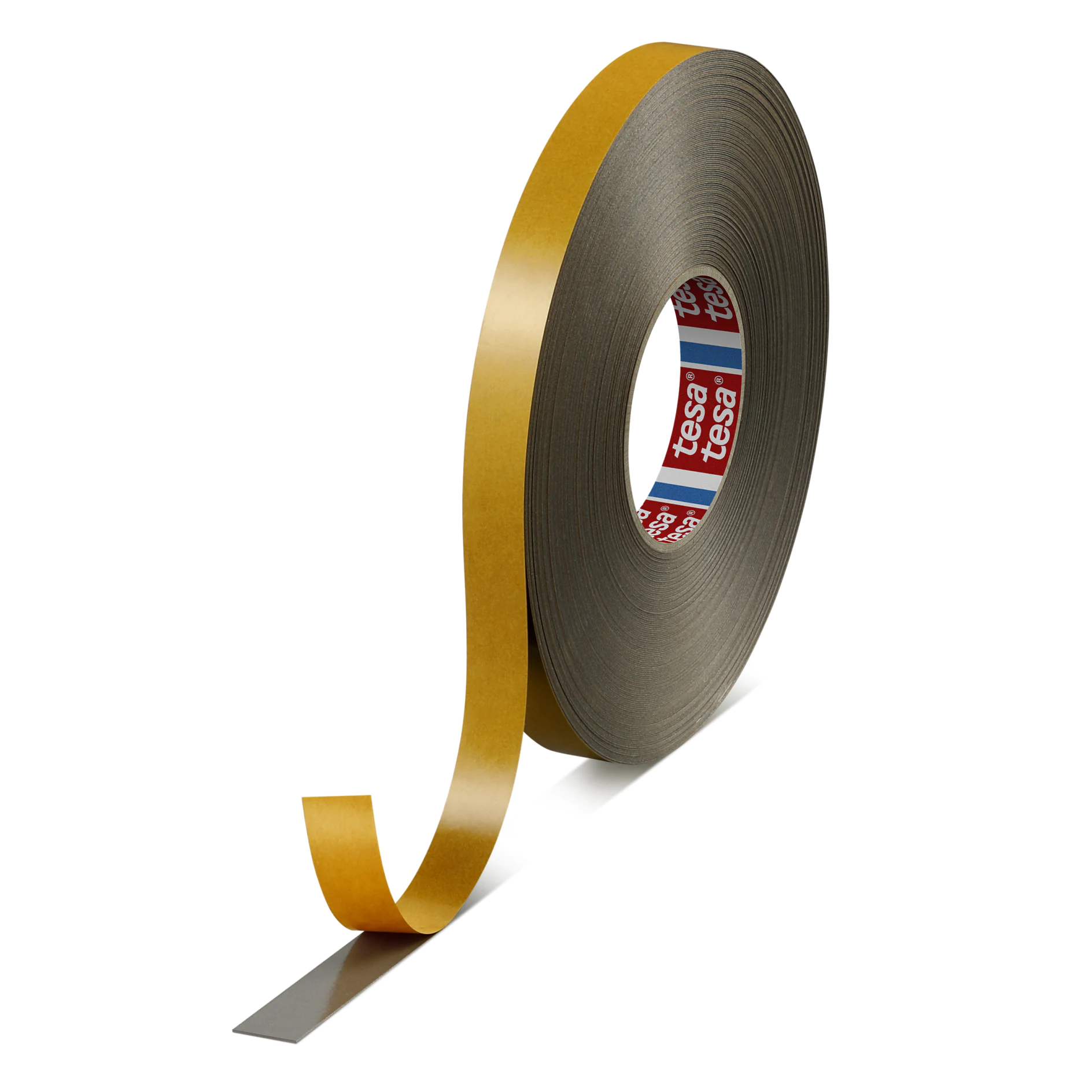

tesa® 62936

1600 µm/63 mils double sided PE foam tape

Product description

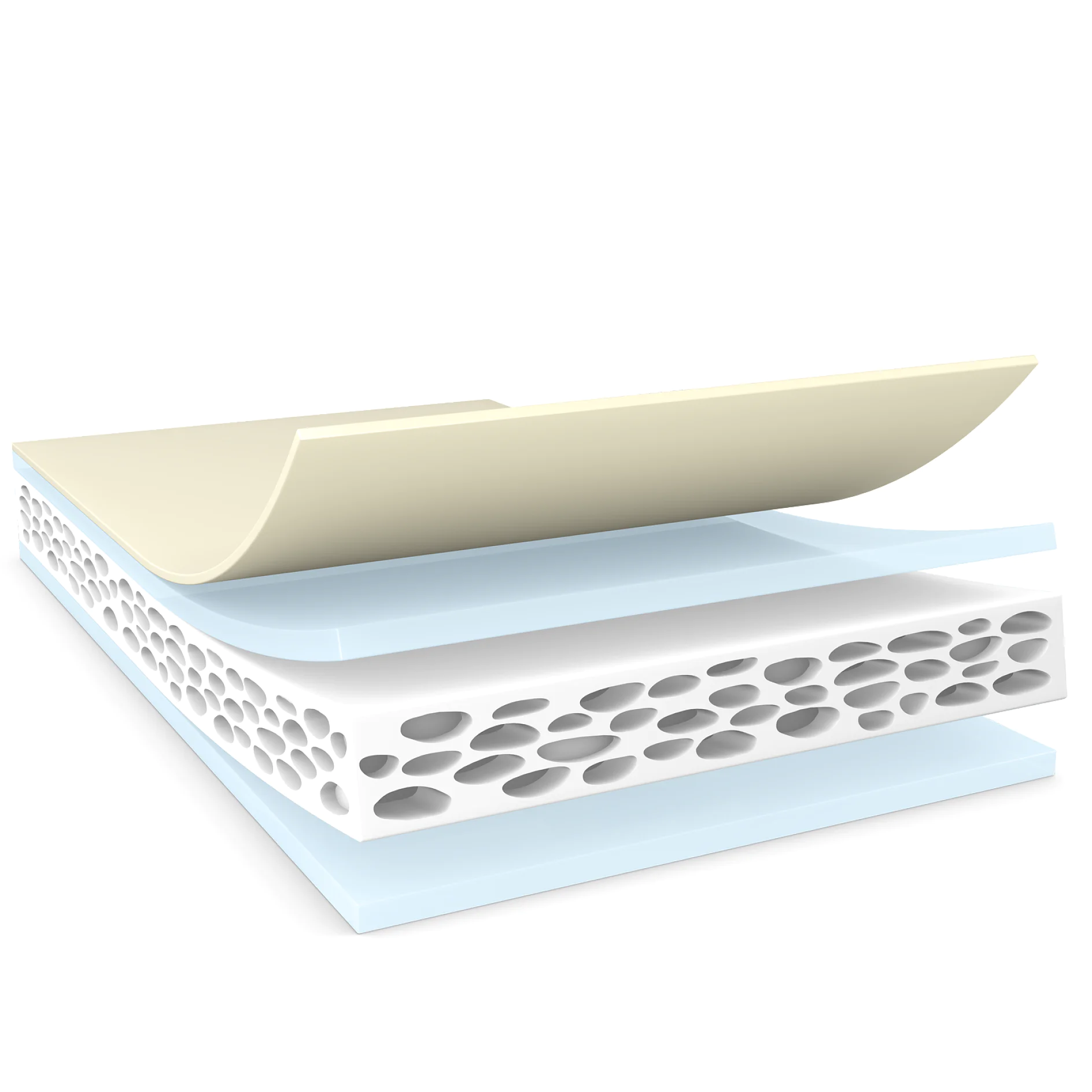

tesa® 62936 is a double sided PE foam tape for constructive mounting applications. It consists of a highly conformable PE foam backing with a tackified acrylic adhesive.

Product details and specifications

Application Fields

  • Interior wall cladding panels
  • Bumper rails on commercial freezers
  • Injection moulded plastic parts
  • Mirrors and coloured glass panels
Adhesive Type tackified acrylic
Backing material PE foam
Color black/white
Total thickness 1,600
Elongation at break 175 %
Tensile strength 9
Static shear resistance at 23°C good
Static shear resistance at 40°C good
Chemical Resistance good
Temperature resistance short term 176 °F
80 °C
Softener resistance good
Ageing resistance (UV) good
Humidity resistance very good
Tack good
Temperature resistance long term 176 °F
80 °C
Adhesion to ABS (initial) 9.71 lbs/in
17 N/cm
Adhesion to ABS (after 14 days) 10.85 lbs/in
19 N/cm
Adhesion to Aluminium (initial) 8.57 lbs/in
15 N/cm
Adhesion to Aluminium (after 14 days) 10.85 lbs/in
19 N/cm
Adhesion to PC (initial) 10.85 lbs/in
19 N/cm
Adhesion to PC (after 14 days) 10.85 lbs/in
19 N/cm
Adhesion to PE (initial) 1.14 lbs/in
2 N/cm
Adhesion to PE (after 14 days) 1.71 lbs/in
3 N/cm
Adhesion to PET (initial) 8.57 lbs/in
15 N/cm
Adhesion to PET (after 14 days) 10.85 lbs/in
19 N/cm
Adhesion to PP (initial) 1.71 lbs/in
3 N/cm
Adhesion to PP (after 14 days) 4 lbs/in
7 N/cm
Adhesion to PS (initial) 10.85 lbs/in
19 N/cm
Adhesion to PS (after 14 days) 10.85 lbs/in
19 N/cm
Adhesion to PVC (initial) 10.85 lbs/in
19 N/cm
Adhesion to PVC (after 14 days) 10.85 lbs/in
19 N/cm
Adhesion to Steel (initial) 9.14 lbs/in
16 N/cm
Adhesion to Steel (after 14 days) 10.85 lbs/in
19 N/cm
Liner variants:
  • PV0 brown glassine paper (71 µm/2.8 mils)
  • PV10 red transparent PP film (120 µm/4.7 mils)
  • PV15 blue PE film (100 µm/3.9 mils)

Peel Adhesion:
  • immediate: foam splitting on PC, PS, PVC
  • after 14 days: foam splitting on Steel, Aluminum, ABS, PC, PS, PET, PVC

tesa® 62936 has been tested by TÜV Rheinland, Germany. The test confirms the long-term adhesion performance after IEC 61215 / 61646 climate tests and a 85°C/185°F temperature resistance. (TÜV report number 21209595).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

tesa 6293x Family Skin contact - statement 124.6 kB Product information_tesa® 62936_en-US 63.4 kB
