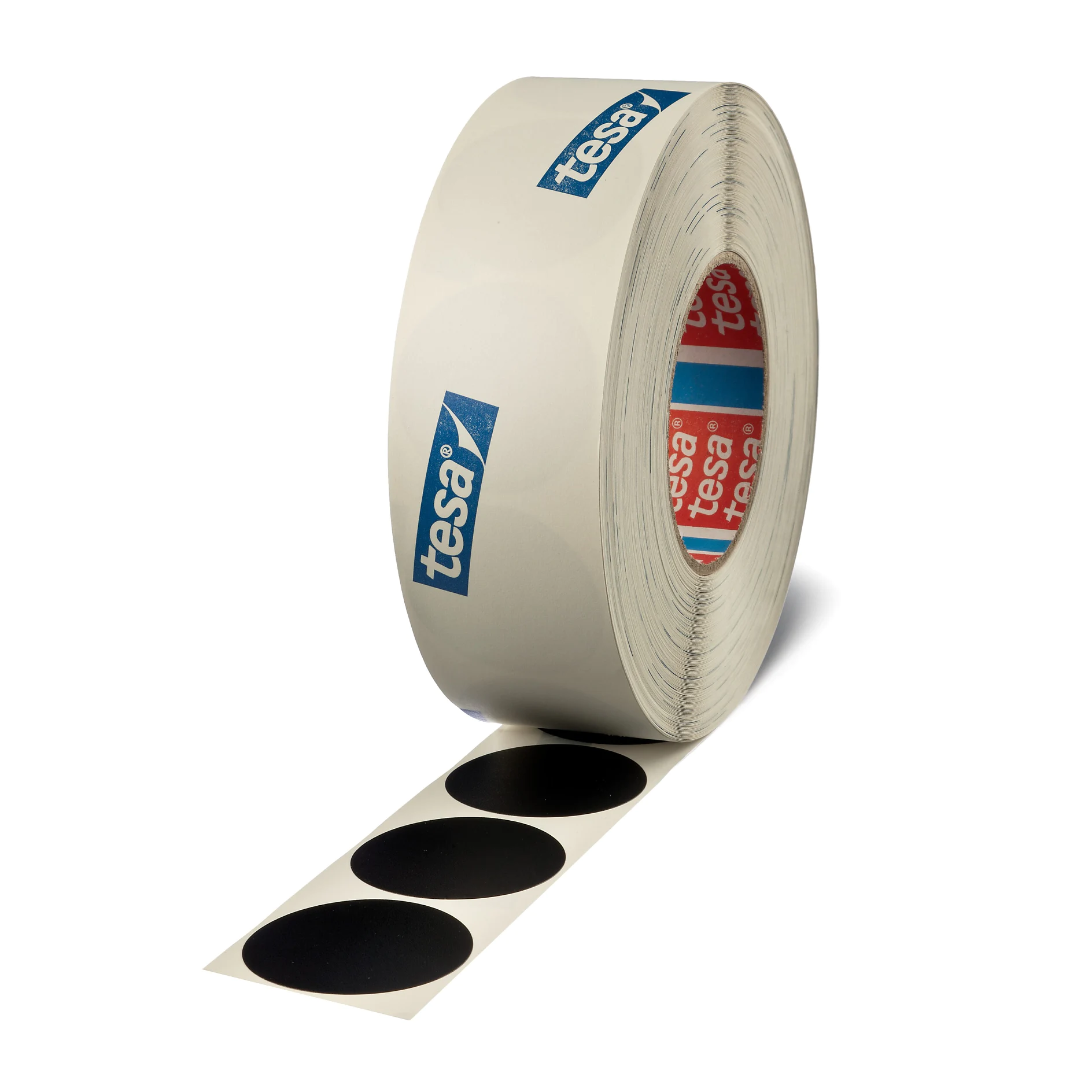

tesa® 54190 Precision Die Cuts

High performance decorative film for Black Out Design and Permanent Protection of sensitive surfaces


Product description

The self adhesive tape consists of a black PVCfilm coated with a pure acrylic adhesive. tesa® 54190 can be applied for exterior and interior decorative purposes in the automotive industry.

The product features perfect optical appearance and long lasting adhesion properties. It can also be applied for the permanent protection of car parts from mechanical damage as well as to seal holes in the car body work.
The film can be shaped when heated and can also be used on 3D-surfaces.


Product details and specifications

Application Fields

tesa® 54190 is designed for exterior and interior decorative application and permanent protection around the car body. This tape has a perfect visual appearance and long lasting adhesion properties on painted surfaces.

The product is also perfectly suitable for BSR-Applications.
Adhesive Type acrylic
Backing material PVC film
Color black
Color of liner white
Liner Type PE-coated paper
Total thickness 185 µm
Weight of liner 196.28 lbs/in²
138 g/m²
Elongation at break 250 %
Tensile strength 60 N/cm
Abrasion resistance good
Chemical Resistance very good
Matt surface finish yes
tesa® 54190 can be supplied individually to customer specification in various dimensions.
Under the product number tesa® 7190, the material is also available as rolls.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message. We will contact you as soon as possible.

Stay tuned.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 54190 Precision Die Cuts tesa® 7190 tesa® 51206 tesa® 64284 EU PV11 tesa® 4414 tesa® Bodyguard 50535 PV7 tesa® 64007 tesa® 4264 tesa® 53398 tesa® 50551 Wheel Rim Protection tesa® Bodyguard 50535 PV0
Total thickness
185 µm
185 µm
114 µm
115 µm
150 µm
61 µm
62 µm
40 µm
195 µm
70 µm
59 µm
Adhesive Type
acrylic
acrylic
pure acrylic
synthetic rubber
water-based acrylic
EVA
water-based acrylic
synthetic rubber
synthetic rubber
acrylic
EVA
Backing material
PVC film
PVC film
PE
TPP
PE film
polyolefinic film
BOPP
PP film
glassfiber & PET
PE film
polyolefinic film
