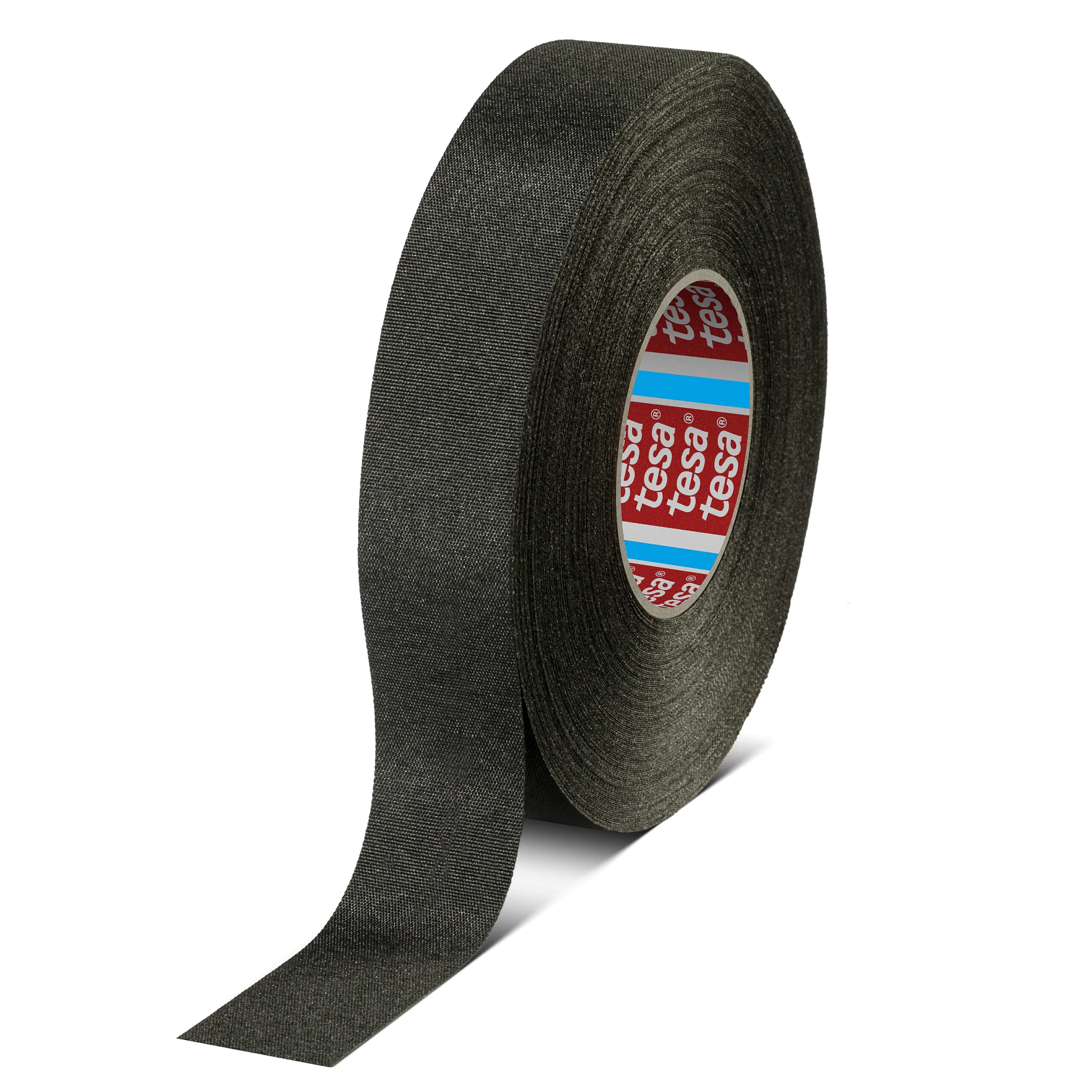

tesa® 51606

Thick PET fleece tape for high noise damping and water absorption

Product description

tesa® 51606 is a PET fleece tape with a rubber based adhesive.

Major Features:

High noise damping
High abrasion resistance
Excellent water absorption
Excellent thermal insulation

Color: Black

Product details and specifications

Application Fields

tesa® 51606 is designed for applications in wire harnessing (passenger compartment) and electric vehicle battery packs.

Adhesive Type	rubber based
Backing material	PET fleece
Total thickness	800 µm

Elongation at break	85 %
Tensile strength	55 N/cm
Unwind force (roll width > 9mm)	7.5 N/roll (30 m/min)
Temperature resistance min.	-40 °F -40 °C
Abrasion resistance (5mm mandrel, LV312)	Class C
Thermal conductivity x-y-direction	0.066 W/mK
Abrasion resistance (10mm mandrel, LV312)	Class D
Temperature resistance max.	221 °F 105 °C
Unwind force (roll width < 9mm)	7.5 N/roll (30 m/min)
Noise damping (LV312)	Class D

Adhesion to Steel	3.14 lbs/in 5.5 N/cm

Standard widths: 19, 25, 38 mm
Standard lengths: 7.5 m

Most combinations of width and length are possible
Further dimensions are available upon request

Standard core diameter: 38 mm

Applicable for red ring assembly aid

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 51606_en-US 64.8 kB

Contact us

Thank you for your message. We will contact you as soon as possible.

Stay tuned.

Something went wrong. Please try again later.

Name of product	tesa® 51606	tesa® 51608 PV0	tesa® 51616 ID	tesa® 51626	tesa® Sleeve 51608 PV9	tesa® 51616	tesa® 51638 PV0	tesa® 51618	tesa® Sleeve 51608 PV8	tesa® Supersleeve 51026 PV6	tesa® 51026
Total thickness	800 µm	280 µm	650 µm	1,000 µm	210 µm	650 µm	260	250 µm	210 µm	530 µm	260 µm
Adhesive Type	rubber based	rubber based	rubber based	acrylic	rubber based	rubber based	water-based acrylic	rubber based	rubber based	acrylic	acrylic
Backing material	PET fleece	PET fleece	PET fleece	PA velour	PET fleece	PET fleece	PET fleece	PET fleece	PET fleece	PET cloth	PET cloth
Temperature resistance max.	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	150 °C	150 °C
Adhesion to Steel	5.5 N/cm	3 N/cm	3 N/cm	3.1 N/cm	3 N/cm	3 N/cm	2.3 N/cm	3 N/cm	3 N/cm	5.5 N/cm	5.5 N/cm
Temperature resistance min.	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
