Additional Info
The uni colors of tesaflex® 4169 PV3 are in accordance to the RAL color scheme.

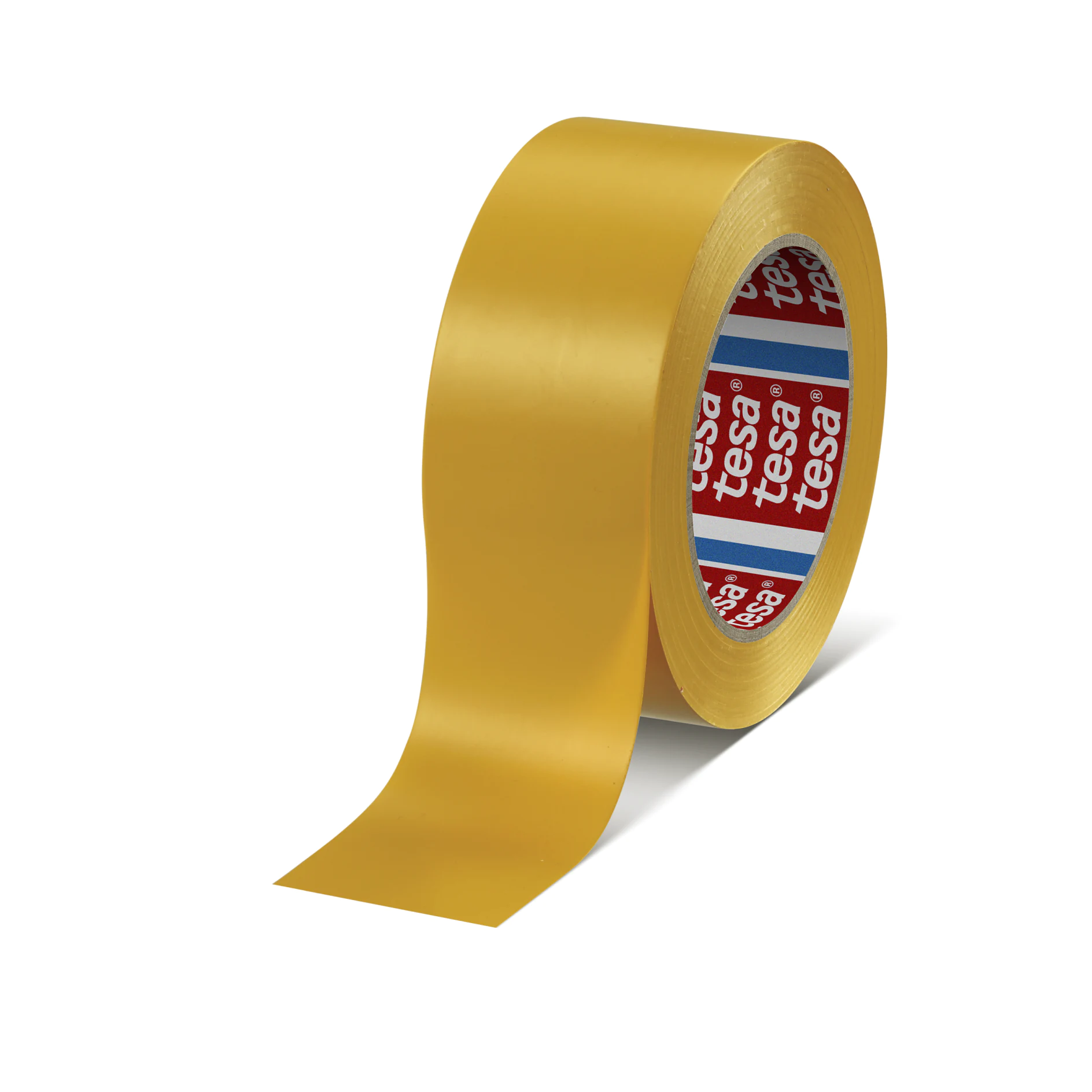

tesa® 4169
Premium Floor Marking Tape
Product description
tesaflex® 4169 is a tough PVC tape, coated with an aggressive rubber adhesive. The plasticized polyvinylchloride backing is conformable, can be applied in curves without wrinkling and stays flexible even at very low temperatures of -40°C. The soft PVC tape is resistant to UV-light and weather and is waterproof. The PVC backing is extremely tough, making tesaflex® 4169 resistant to chemicals and abrasions. tesaflex® 4169 PV8 is silicon-release coated and features a low unwinding force, which offers high suitability for use with dispensers. Due to its durability, the vinyl tape is ideal for permanent floor marking applications in various surroundings such as factories, warehouses, offices, or hospitals.
Product details and specifications
Application Fields
- The high-quality soft PVC tape is ideal for labeling and floor marking for mark-sensitive vehicles, factories, or parking spaces.
- The robust PVC backing is able to withstand high mechanical stress.
- Offers good adhesive properties on rough and uneven undergrounds.
- Flexibility and softness allows for precise and curved application.
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | soft PVC |
| Total thickness | 7.36 mils
187 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | soft PVC |
| Total thickness | 7.36 mils
187 µm |
Properties / Performance Values
| Elongation at break | 285 % |
|---|---|
| Tensile strength | 24.27 lbs/in
42.5 N/cm |
| Suitable for rough surfaces | good |
Properties / Performance Values
| Elongation at break | 285 % |
|---|---|
| Tensile strength | 24.27 lbs/in
42.5 N/cm |
| Suitable for rough surfaces | good |
Adhesion to Values
| Adhesion to Steel | 1.14 lbs/in
2 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 1.14 lbs/in
2 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
