Additional Info
Standard widths: 35, 45 mm
Standard lengths: 10, 15 m
Standard lengths: 10, 15 m
- Standard core diameter: 38 mm
- Additional dimensions on request

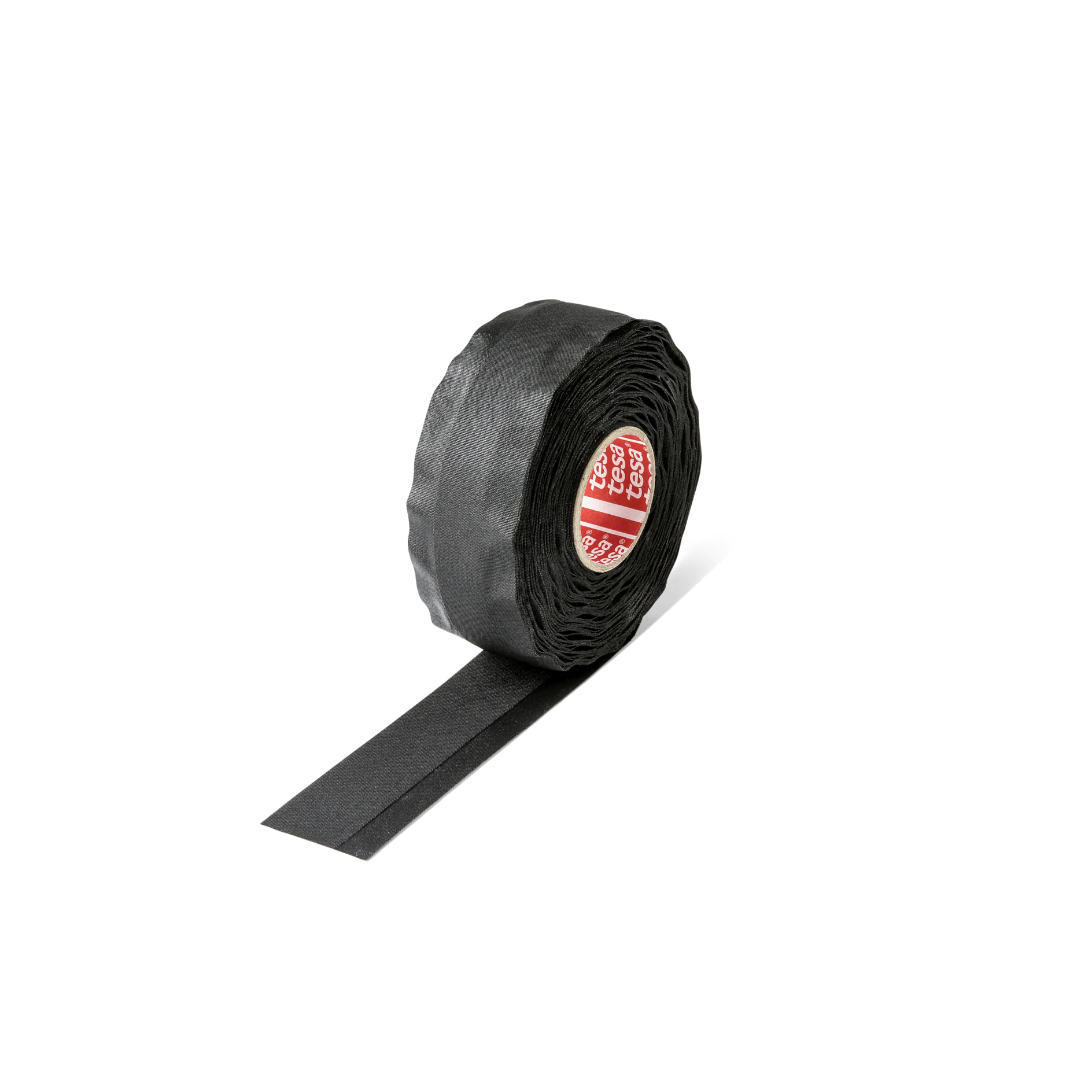

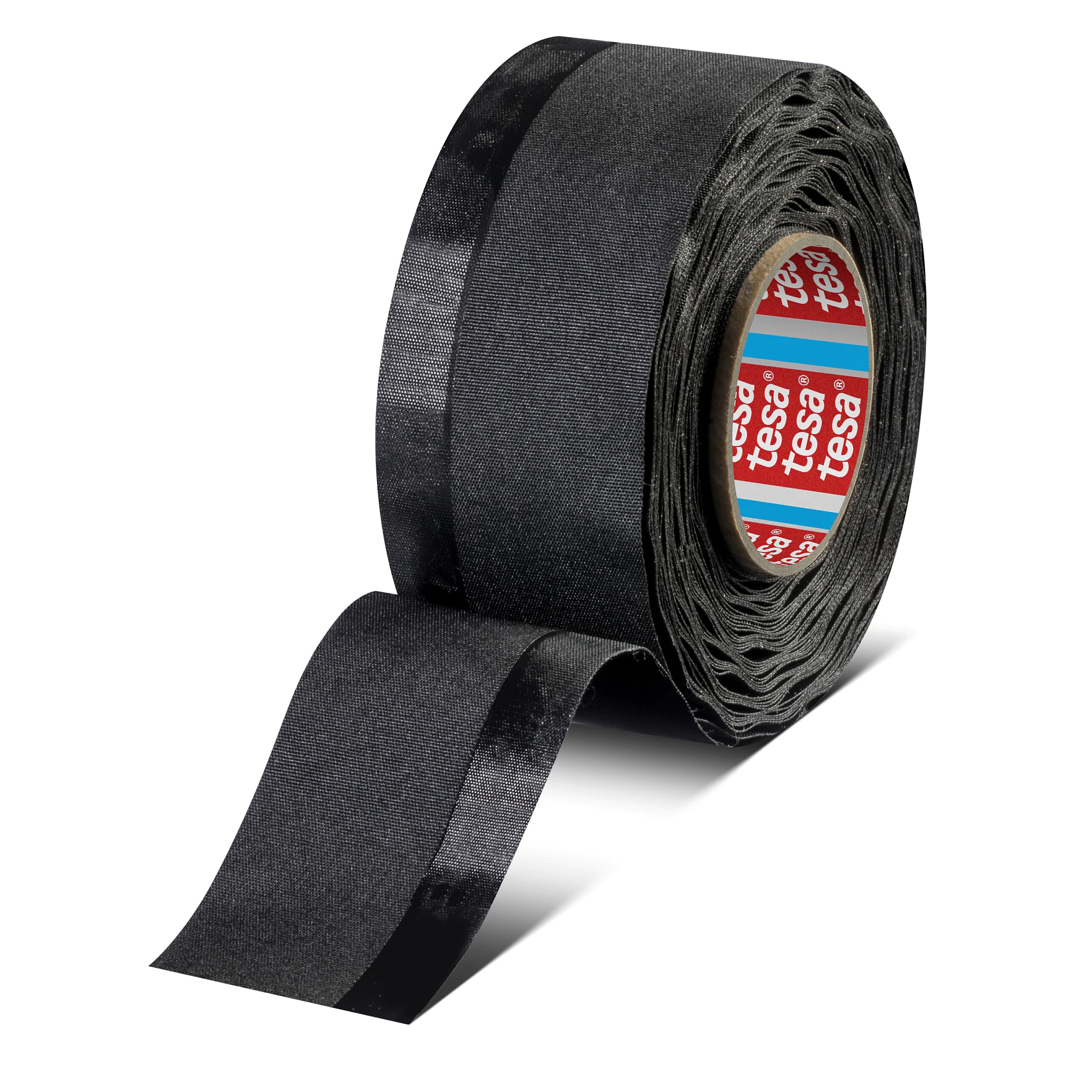

tesa® Spiralsleeve 51026 PV5
PET cloth Sleeve® for superior abrasion protection and enhanced harness flexibility in the automotive engine compartment
Product description
tesa® Spiralsleeve 51026 PV5 is a PET cloth wire harness Sleeve® with a solvent-free acrylic adhesive. It provides superior abrasion protection and withstands high temperatures and demanding environmental conditions.
Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides enhanced durability at high temperatures. It combines the well-known spiral application of a tape with the tesa Sleeve® advantages. The Spiralsleeve product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility and the adhesive-to-adhesive closure system guarantees secure bonding without additional spot wraps.
tesa® Spiralsleeve 51026 PV5 is specifically designed for efficient manual application.
Main features:
- Superior abrasion resistance
- High temperature resistance
- High flexibility
- Adhesive-to-adhesive closure system for secure bonding without additional spot wraps
- Excellent cable compatibility
- Ageing-resistant
- Resistant to environmental influences
- Flame-retardant
- Fogging-free
- Halogen-free
- Tear-resistant
- Flexible and smooth
Color: Black
Product details and specifications
Application Fields
tesa® Spiralsleeve 51026 PV5 has been developed for bundling and wire protection against abrasion in areas with increased demands for harness flexibility. The main application field is the automotive engine compartment of vehicles with demanding temperatures and environmental conditions.
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 20.87 mils
530 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PET cloth |
| Total thickness | 20.87 mils
530 µm |
Properties / Performance Values
| Abrasion resistance (10mm mandrel, LV312) | Class E |
|---|---|
| Noise damping (LV312) | Class B |
| Temperature resistance min. | -40 °F
-40 °C |
| Temperature resistance max. | 302 °F
150 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
Properties / Performance Values
| Abrasion resistance (10mm mandrel, LV312) | Class E |
|---|---|
| Noise damping (LV312) | Class B |
| Temperature resistance min. | -40 °F
-40 °C |
| Temperature resistance max. | 302 °F
150 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
Adhesion to Values
| Adhesion to Steel | 3.14 lbs/in
5.5 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 3.14 lbs/in
5.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
