tesa® 75507 - Team 4965 Transfer 75µm / 3 mils

Double-sided tackified acrylic transfer tape

Sustainable Aspects
  • Biomass balanced tackified acrylic adhesive
  • Responsibly sourced paper liner (certified)
  • Unbleached paper with 30% recycled fibers
Product Features
  • Very good temperature and humidity resistance
  • Skin contact certification according to ISO 10993-5 and ISO 10993-10
  • In accordance with UL standard 969. UL file: MH18055
All product features
Product description

tesa® 75507 - Team 4965 Transfer 75µm / 3 mils is a conformable, tackified acrylic transfer tape with a thickness of 75μm / 3 mils. It is equipped with our proven and well-known tesa® 4965 adhesive which is transparent, ageing resistant and has a high initial tack. tesa® 75507 - Team 4965 Transfer 75µm / 3 mils therefore offers very good immediate grab to uneven surfaces and is suitable for a wide range of applications, such as lamination of lightweight, thin materials.
Several products are equipped with this unique and high performing tesa® 4965 adhesive and together these products make up Team 4965. This double-sided film tape assortment helps to easily select the most efficient tape based on customer demands, products, and processes. Explore the benefits of the full tesa® 4965 assortment here:
https://www.tesa.com/en-us/industry/general-applications/mounting/team-4965-assortment

Product details and specifications

Product Features

  • Very good temperature and humidity resistance
  • Skin contact certification according to ISO 10993-5 and ISO 10993-10
  • In accordance with UL standard 969. UL file: MH18055
  • Good die cutting properties
  • Very good initial adhesion to a wide variety of substrates
  • Excellent conformability due to transfer tape design
  • Low VOC - measured according to VDA 278 analysis

Application Fields

tesa® 75507 - Team 4965 Transfer 75µm / 3 mils is suitable for mounting and lamination applications of flexible materials and lightweight parts.
Example applications are:
  • Mounting of lightweight parts and materials
  • Mounting of foams, felts, fabrics and textiles
  • Lamination of insulation materials
  • Mounting of flooring systems
  • Membrane switch mounting
  • Splicing

Sustainable Aspects

  • Biomass balanced tackified acrylic adhesive
  • Responsibly sourced paper liner (certified)
  • Unbleached paper with 30% recycled fibers
Adhesive Type tackified acrylic
Backing material none
Color transparent
Color of liner brown
Liner Type glassine
Thickness of liner 2.76 mils
70 µm
Total thickness 75 µm
Weight of liner 113.79 lbs/in²
80 g/m²
Chemical Resistance good
Temperature resistance long term 212 °F
100 °C
Humidity resistance very good
Tack good
Static shear resistance at 40°C very good
Softener resistance good
Temperature resistance min. -40 °F
-40 °C
Static shear resistance at 23°C very good
Temperature resistance short term 392 °F
200 °C
Ageing resistance (UV) good
Adhesion to ABS (initial) 5.71 lbs/in
10 N/cm
Adhesion to ABS (after 14 days) 6.57 lbs/in
11.5 N/cm
Adhesion to Aluminium (initial) 4.85 lbs/in
8.5 N/cm
Adhesion to Aluminium (after 14 days) 5.14 lbs/in
9 N/cm
Adhesion to PC (initial) 6.85 lbs/in
12 N/cm
Adhesion to PC (after 14 days) 7.14 lbs/in
12.5 N/cm
Adhesion to PE (initial) 2.28 lbs/in
4 N/cm
Adhesion to PE (after 14 days) 2.57 lbs/in
4.5 N/cm
Adhesion to PET (initial) 5.14 lbs/in
9 N/cm
Adhesion to PET (after 14 days) 5.14 lbs/in
9 N/cm
Adhesion to PP (initial) 2.28 lbs/in
4 N/cm
Adhesion to PP (after 14 days) 3.14 lbs/in
5.5 N/cm
Adhesion to PS (initial) 5.71 lbs/in
10 N/cm
Adhesion to PS (after 14 days) 6.28 lbs/in
11 N/cm
Adhesion to PVC (initial) 4.57 lbs/in
8 N/cm
Adhesion to PVC (after 14 days) 7.42 lbs/in
13 N/cm
Adhesion to Steel (initial) 6.28 lbs/in
11 N/cm
Adhesion to Steel (after 14 days) 6.28 lbs/in
11 N/cm
Adhesion to Steel (after 3 days) 6.28 lbs/in
11 N/cm
Liner variants:
  • PV0: brown glassine paper (70µm / 2.8 mils; 80g/m²)
  • PV12: transparent PET liner (75µm / 3 mils; 105g/m²)
  • PV20: branded brown paper liner (70μm / 2.8 mils; 80g/m²)
  • PV21: white glassine paper liner; (78µm / 3.1 mils; 90g/m²)


Dimensionally stable PV12 PET liner is best suitable for applications, shipping and storage with exposure to high humidity conditions.

Low VOC - measured according to VDA 278 analysis, tesa® 75507 does not contain any single substances restricted by the drafted GB regulations (China).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

tesa®75505_75507_75515_skin-contact 133.6 kB Product information_tesa® 75507_en-US 110.6 kB
Get in contact with us!

Contact us

Thank you for your message. We will contact you as soon as possible.

Stay tuned.

Something went wrong. Please try again later.

Product comparison

Name of product
roll of brown tesa adhesive tape standing upright on a white background with a green globe logo in the corner (This text has been generated by AI)
tesa® 75507 - Team 4965 Transfer 75µm / 3 mils
roll of white tesa adhesive tape standing upright on a white background (This text has been generated by AI)
tesa® 74515 - LSE Transfer Mounting Tape
roll of brown tesa adhesive tape standing upright with a partially unrolled edge on a white background (This text has been generated by AI)
tesa® 75515 - Team 4965 Transfer 125µm / 5 mils
tesa_04900_pr_001_fullsize
tesa® 4900
tesa® 68105

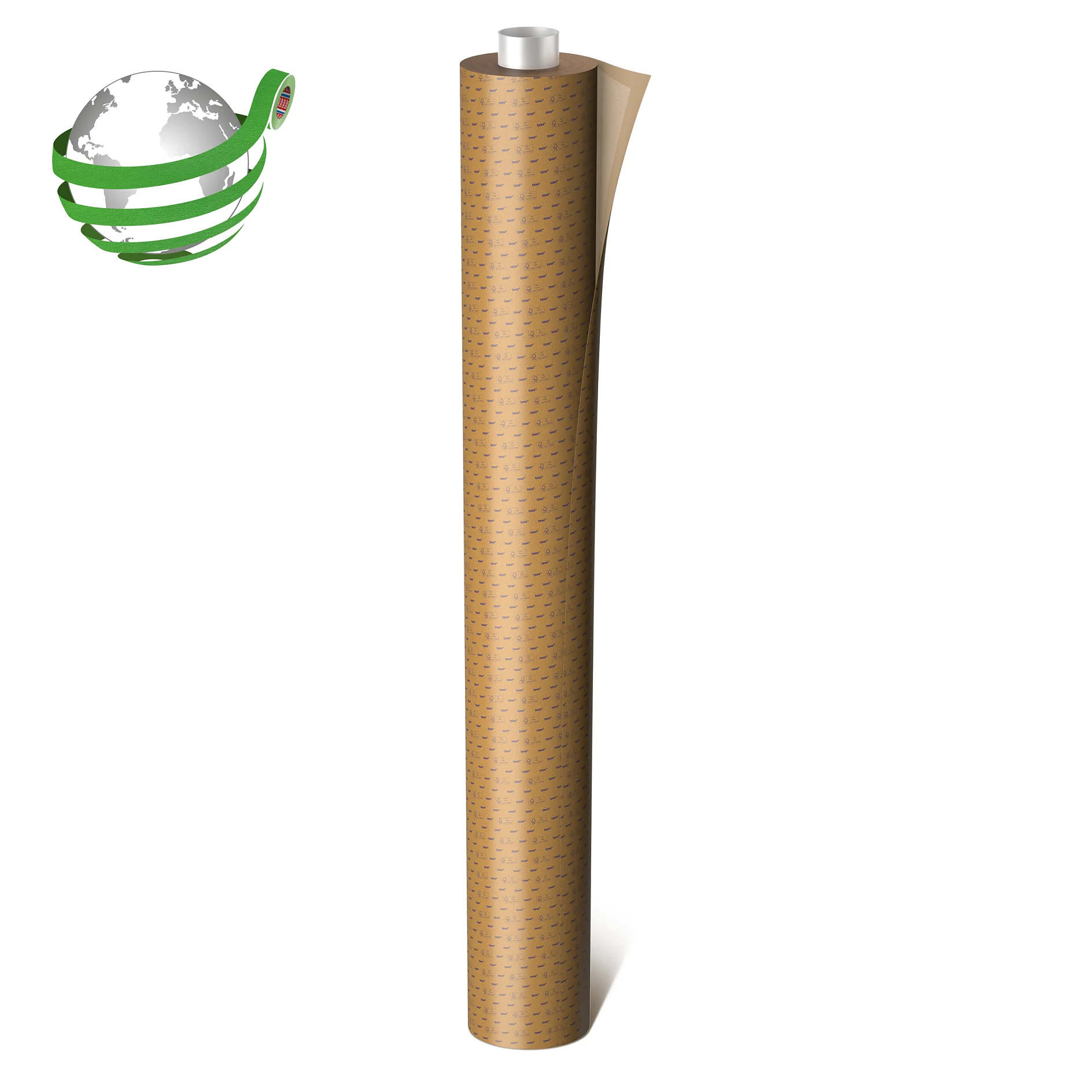

roll of brown kraft paper standing upright on a white background with a small globe wrapped in green tape in the top left corner tesa logo in small letters (This text has been generated by AI)
