Additional Info
tesa® 50600 is also available on a special PET liner.

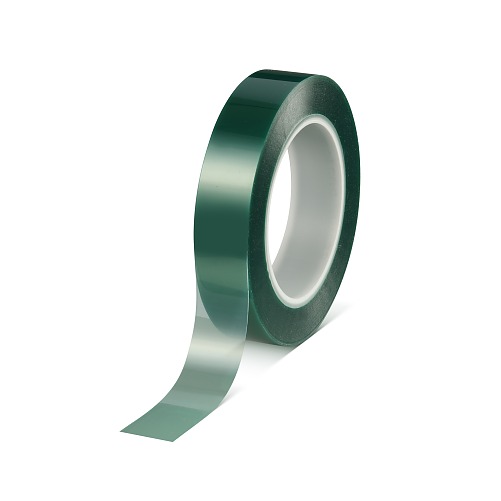

tesa® 50600
Green polyester/silicone masking tape
Product description
tesa® 50600 is a green-translucent, high-temperature masking tape featuring a polyester backing with a silicone adhesive. tesa® 50600 is used for various applications, especially for masking during powder-coating processes or bonding and splicing applications of non-polar material. The tape enables sharp color edges and offers excellent paint anchorage. The masking tape's silicone adhesive system makes the tape extremely heat-resistant, withstanding extreme temperatures of up to 220°C/428°F
for as long as 30 minutes at a time. The high-temperature tape features easy application and easy one-piece removal without leaving residues behind. tesa® 50600 masking tape is also available in a version with a liner.
Product details and specifications
Application Fields
- tesa® 50600 is used for masking off areas that are to be protected during powder-coating processes
- The high-temperature tape can withstand temperatures of up to 220°C/428°F for 30 minutes
- tesa® 50600 is used for bonding and splicing applications of non-polar material
- The masking tape features residue-free removal
- tesa® 50600 is also available on a special PET liner
Product Construction
| Adhesive Type | silicone |
|---|---|
| Backing material | PET |
| Total thickness | 3.15 mils
80 µm |
Product Construction
| Adhesive Type | silicone |
|---|---|
| Backing material | PET |
| Total thickness | 3.15 mils
80 µm |
Properties / Performance Values
| Elongation at break | 110 % |
|---|---|
| Tensile strength | 42.83 lbs/in
75 N/cm |
| Easy to remove | yes |
| Dielectric breakdown voltage | 4000 V |
| Temperature resistance (30 min) | 428 °F
220 °C |
| Sharp color edge | yes |
| Hand tearability | low |
Properties / Performance Values
| Elongation at break | 110 % |
|---|---|
| Tensile strength | 42.83 lbs/in
75 N/cm |
| Easy to remove | yes |
| Dielectric breakdown voltage | 4000 V |
| Temperature resistance (30 min) | 428 °F
220 °C |
| Sharp color edge | yes |
| Hand tearability | low |
Adhesion to Values
| Adhesion to Steel | 2.28 lbs/in
4 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 2.28 lbs/in
4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
