tesa® 50565

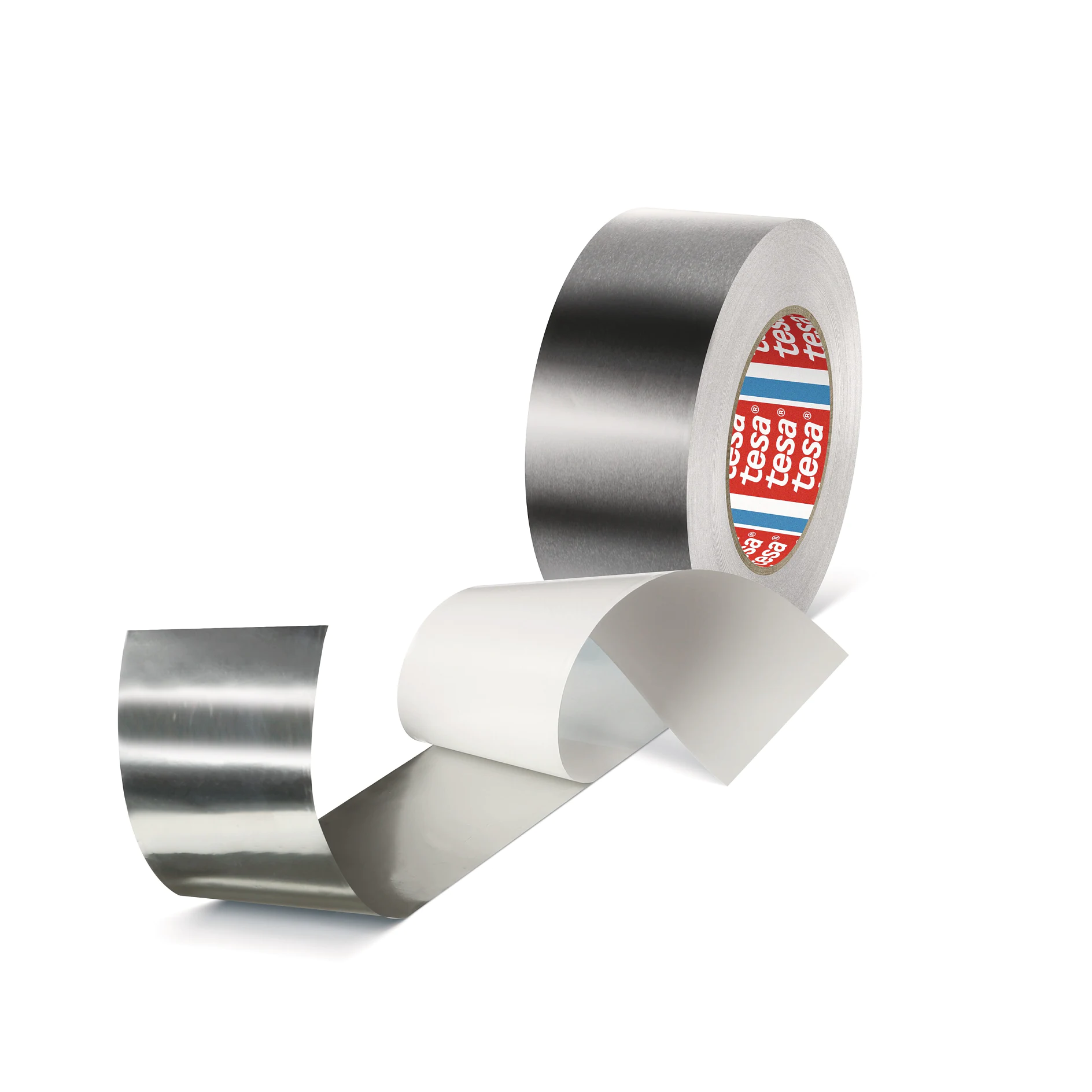

Strong 50µm/2 mils aluminium tape with and without liner (PV1 and PV0)

Product description

tesa® 50565 is a strong aluminium tape, based on a 50µm/2 mils aluminium foil and an acrylic adhesive.
tesa® 50565 is mainly used in the appliance industry and also for a wide range of other applications.

  • good adhesion
  • mechanical resistance
  • moisture resistant
  • vapour tight
  • high thermal conductivity
  • oil & acid resistant
  • ageing-resistant
  • available without liner (PV0) and with liner (PV1)
  • flame retardant (UL510)

Application Fields

  • Mounting of refrigeration coils
  • General purpose temperature insulation
  • Sealing of ducts
  • Masking, protecting, repairing, closing ...and a lot more!

Product Construction

Thickness of tape 3.54 mils
90 µm
Type of adhesive acrylic
Type of liner paper
Color of liner white
Thickness of liner 2.56 mils
65 µm
Backing material aluminium foil

Properties / Performance Values

Elongation at break 8 %
Abrasion resistance good
Backing appearance (visual) reflective
Tensile strength 19.99 lbs/in
35 N/cm
Temperature resistance min. -40 °F
-40 °C
Operation temperature up to 320 °F
160 °C
Hand tearability good
Suitable for die cutting Yes
Operation temperature from -40 °F
-40 °C
Water resistance very good

Adhesion to Values

Adhesion to steel 54.82 oz/in
6 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
