Additional Info
tesa® 7100 is certified according to UL-510
tesa® 7100
100µm solid black single-sided adhesive tape
Product description

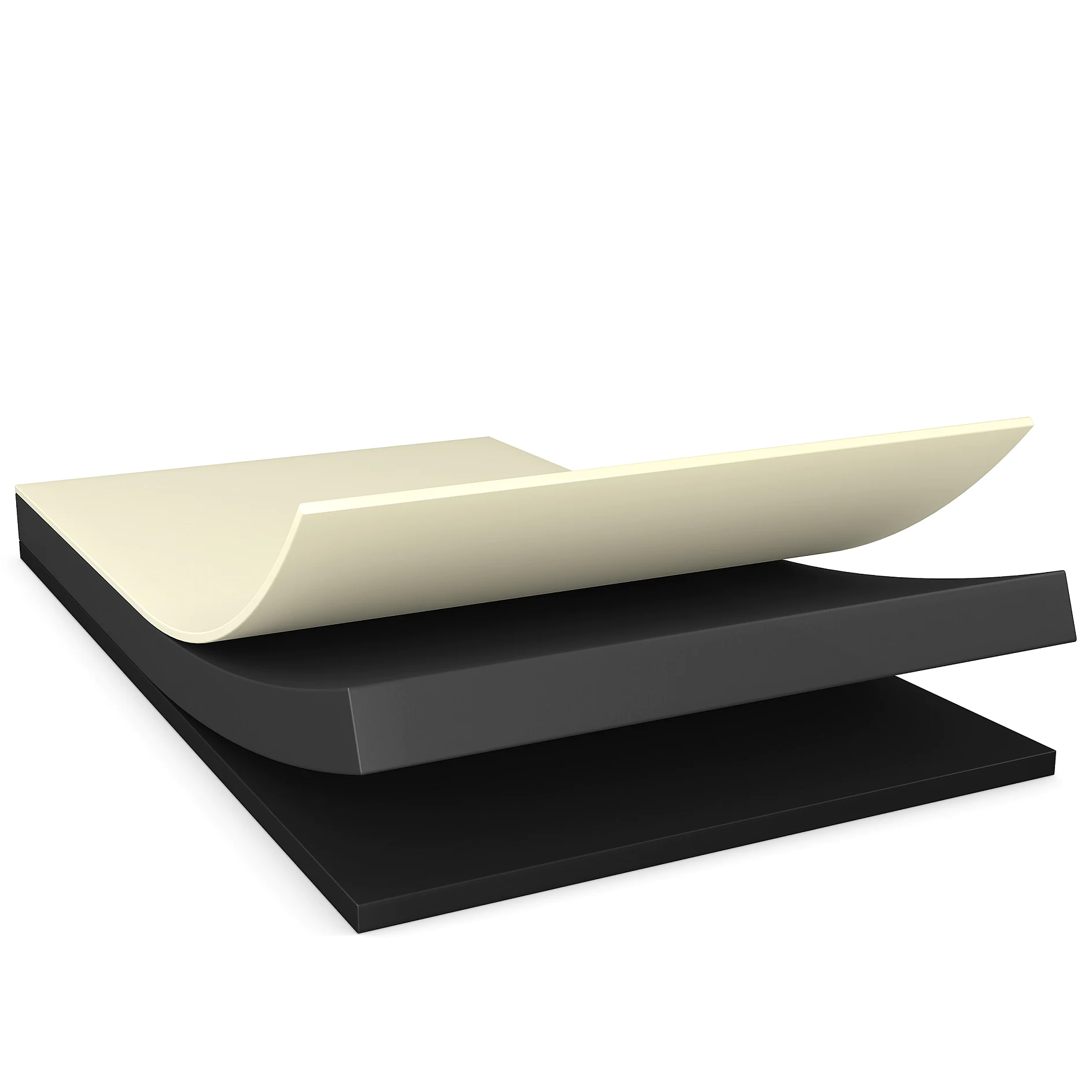

tesa® 7100 is a solid black, single sided self-adhesive tape consisting of a black PET film backing and a black tackified acrylic adhesive
tesa® 7100 features esp.
- Thickness: 100µm
- Excellent light blocking performance
- Excellent peel strength and shear resistance
- Good repulsion resistance properties
- Excellent handling performance in converting processes
- Excellent resistance to demanding environmental conditions
- Pinhole-free product design
- Very high electrical resistance
Product details and specifications
Application Fields
- Fixing of cables or constructive parts in LED light sources or Flat Panel displays
- Light shielding in consumer electronics parts
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PET film |
| Color of liner | white |
| Liner Type | glassine |
| Thickness of liner | 2.76 mils
70 µm |
| Total thickness | 3.94 mils
100 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PET film |
| Color of liner | white |
| Liner Type | glassine |
| Thickness of liner | 2.76 mils
70 µm |
| Total thickness | 3.94 mils
100 µm |
Properties / Performance Values
| Elongation at break | 80 % |
|---|---|
| Tensile strength | 34.26 lbs/in
60 N/cm |
| Temperature resistance long term | 212 °F
100 °C |
| Humidity resistance | good |
| Tack | good |
| Transmittance (380 - 780nm) < | 0.005 % |
| Temperature resistance short term | 392 °F
200 °C |
| Ageing resistance (UV) | very good |
| Dielectric breakdown voltage | 7,500 V |
| Softener resistance | good |
| Static shear resistance at 40°C | very good |
Properties / Performance Values
| Elongation at break | 80 % |
|---|---|
| Tensile strength | 34.26 lbs/in
60 N/cm |
| Temperature resistance long term | 212 °F
100 °C |
| Humidity resistance | good |
| Tack | good |
| Transmittance (380 - 780nm) < | 0.005 % |
| Temperature resistance short term | 392 °F
200 °C |
| Ageing resistance (UV) | very good |
| Dielectric breakdown voltage | 7,500 V |
| Softener resistance | good |
| Static shear resistance at 40°C | very good |
Adhesion to Values
| Adhesion to ABS (initial) | 4.17 lbs/in
7.3 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 4.51 lbs/in
7.9 N/cm |
| Adhesion to Aluminium (initial) | 3.83 lbs/in
6.7 N/cm |
| Adhesion to Aluminium (after 14 days) | 4.85 lbs/in
8.5 N/cm |
| Adhesion to Glass (initial) | 4.63 lbs/in
8.1 N/cm |
| Adhesion to Glass (after 14 days) | 5.14 lbs/in
9 N/cm |
| Adhesion to PC (initial) | 4.34 lbs/in
7.6 N/cm |
| Adhesion to PC (after 14 days) | 5.2 lbs/in
9.1 N/cm |
| Adhesion to Steel (initial) | 4.28 lbs/in
7.5 N/cm |
| Adhesion to Steel (after 14 days) | 5.42 lbs/in
9.5 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 4.17 lbs/in
7.3 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 4.51 lbs/in
7.9 N/cm |
| Adhesion to Aluminium (initial) | 3.83 lbs/in
6.7 N/cm |
| Adhesion to Aluminium (after 14 days) | 4.85 lbs/in
8.5 N/cm |
| Adhesion to Glass (initial) | 4.63 lbs/in
8.1 N/cm |
| Adhesion to Glass (after 14 days) | 5.14 lbs/in
9 N/cm |
| Adhesion to PC (initial) | 4.34 lbs/in
7.6 N/cm |
| Adhesion to PC (after 14 days) | 5.2 lbs/in
9.1 N/cm |
| Adhesion to Steel (initial) | 4.28 lbs/in
7.5 N/cm |
| Adhesion to Steel (after 14 days) | 5.42 lbs/in
9.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
