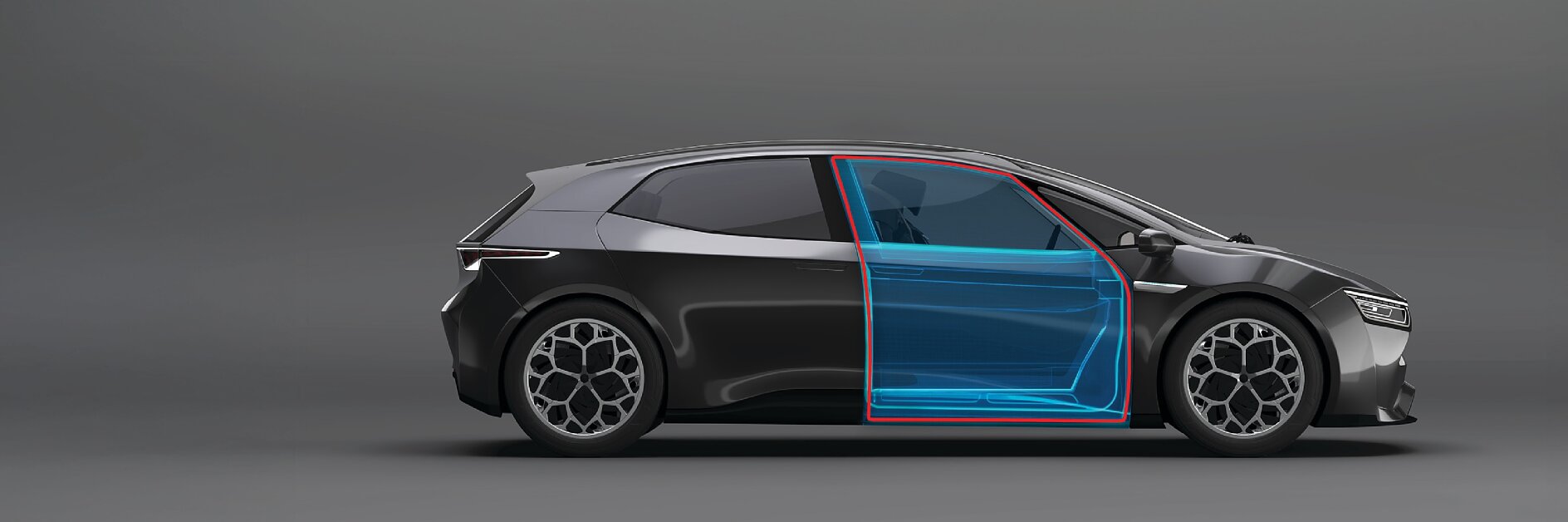

A side view of a black hatchback on gray, front door highlighted in blue and outlined in red with tesa tape to show dimensions.

Adhesive tapes for door seals.
Bond with confidence.

Car doors are opened and closed thousands of times over their lifetime, in freezing conditions and on hot summer days. For the door seals to withstand this high, repeated stress over many years, manufacturers need high-performance adhesive solutions that stand the test of time: Discover the tesa® ACXplus Seal Line range specifically created for the high demands of dynamic seals.

Performance test

See how tesa® 74712 performs in the floating roller test.

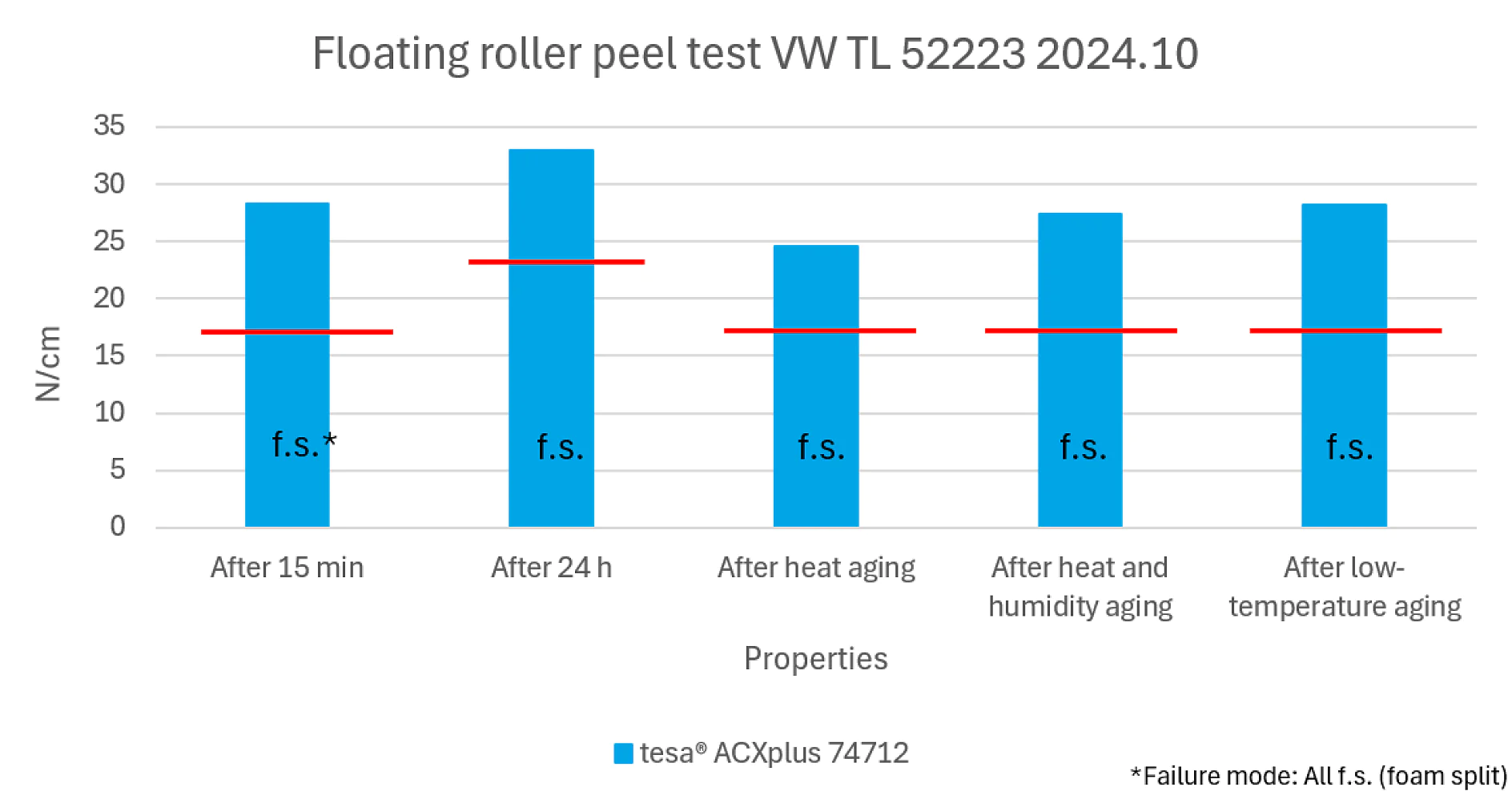

Bar graph showing floating roller peel test results for tesa tape 74712 in five conditions; blue bars show strength, red lines the average.

tesa® 747xx is designed for door seal mounting based on TL-spec, showing superior bonding performance across different test conditions.

Providing adhesive expertise to drive innovation

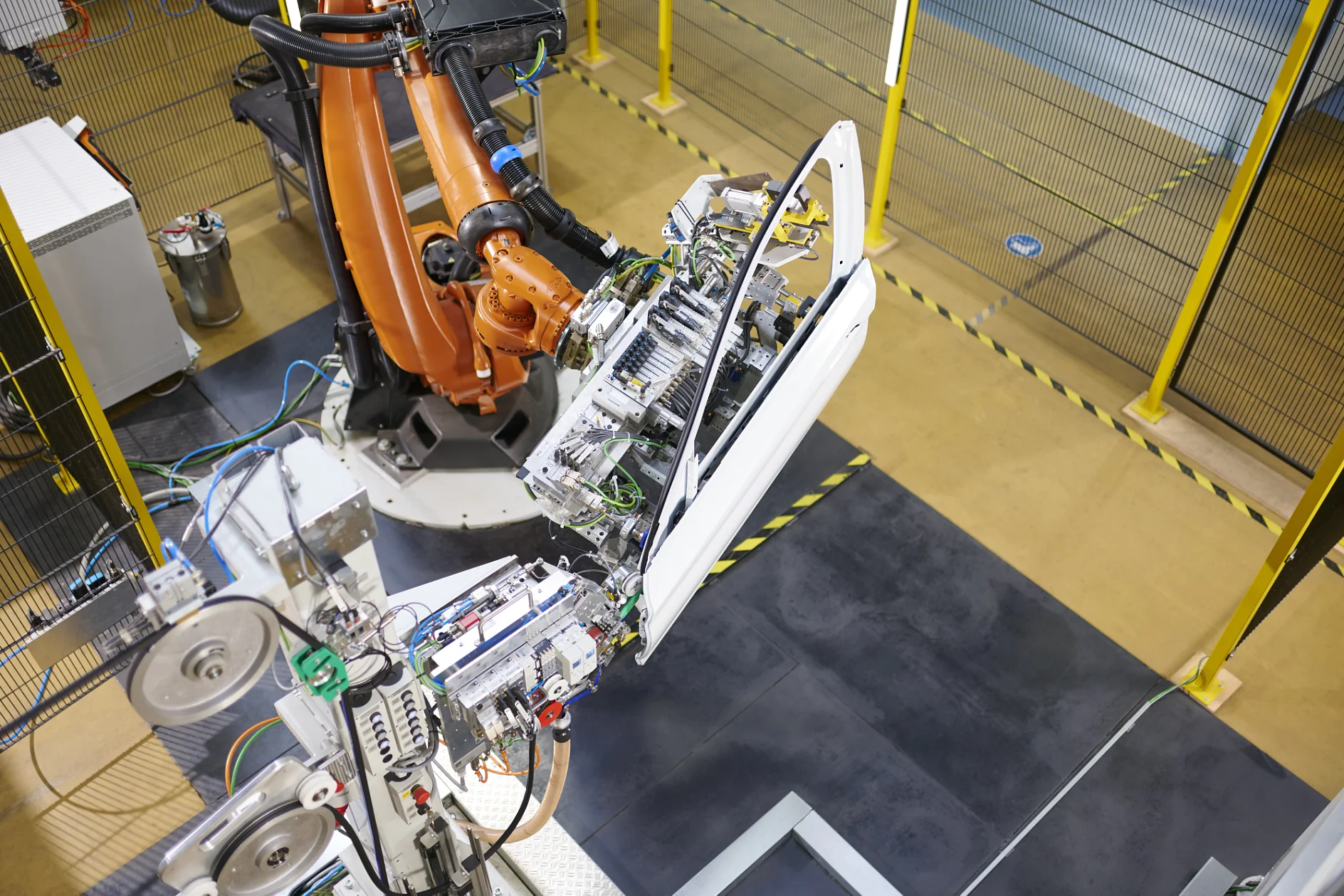

A robotic arm installs a car door with tesa tape onto a vehicle frame in a factory. Yellow safety barriers and machinery surround the area.

tesa had developed a new Seal Line tape that we knew could help our customer, a European OEM with a global footprint, secure more sales. At the same time, the OEM was keen to improve supply chain resilience with more suppliers.

The challenge was, the OEM was relying on old specifications, some of which were no longer relevant for modern seal applications but were stopping new adhesives from being considered by OES partners.

Sharing our expertise on real-life tape requirements for seal applications with both the OEM and the door seal manufacturer, we were able to highlight which data was relevant today and why, and then develop the new adhesive solutions that would fulfil their needs, both from a performance and supply chain perspective.

In this way, we are not only an adhesive tape manufacturer, but a partner that can help solve your challenges to get your seals into production.

Outstanding technical performance

Two people by a red car door discuss; one gestures as the other listens and holds the door. Car parts and a blue wall are seen.

tesa® ACXplus 74712 (opens in a new window or tab) achieved >100,000 slam cycles in door seal testing, and compliance with TL52223, for assurance of its high-quality design and performance.

Quality that endures

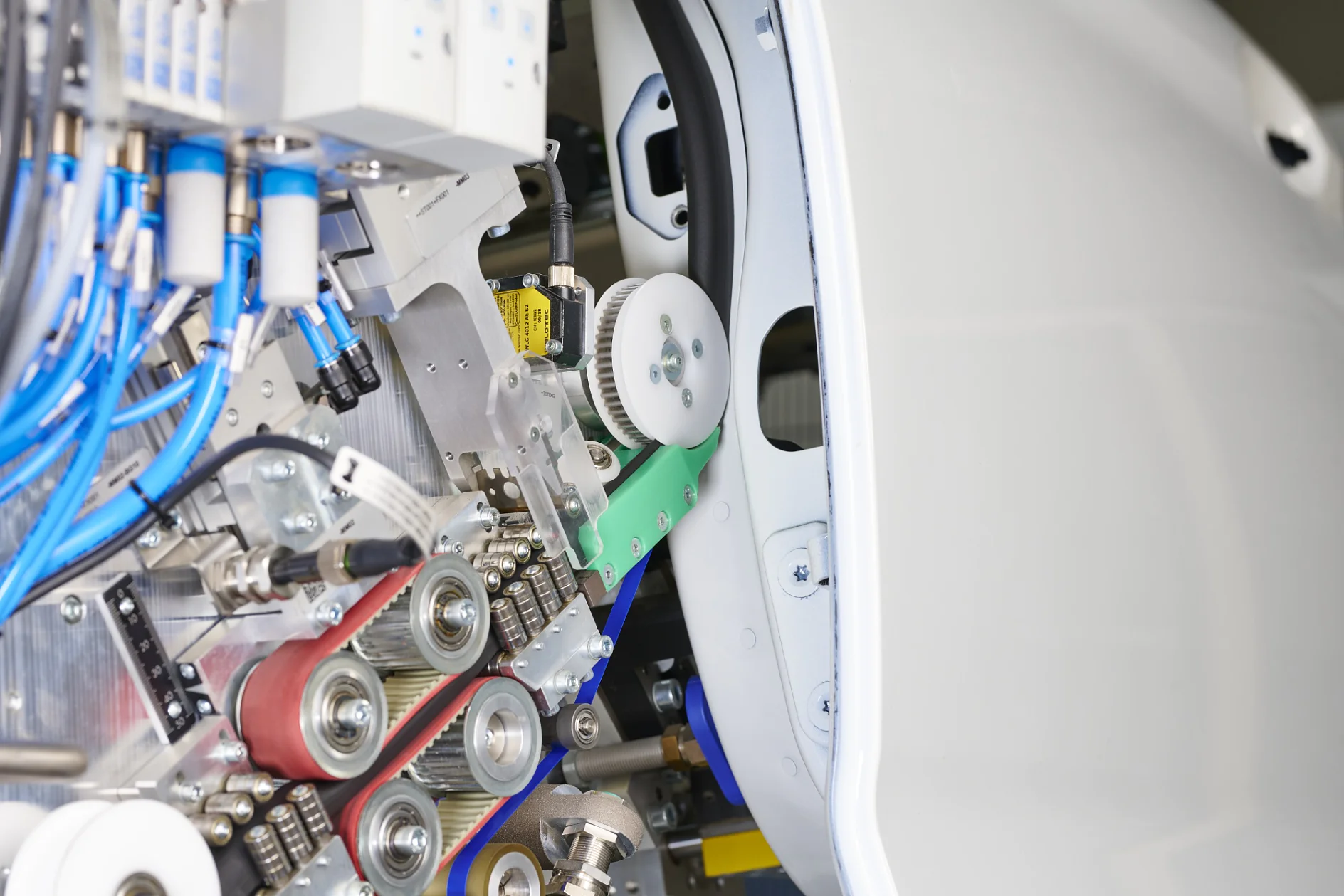

Close-up of industrial machinery with gears, belts, rollers, blue cables, and tesa tape on a smooth white curved surface in a factory.

tesa®ACXplus Seal Line is an adhesive tape designed to resist extreme temperatures, UV, and chemicals; to significantly reduce vibrations and noise; optimize stress dissipation — and do all of that over the entire lifetime of the vehicle.


Downloads

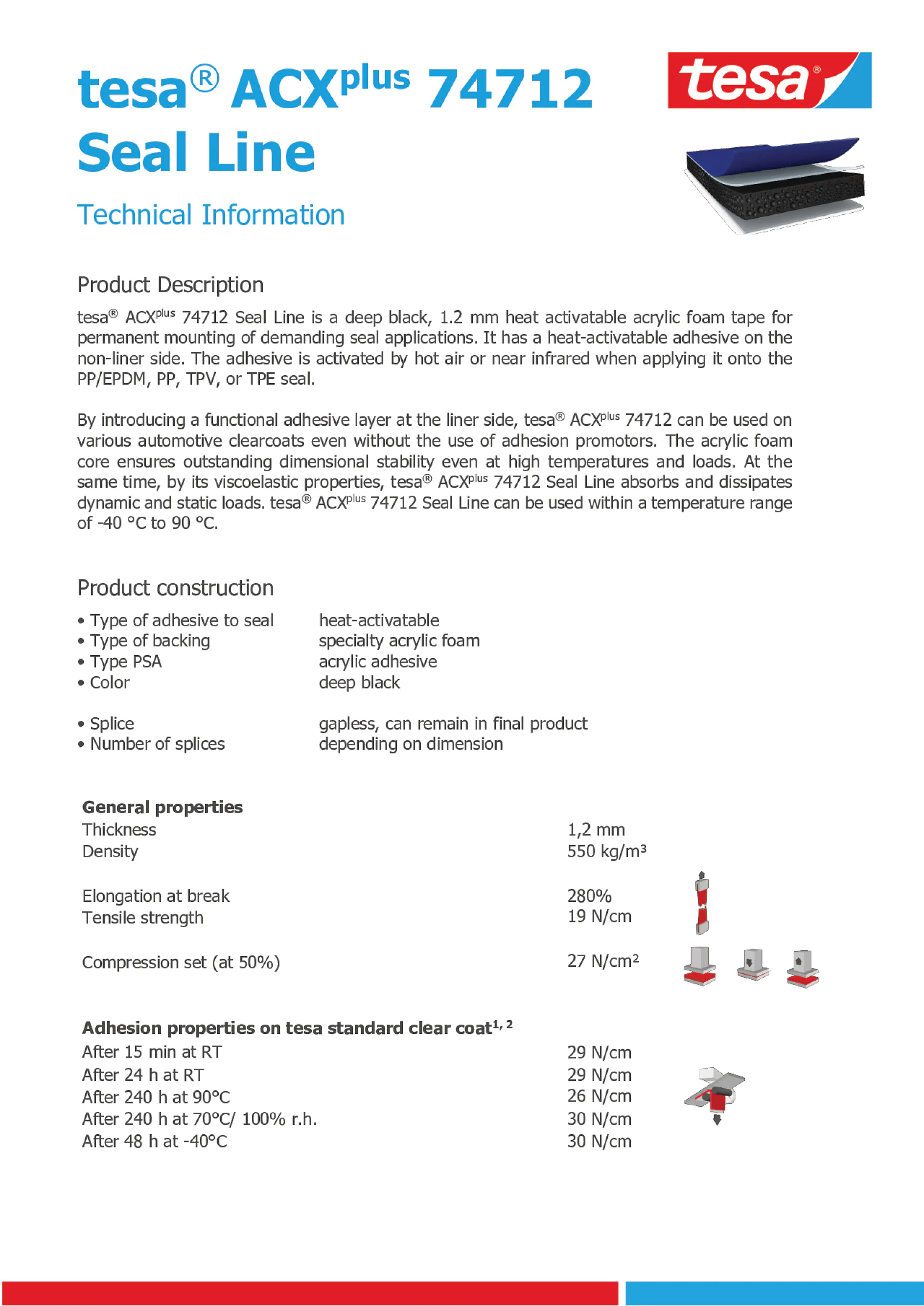

Door seal TI sheet
TI 74712 Door seal TI sheet PDF 118.8 kB
