tesa® ACXplus 74608 Seal Line
Product details and specifications

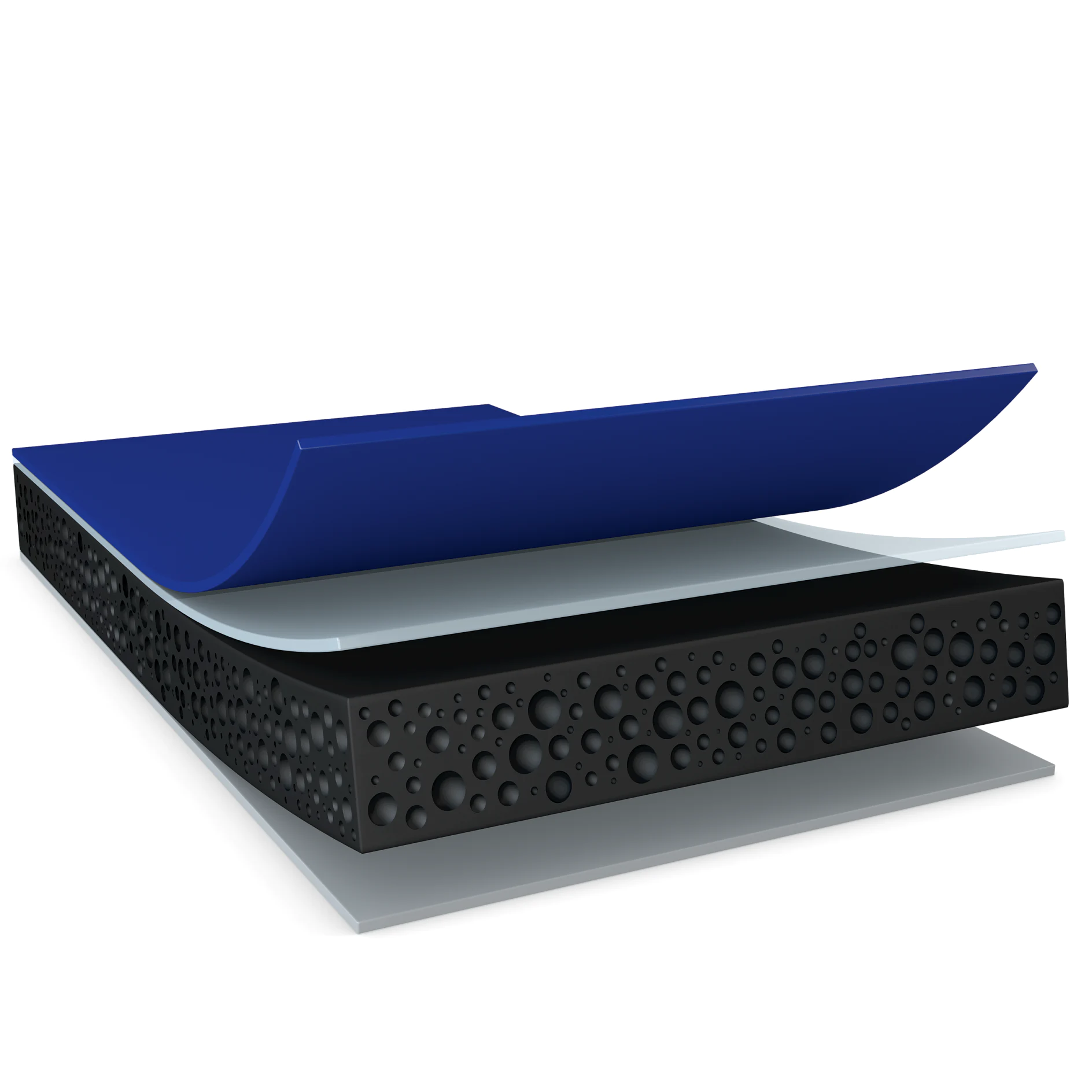

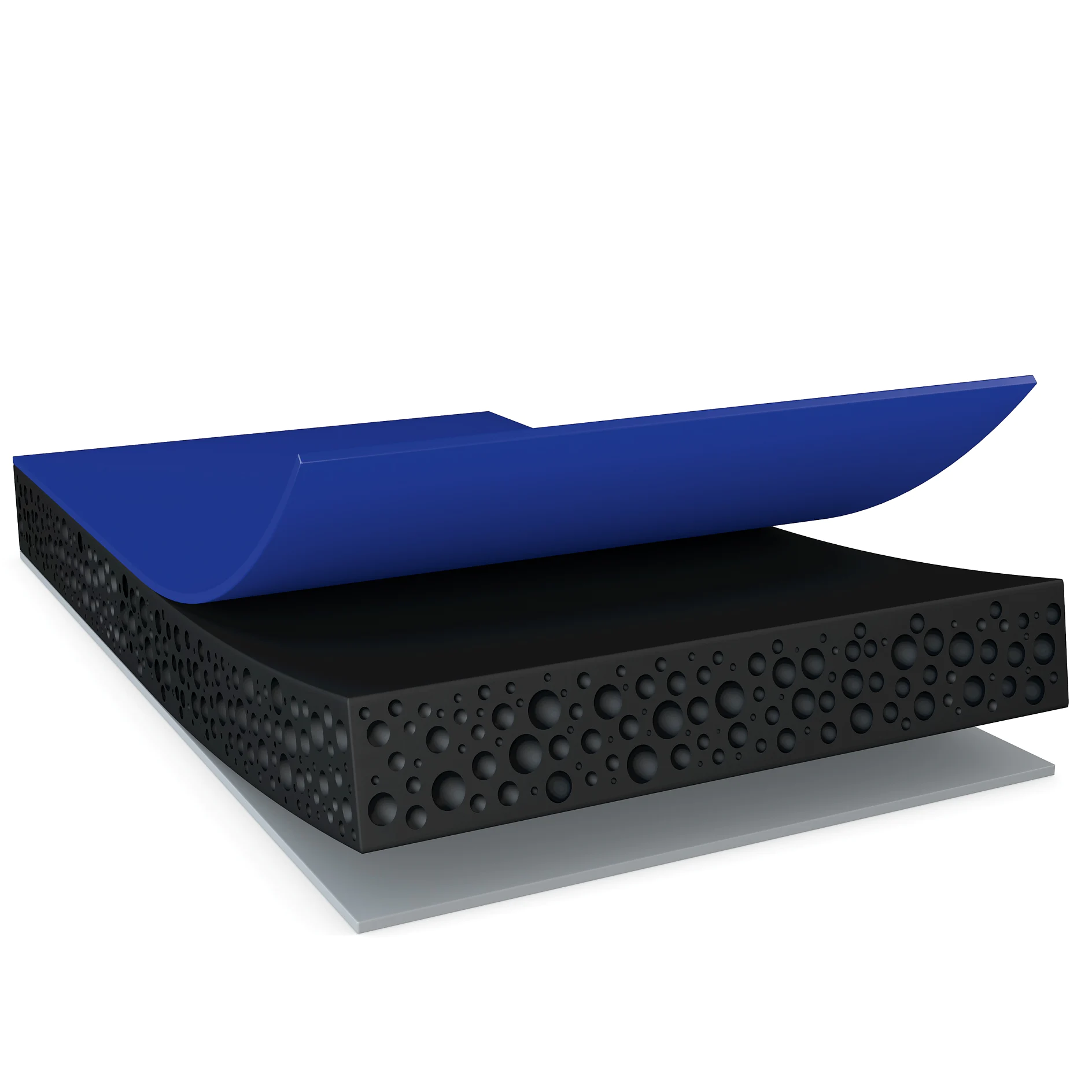

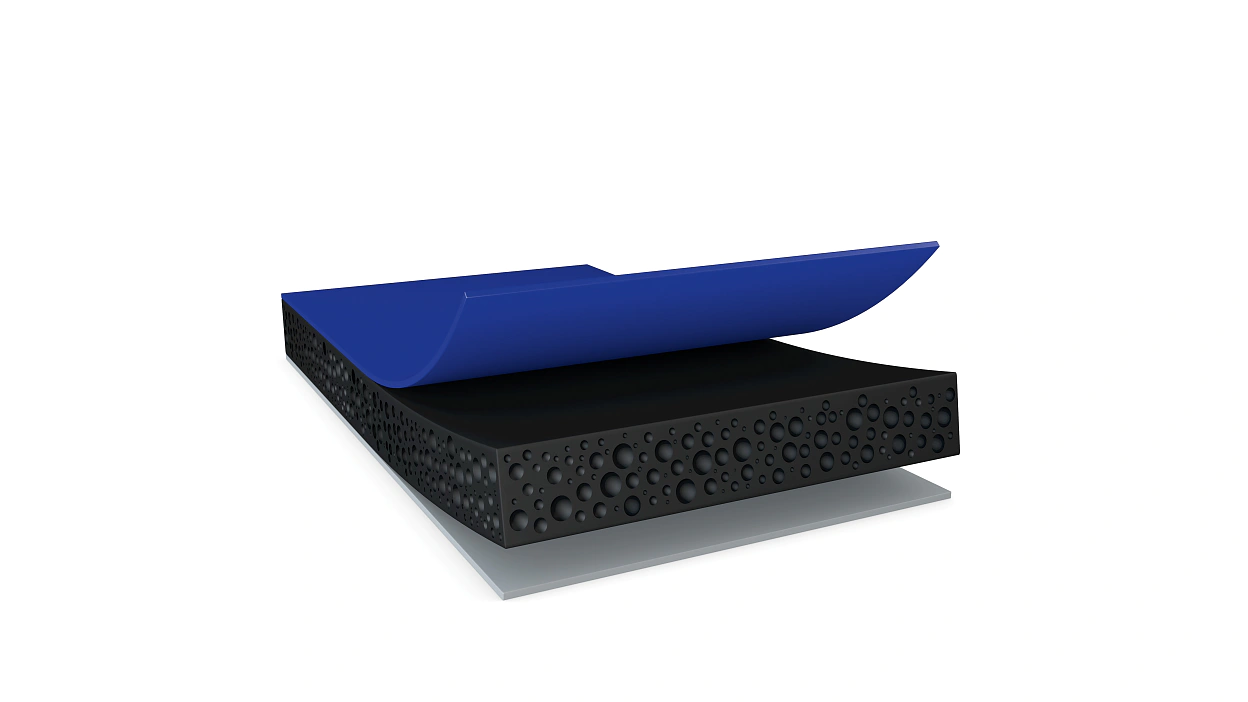

Product Construction
Adhesive Type | acrylic |
---|---|
Backing material | foamed acrylic |
Color | deep black |
Color of liner | blue |
Liner Type | PE/PP protection film |
Total thickness | 31.5 mils
800 µm |
Type of adhesive to glass | acrylic |
Type of adhesive to seal | heat-activatable |
Product Construction
Adhesive Type | acrylic |
---|---|
Backing material | foamed acrylic |
Color | deep black |
Color of liner | blue |
Liner Type | PE/PP protection film |
Total thickness | 31.5 mils
800 µm |
Type of adhesive to glass | acrylic |
Type of adhesive to seal | heat-activatable |
Properties / Performance Values
Elongation at break | 600 % |
---|---|
Tensile strength | 9.71 lbs/in
17 N/cm |
Humidity resistance | very good |
Ageing resistance (UV) | very good |
Properties / Performance Values
Elongation at break | 600 % |
---|---|
Tensile strength | 9.71 lbs/in
17 N/cm |
Humidity resistance | very good |
Ageing resistance (UV) | very good |
Adhesion to Values
Adhesion to Glass (covered side, after 20 min) | 16.56 lbs/in
29 N/cm |
---|---|
Adhesion to Glass (covered side, after 3 days) | 16.56 lbs/in
29 N/cm |
Adhesion to Steel (covered side, after 3 days) | 2.28 lbs/in
4 N/cm |
Adhesion to Steel (covered side, after 20 min) | 2.28 lbs/in
4 N/cm |
Adhesion to TPE (T-Peel, after 3 days) | 17.13 lbs/in
30 N/cm |
Adhesion to TPE (T-Peel, after 3 days warm / humid) | 15.42 lbs/in
27 N/cm |
Adhesion to Values
Adhesion to Glass (covered side, after 20 min) | 16.56 lbs/in
29 N/cm |
---|---|
Adhesion to Glass (covered side, after 3 days) | 16.56 lbs/in
29 N/cm |
Adhesion to Steel (covered side, after 3 days) | 2.28 lbs/in
4 N/cm |
Adhesion to Steel (covered side, after 20 min) | 2.28 lbs/in
4 N/cm |
Adhesion to TPE (T-Peel, after 3 days) | 17.13 lbs/in
30 N/cm |
Adhesion to TPE (T-Peel, after 3 days warm / humid) | 15.42 lbs/in
27 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
