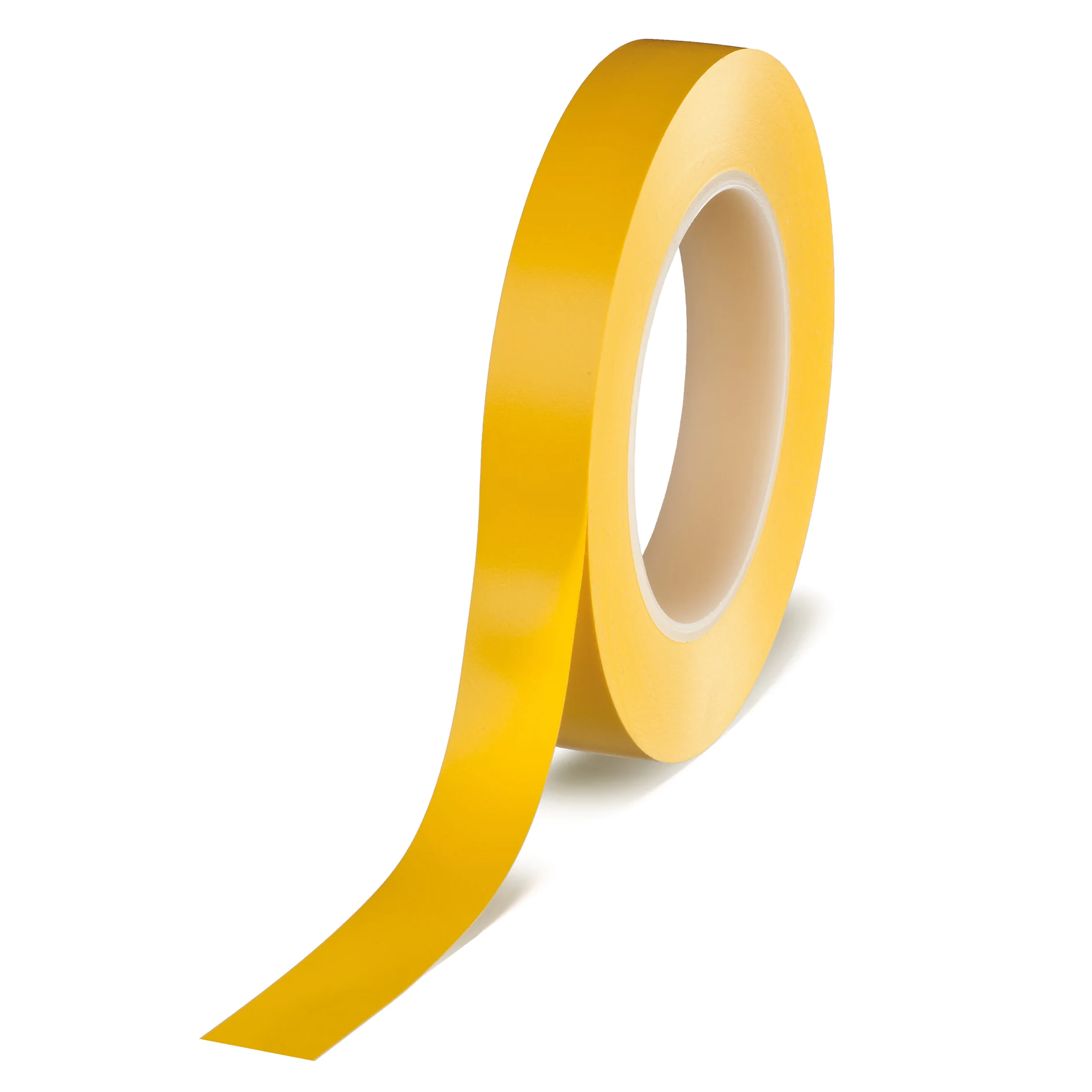

tesa® 4174

Fineline tape for design painting in the automotive industry

Product Features

Excellent masking performance on painted and non-painted substrates
No ghosting or residues until 150°C/302 °F (1h)
Good conformability with multidimensional surfaces

All product features

Product details and specifications

Product Features

Excellent masking performance on painted and non-painted substrates
No ghosting or residues until 150°C/302 °F (1h)
Good conformability with multidimensional surfaces
Edge does not lift off and residue-free removal

Application Fields

tesa® 4174 is suitable for various types of masking applications.

Example applications are:

Masking of painted and non-painted substrates (e.g. automotive plastic parts) that require sharp and flat paint edges
Two-tone car body masking

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Adhesive Type	natural rubber
Backing material	PVC film
Total thickness	110 µm

Elongation at break	200 %
Tensile strength	25 N/cm
Easy to remove	yes
Sharp color edge	yes
Paint anchorage	yes
Temperature resistance (60 min)	302 °F 150 °C
Flame retardance	very good
Suitable for die cutting	yes

Adhesion to Steel	2.11 lbs/in 3.7 N/cm

tesa® 4174 in small width (<10mm): adhesion to steel = 2,4N/cm 21.9 oz/in
tesa® 4174 is also available for converting and die-cutting with a paper liner 4174 PV4: adhesion to steel = 4.4N/cm, peel off force from liner = 14 cN/cm 1.3 oz/in
Also available as customized die cuts upon request as tesa® 54174

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
