tesa® 53166
Coated cloth tape
Product description

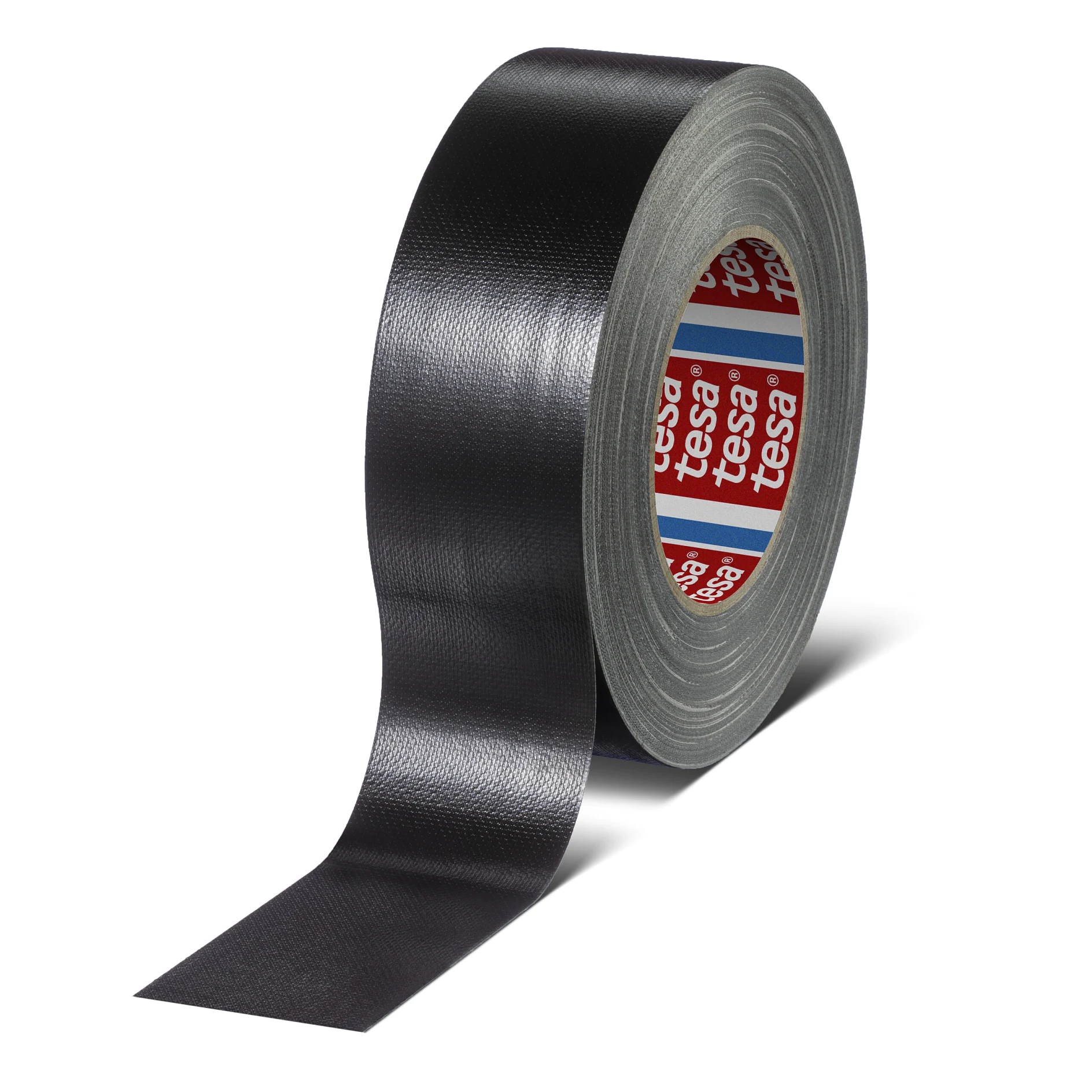

tesa® 53166 is black Polyethylene extruded cloth tape. It is based on a 55mesh woven PET/rayon fabric backing coated with a pressure sensitive natural rubber adhesive.
Features:
- strong adhesion
- very easy to tear by hand
- water resistant
- ageing resistant
- flexible
- low unwinding force
- 105°/3000h
Product details and specifications
Product Construction
| Backing material | rayon cloth |
|---|---|
| Total thickness | 260 µm |
| Type of adhesive | natural rubber |
Product Construction
| Backing material | rayon cloth |
|---|---|
| Total thickness | 260 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 9 % |
|---|---|
| Tensile strength | 52 N/cm |
| Unwind force (roll width ≤ 9mm) | 3.5 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 3.5 N/roll (30 m/min) |
Properties / Performance Values
| Elongation at break | 9 % |
|---|---|
| Tensile strength | 52 N/cm |
| Unwind force (roll width ≤ 9mm) | 3.5 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 3.5 N/roll (30 m/min) |
Adhesion to Values
| Adhesion to steel | 3.4 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 3.4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
