tesa® 51006

PET cloth tape for abrasion protection


Product description

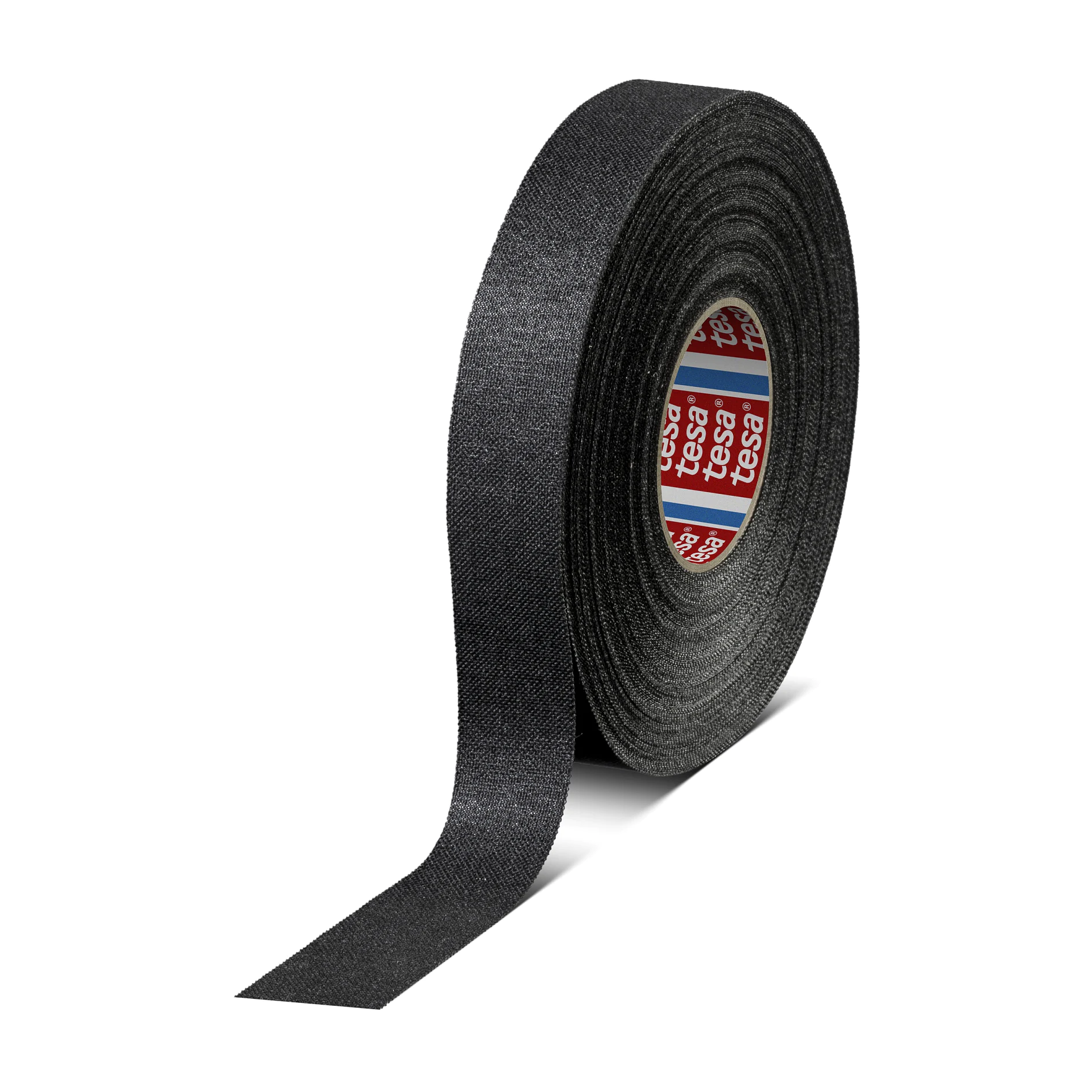

tesa® 51006 is a PET cloth wire harness tape with a rubber based adhesive.

Major Features:

  • High temperature resistance 150°C/3000h
  • Abrasion resistant
  • Strong adhesion

Color: Black


Product details and specifications

Application Fields

tesa® 51006 is designed for the engine compartment, providing abrasion protection.
Backing material PET cloth
Total thickness 320
Type of adhesive rubber based
Elongation at break 22 %
Tensile strength 175
Unwind force (roll width > 9mm) 10 N/roll (30 m/min)
Temperature resistance min. -40 °C
Abrasion resistance (10mm mandrel, LV312) Class C
Temperature resistance max. 150 °C
Unwind force (roll width ≤ 9mm) 10 N/roll (30 m/min)
Abrasion resistance (5mm mandrel, LV312) Class B
Noise damping (LV312) Class A
Adhesion to steel 4.5 N/cm
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 25 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm

  • Applicable for red ring assembly aid
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 51006 tesa® 51036 PV2 OR tesa® 51025 PV10 tesa® Sleeve 51036 PV9 A tesa® Spiralsleeve 51026 PV5 tesa® Sleeve 51026 PV9 tesa® 51026 tesa® Sleeve 51036 PV9 tesa® Supersleeve 51026 PV6 tesa® Sleeve 51036 PV9 OR tesa® 51616 ID
Total thickness
320
150 µm
220 µm
530 µm
220 µm
260 µm
220 µm
530 µm
220 µm
650 µm
Type of adhesive
rubber based
rubber based
acrylic
acrylic
acrylic
acrylic
acrylic
acrylic
acrylic
rubber based
Backing material
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET fleece
Temperature resistance max.
150 °C
150 °C
125 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
105 °C
Adhesion to steel
4.5 N/cm
3 N/cm
6.5 N/cm
5 N/cm
5.5 N/cm
5.5 N/cm
5.5 N/cm
5 N/cm
5.5 N/cm
5 N/cm
3 N/cm
Temperature resistance min.
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
