Elektricky vodivá páska

Elektricky vodivá lepiaca páska (ECT) sa používa pri citlivých aplikáciách, ako sú produkty v automobilovom, leteckom, obranný, zdravotníckom a telekomunikačnom priemysle. ECT je navrhnutá s vodivými lepidlami citlivými na tlak a rozličnými vodivými podkladmi. Ponukou širokého sortimentu plnených akrylových lepiacich systémov s rovnováhou medzi elektrickou vodivosťou a adhezívnymi vlastnosťami dokážeme poskytnúť to najlepšie riešenie pre vaše požiadavky.

Naša obojstranná páska je k dispozícii s dvoma rozličnými podkladmi. Tkaný podklad ponúka vyššiu odolnosť proti roztrhnutiu, veľmi dobrú rozmerovú stabilitu a lepšiu opätovnú spracovateľnosť, zatiaľ čo netkaný podklad poskytuje rýchlejšie zmáčanie, vynikajúcu prispôsobivosť a veľmi dobrú rezateľnosť.

A cross-section illustration of layered material, depicting various textures and colors. The layers include a smooth top layer, a mesh layer, and other textured layers, with a small symbol on the left side indicating layering.

Funkcie

An icon illustrating data compression or expansion. It shows two horizontal bars with a central middle section and arrows pointing up and down, indicating compressing or expanding actions. The background is black, featuring the brand name tesa tape. (This text has been generated by AI)
Vysoký lepiaci výkon
A black square frame with a stylized white logo of four petals, one outlined. The design resembles a flower or propeller. (This text has been generated by AI)
Vysoká vodivosť
Create a stylized representation of a serrated knife blade icon in grayscale using tesa tape. The top edge forms a wave pattern, highlighting the serrations fashioned with tesa tape. The handle is depicted with a darker shade of gray compared to the blade, crafted using more layers of tesa tape. The background remains white to enhance the contrast with tesa tape elements. (This text has been generated by AI)
Ochrana proti odporu

Typické aplikácie

Illustration of a vinyl record player with a black tonearm and cartridge above a record. A red portion is visible on the turntable base, along with geometric shapes and a grey background. The tonearm, made using tesa tape, is positioned over the stylus. (This text has been generated by AI)

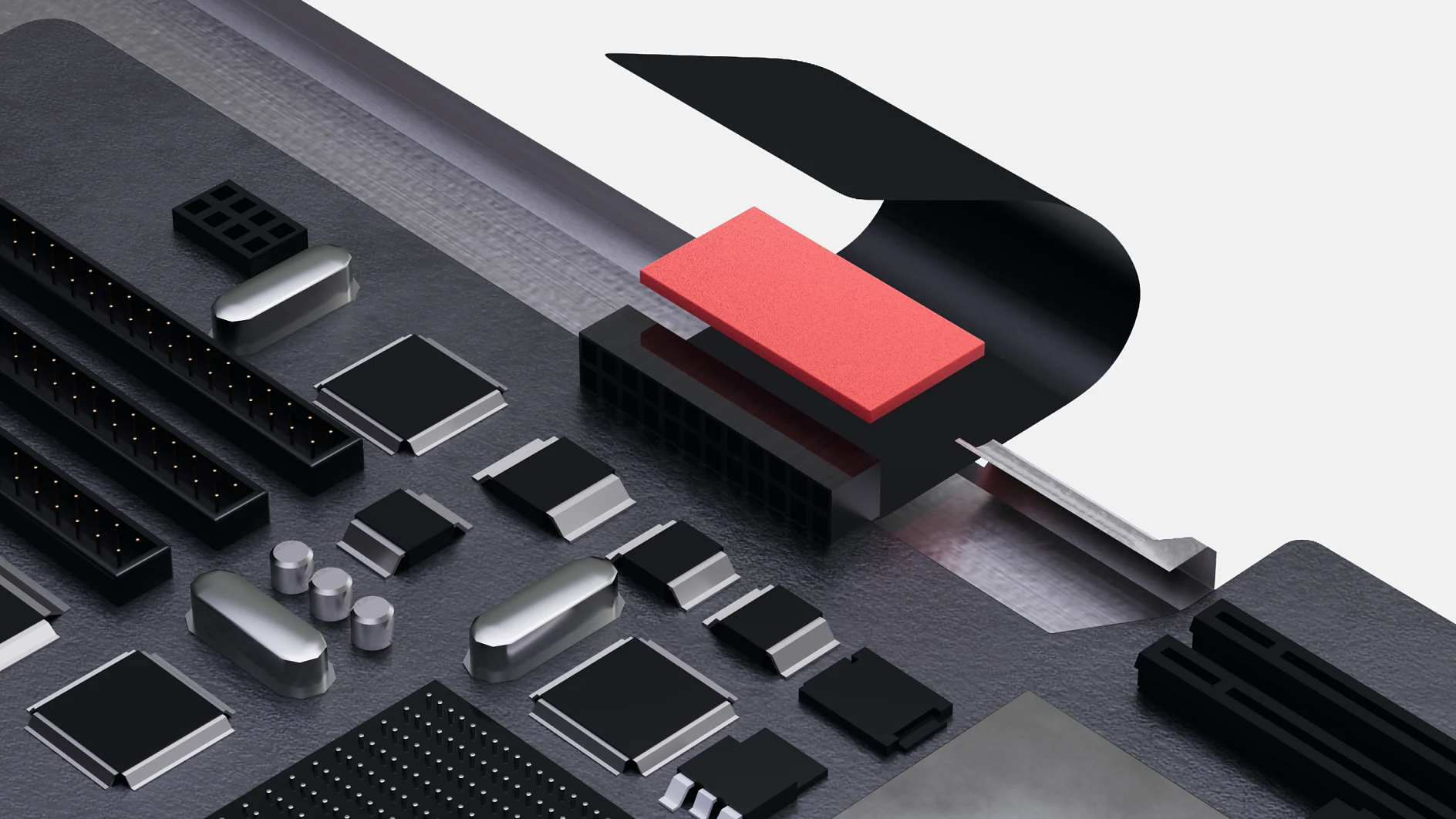

Uzemnenie FPC
Illustration of the interior of a smartphone, showing a circuit board with various components. A red piece, likely a tool, is positioned near the top left, highlighting a section of the circuitry sealed with tesa tape. (This text has been generated by AI)

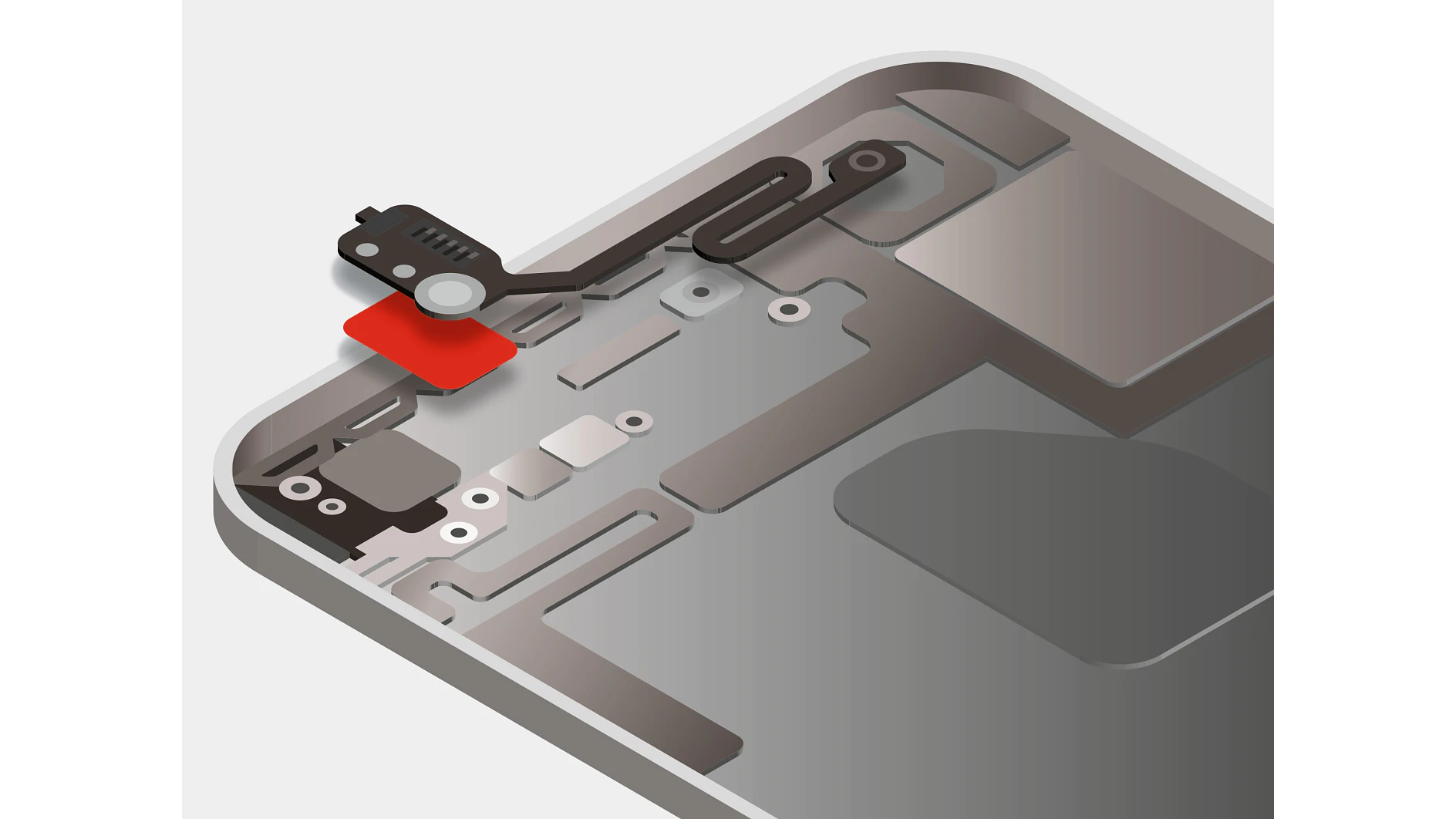

Uzemnenie antény

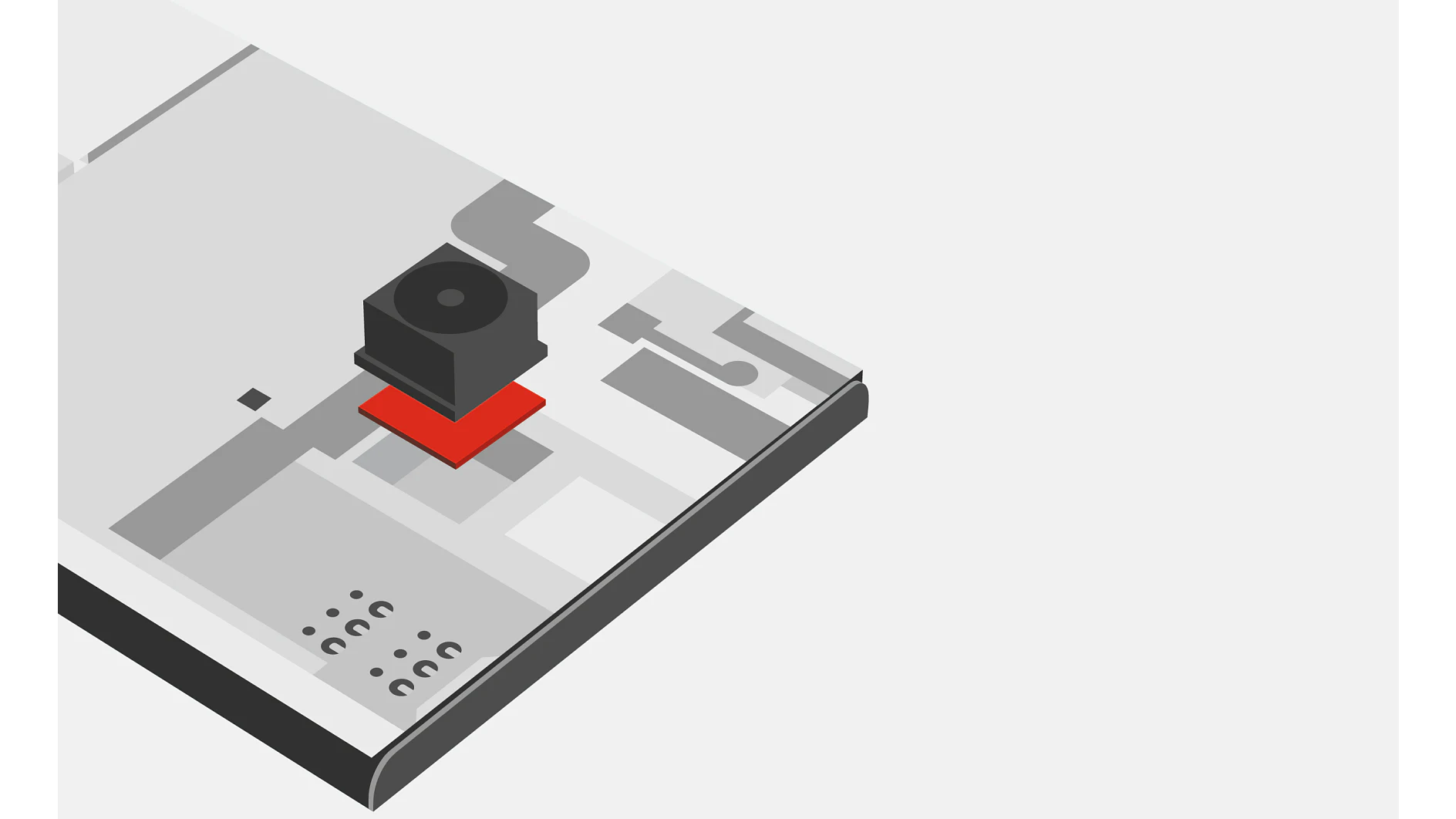

handykamera
Uzemnenie fotoaparátu

Fakty a čísla

Výrobok tesa®1Typ a podkladTyp lepidlaHrúbka [μ]FarbaLog m/mmKrycia vrstva a hrúbkaPriľnavosť pri odlupovaní k SUS
(počiatočný/konečný) [N/cm]
Kontaktný odpor
[mΩ.inch2]
Povrchová odolnosť
[mΩ.inch2]
Účinnosť tienenia
[dB]

tesa® 60371

Obojstranné; Netkané

Vodivý akryl30Čierny100 x 1,040PET 50µ3,5 / 5,10,010,1>60

tesa® 60372

Obojstranné; Netkané

Vodivý akryl50Čierny100 x 1,040PET 50µ4,3 / 5,60,010,1>60

tesa® 60374

Obojstranné; Netkané

Vodivý akryl100Čierny50 x 1,040PET 50µ5,7 / 8,50,010,1>60
tesa® 60252Obojstranné; TkanéVodivý akryl55Šedý50 x 1,040

PE papier 120μ

5,5 / 8,5

0,050,2>50
tesa® 60253Obojstranné; TkanéVodivý akryl70Šedý50 x 1,040

PCK 120µ

4,8 / 9,7

0,050,2>50
tesa® 60254Obojstranné; TkanéVodivý akryl100Šedý

50 x 1,220

PCK 120µ

6,6 / 10,4

0,050,2>50
tesa® 60255Obojstranné; TkanéVodivý akryl150Šedý50 x 1,040

PCK 120µ

4,5 / 10,5

0,050,2>50

Funkcie

Diagram of sonar technology. Sound waves travel towards a rectangular object, bounce off at an angle, and continue in a different direction. Arrows indicate the path and reflection of the sound waves. (This text has been generated by AI)
Tienenie EMI (elektromagnetické)
A pixelated image of a pork pie hat with a small feather on the side, held together using tesa tape. The hat is brown with lighter brown shading and a black band. The pixel art style gives it a vintage, digital appearance. (This text has been generated by AI)
Moderný vzhľad
Create a stylized representation of a serrated knife blade icon in grayscale using tesa tape. The top edge forms a wave pattern, highlighting the serrations fashioned with tesa tape. The handle is depicted with a darker shade of gray compared to the blade, crafted using more layers of tesa tape. The background remains white to enhance the contrast with tesa tape elements. (This text has been generated by AI)
Ochrana proti odporu

Typické aplikácie

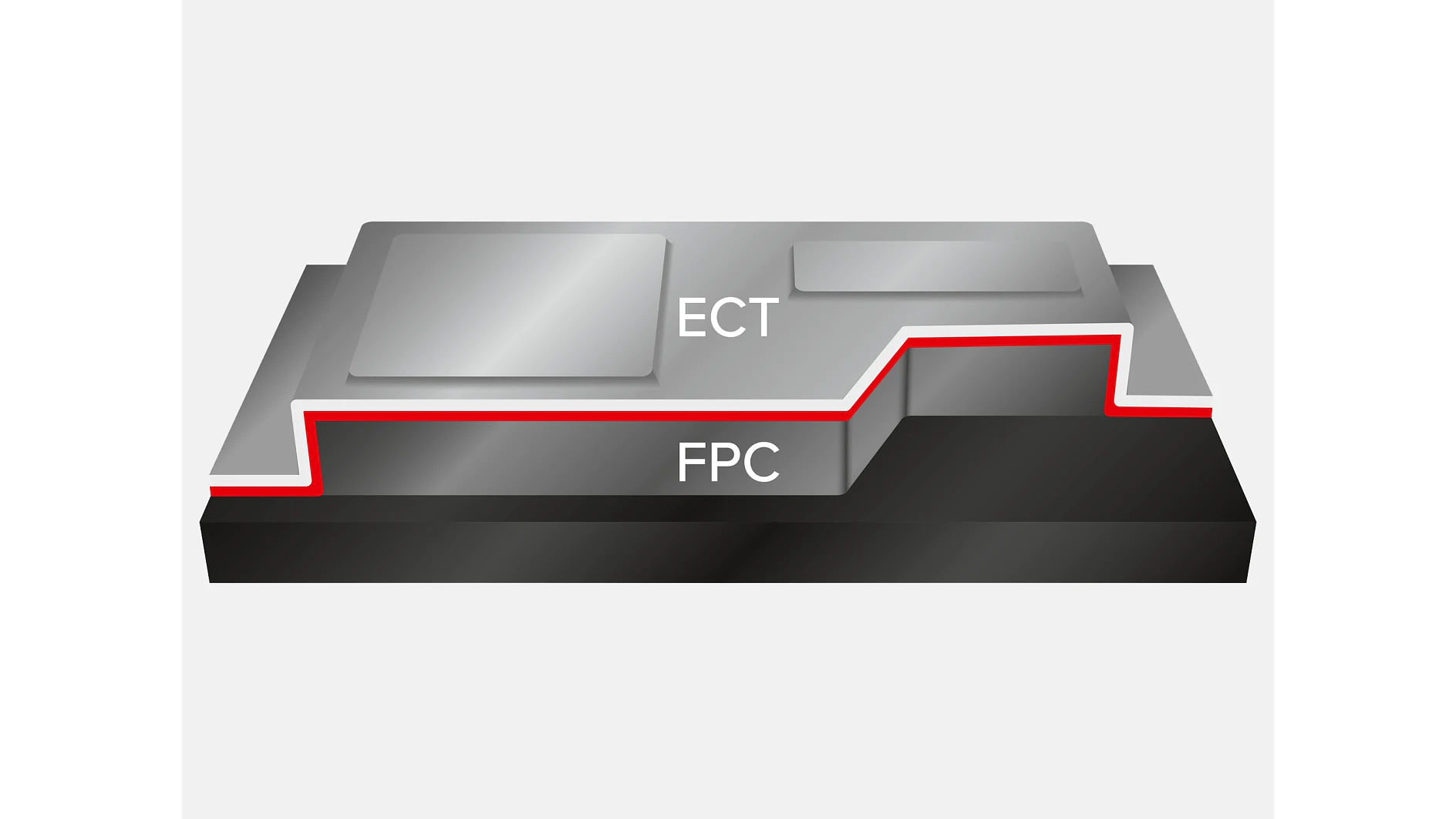

A diagram displays two interconnected blocks, one labeled ECT on the upper left and the other FPC centrally located. The blocks are connected by a red line against a gradient background of gray and black. (This text has been generated by AI)
FPC krytie

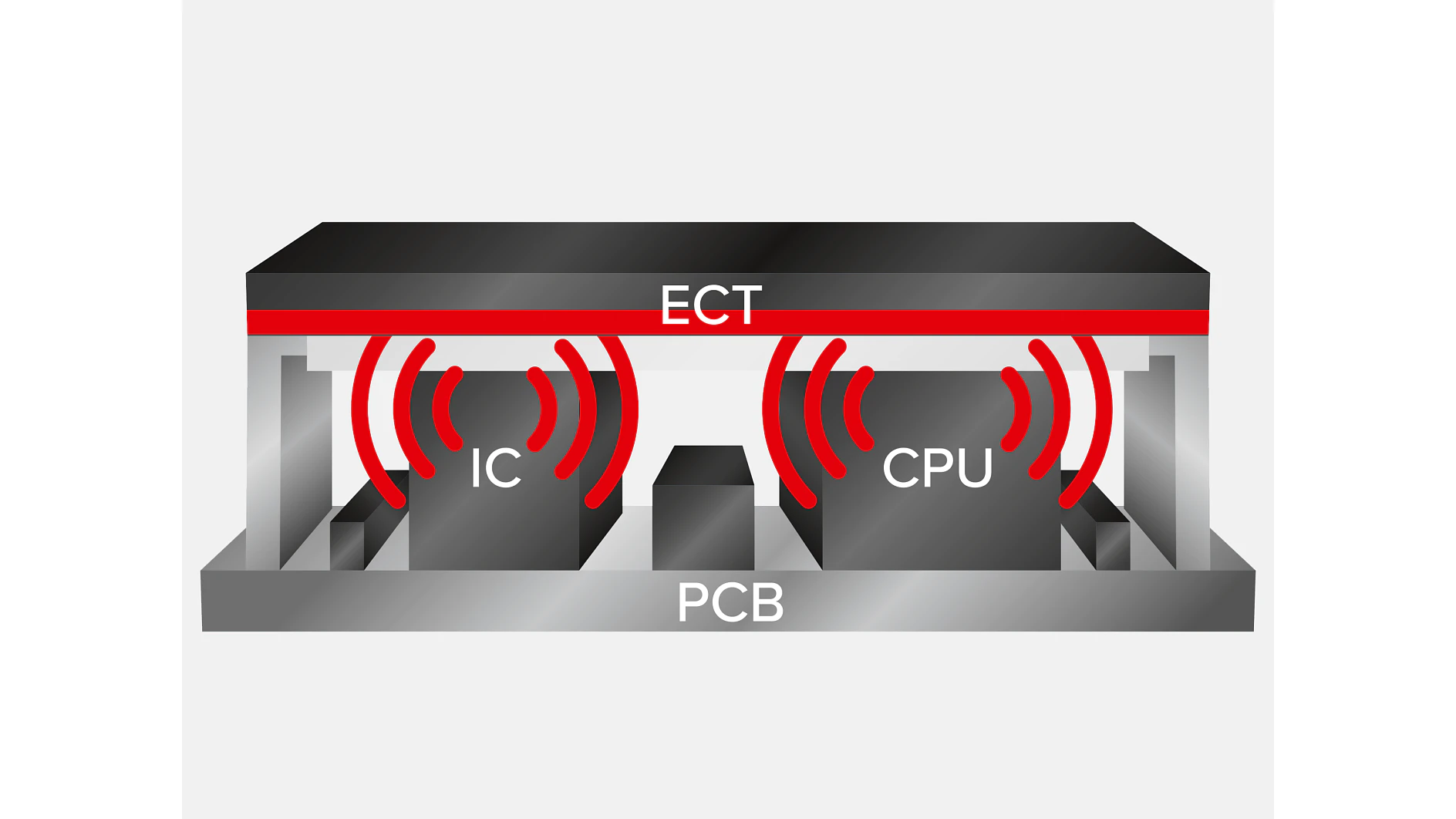

Diagram showing a cross-section of a PCB with two components labeled IC and CPU. A red line labeled ECT runs above the components, with red waves emitting from the IC and CPU towards the ECT. (This text has been generated by AI)
Tienenie môže

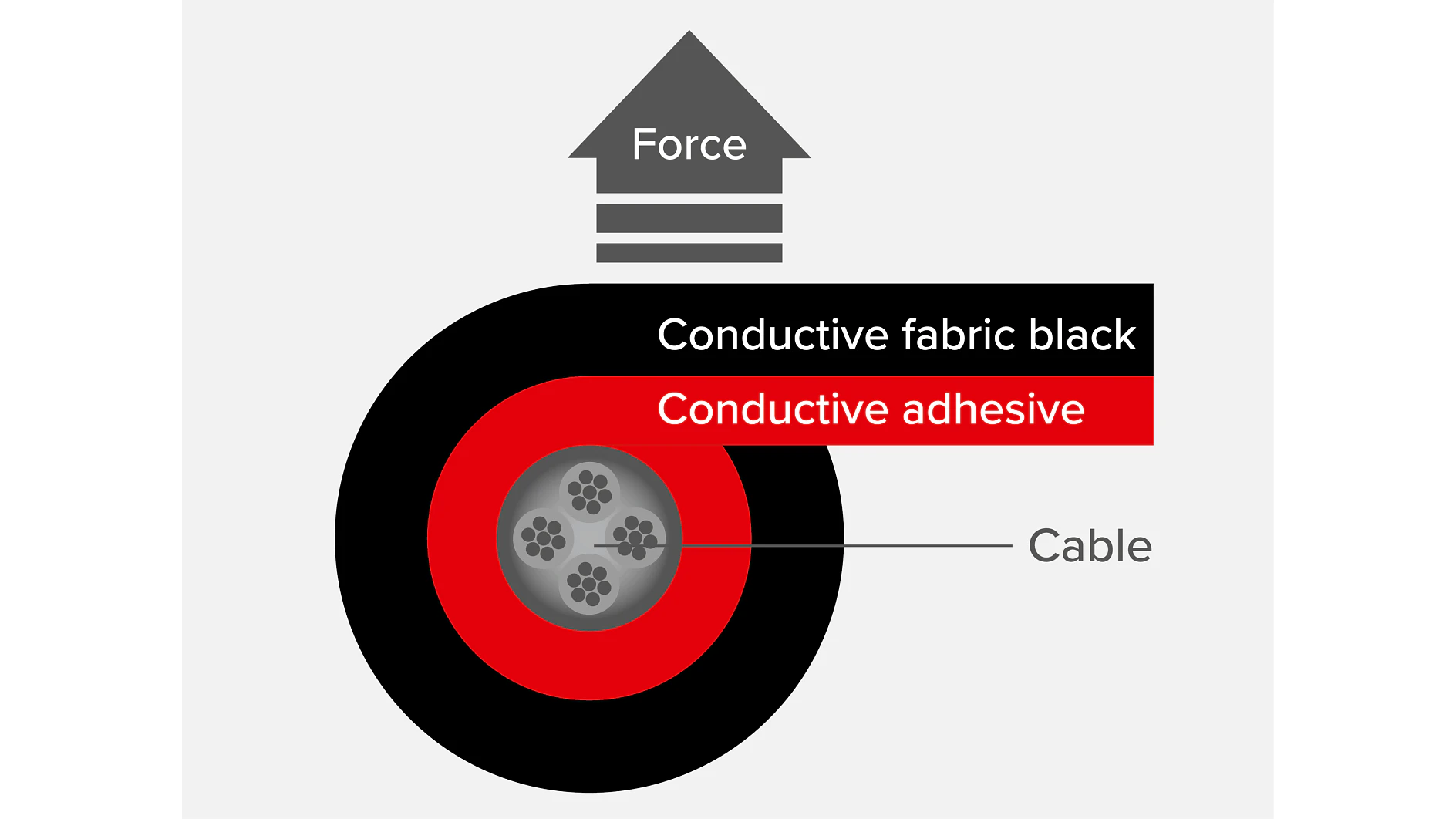

Diagram of a cable wrapped in conductive adhesive and black conductive fabric. An arrow labeled Force points upwards, indicating pressure or force being applied. The cable is illustrated in cross-section with multiple cores, securely bound by tesa tape. (This text has been generated by AI)
Ovinutie drôtom

Fakty a čísla

Výrobok tesa®1Typ a podkladTyp lepidlaHrúbka [μ]FarbaLog m/mmKrycia vrstva a hrúbkaPriľnavosť pri odlupovaní k SUS(počiatočná/konečná) [N/cm]Kontaktný odpor[mΩ.inch2]Povrchový odpor[mΩ.inch2]Účinnosť tienenia[dB]

tesa® 60537

Jednostranné; Meď

Vodivý akryl30Meď50 x 1,020PET 50µ6,3 / 7,50,050,2>70

tesa® 60538

Jednostranné; Meď

Vodivý akryl50Meď50 x 1,020PET 50µ6,4 / 7,70,050,2>70
tesa® 4386Jednostranné; HliníkVodivý akryl85Striebro50 x 1 000

Papier 65μ

/ 3,0-0,2-
Jednostranná penová ECT

Jednostranná penová páska na vodivé vyplnenie medzier

Naša jednostranná elektricky vodivá penová páska sa dá použiť na tienenie, uzemnenie a vyplnenie medzier. Poskytuje buď vynikajúcu prispôsobivosť a regeneračné vlastnosti, alebo veľmi vysokú odolnosť proti oderu v závislosti od zvoleného penového materiálu. Všetky série v tomto sortimente majú veľmi dobré pohlcovacie vlastnosti a tlmenie nárazov.

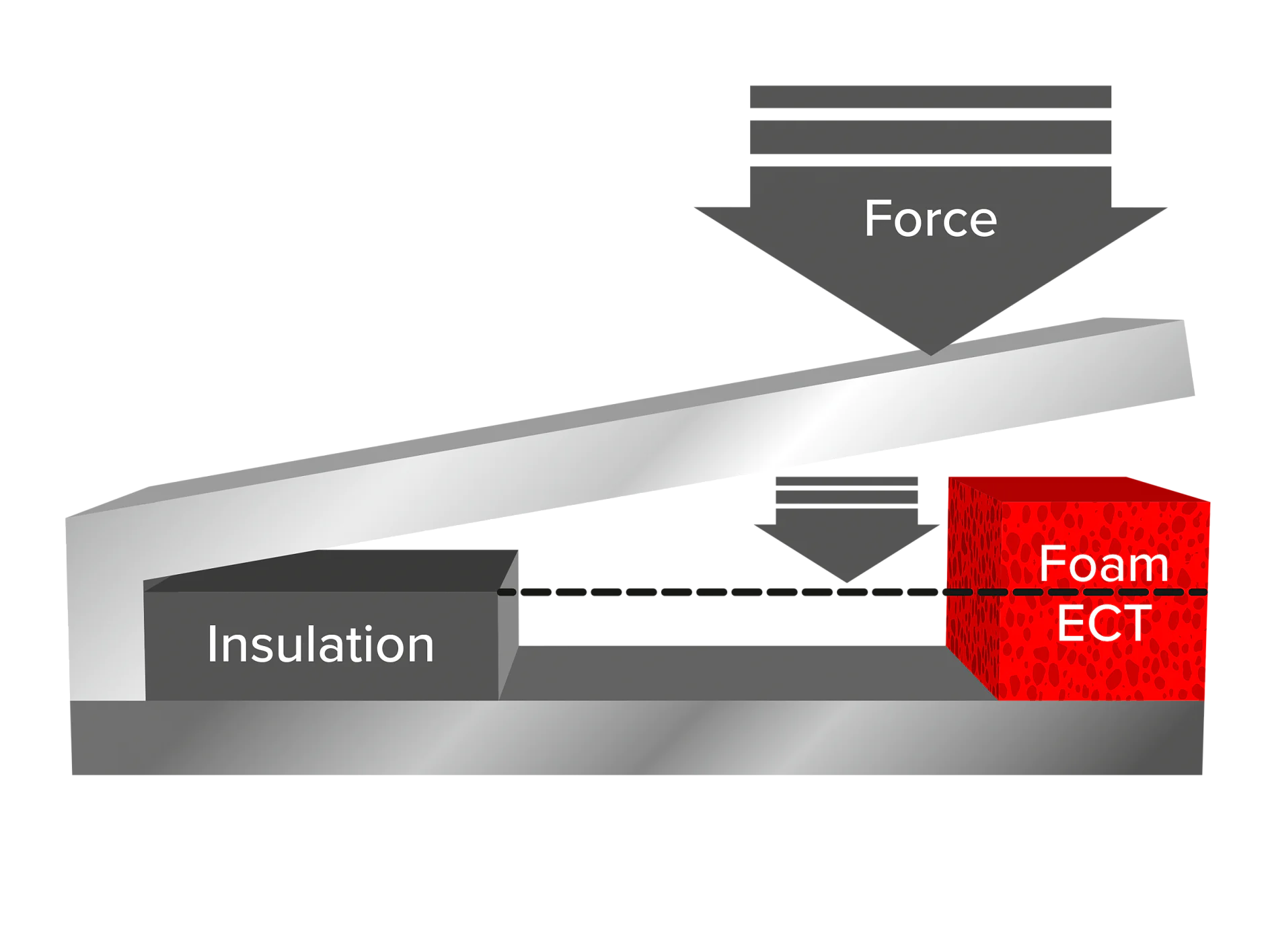

Diagram illustrating a cantilever structure, showing force applied on one end and a red block labeled Foam ECT at the other end, supported by insulation with tesa tape. Arrows indicate direction of force and support points wrapped in tesa tape.

Funkcie

Diagram showing sound waves hitting a rectangular object, with arrows indicating reflection and direction change. Dashed lines inside the rectangle represent the path of the sound waves. (This text has been generated by AI)
Tienenie EMI (elektromagnetické)
A black square frame with a stylized white logo of four petals, one outlined. The design resembles a flower or propeller. (This text has been generated by AI)
Elektrická vodivosť
Illustration of a gray textured surface with raised circular bumps. Above it, there is a separate gray shape resembling a downward-pointing symbol with three horizontal lines. Both elements are set against a black background and highlighted using tesa tape to emphasize the design features without including any competitor brands. (This text has been generated by AI)
Stlačiteľnosť

Typické aplikácie

Close-up of a computer motherboard section featuring various components, including several rectangular capacitors, black connectors, and a prominent red heatsink. The background is a light gray surface. (This text has been generated by AI)
Uzemnenie FPC
Close-up of a computer motherboard featuring various components such as chips, capacitors, and heatsinks. The board is mostly grey with black and metallic elements. Two red tesa tape brackets are visible on the left and right edges of the board. (This text has been generated by AI)

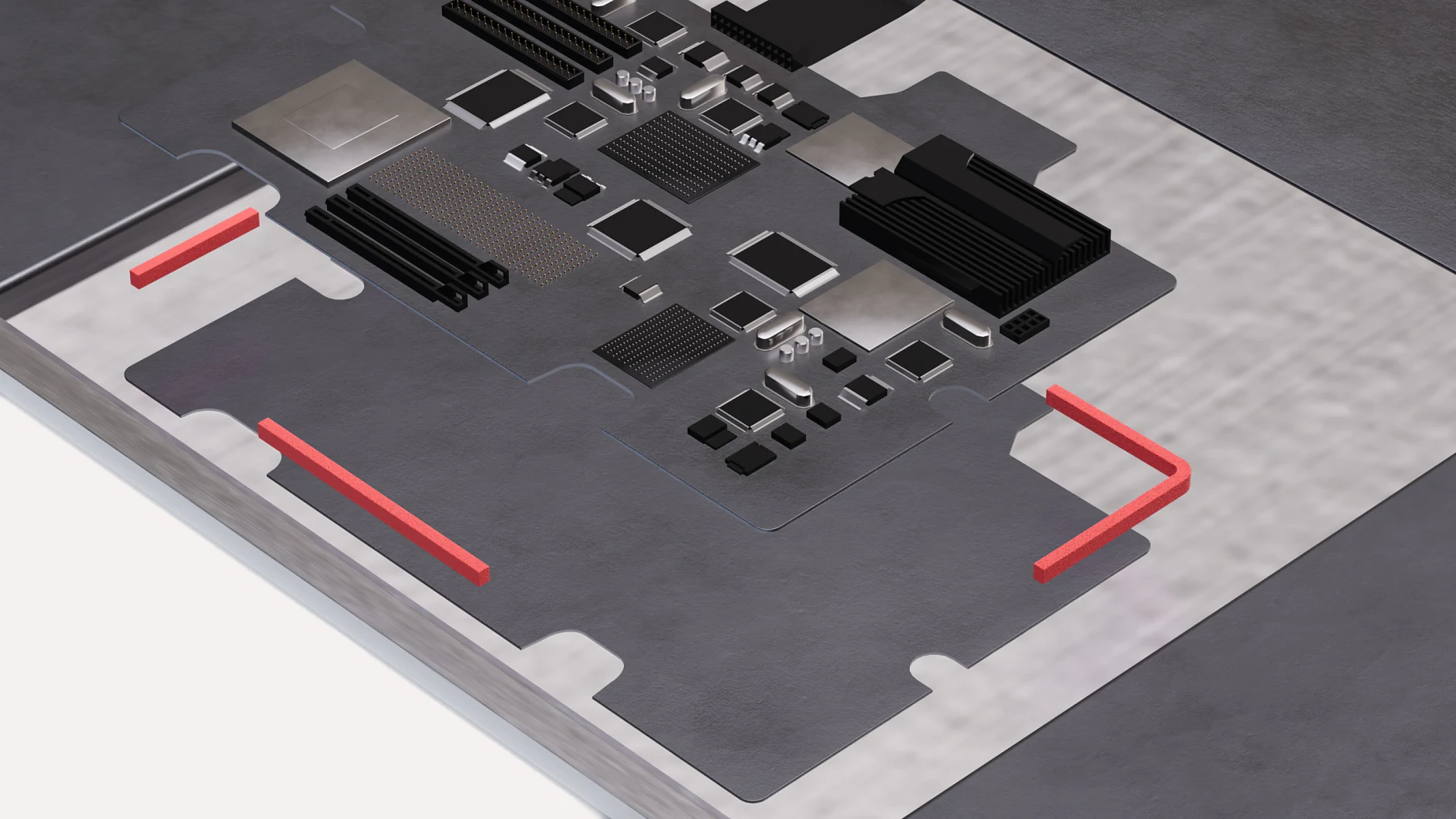

Uzemnenie MLB

Fakty a čísla

Výrobok tesa®1Typ a podkladTyp lepidlaHrúbka [μ]FarbaLog m/mmKrycia vrstva a hrúbkaPriľnavosť pri odlupovaní k SUS(počiatočná/konečná) [N/cm]Kontaktný odpor[mΩ.inch2]Povrchový odpor[mΩ.inch2]Účinnosť tienenia[dB]

tesa® 60246

Jednostranná pena

Vodivý akryl300Šedý40 x 1,030PCK 120µ

4,8 / 6,3

0,03

0,2

>70

tesa® 60248

Jednostranná penaVodivý akryl500Šedý30 x 1,030PCK 120µ

4,8 / 6,3

0,03

0,2

>70

tesa® 60217

Jednostranná penaVodivý akryl1 500Šedý30 x 1 000PCK 120µ/ 8,5

0,03

0,2

>70

tesa® 60218Jednostranná penaVodivý akryl2 000Šedý20 x 1 000PCK 120µ/ 8,5

0,03

0,2

>70
